Power Seats
Power Seats

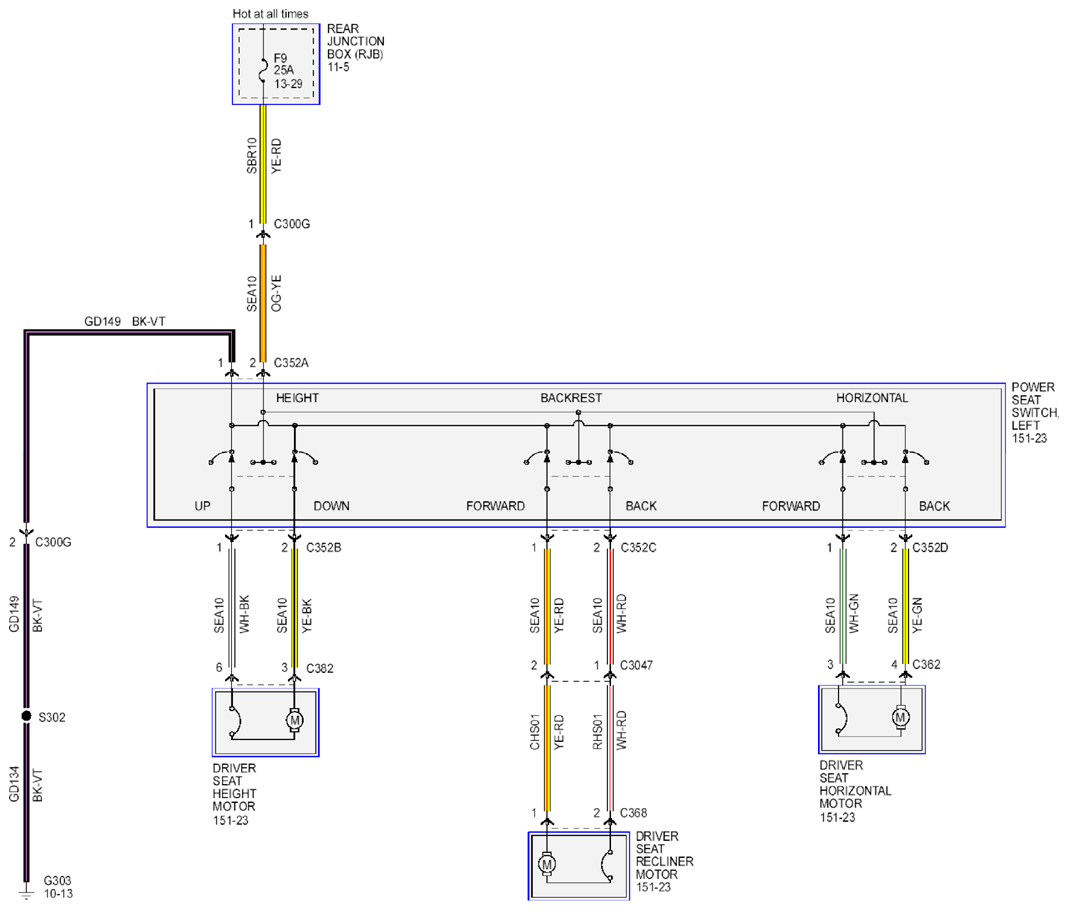

Fig 1: Power Seats - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
