Power Mirrors
Power Mirrors

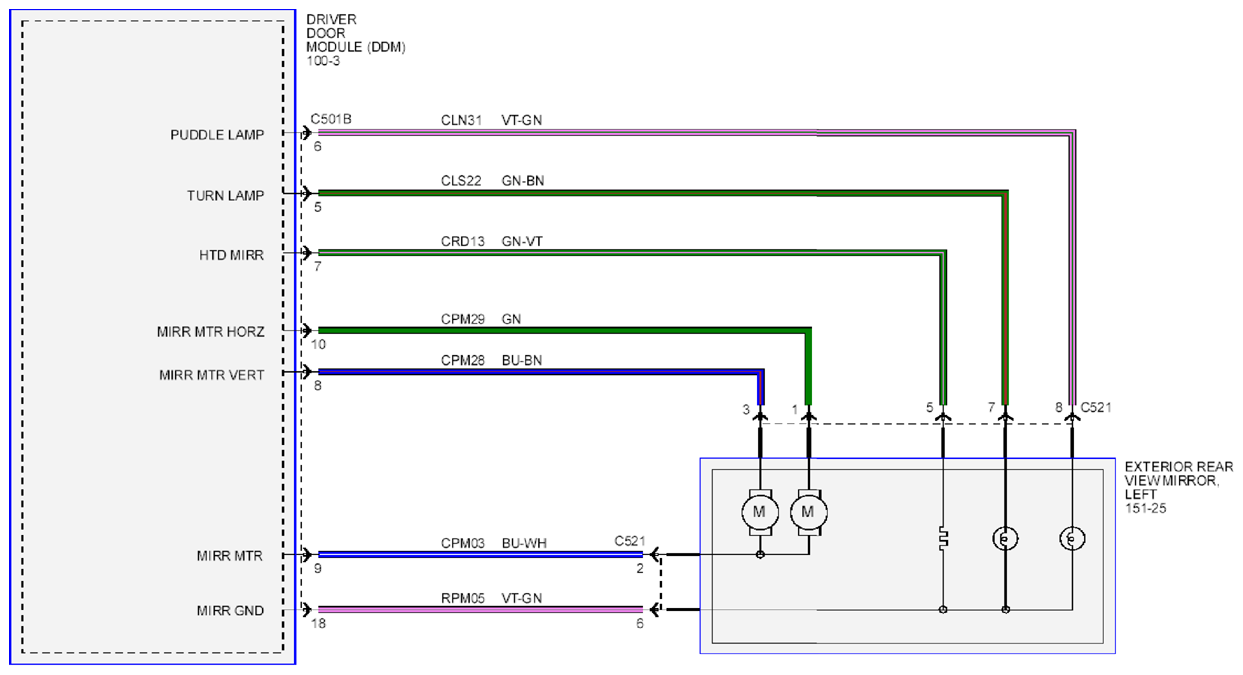

Fig 1: Power Mirrors - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

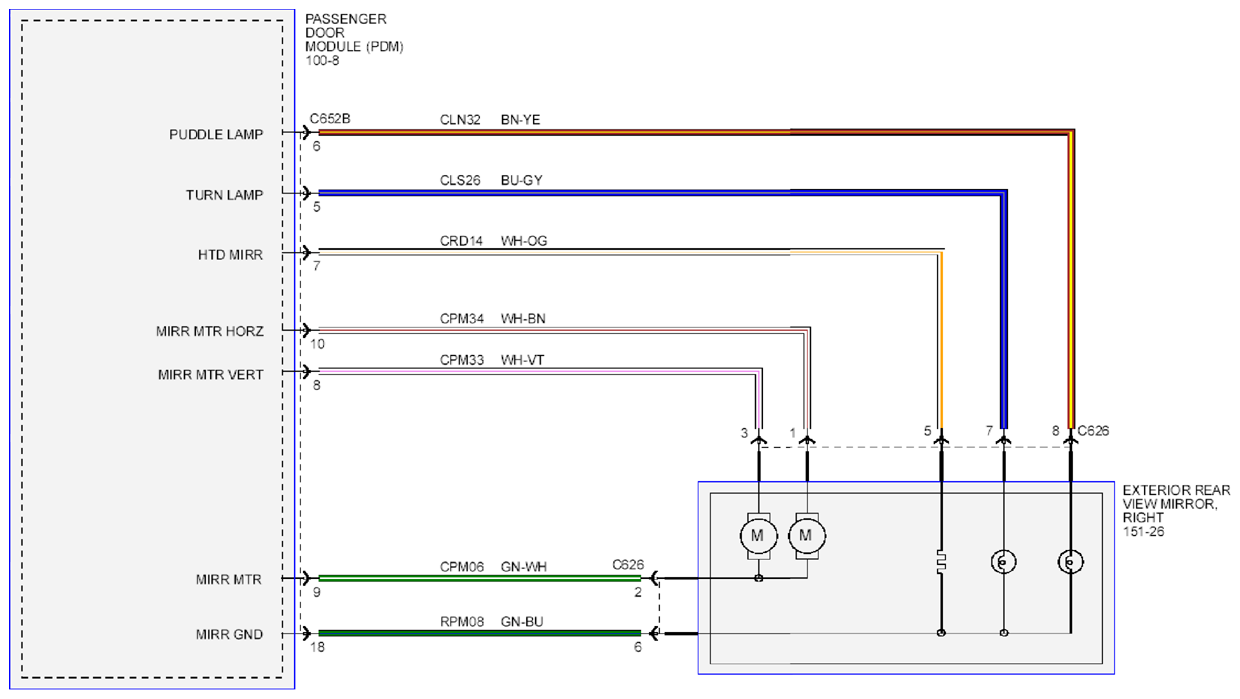

Fig 2: Power Mirrors - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

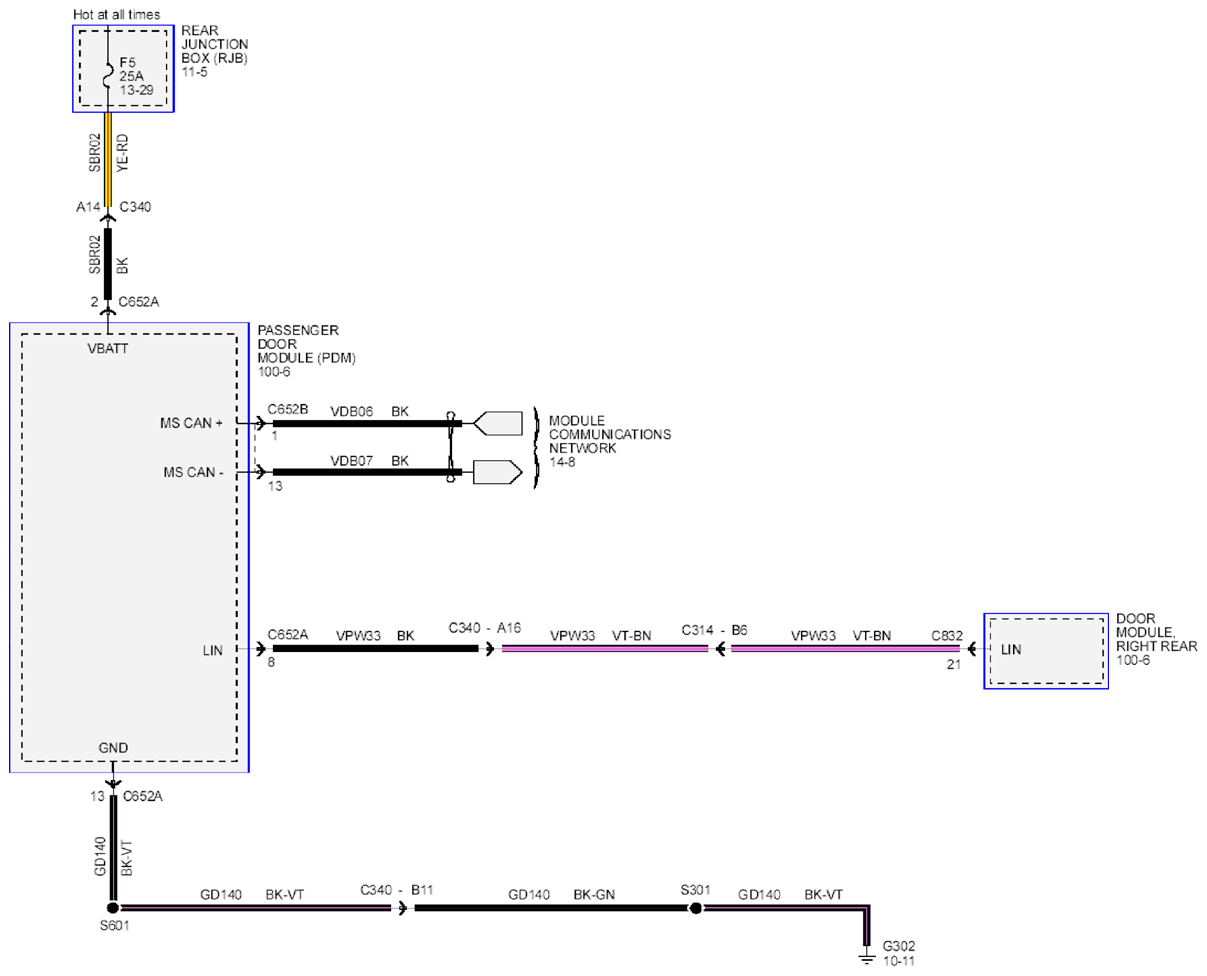

Fig 3: Power Mirrors - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

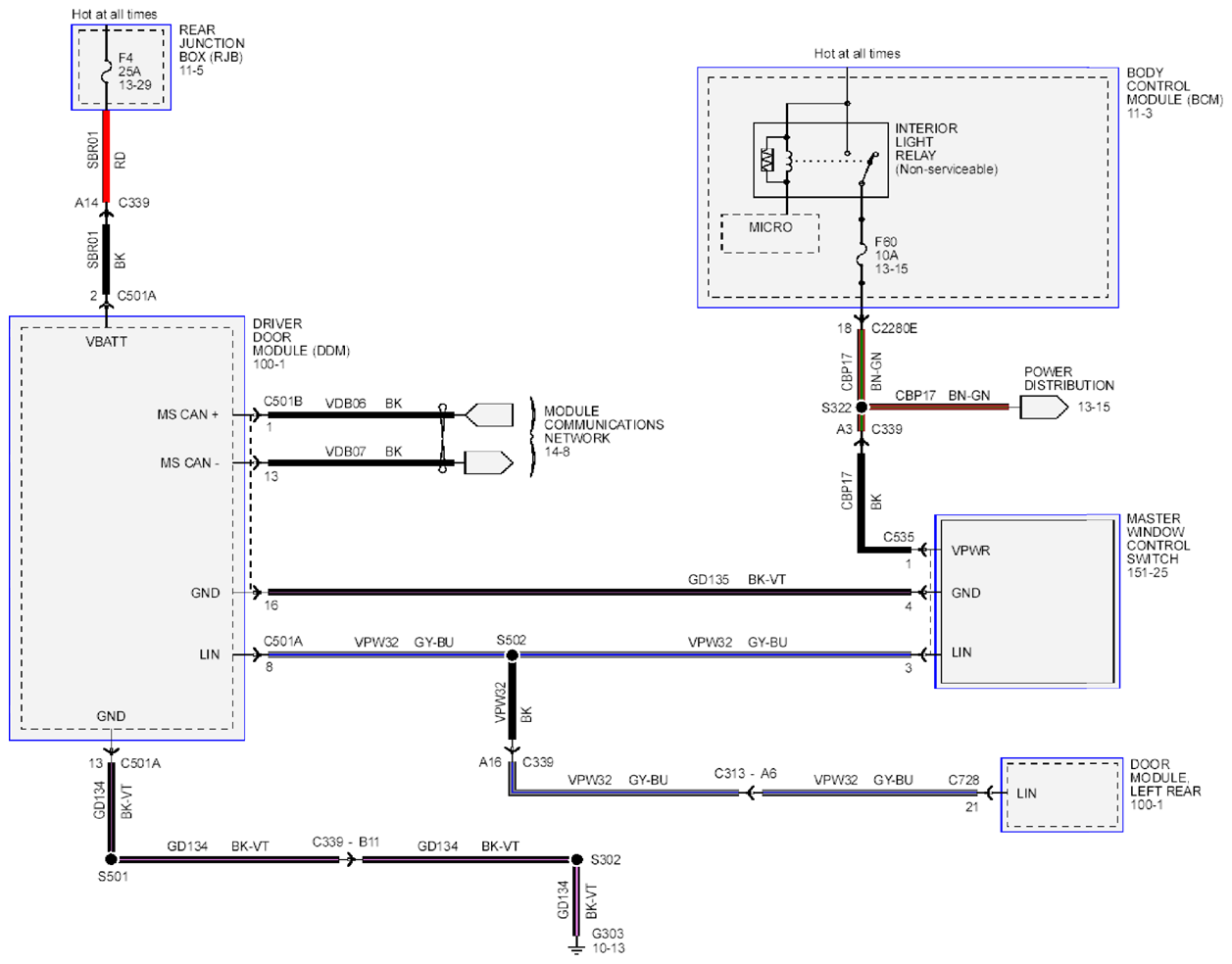

Fig 4: Power Mirrors - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
