Power Distribution: MEGAFUSE

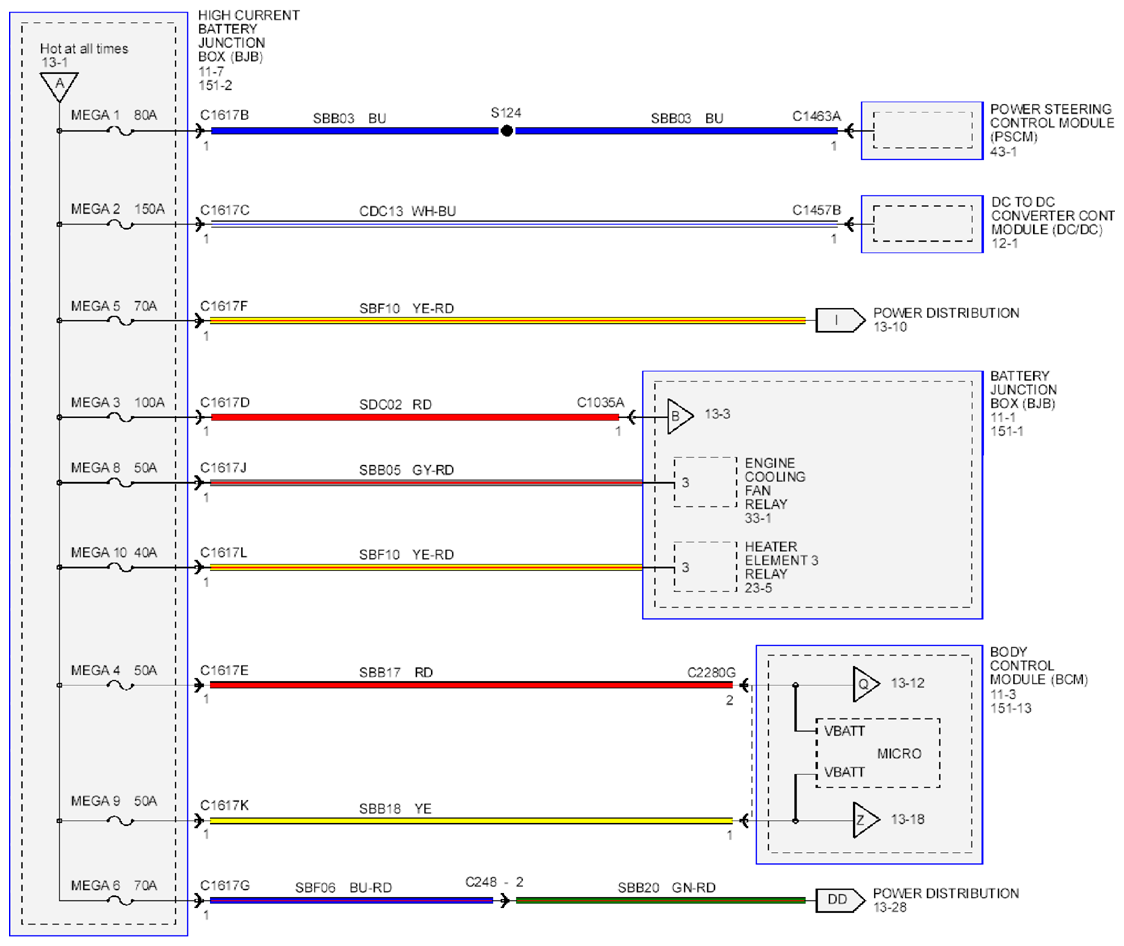

Fig 1: Power Distribution - Wiring Diagram (MEGAFUSE)

G09260779

Courtesy of FORD MOTOR CO.
