F77, F78, F79, F80, F82

Fig 1: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 1 Of 8)

Courtesy of FORD MOTOR CO.

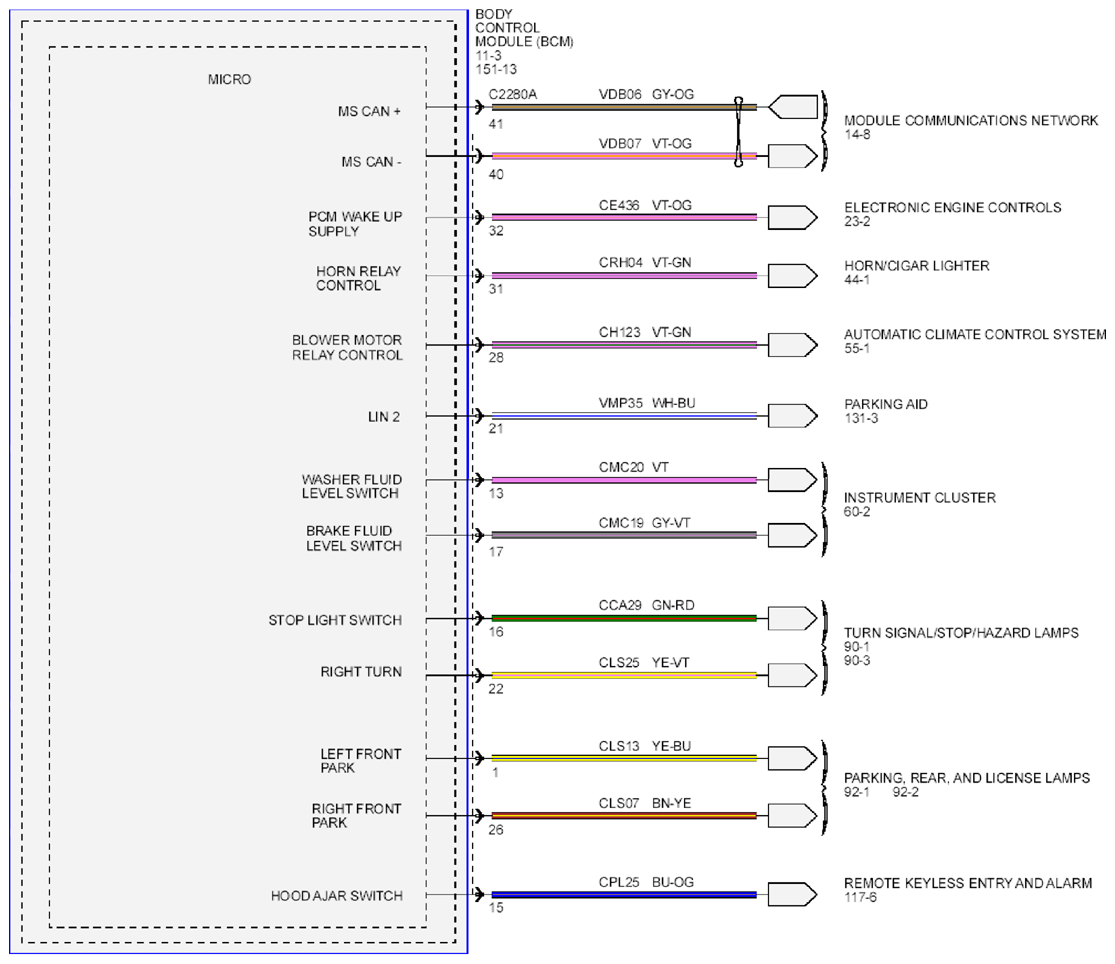

Fig 2: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 2 Of 8)

Courtesy of FORD MOTOR CO.

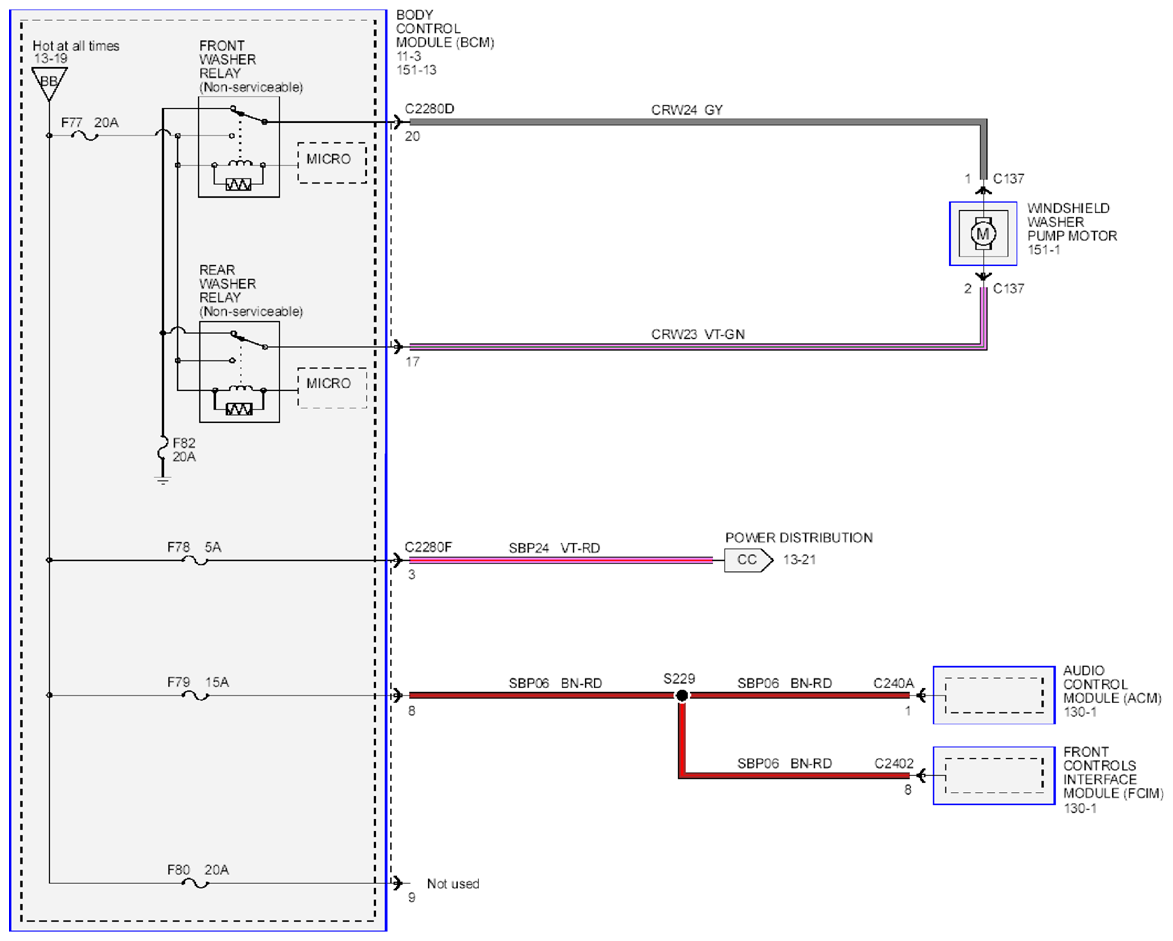

Fig 3: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 3 Of 8)

Courtesy of FORD MOTOR CO.

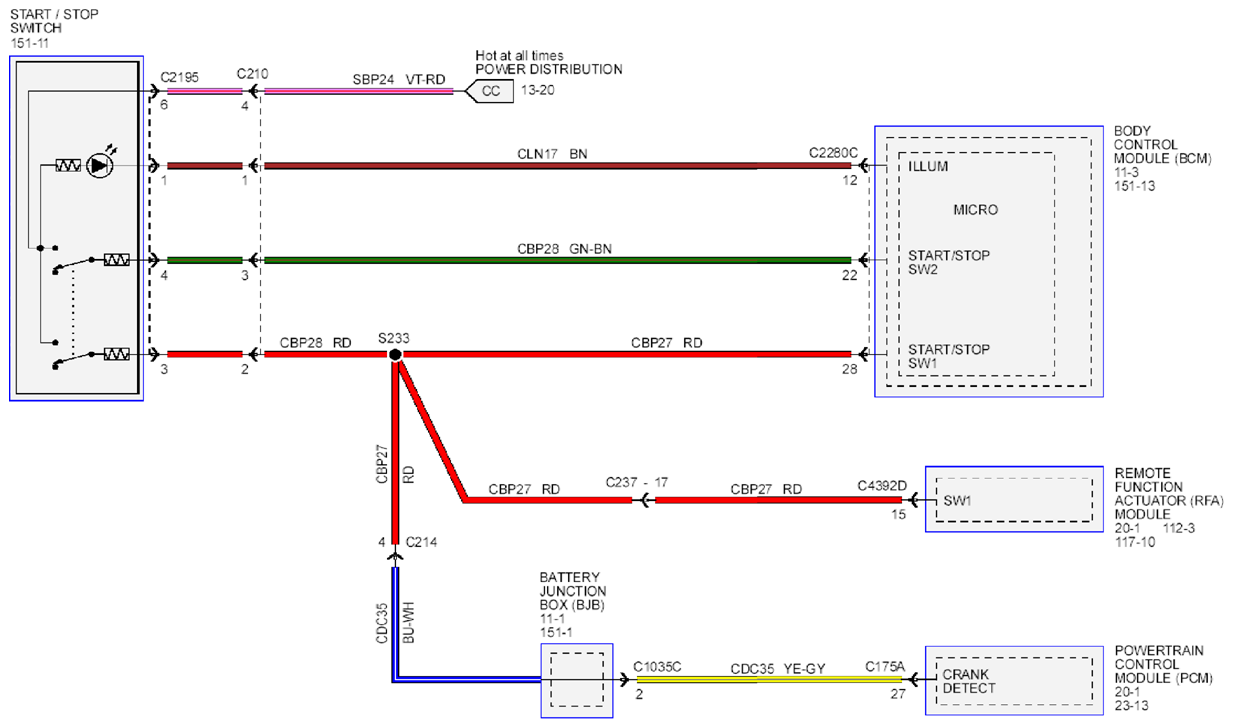

Fig 4: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 4 Of 8)

Courtesy of FORD MOTOR CO.

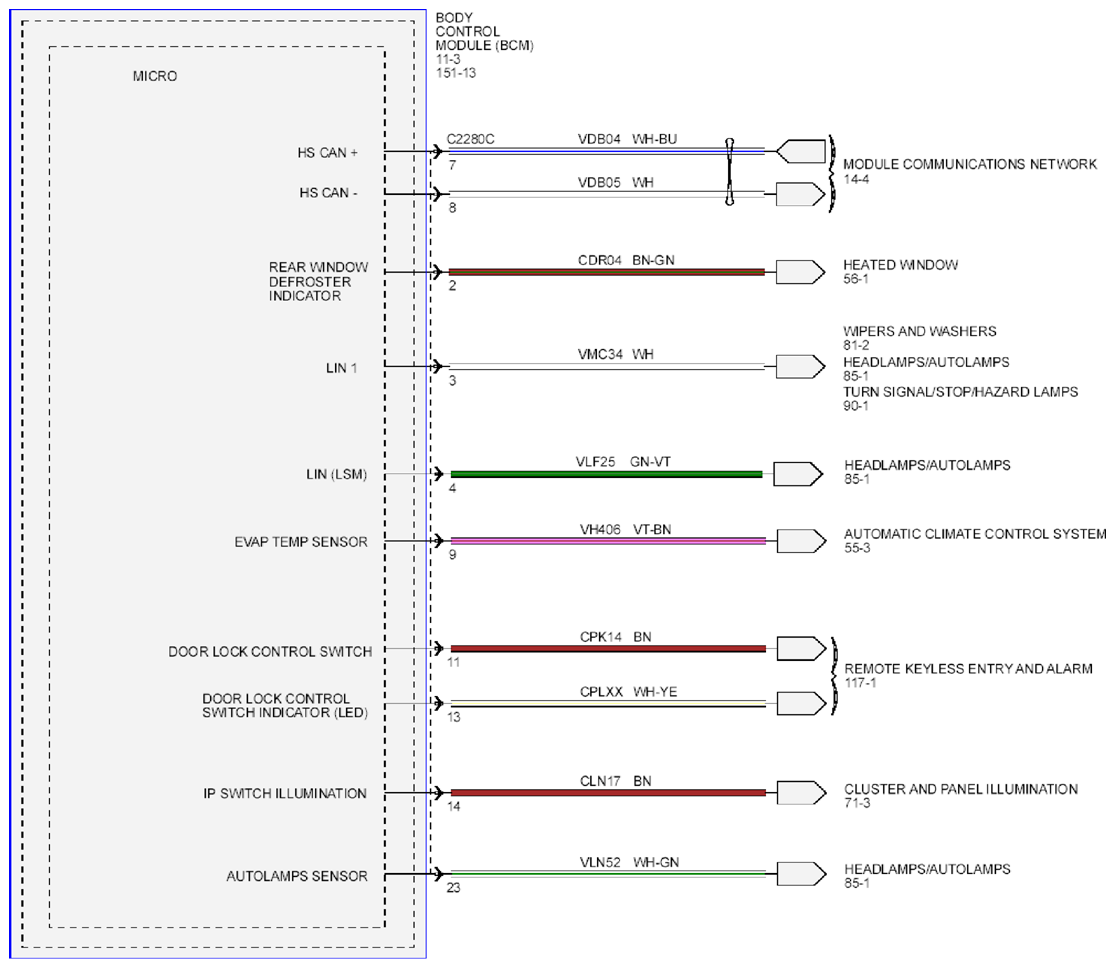

Fig 5: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 5 Of 8)

Courtesy of FORD MOTOR CO.

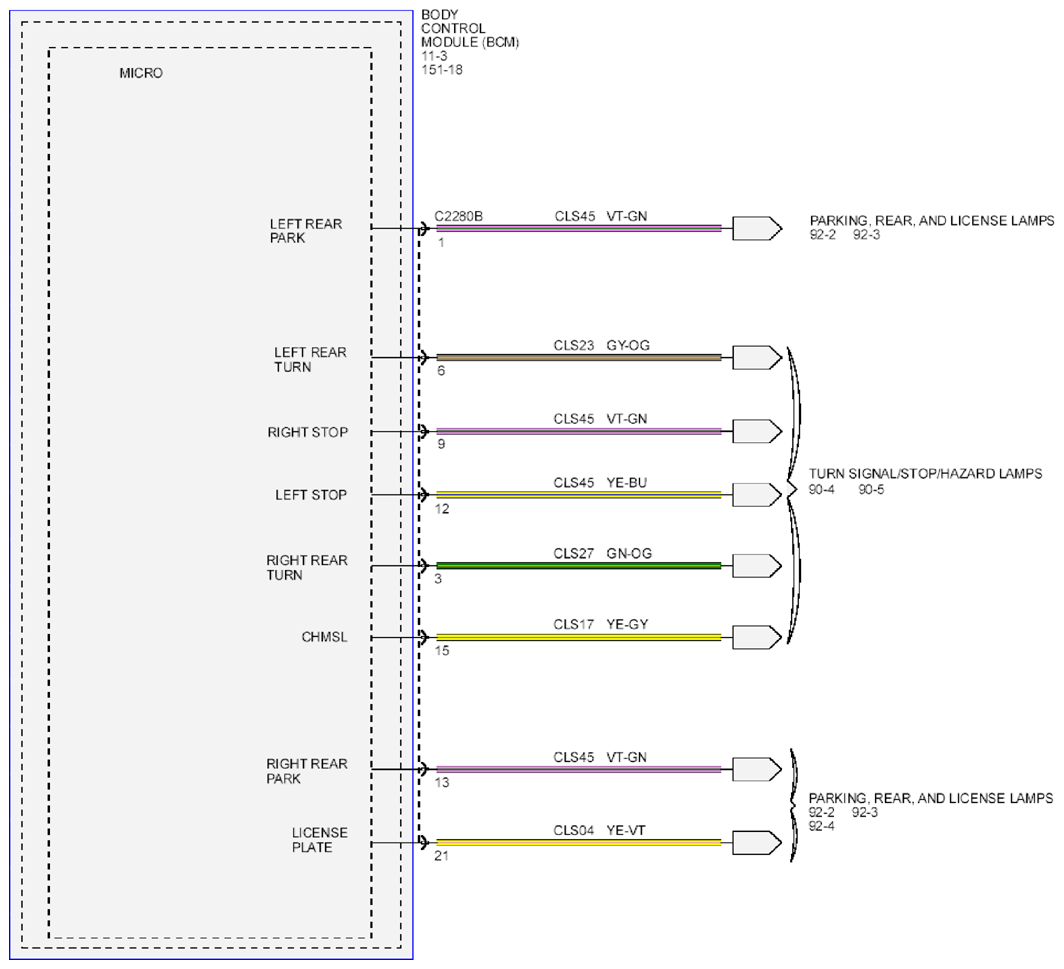

Fig 6: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 6 Of 8)

Courtesy of FORD MOTOR CO.

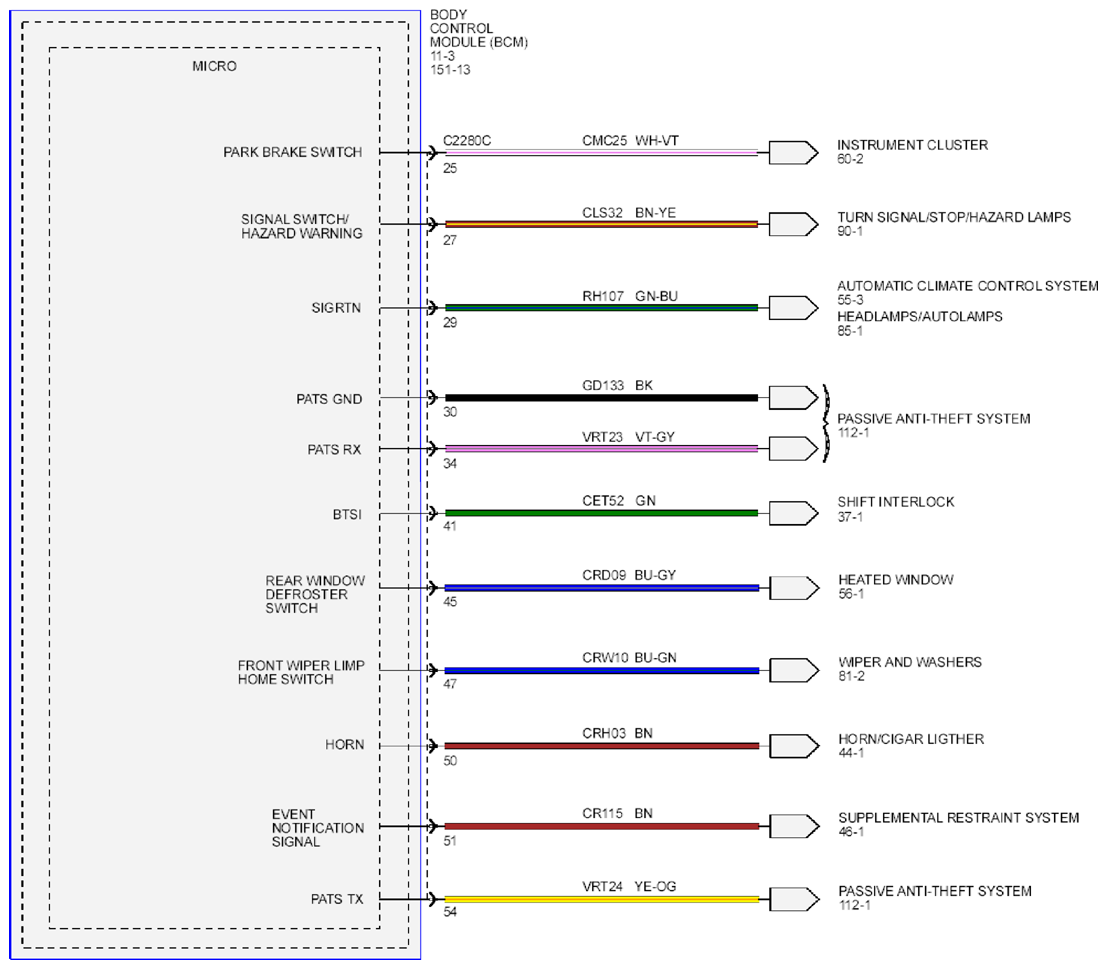

Fig 7: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 7 Of 8)

Courtesy of FORD MOTOR CO.

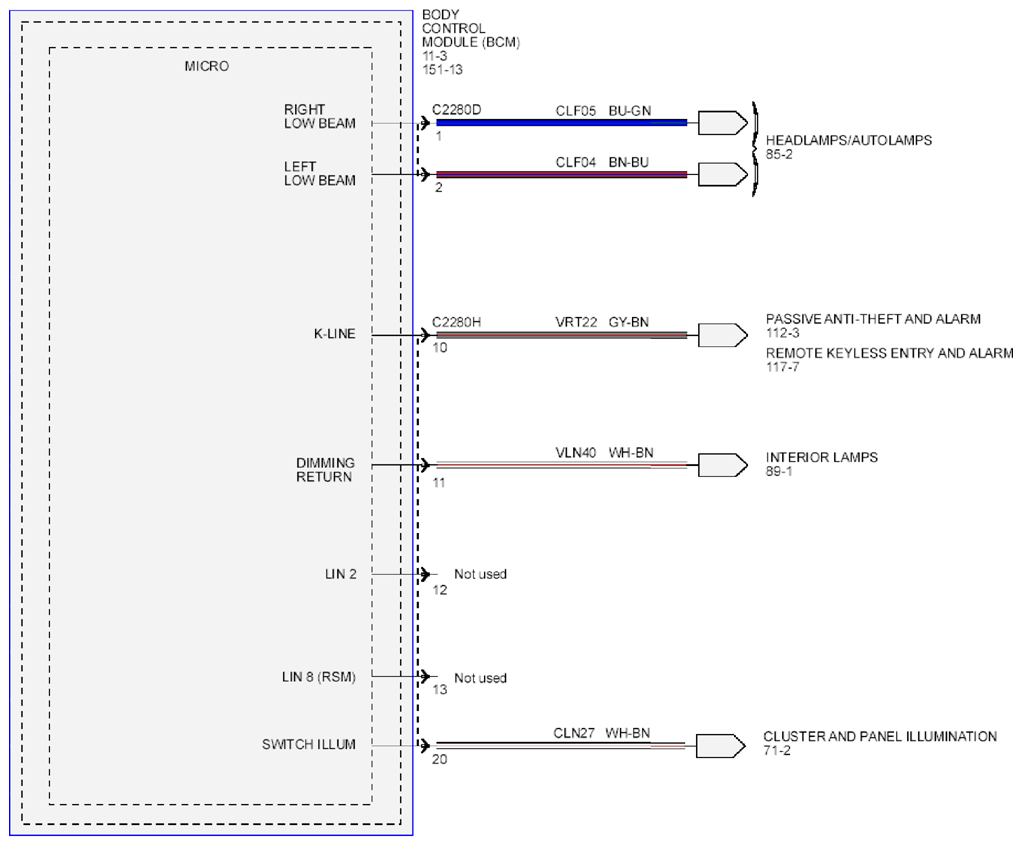

Fig 8: Power Distribution - Wiring Diagram (F77, F78, F79, F80, F82; 8 Of 8)

Courtesy of FORD MOTOR CO.
