F74, F75, F76

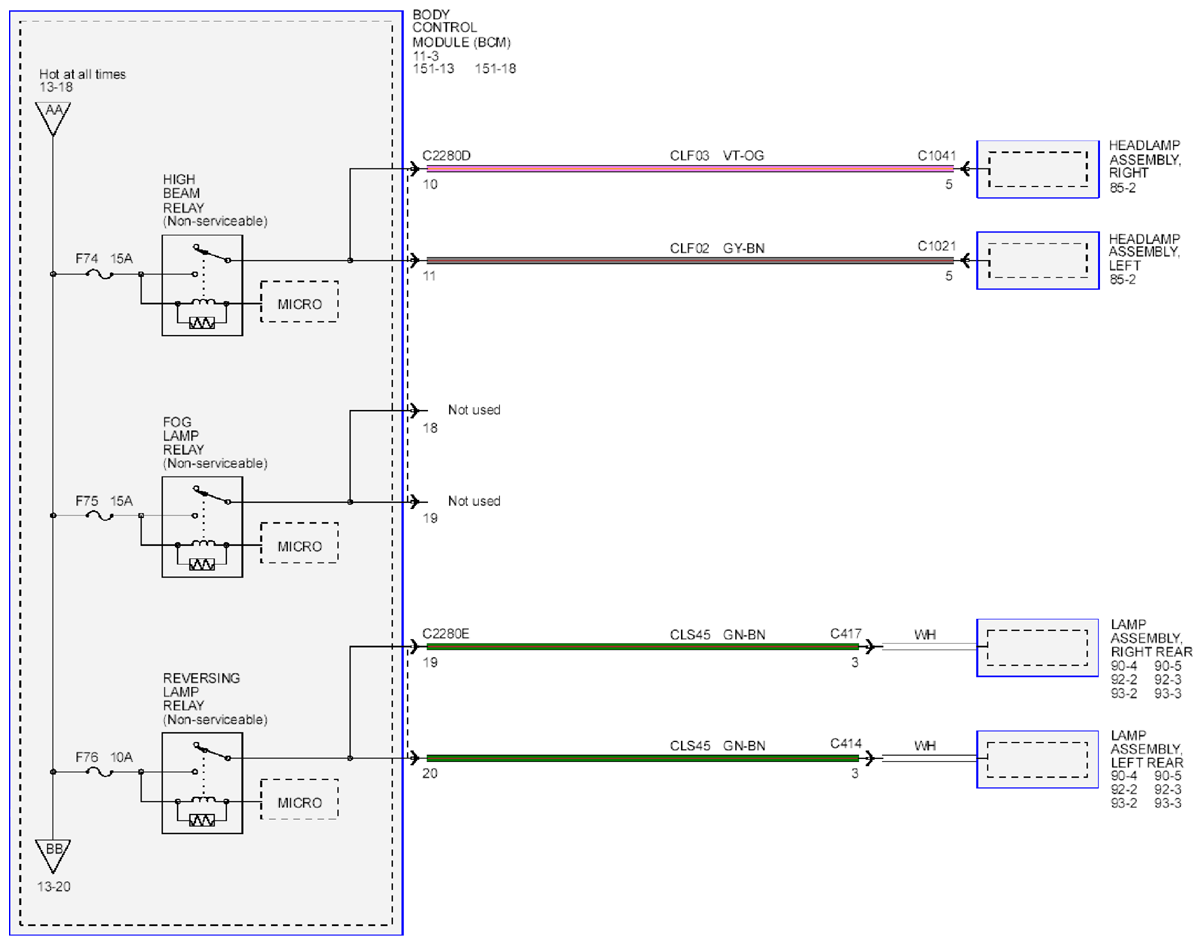

Fig 1: Power Distribution - Wiring Diagram (F74, F75, F76)

G09260796

Courtesy of FORD MOTOR CO.
