OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F71, F73, F85
F71, F73, F85

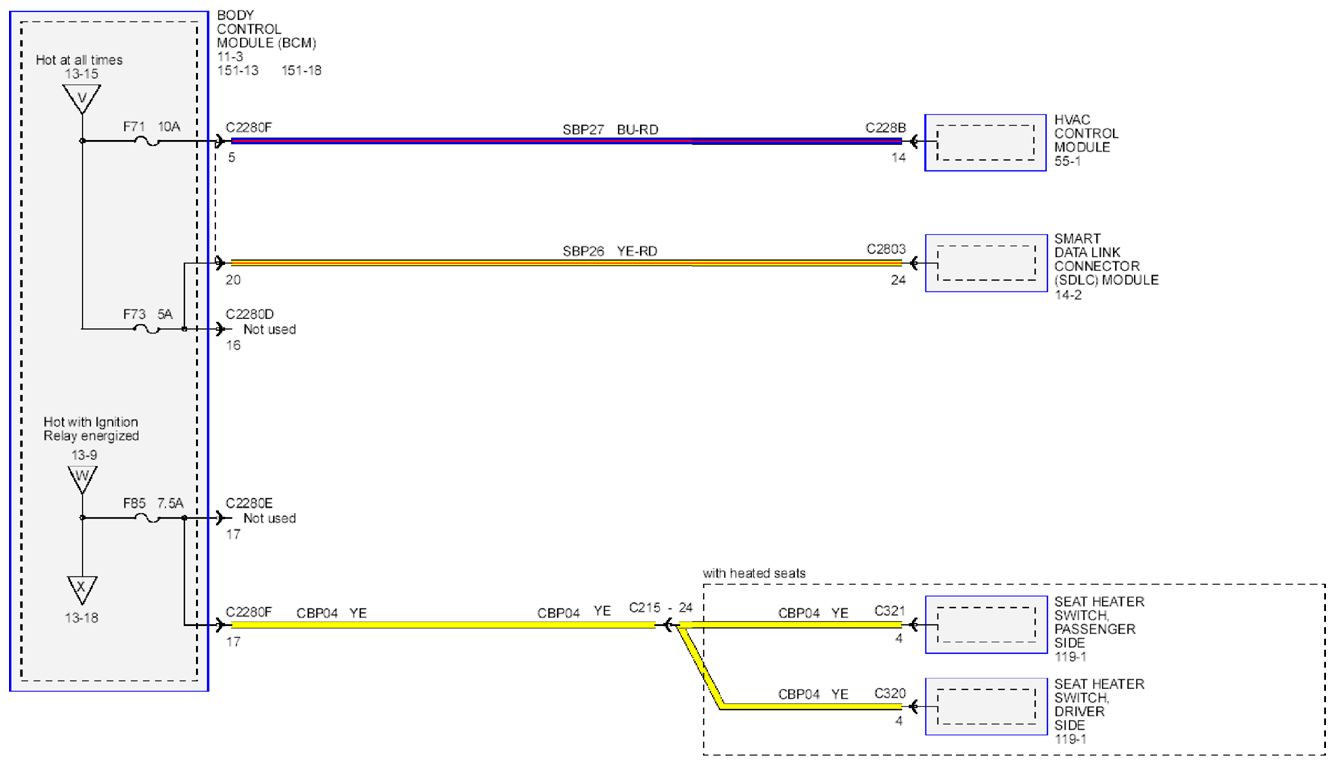

Fig 1: Power Distribution - Wiring Diagram (F71, F73, F85)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
