OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F70, F83
F70, F83

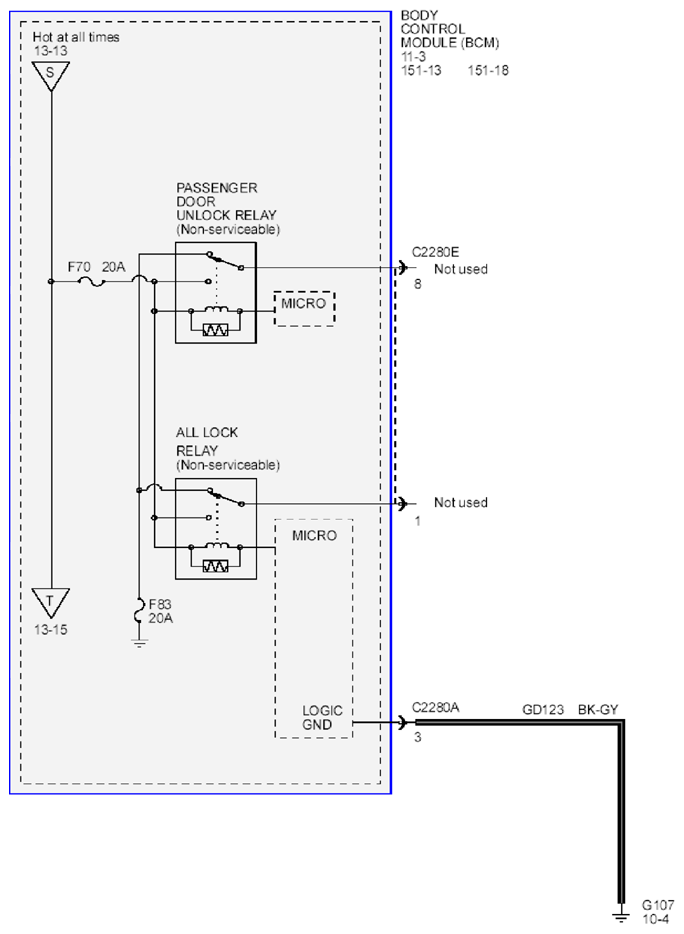

Fig 1: Power Distribution - Wiring Diagram (F70, F83)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
