F58, F59, F60, F61, F62, F63, F81

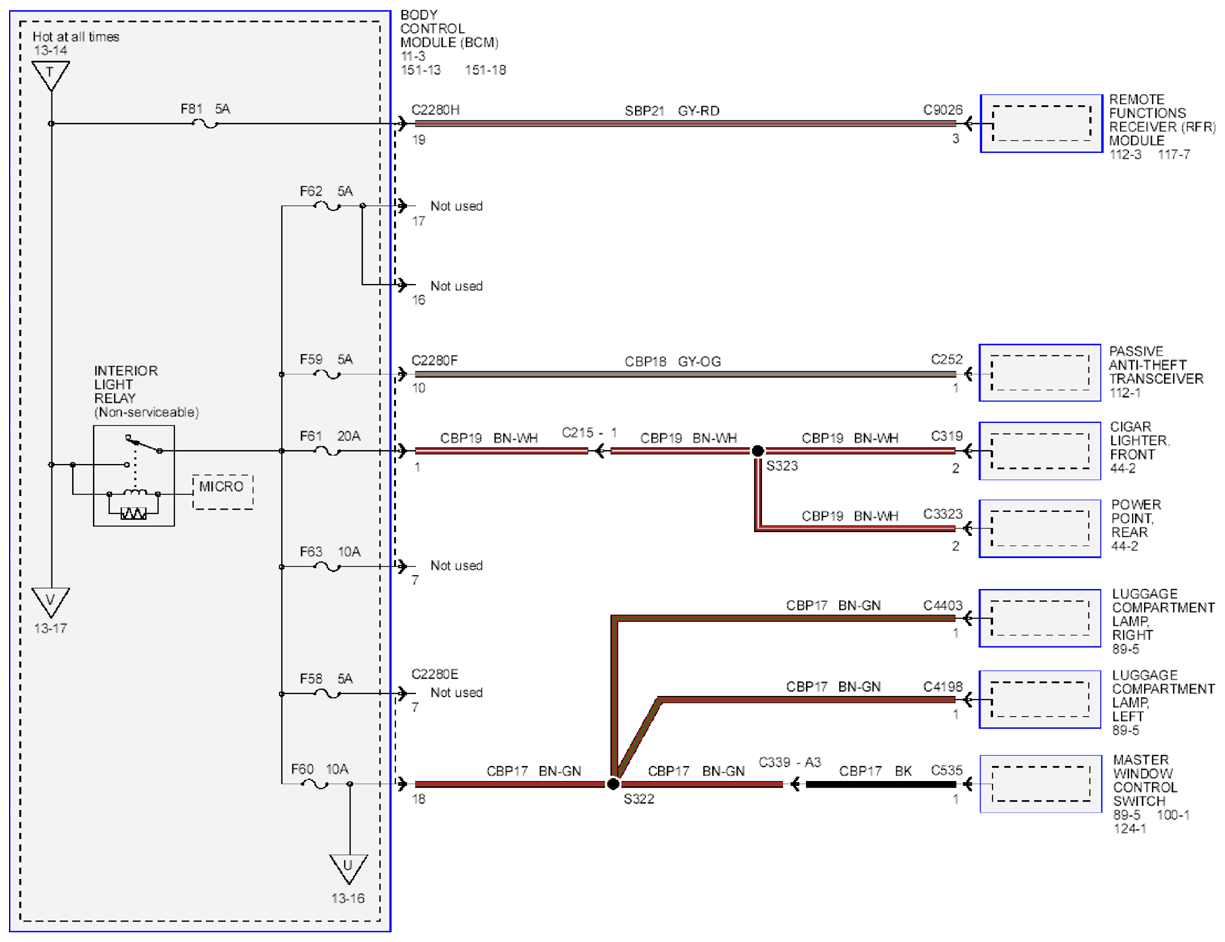

Fig 1: Power Distribution - Wiring Diagram (F58, F59, F60, F61, F62, F63, F81; 1 Of 2)
G09260792Courtesy of FORD MOTOR CO.

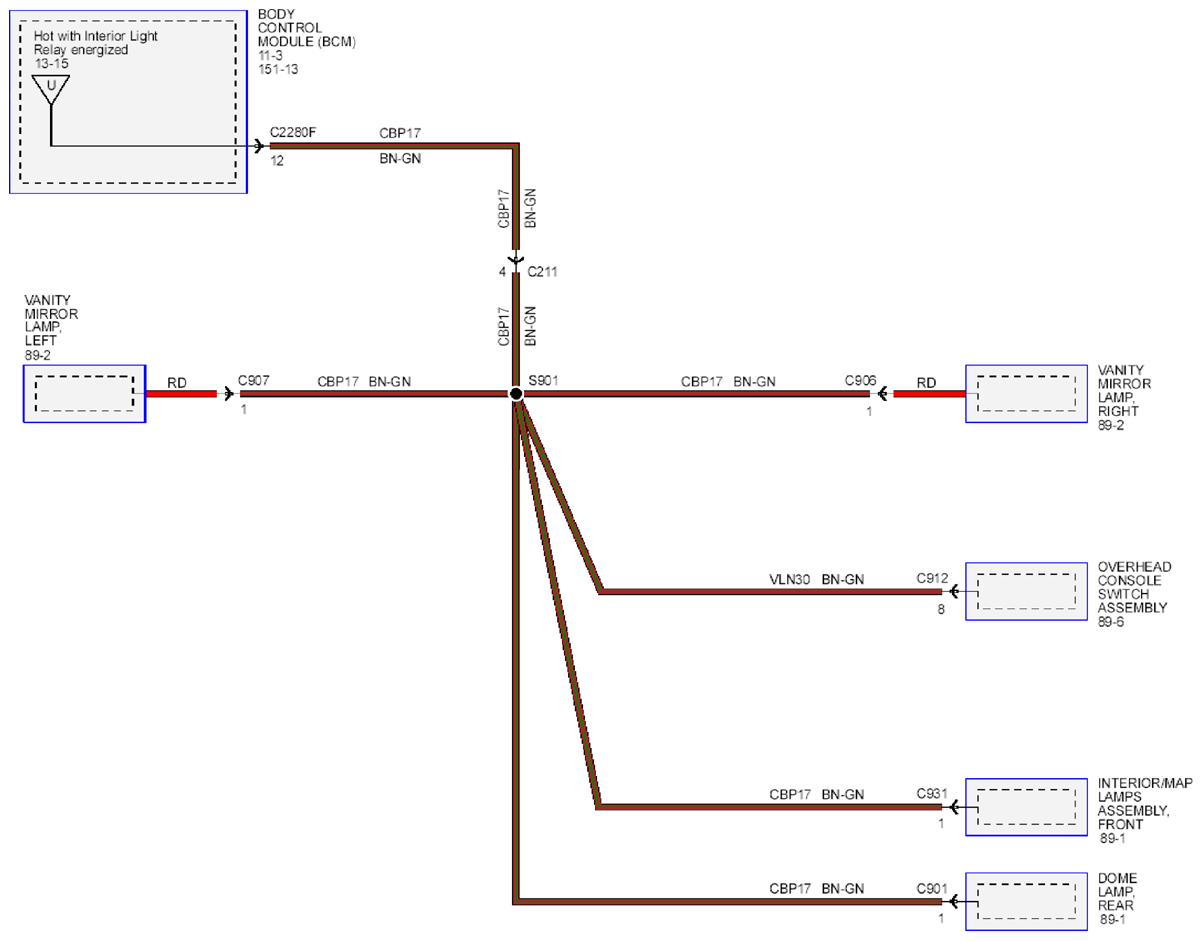

Fig 2: Power Distribution - Wiring Diagram (F58, F59, F60, F61, F62, F63, F81; 2 Of 2)
G09260793Courtesy of FORD MOTOR CO.
