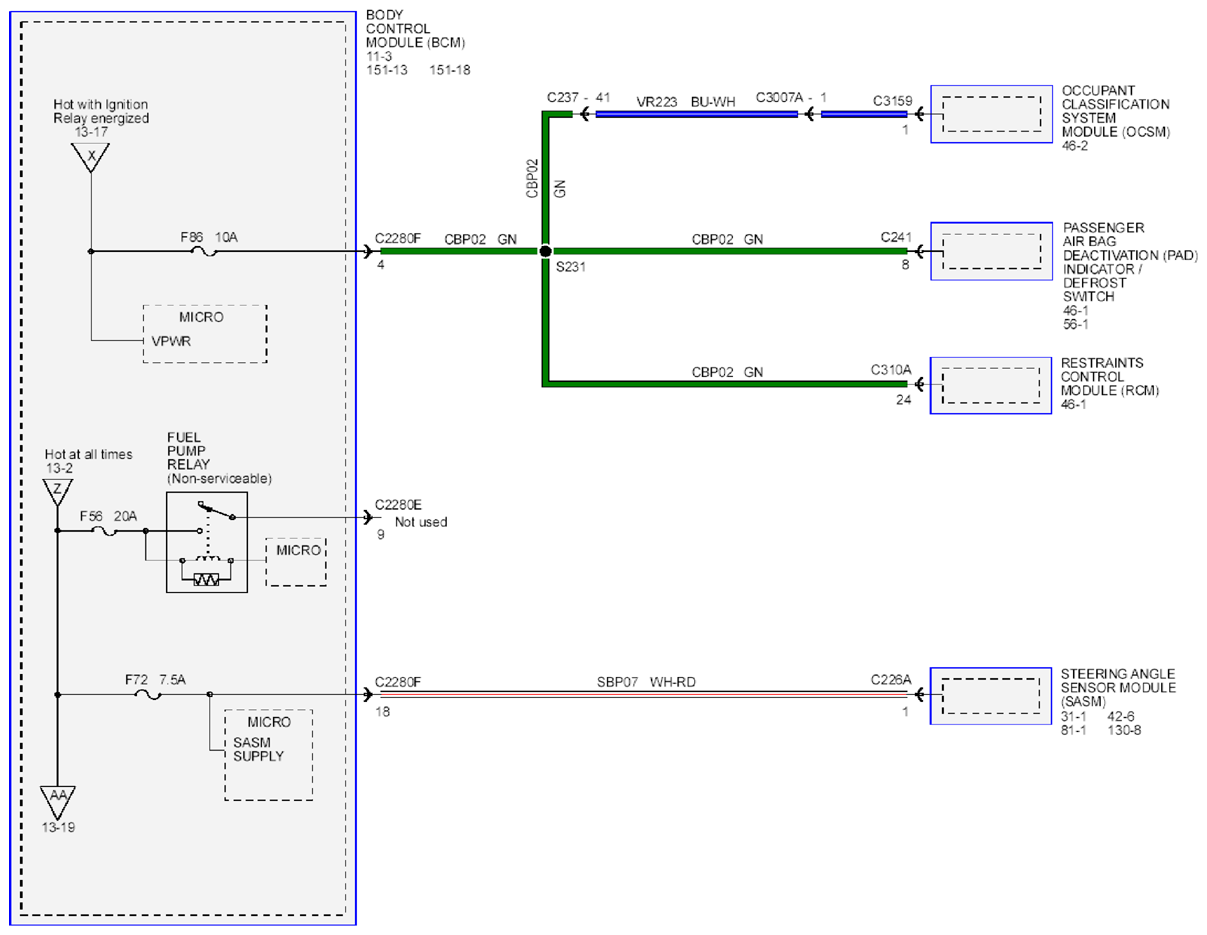

Fig 1: Power Distribution - Wiring Diagram (F56, F72, F86)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
