OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F37, F38, F40, F41, F42
F37, F38, F40, F41, F42

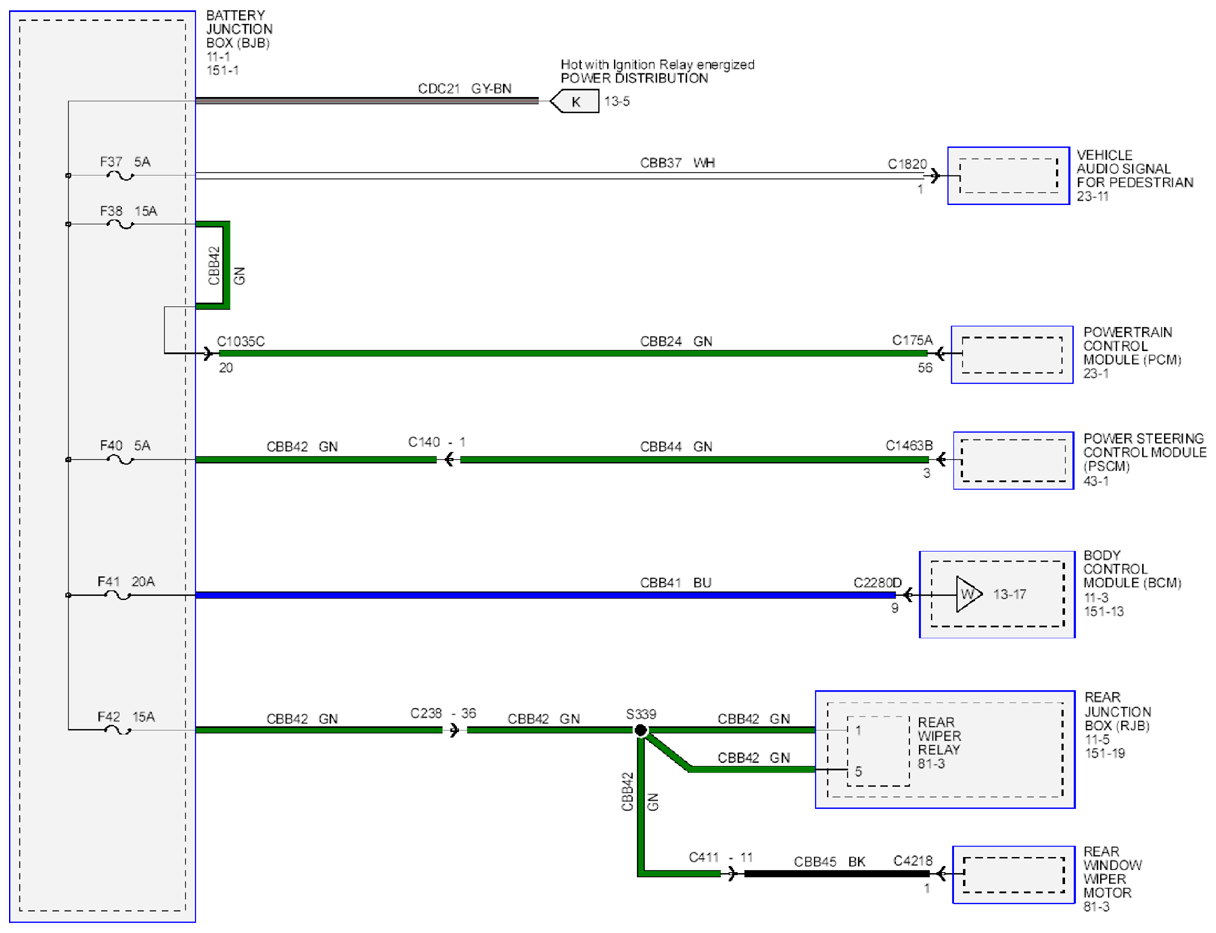

Fig 1: Power Distribution - Wiring Diagram (F37, F38, F40, F41, F42)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
