F33, F34, F36

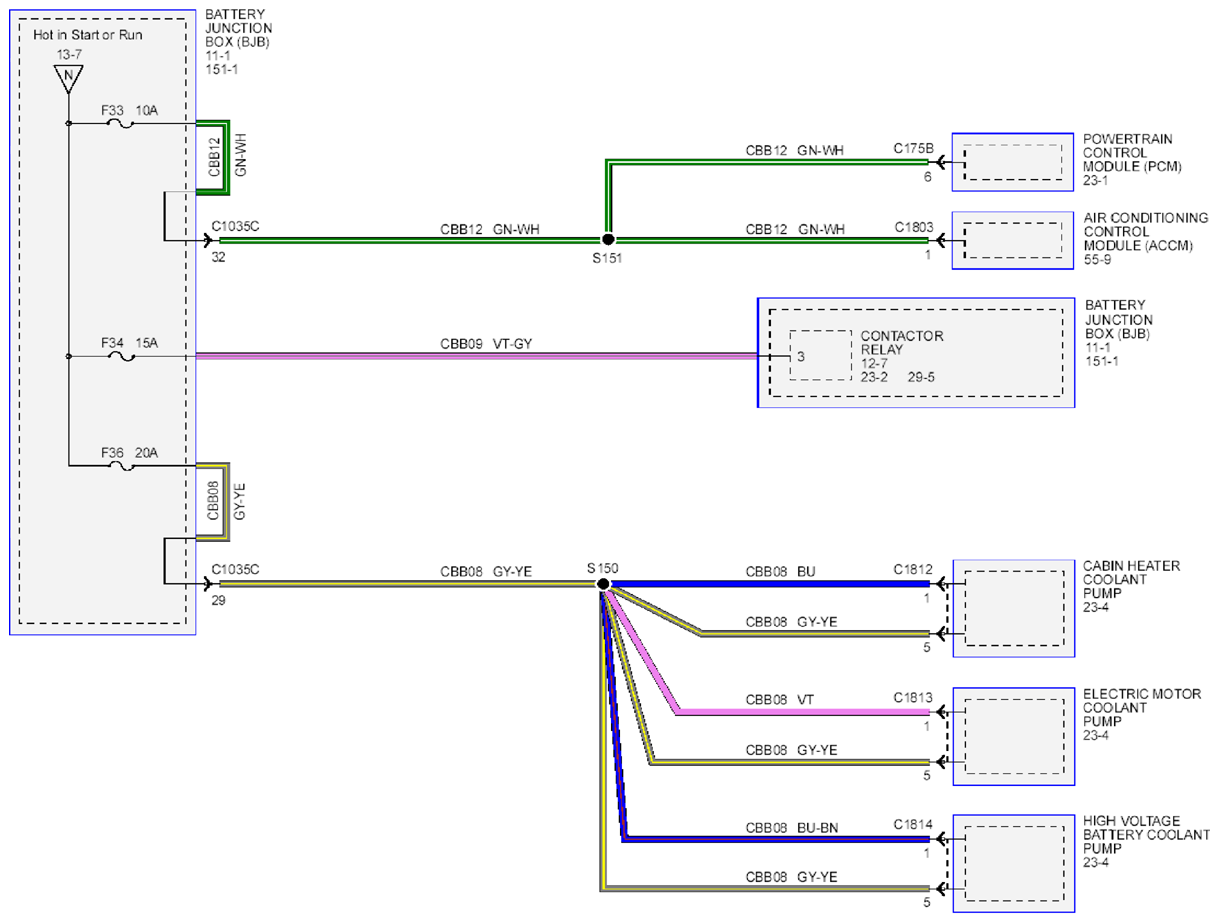

Fig 1: Power Distribution - Wiring Diagram (F33, F34, F36)

G09260785

Courtesy of FORD MOTOR CO.
