OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F3, F10, F11
F3, F10, F11

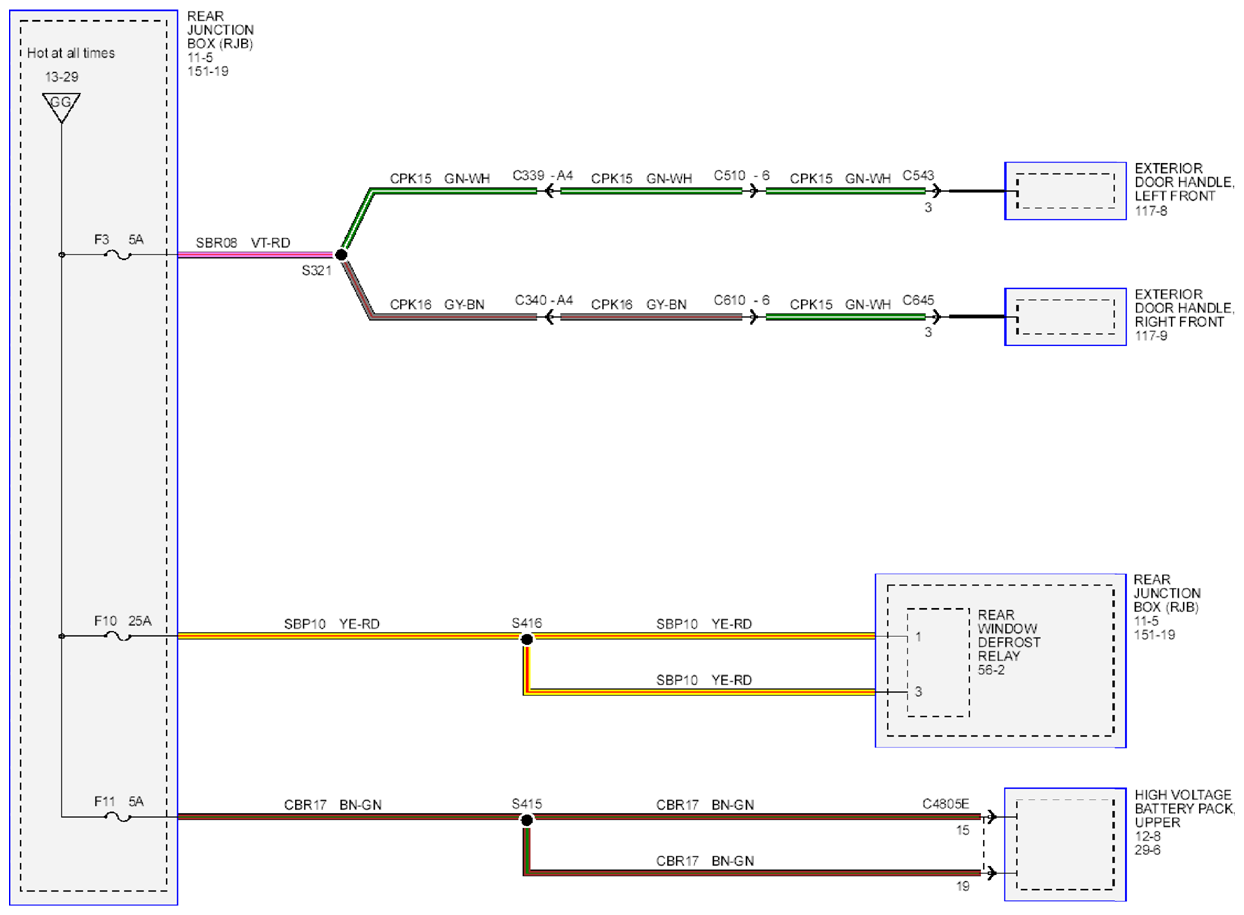

Fig 1: Power Distribution - Wiring Diagram (F3, F10, F11)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
