Power Distribution: F28

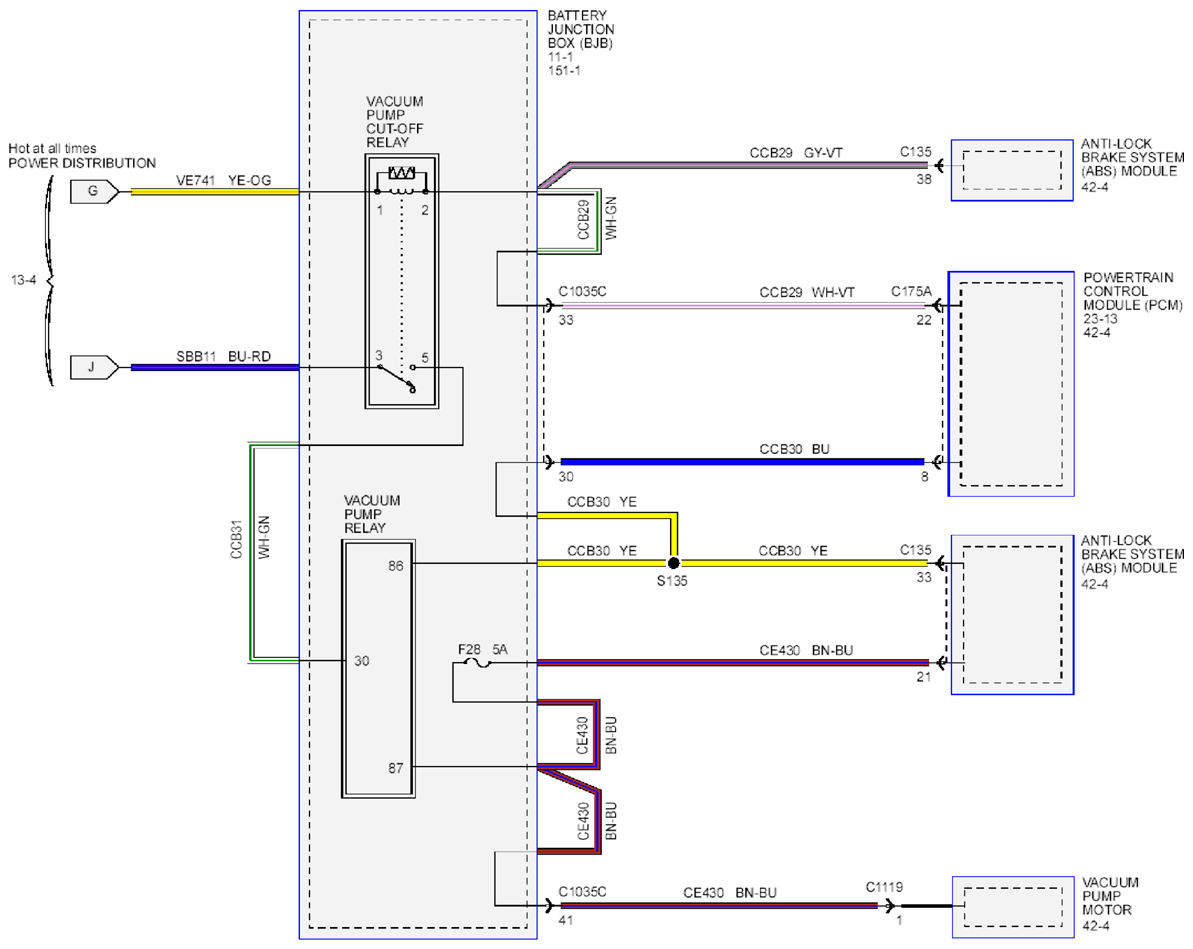

Fig 1: Power Distribution - Wiring Diagram (F28)

G09260788

Courtesy of FORD MOTOR CO.
