Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F14, F16
F14, F16

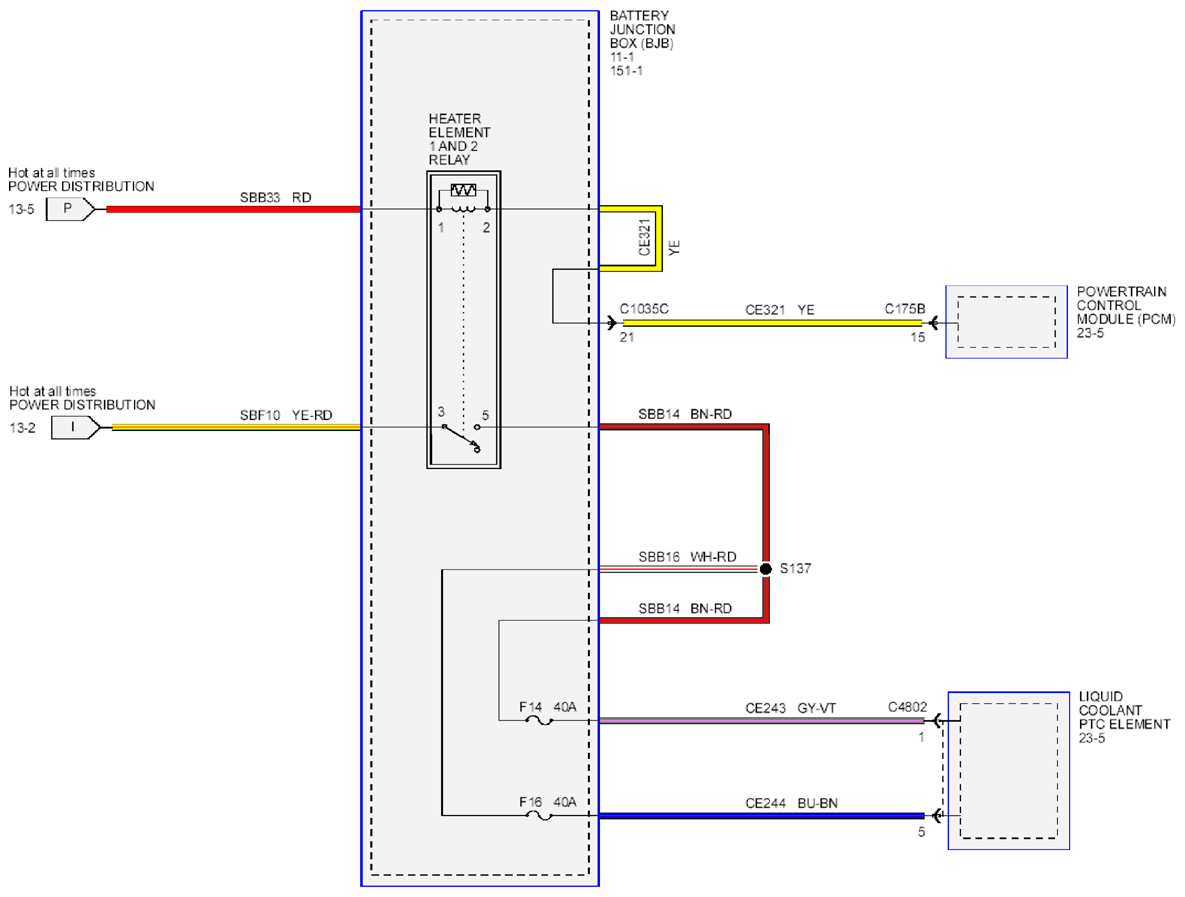

Fig 1: Power Distribution - Wiring Diagram (F14, F16)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
