OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F12, F32
F12, F32

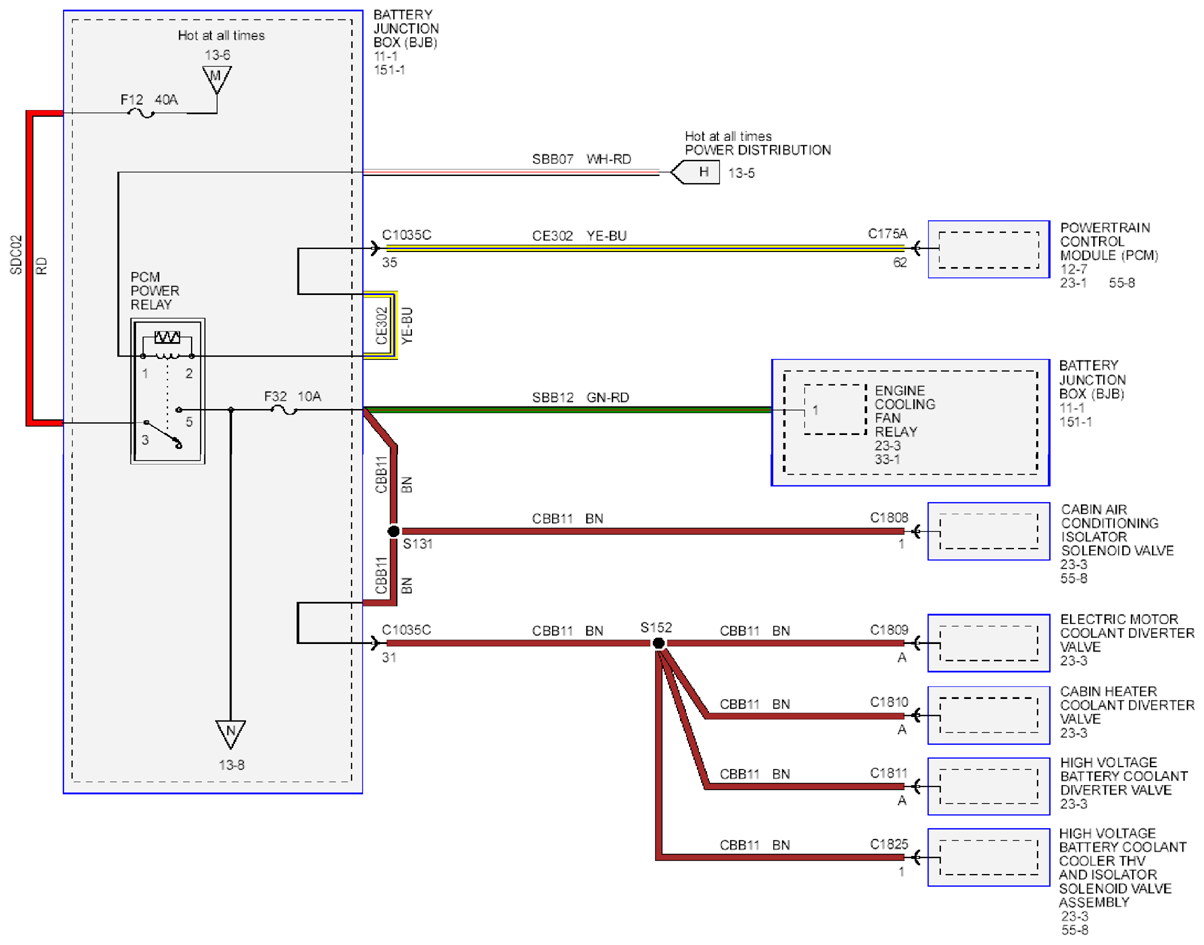

Fig 1: Power Distribution - Wiring Diagram (F12, F32)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
