Ford
>>
2014
>>
Focus Electric
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F10, F47
F10, F47

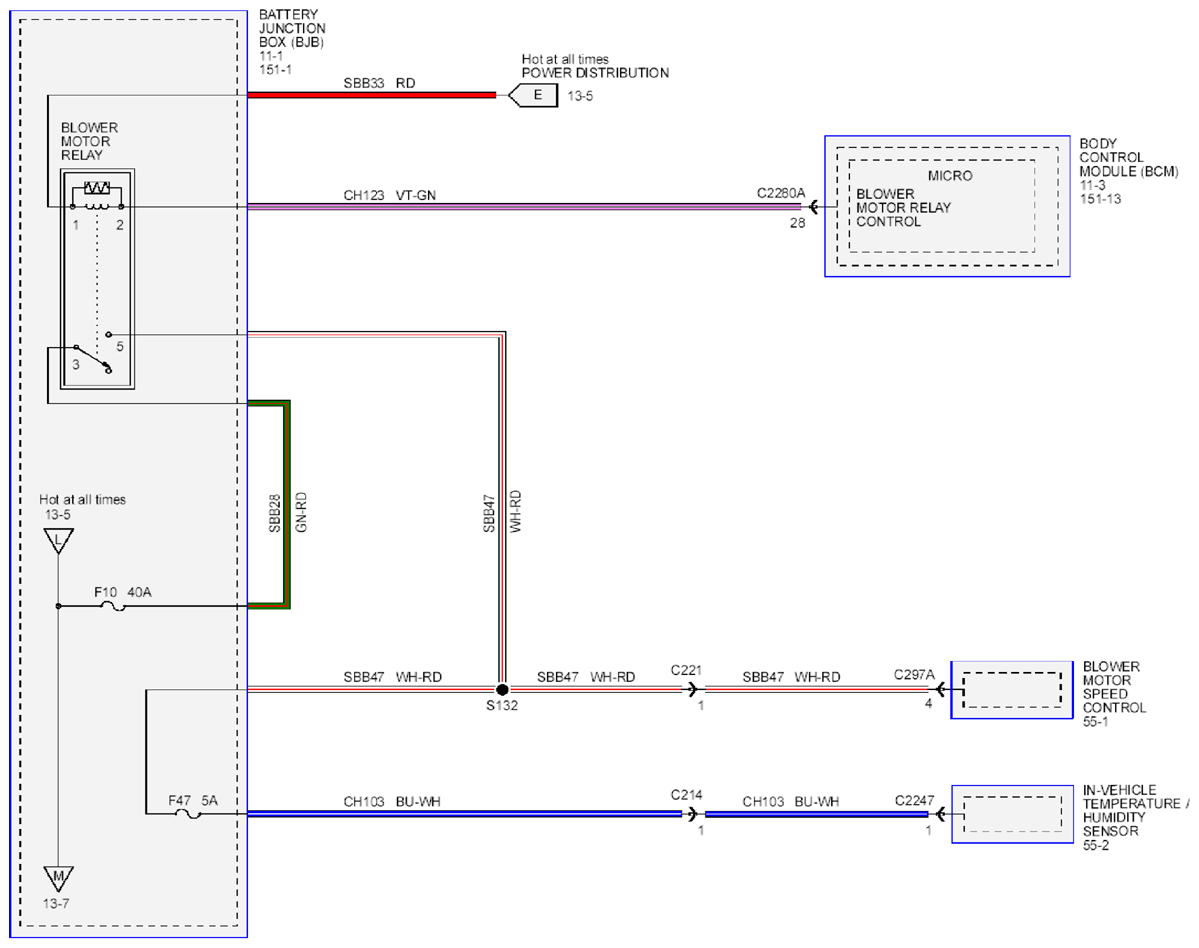

Fig 1: Power Distribution - Wiring Diagram (F10, F47)
