Ford
>>
2014
>>
Focus Electric
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Electric
>>
Power Distribution
>>
F1, F2, F4, F5, F6, F7, F9
F1, F2, F4, F5, F6, F7, F9

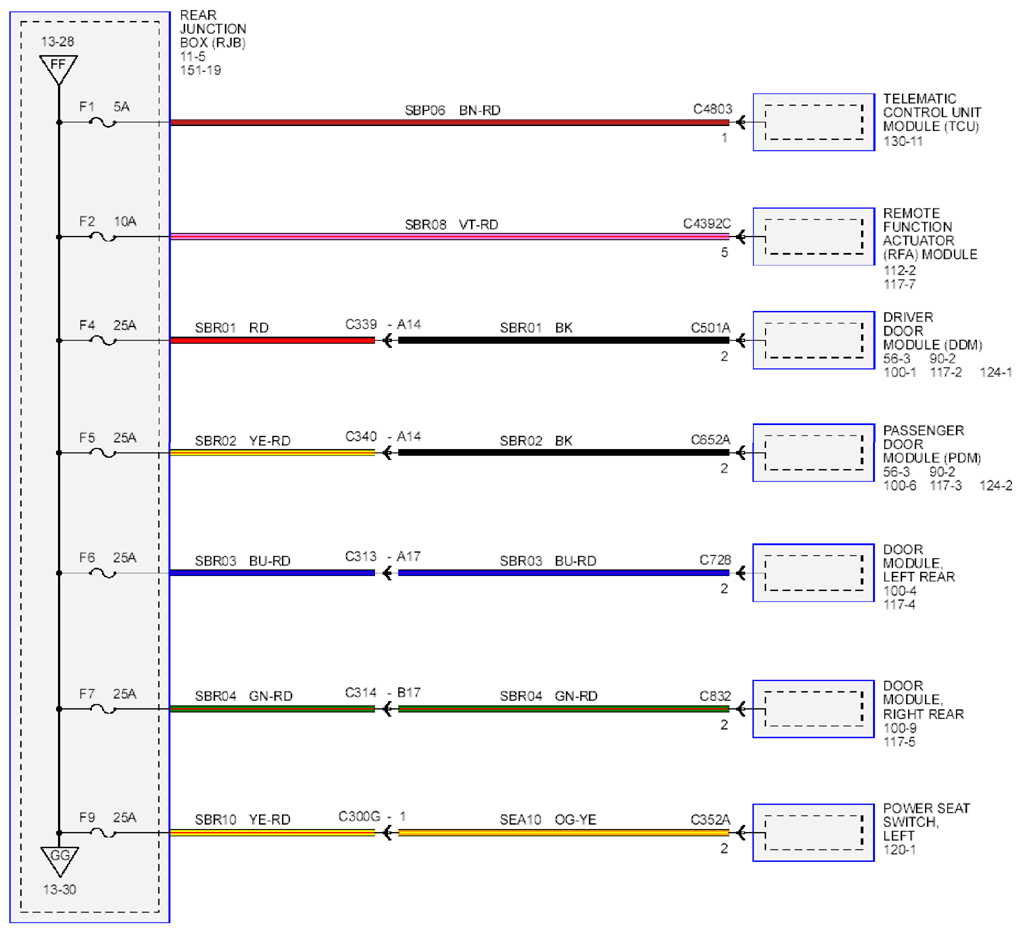

Fig 1: Power Distribution - Wiring Diagram (F1, F2, F4, F5, F6, F7, F9)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
