OEM Wiring Diagrams -- Electric
>>
Passive Anti-Theft System
Passive Anti-Theft System

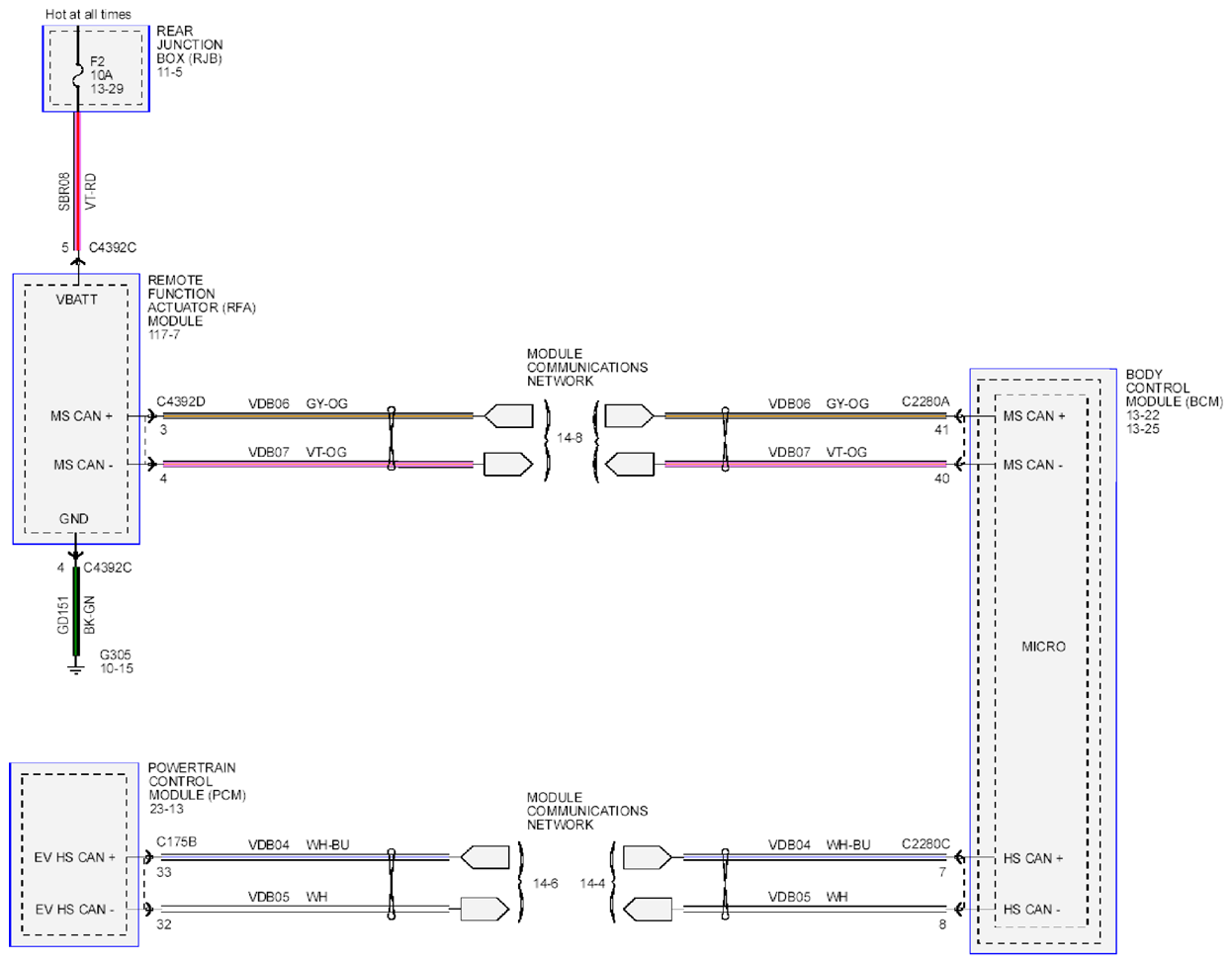

Fig 1: Passive Anti-Theft System - Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

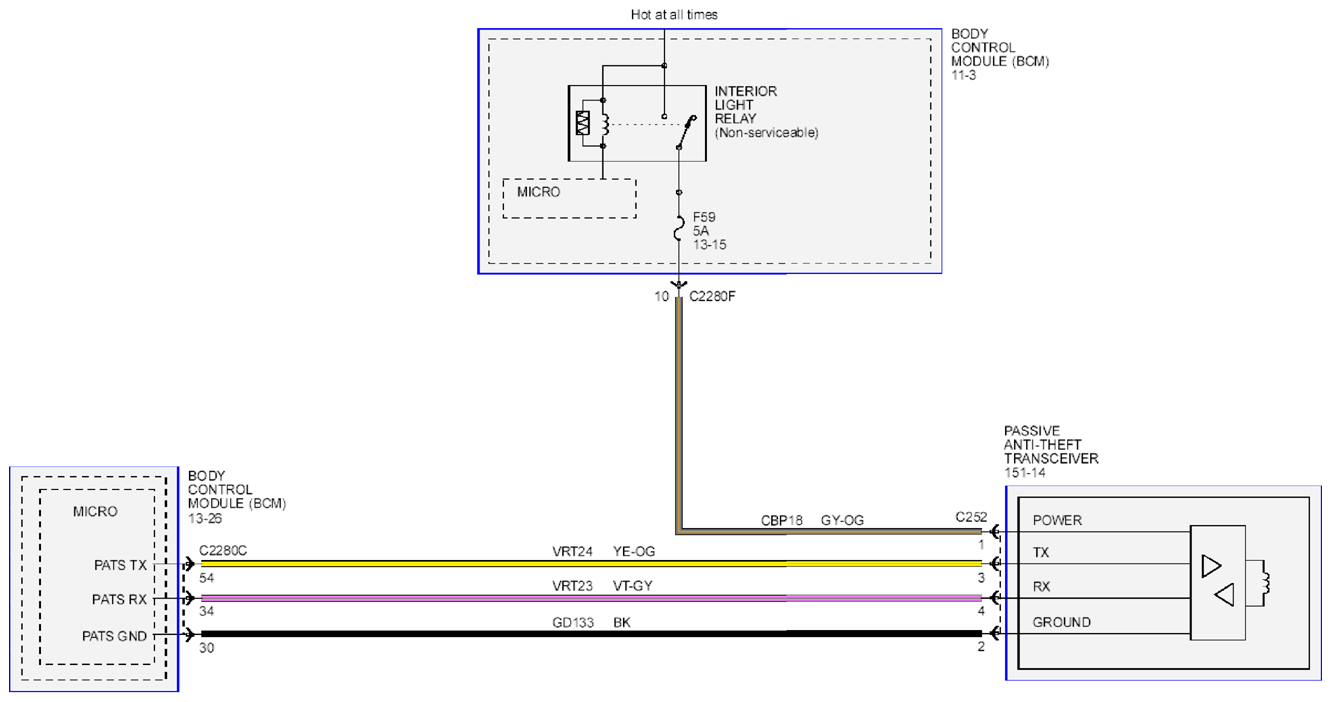

Fig 2: Passive Anti-Theft System - Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

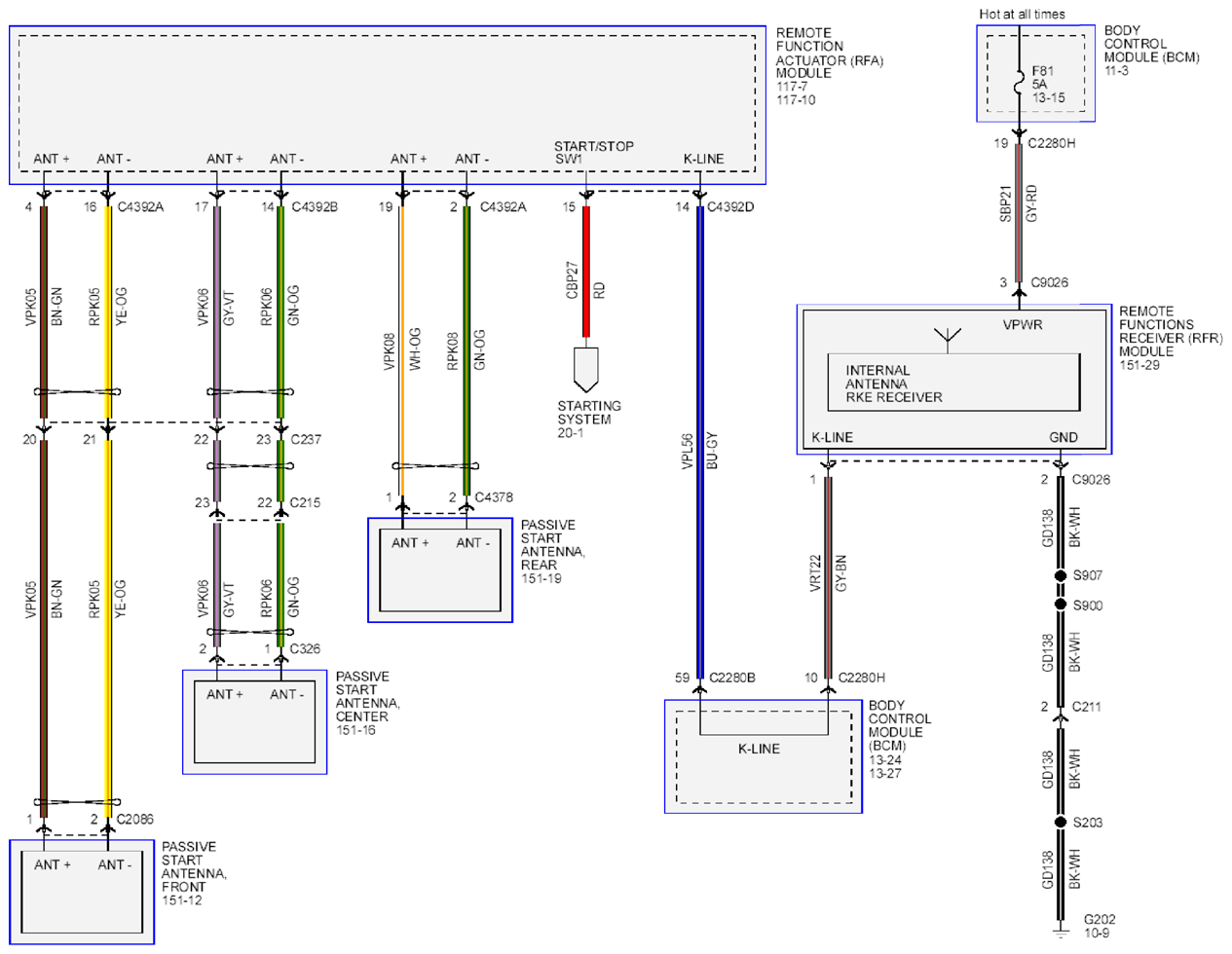

Fig 3: Passive Anti-Theft System - Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
