With LEDS

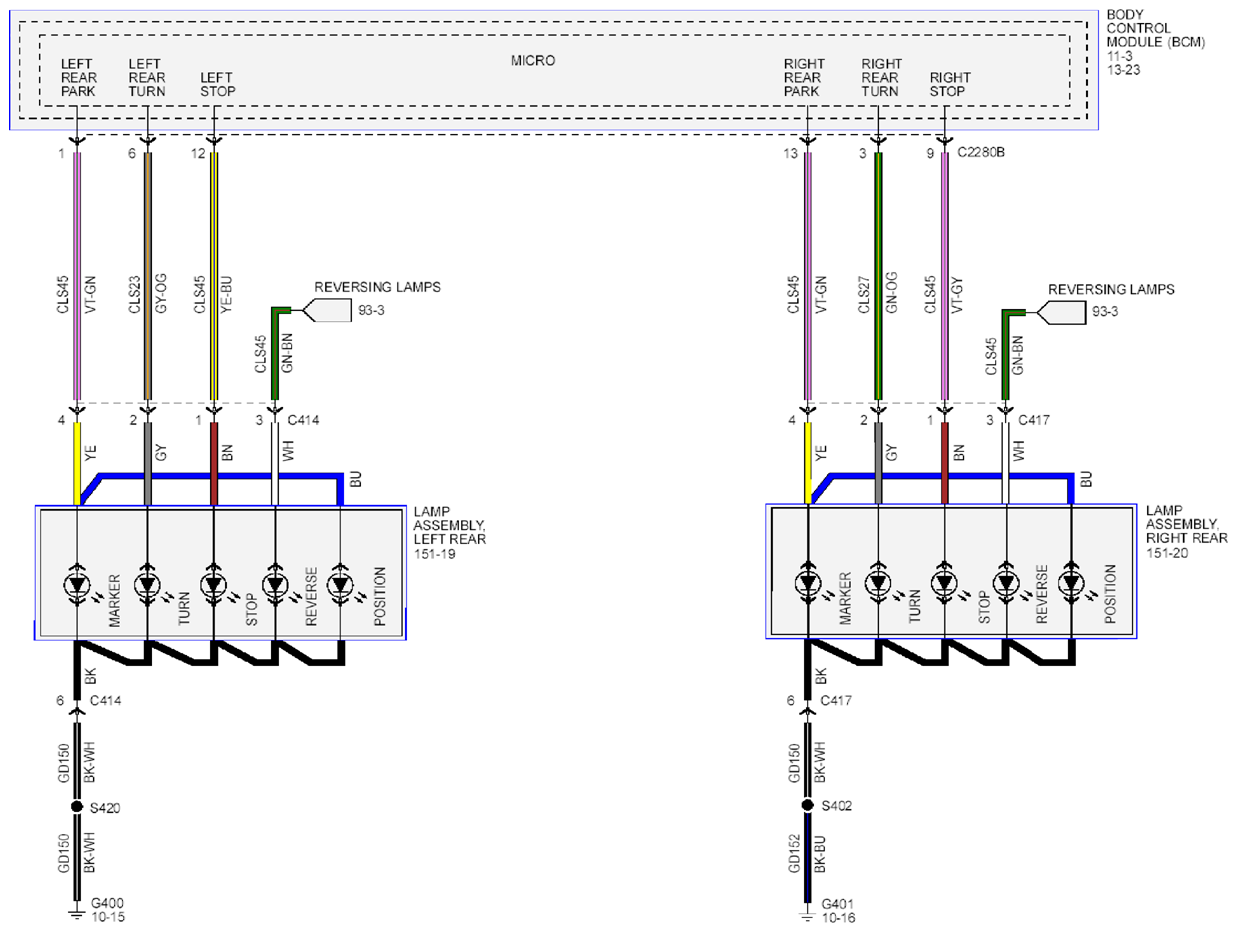

Fig 1: Parking, Rear And License Lamps - Wiring Diagram (With LEDS; 1 Of 2)
G09260901Courtesy of FORD MOTOR CO.

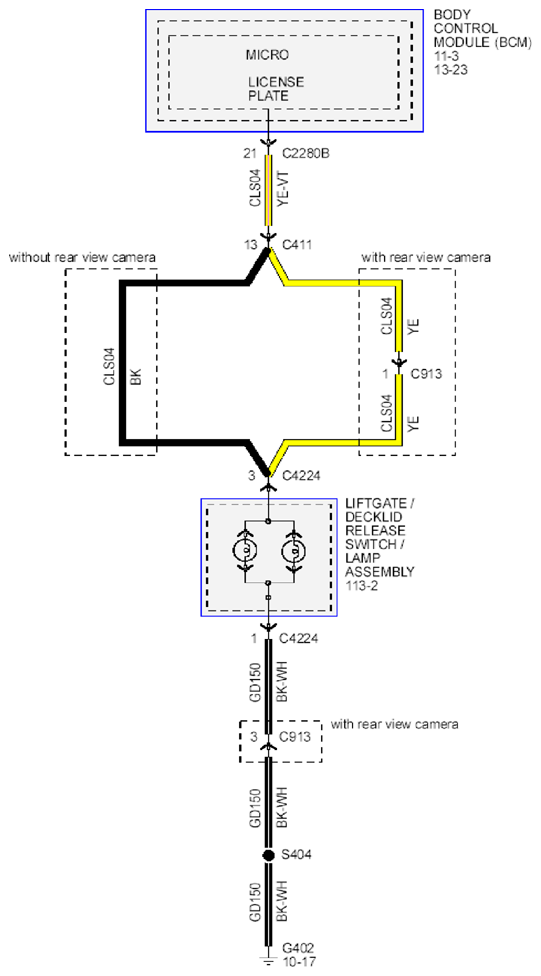

Fig 2: Parking, Rear And License Lamps - Wiring Diagram (With LEDS; 2 Of 2)
G09260902Courtesy of FORD MOTOR CO.
