Parking, Rear And License Lamps: Notes

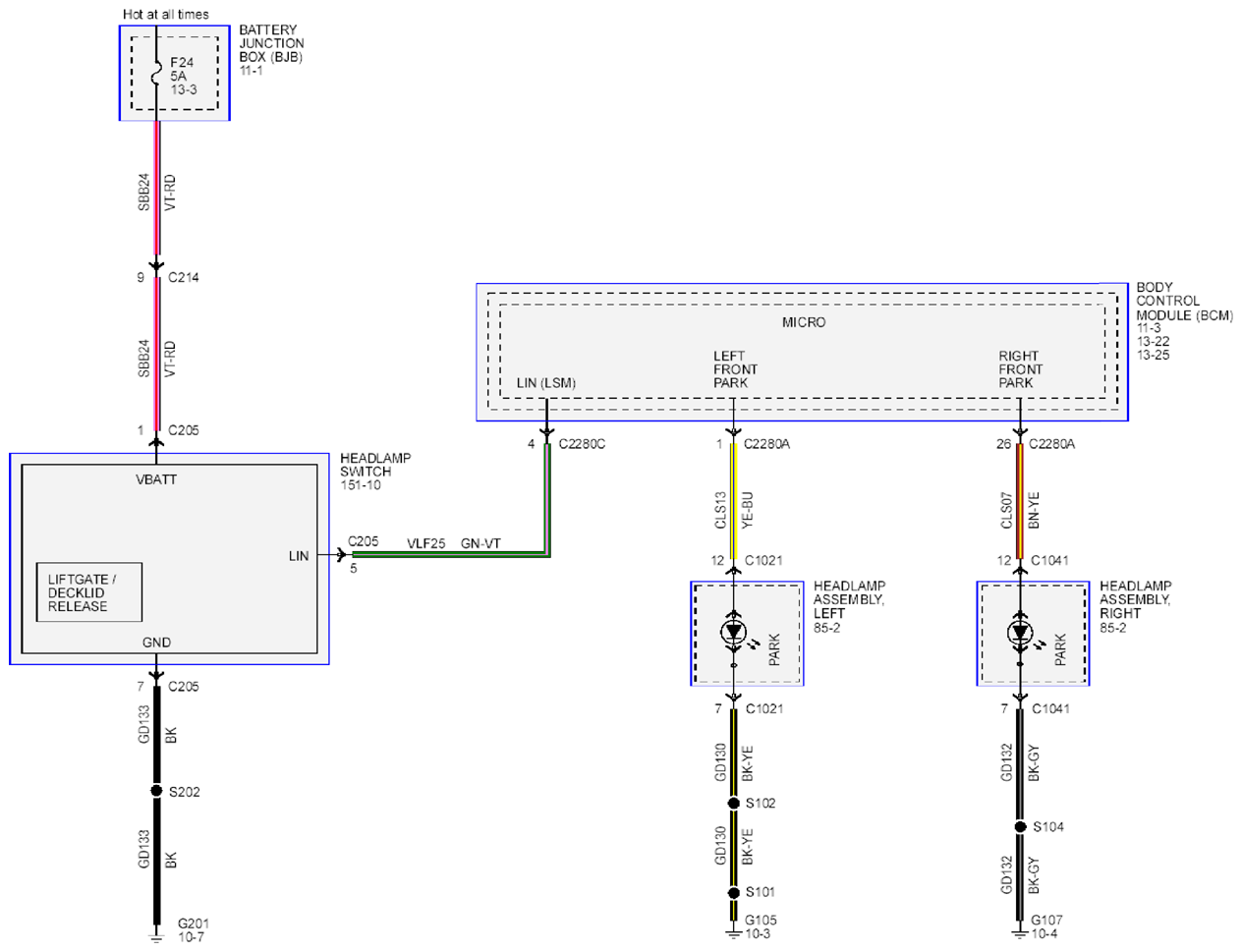

Fig 1: Parking, Rear And License Lamps - Wiring Diagram

G09260899

Courtesy of FORD MOTOR CO.
