Paring Aid
>>
Rear View Camera
Rear View Camera

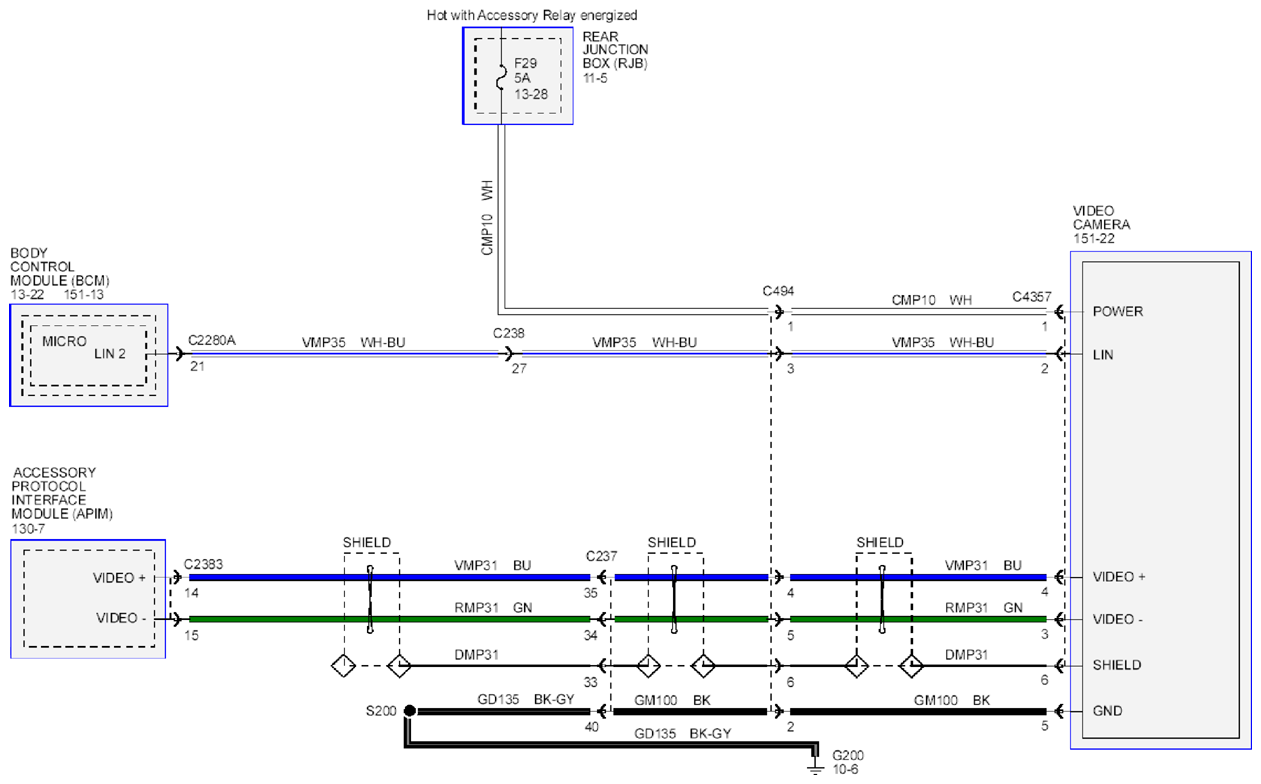

Fig 1: Paring Aid - Wiring Diagram (Rear View Camera)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
