Paring Aid
>>
Notes
Paring Aid: Notes

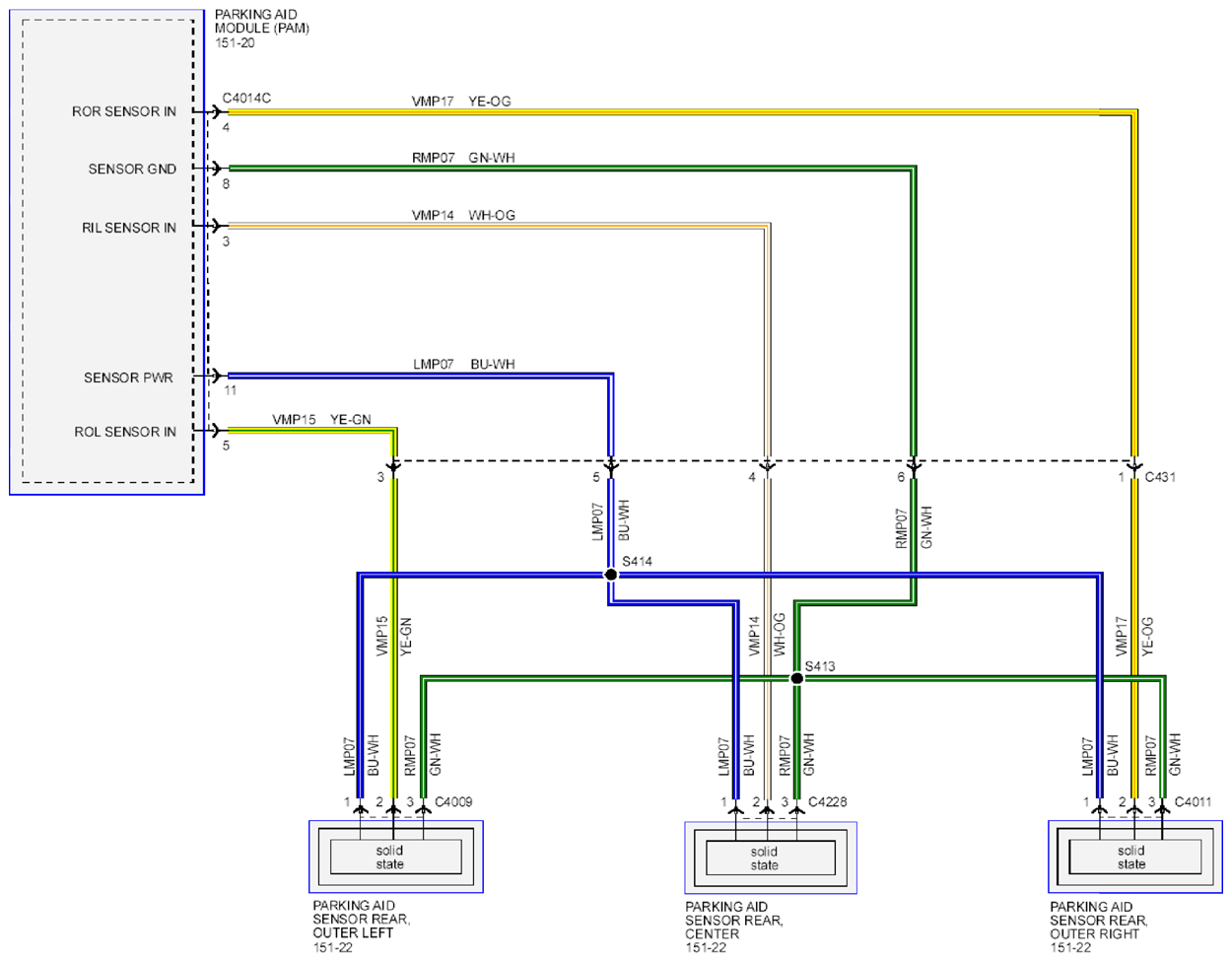

Fig 1: Paring Aid - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

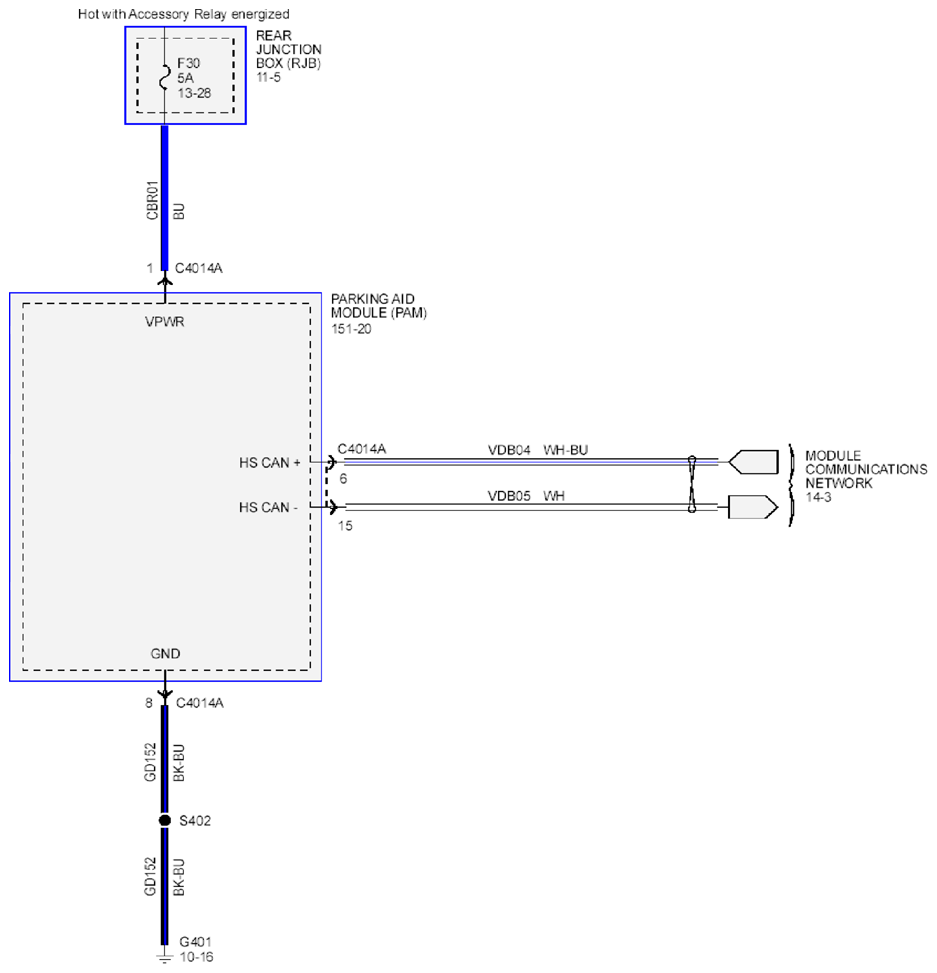

Fig 2: Paring Aid - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
