Module Communications Network

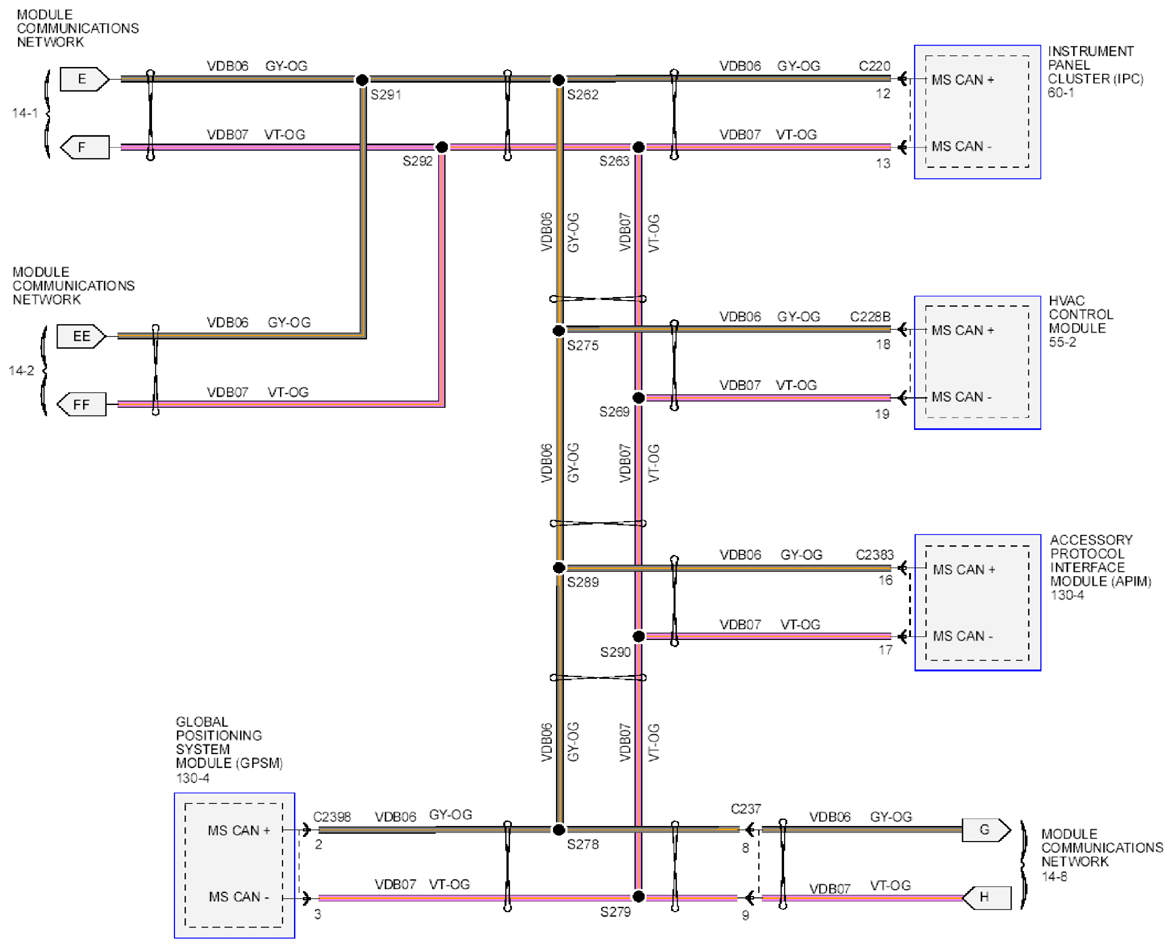

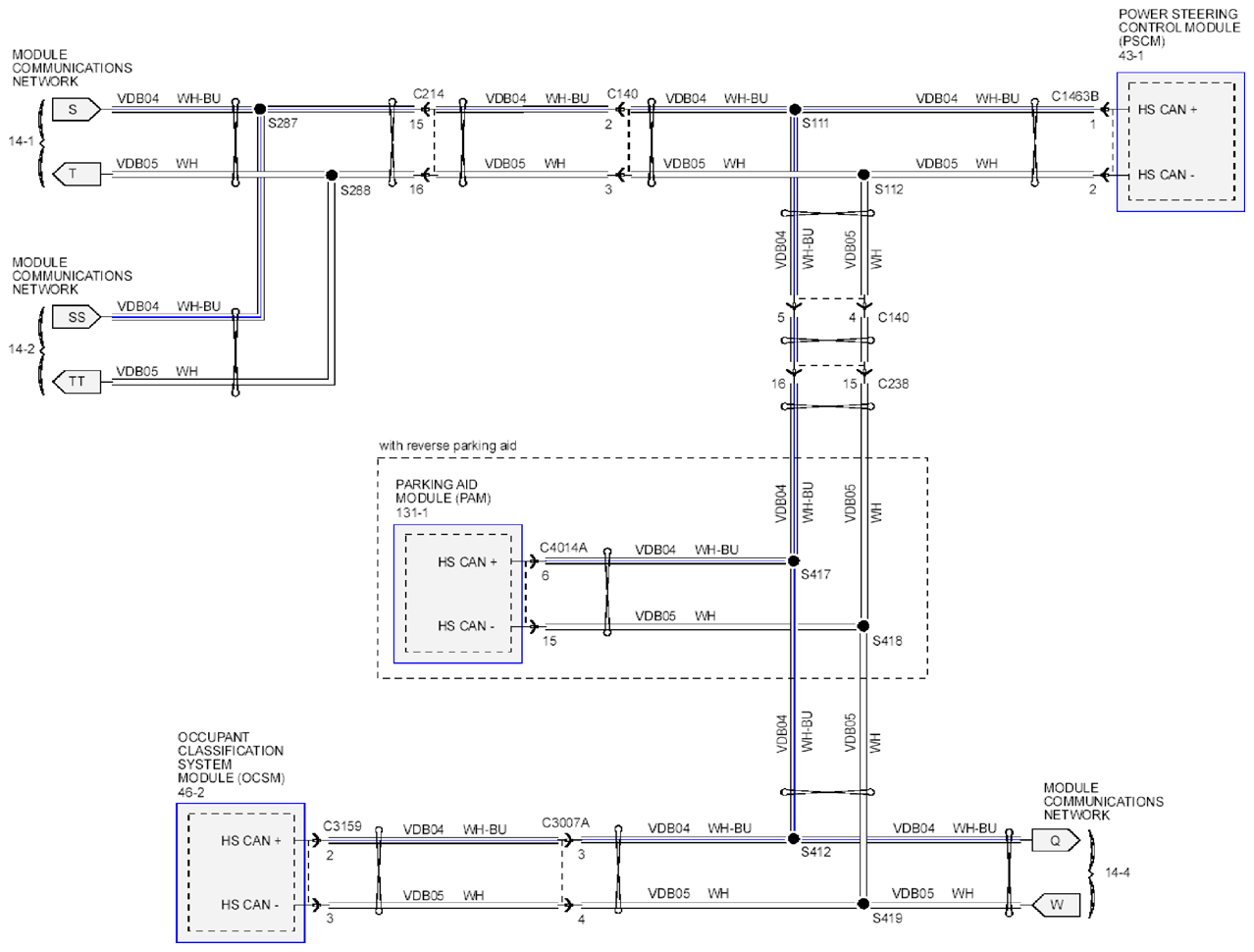

Fig 1: Module Communications Network System - Wiring Diagram (1 Of 9)

Courtesy of FORD MOTOR CO.

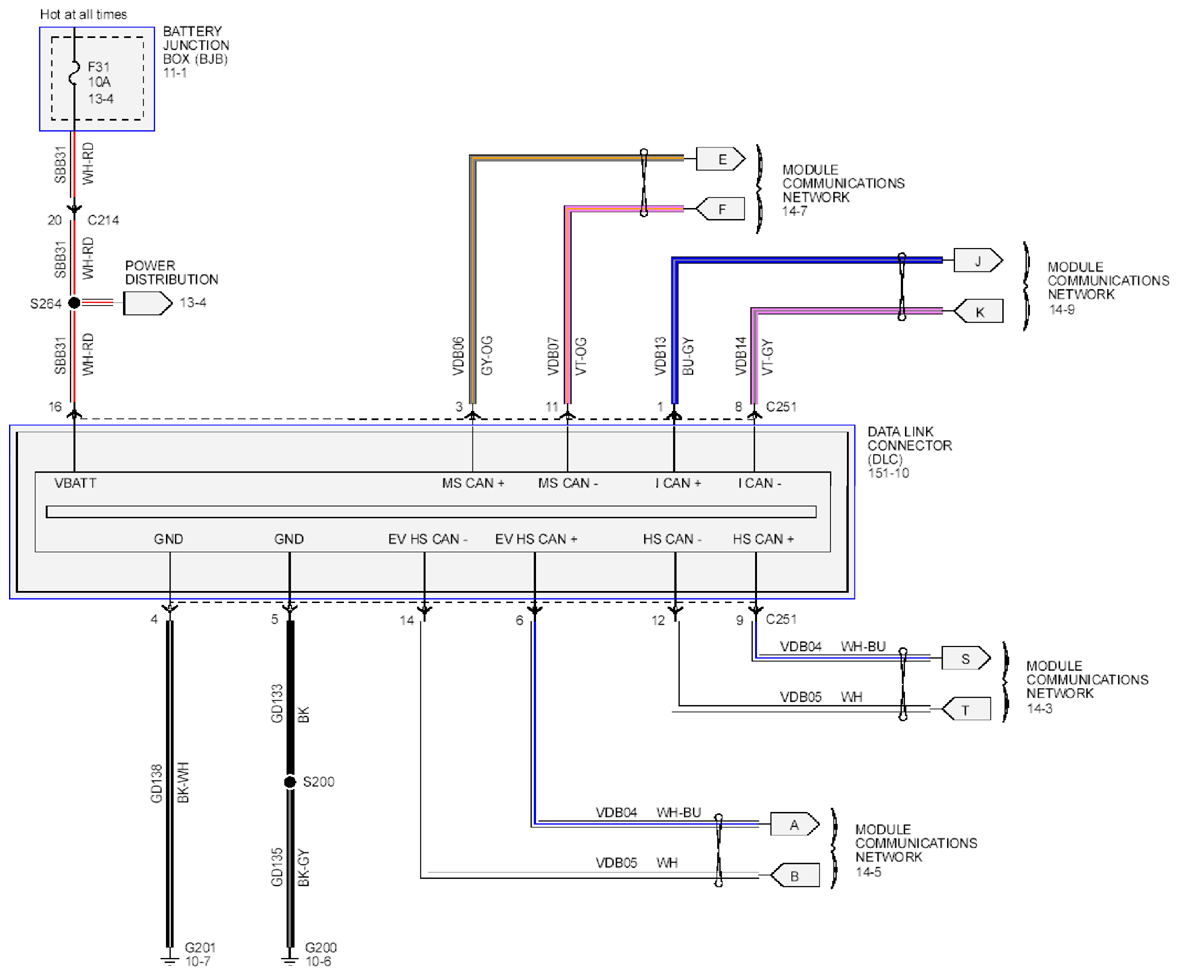

Fig 2: Module Communications Network System - Wiring Diagram (2 Of 9)

Courtesy of FORD MOTOR CO.

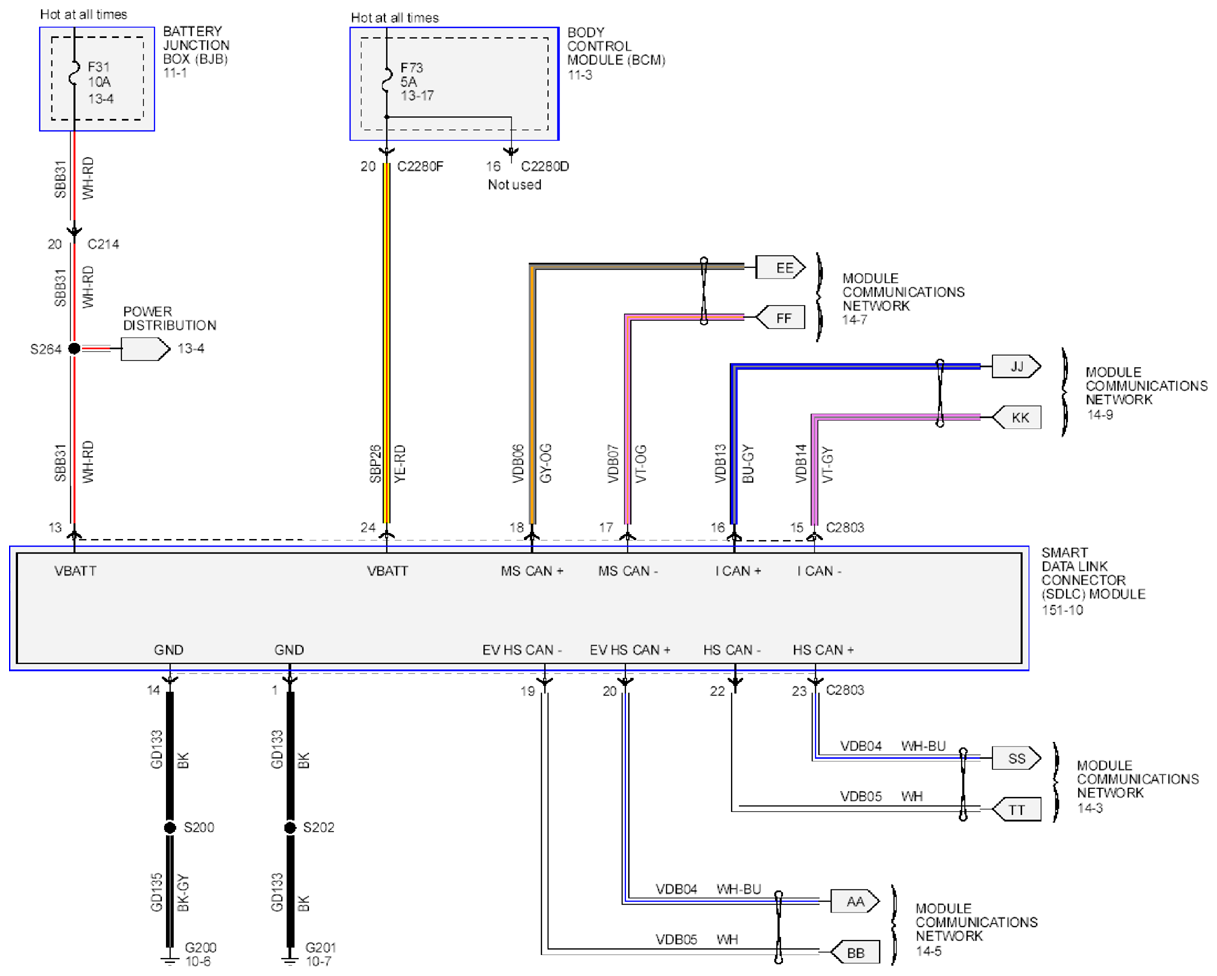

Fig 3: Module Communications Network System - Wiring Diagram (3 Of 9)

Courtesy of FORD MOTOR CO.

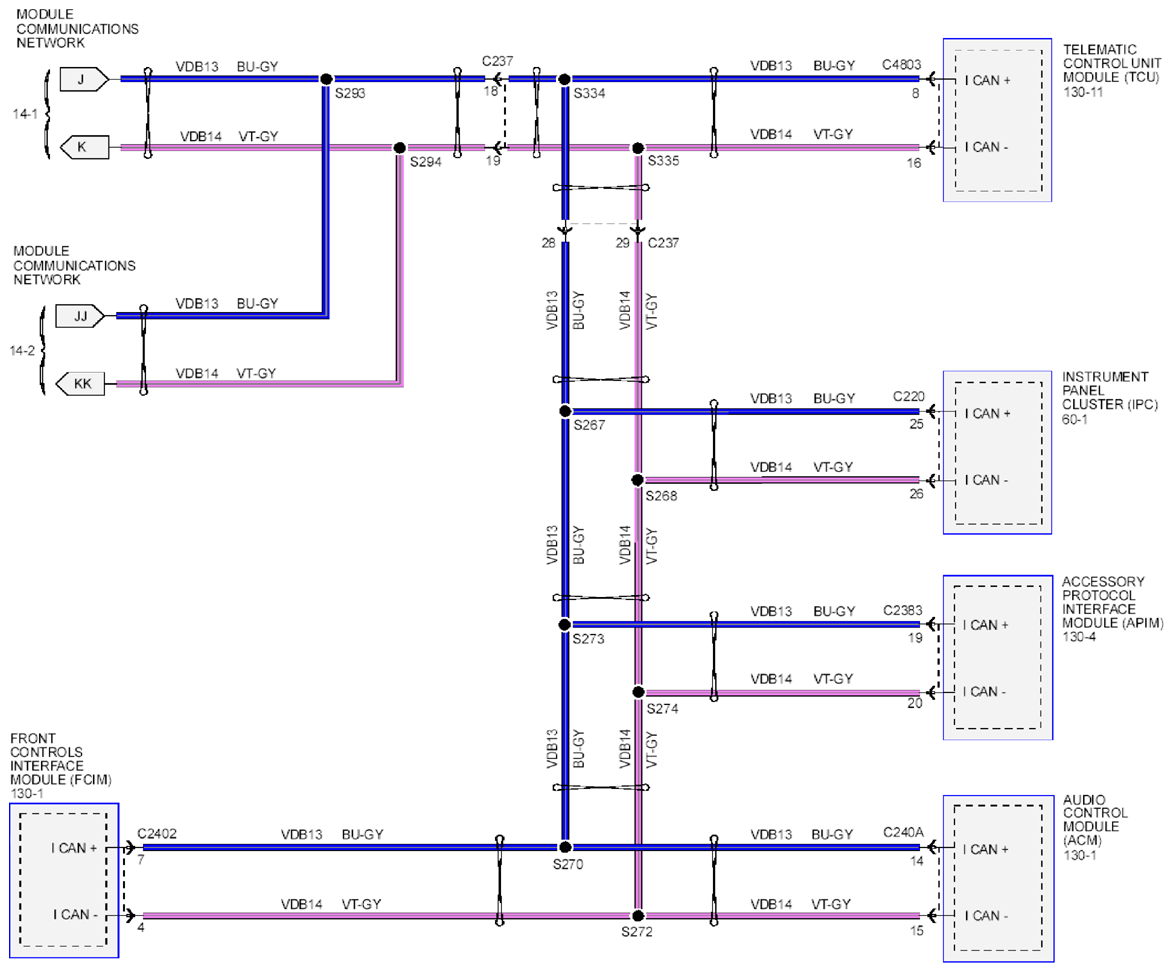

Fig 4: Module Communications Network System - Wiring Diagram (4 Of 9)

Courtesy of FORD MOTOR CO.

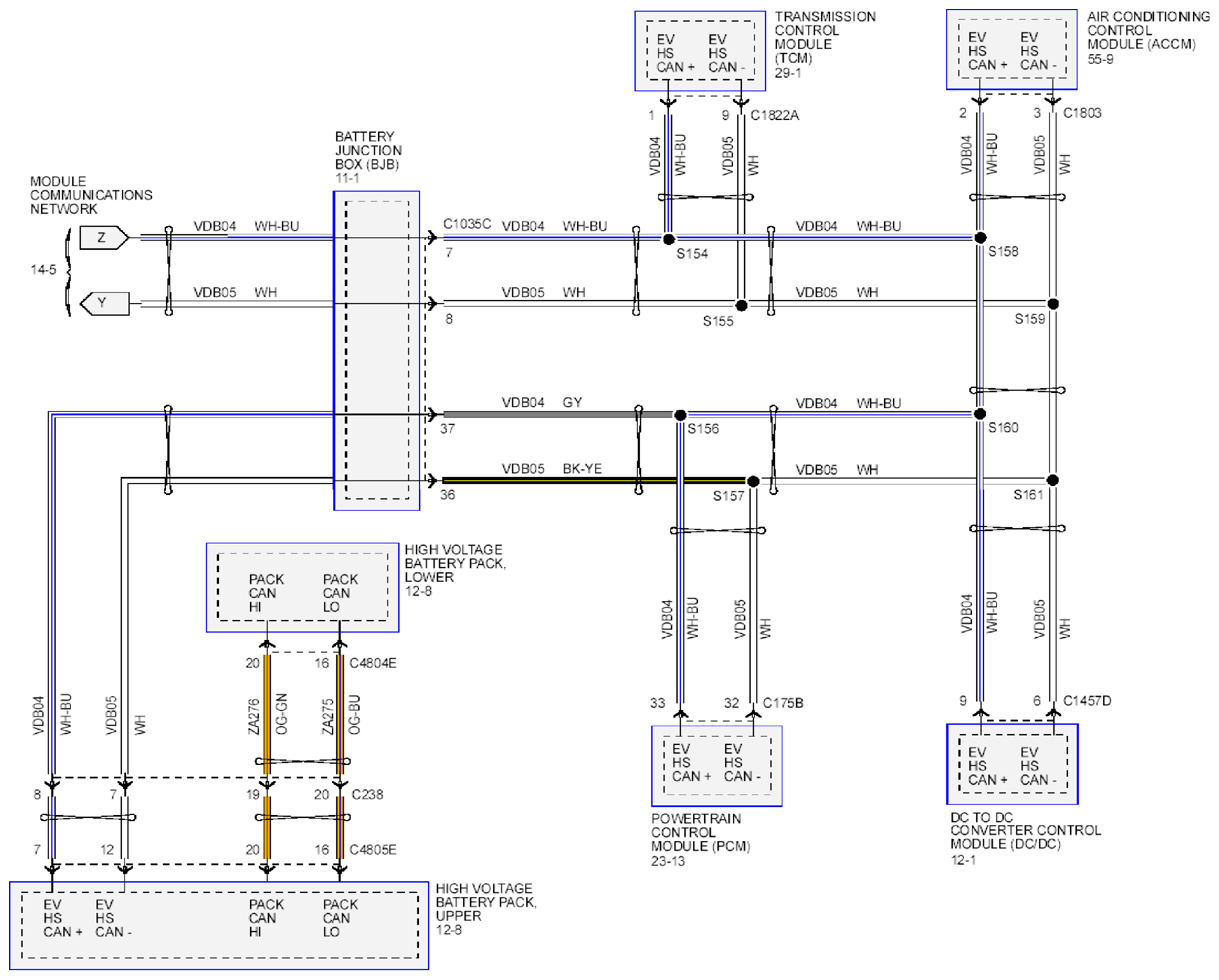

Fig 5: Module Communications Network System - Wiring Diagram (5 Of 9)

Courtesy of FORD MOTOR CO.

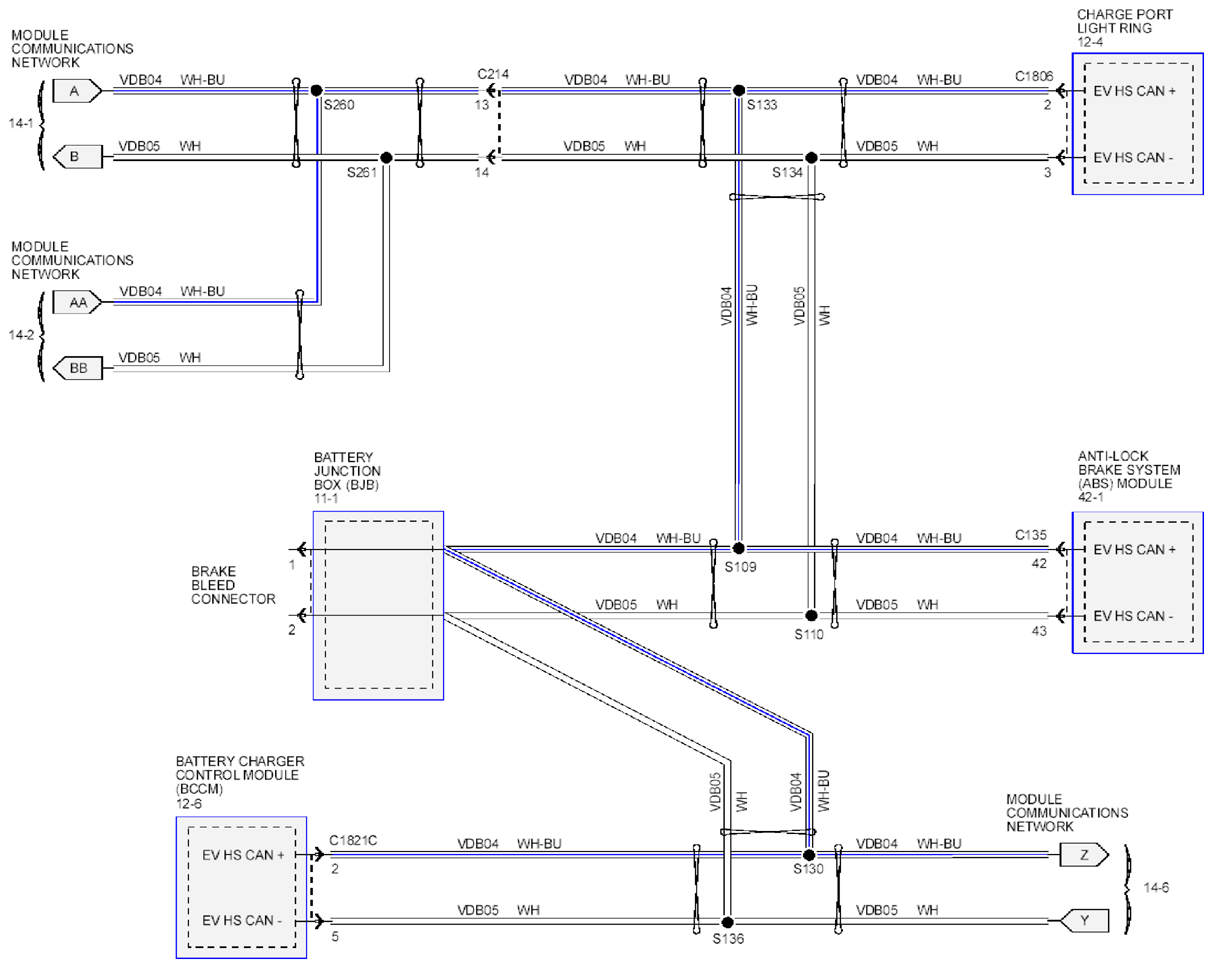

Fig 6: Module Communications Network System - Wiring Diagram (6 Of 9)

Courtesy of FORD MOTOR CO.

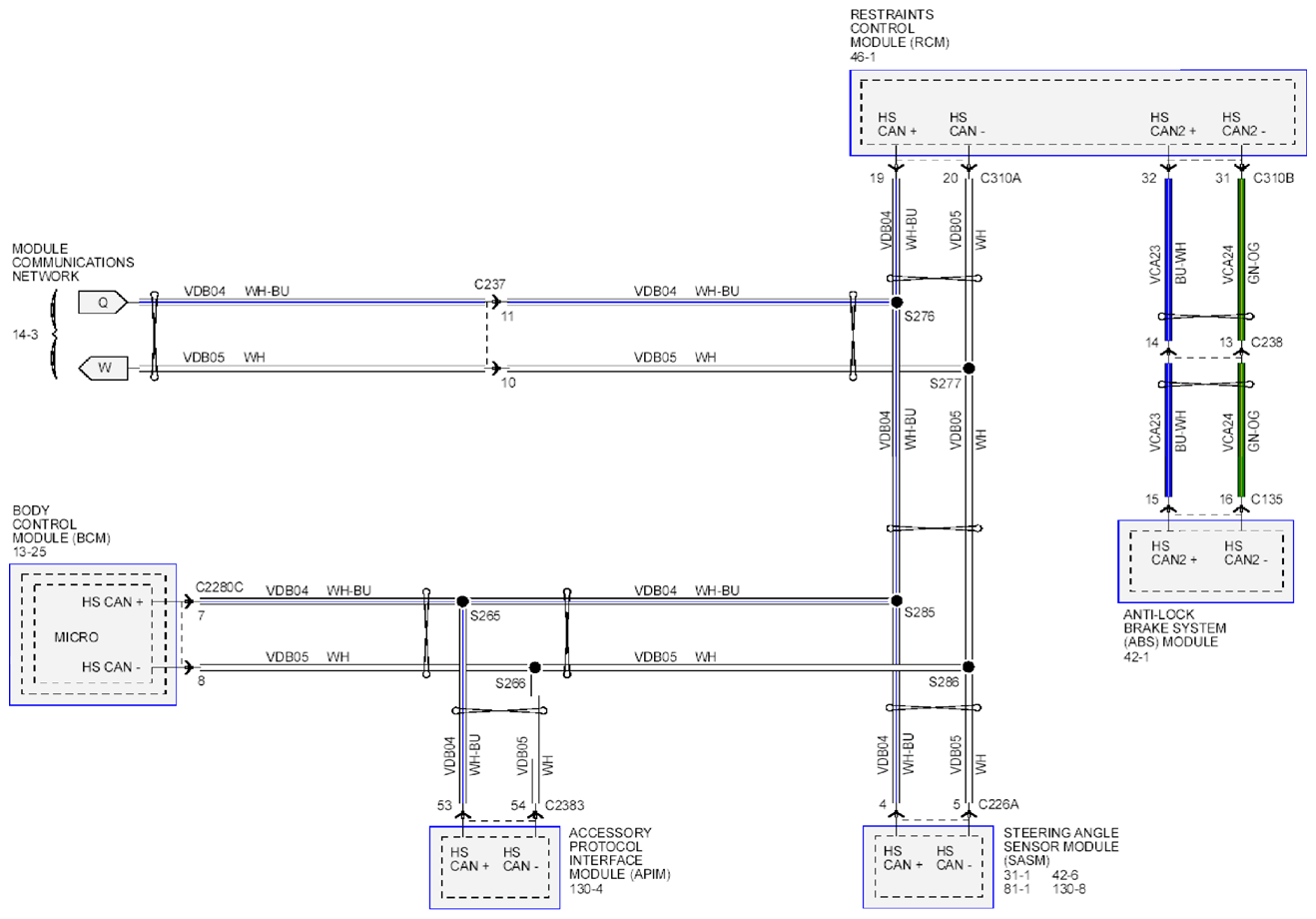

Fig 7: Module Communications Network System - Wiring Diagram (7 Of 9)

Courtesy of FORD MOTOR CO.

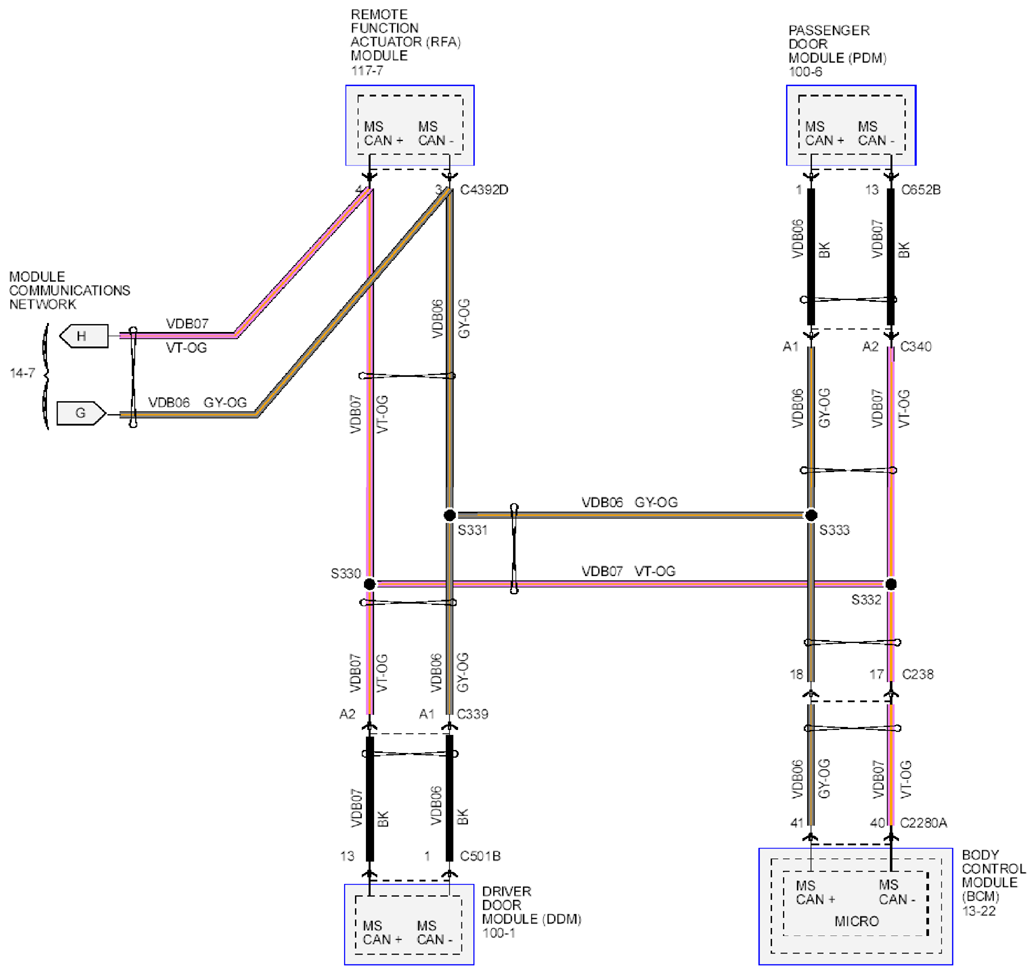

Fig 8: Module Communications Network System - Wiring Diagram (8 Of 9)

Courtesy of FORD MOTOR CO.

Fig 9: Module Communications Network System - Wiring Diagram (9 Of 9)

Courtesy of FORD MOTOR CO.
