Luggage Compartment

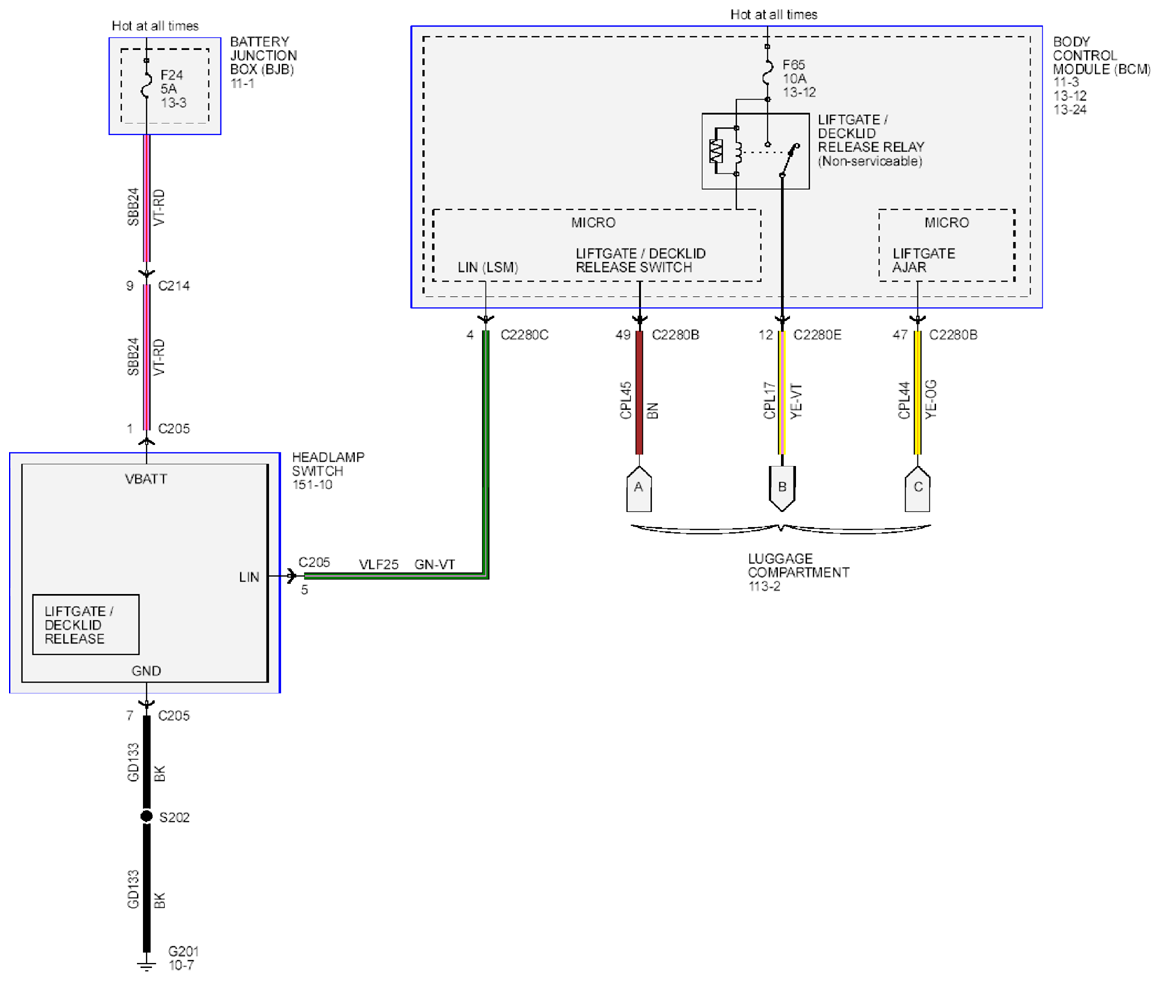

Fig 1: Luggage Compartment - Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

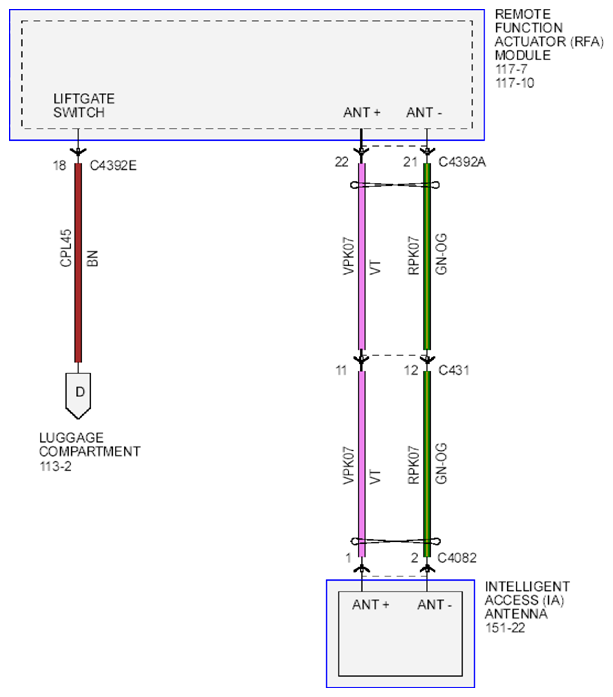

Fig 2: Luggage Compartment - Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

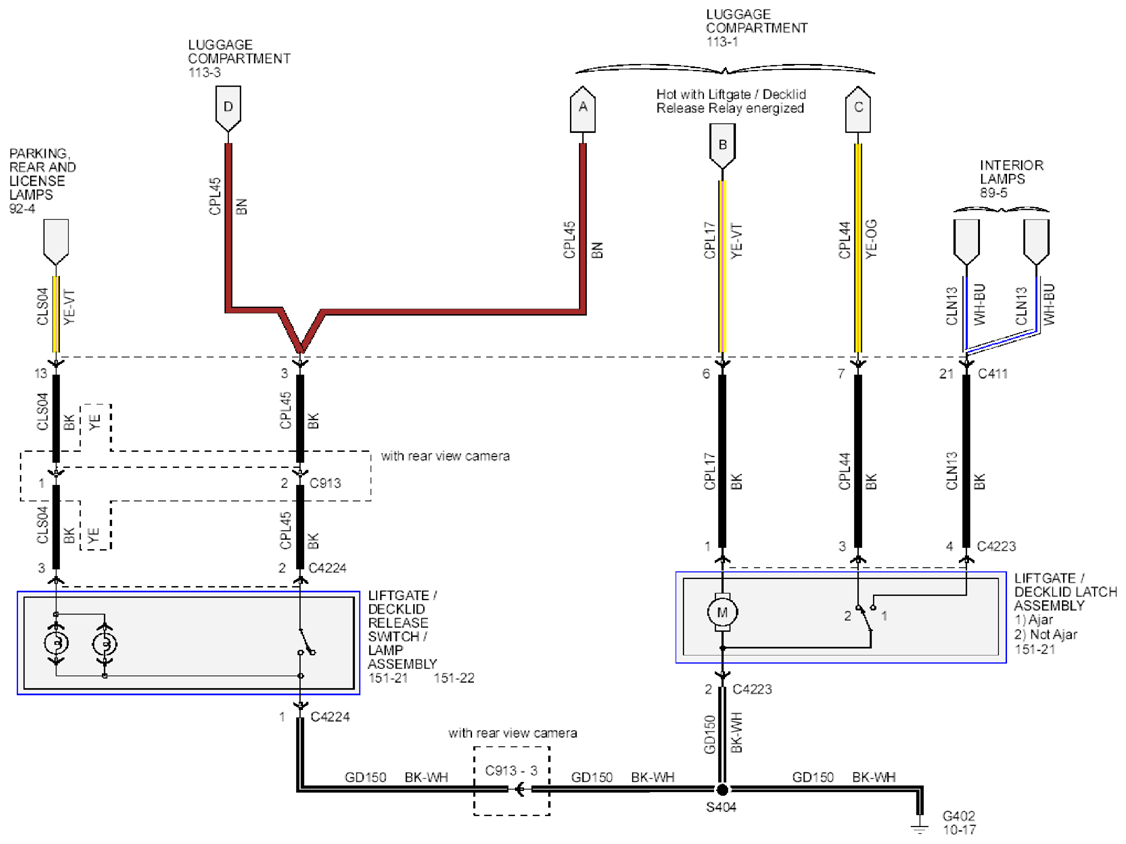

Fig 3: Luggage Compartment - Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
