With Ambient Lighting

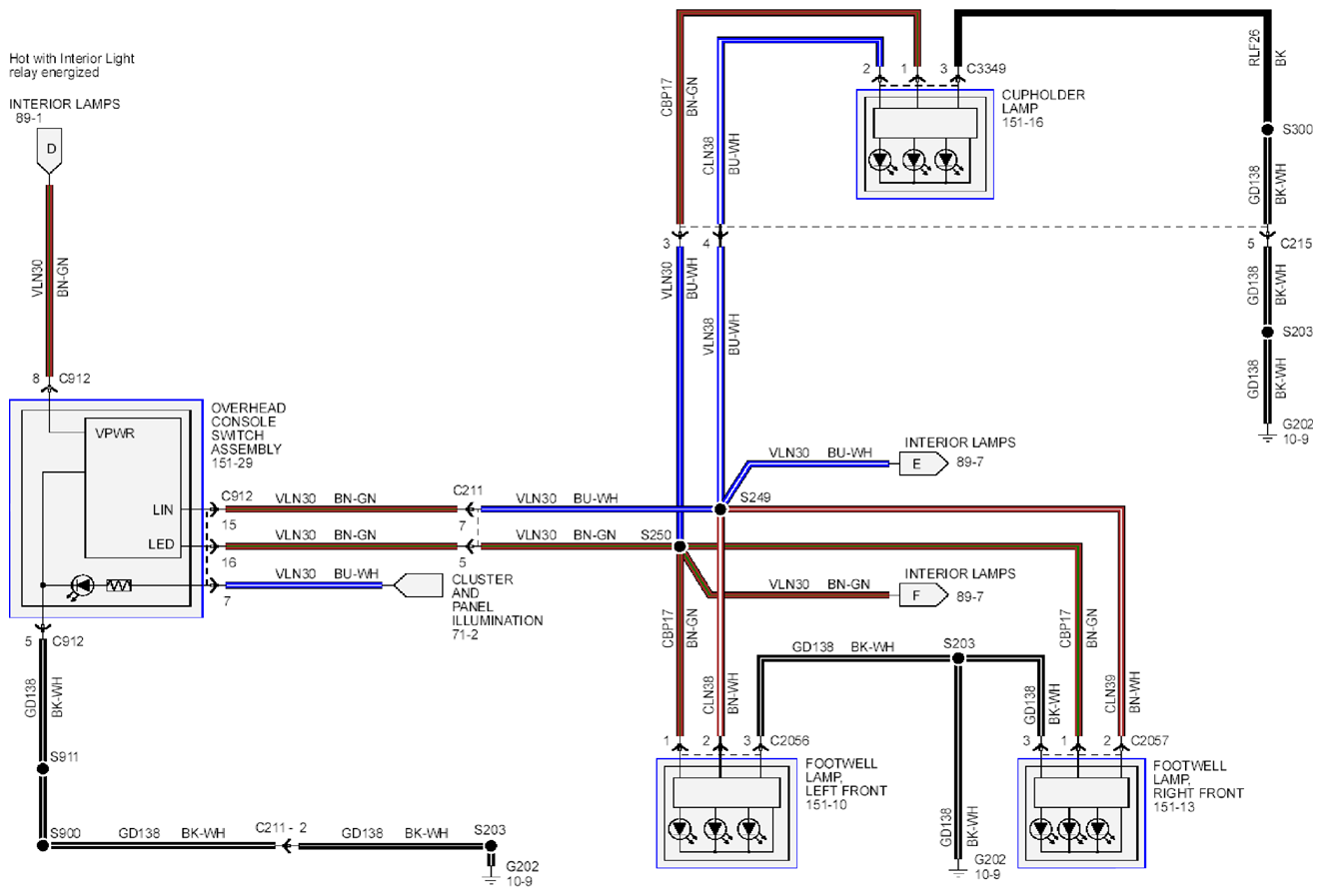

Fig 1: Interior Lamps - Wiring Diagram (With Ambient Lighting; 1 Of 2)
G09260892Courtesy of FORD MOTOR CO.

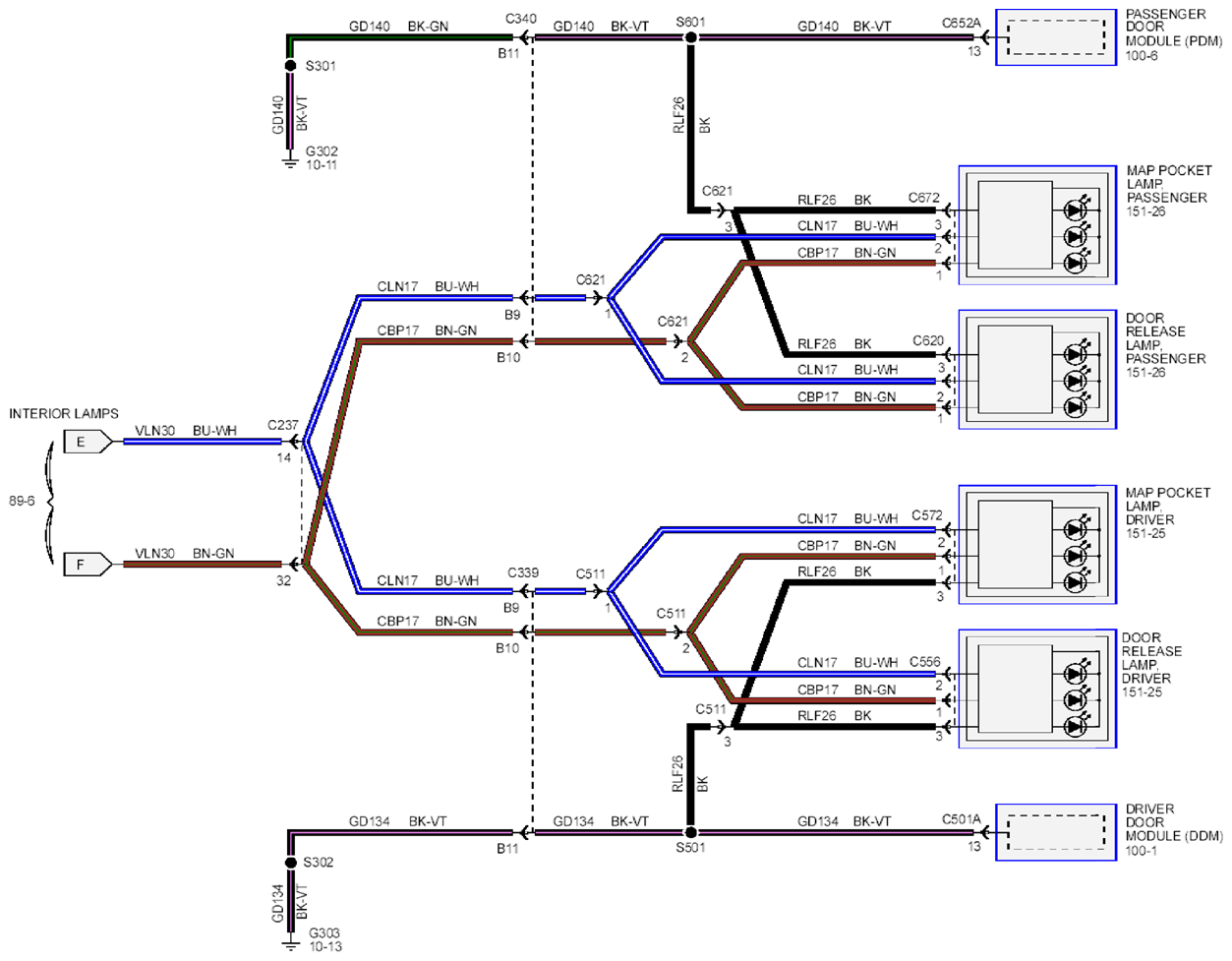

Fig 2: Interior Lamps - Wiring Diagram (With Ambient Lighting; 2 Of 2)
G09260893Courtesy of FORD MOTOR CO.
