Focus Electric
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Electric
>>
Interior Lamps
>>
Notes
Interior Lamps: Notes

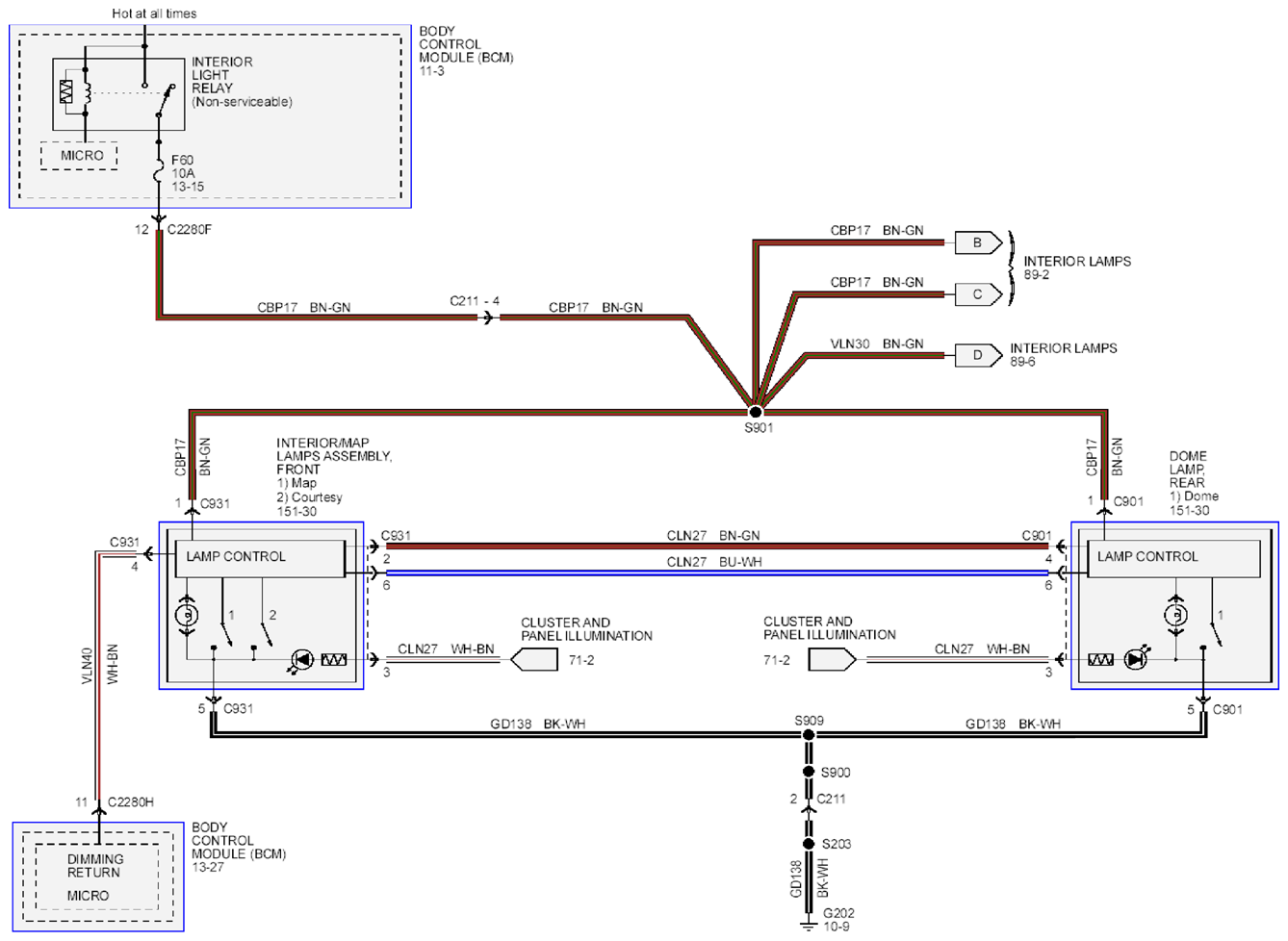

Fig 1: Interior Lamps - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

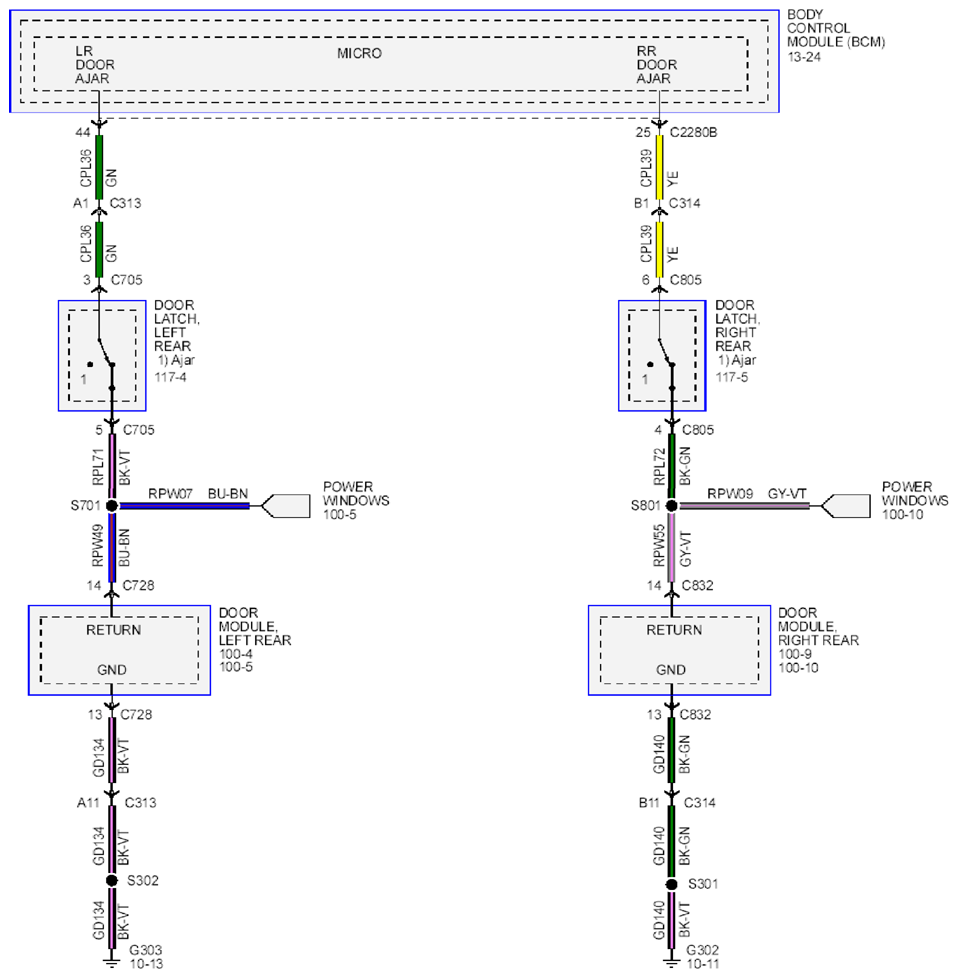

Fig 2: Interior Lamps - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

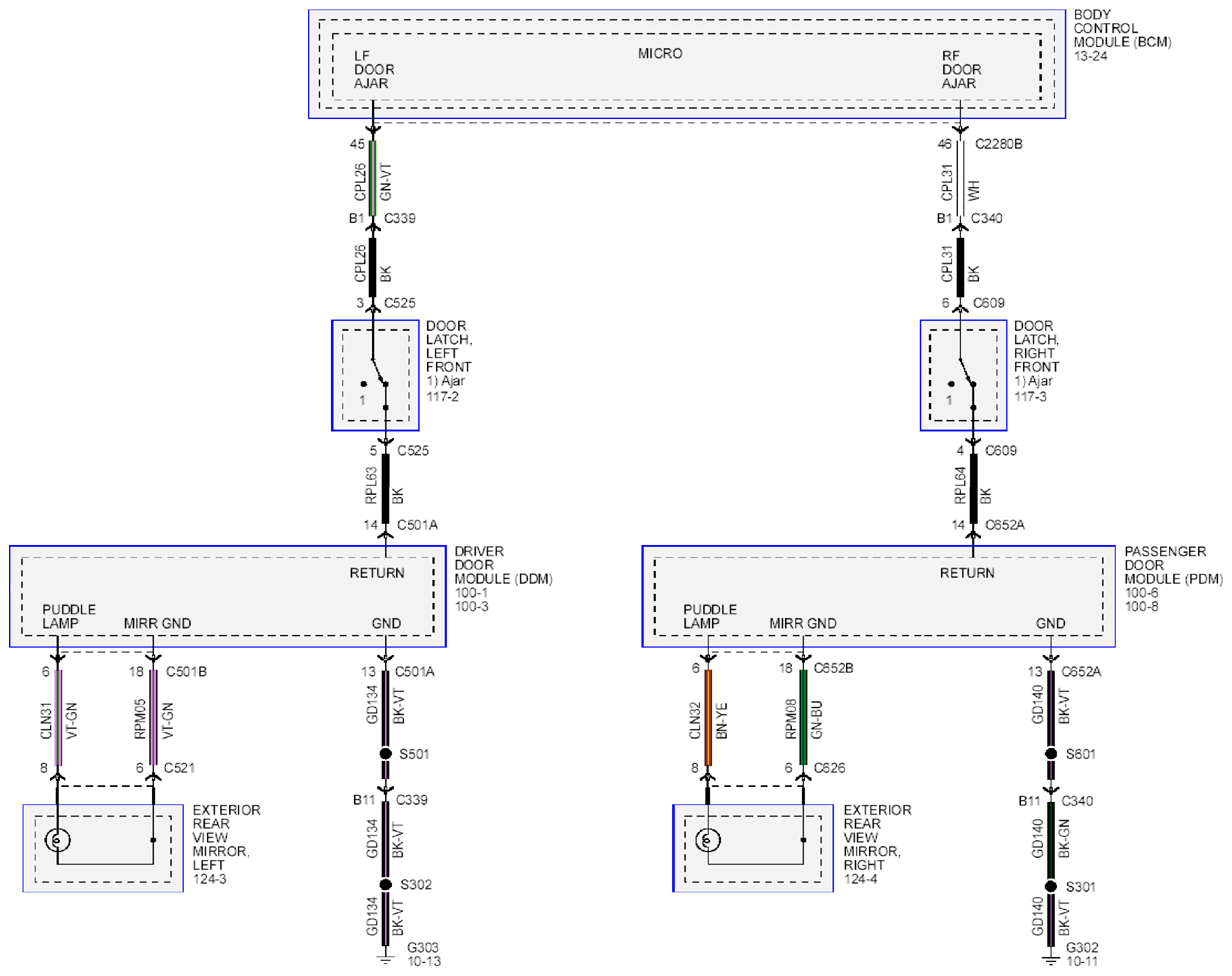

Fig 3: Interior Lamps - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

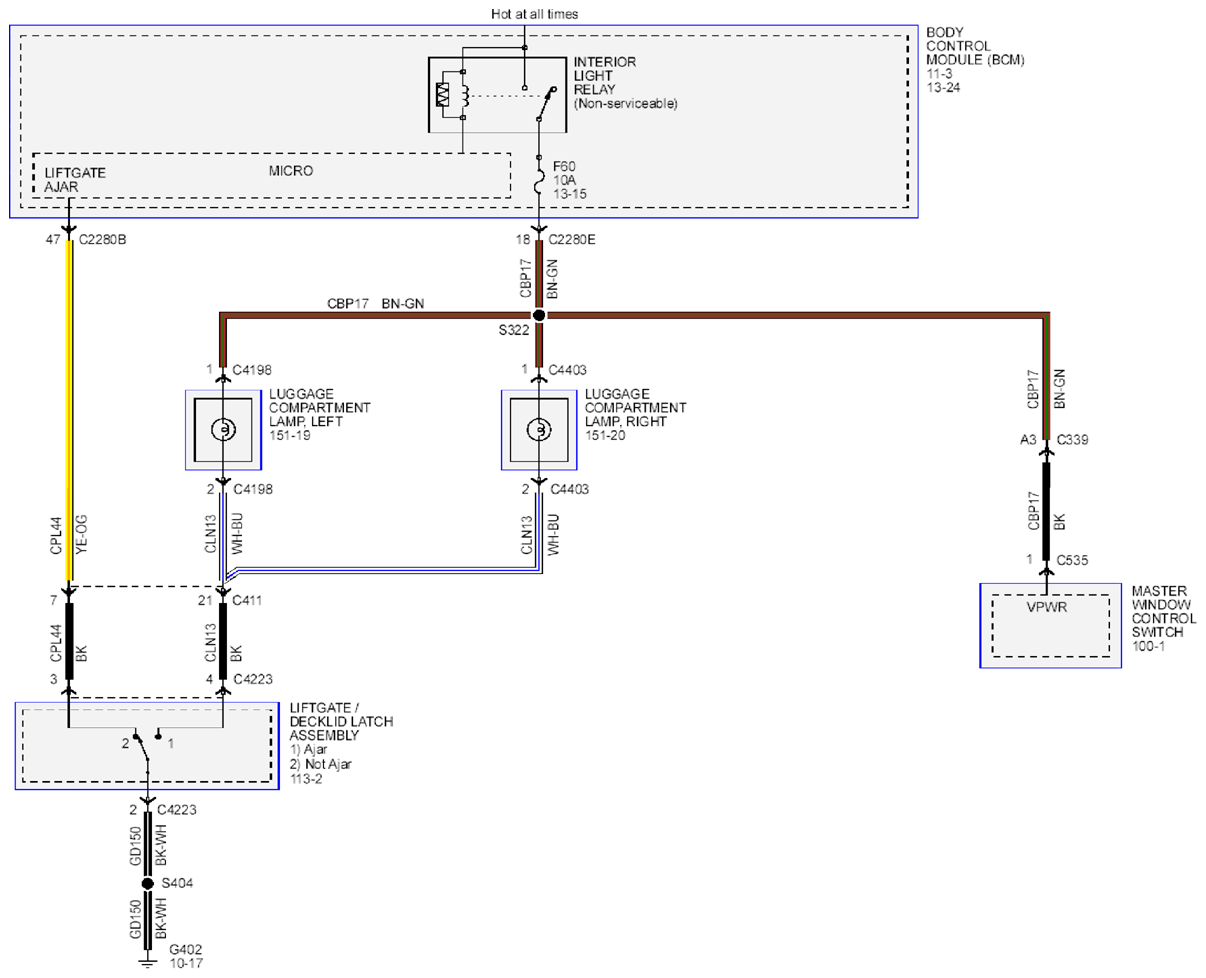

Fig 4: Interior Lamps - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

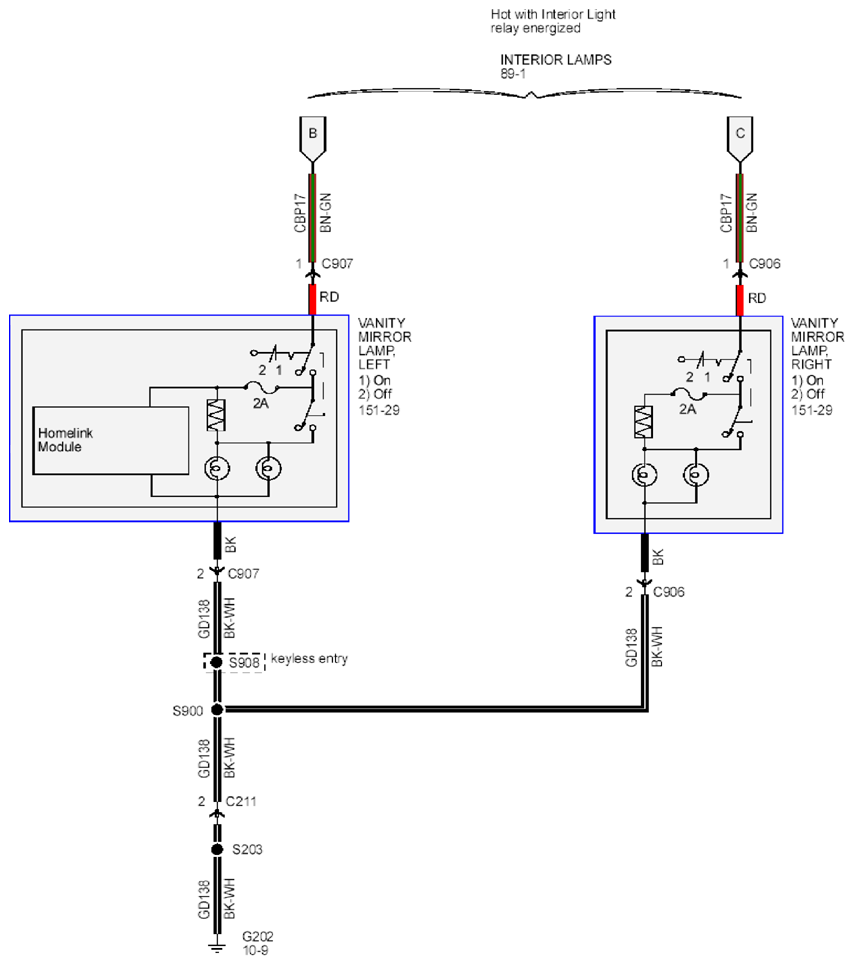

Fig 5: Interior Lamps - Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
