Instrument Cluster
Instrument Cluster

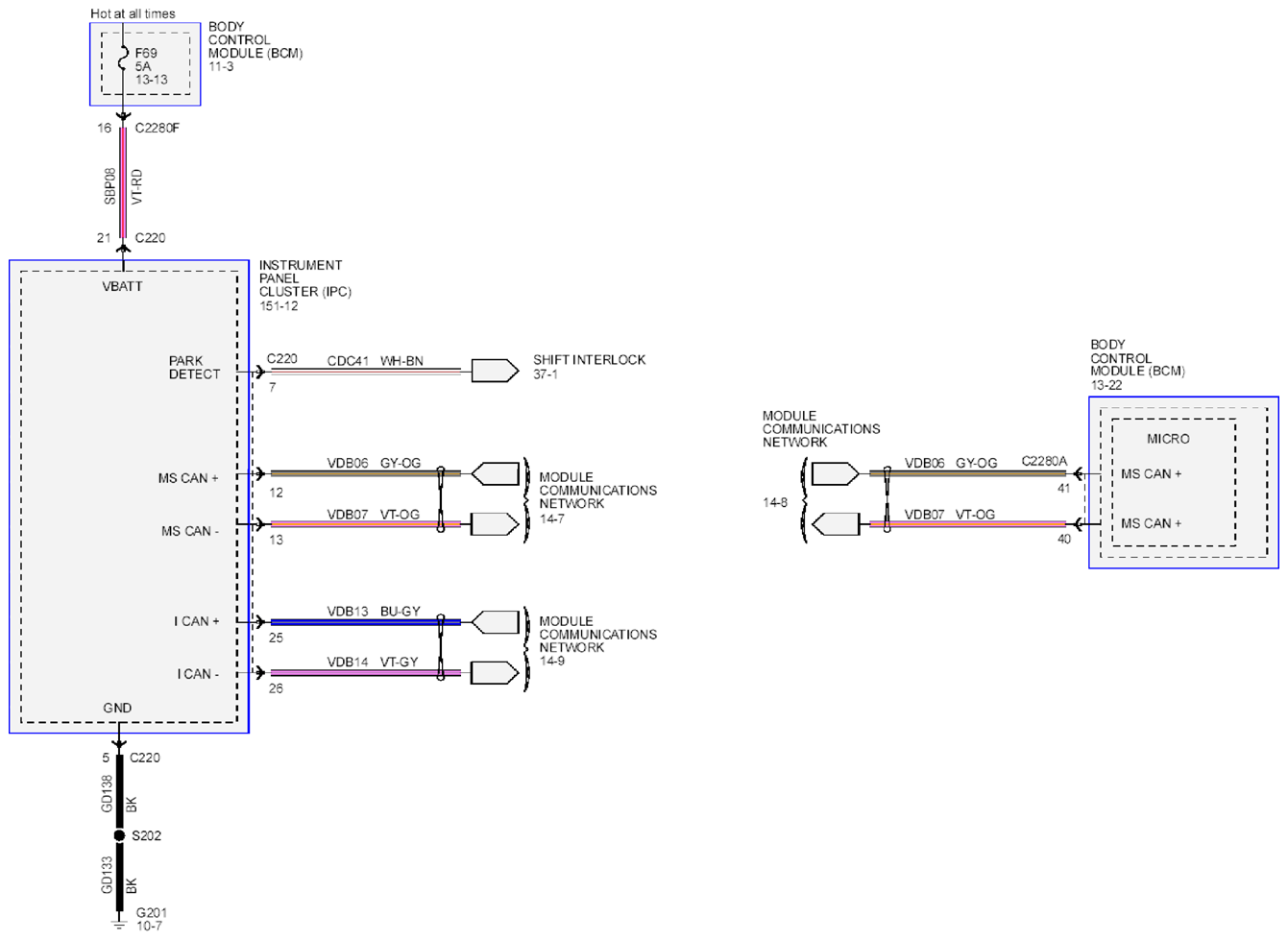

Fig 1: Instrument Cluster - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

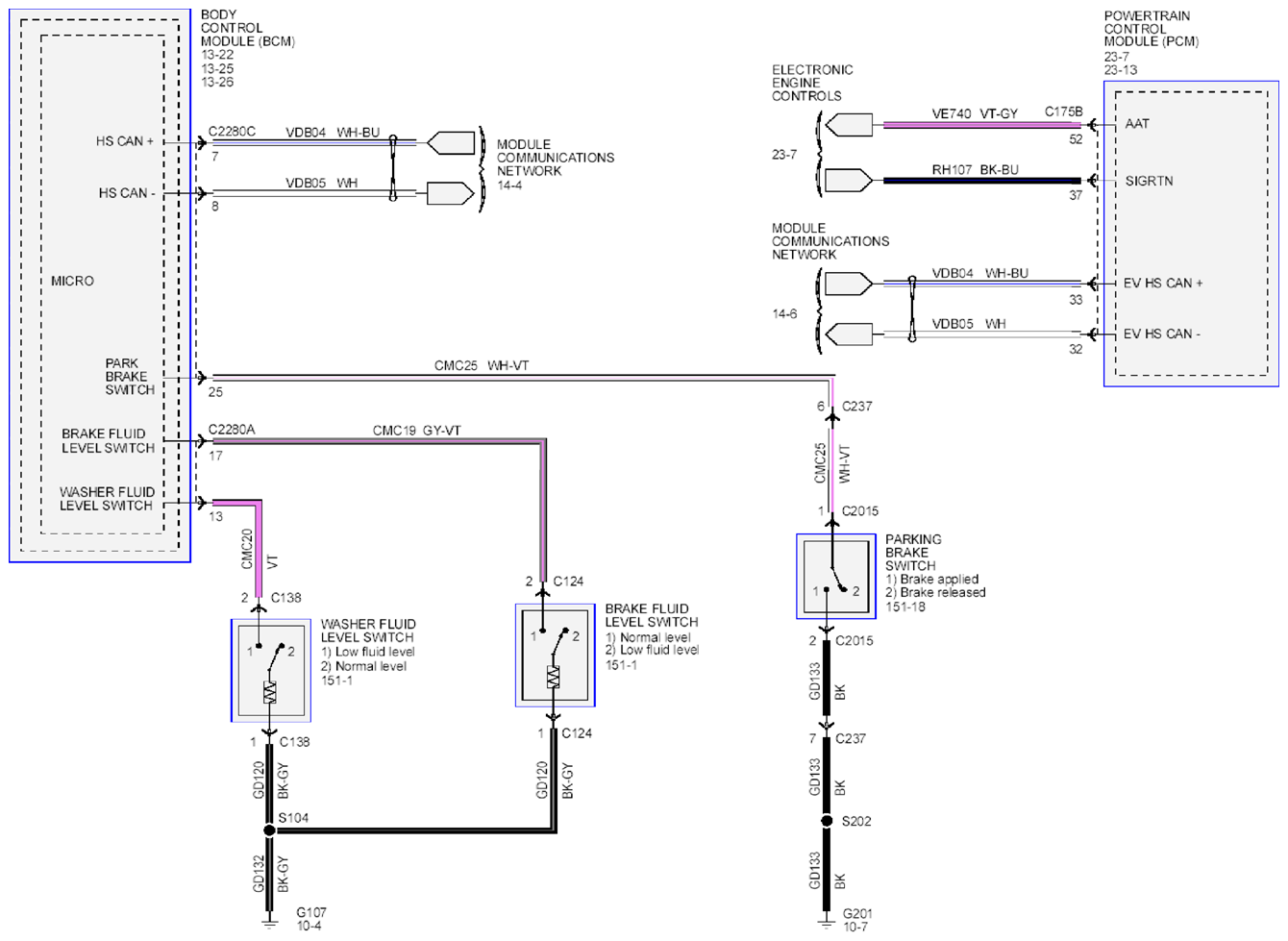

Fig 2: Instrument Cluster - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

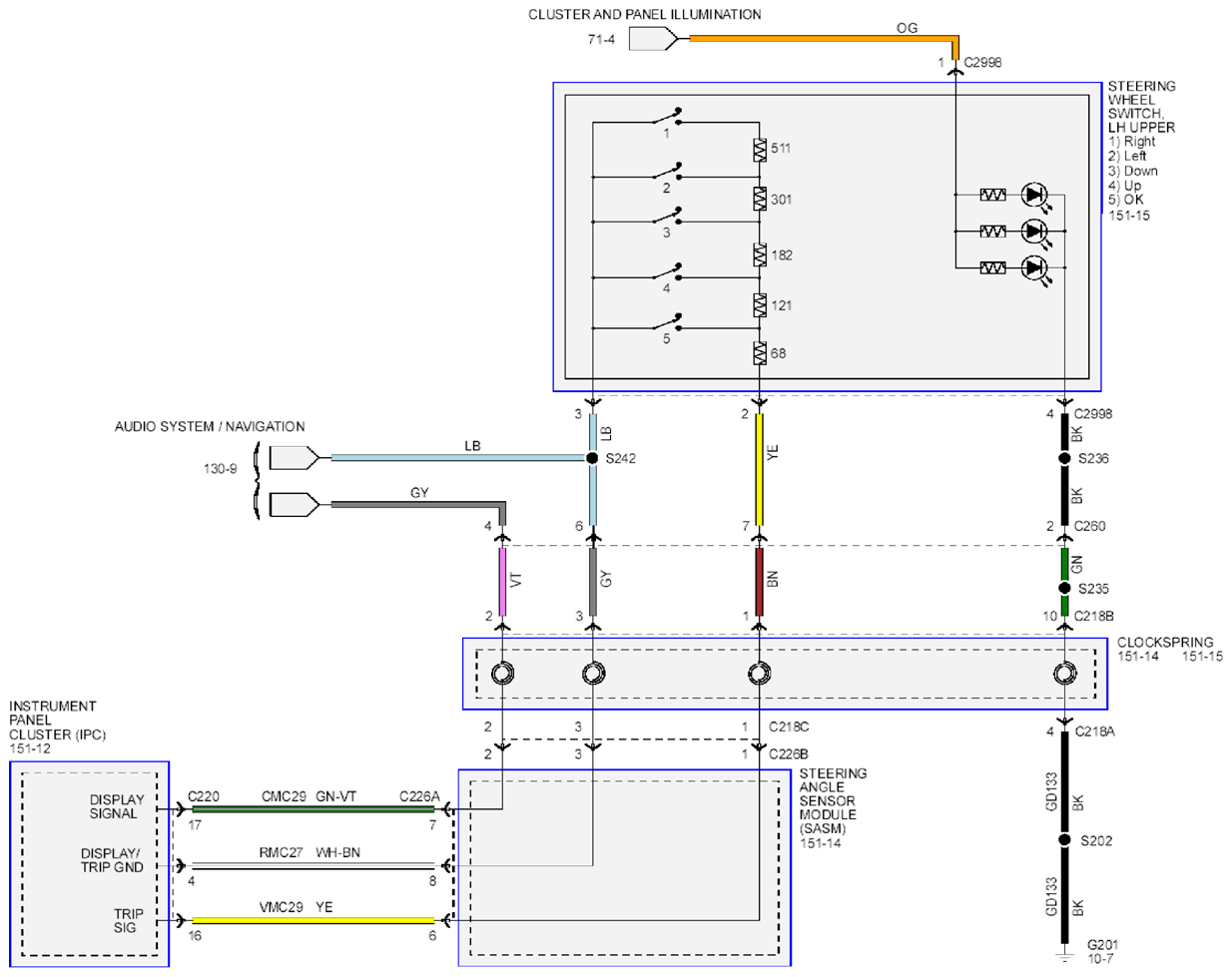

Fig 3: Instrument Cluster - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Instrument Cluster - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
