Horn/ Cigar Lighter/ Power Point

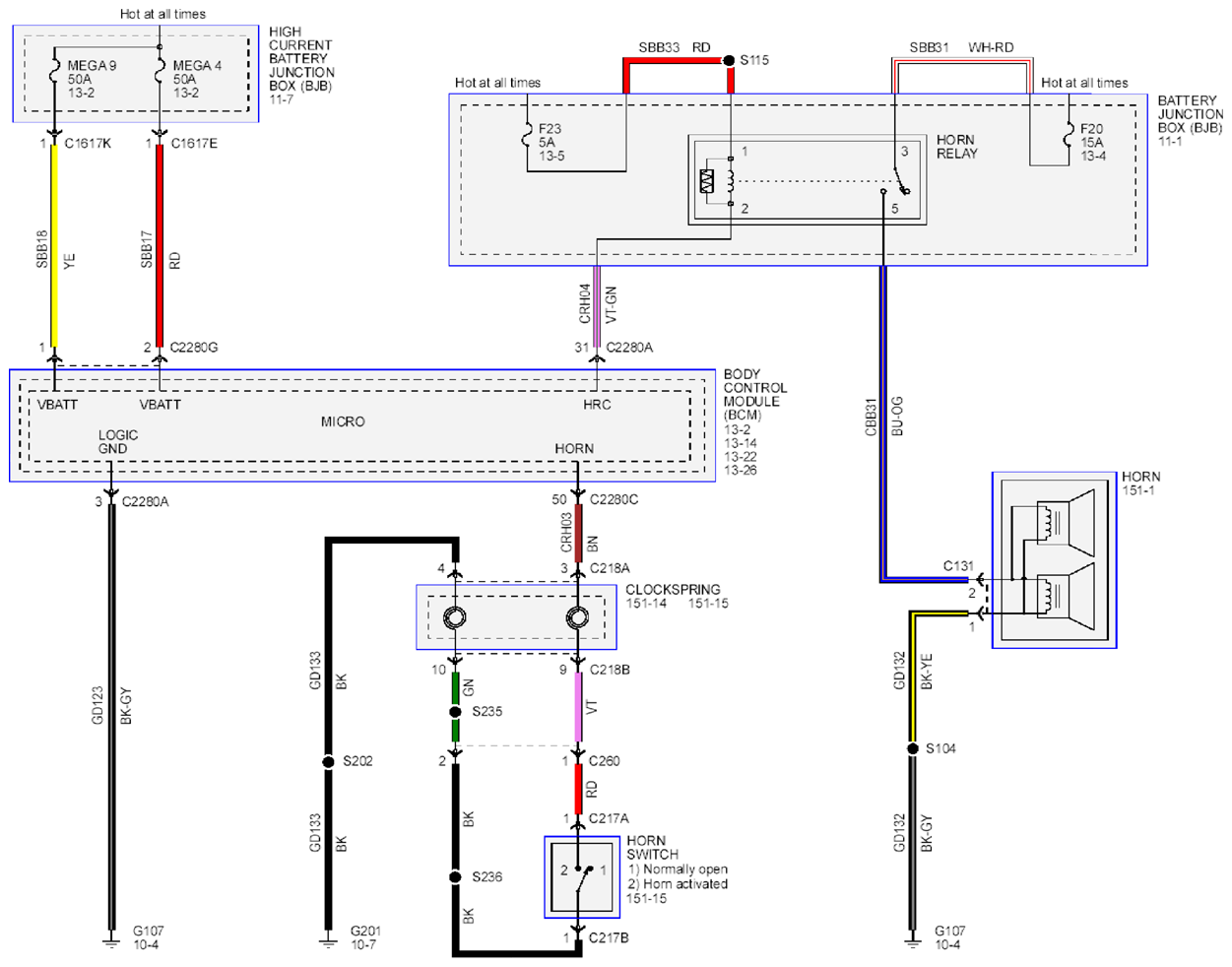

Fig 1: Horn, Cigar Lighter, Power Point System - Wiring Diagram (1 Of 2)
G09260850Courtesy of FORD MOTOR CO.

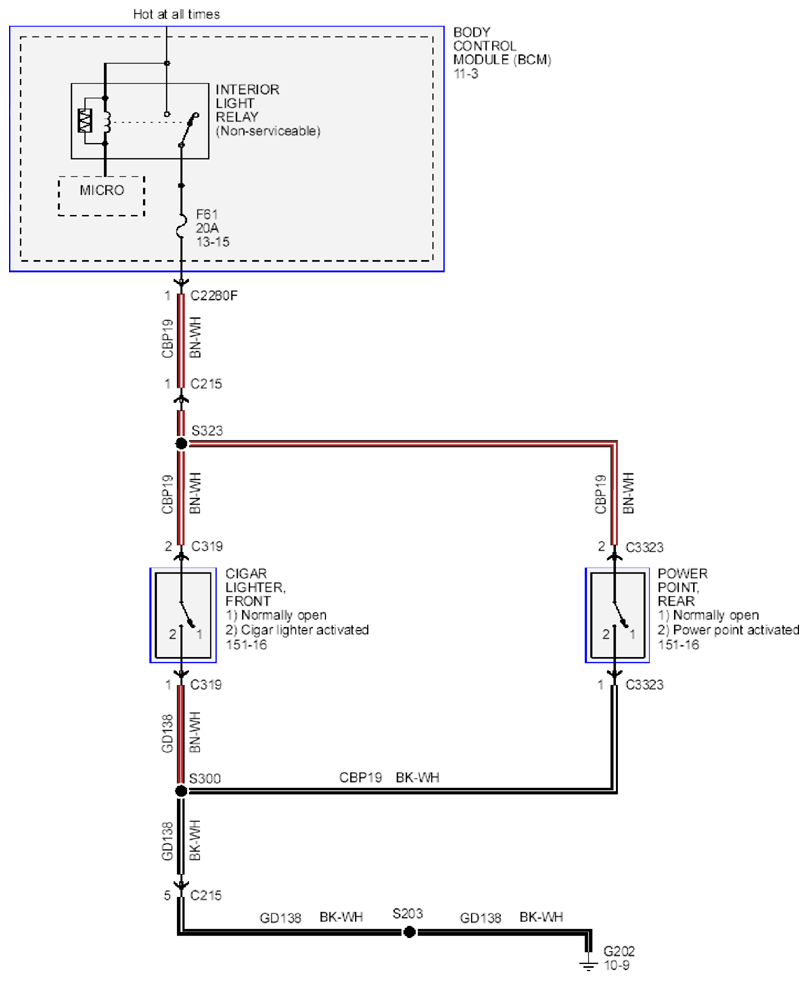

Fig 2: Horn, Cigar Lighter, Power Point System - Wiring Diagram (2 Of 2)
G09260851Courtesy of FORD MOTOR CO.
