Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Electric
>>
Headlamps/ AUTOLAMPS
Headlamps/ AUTOLAMPS

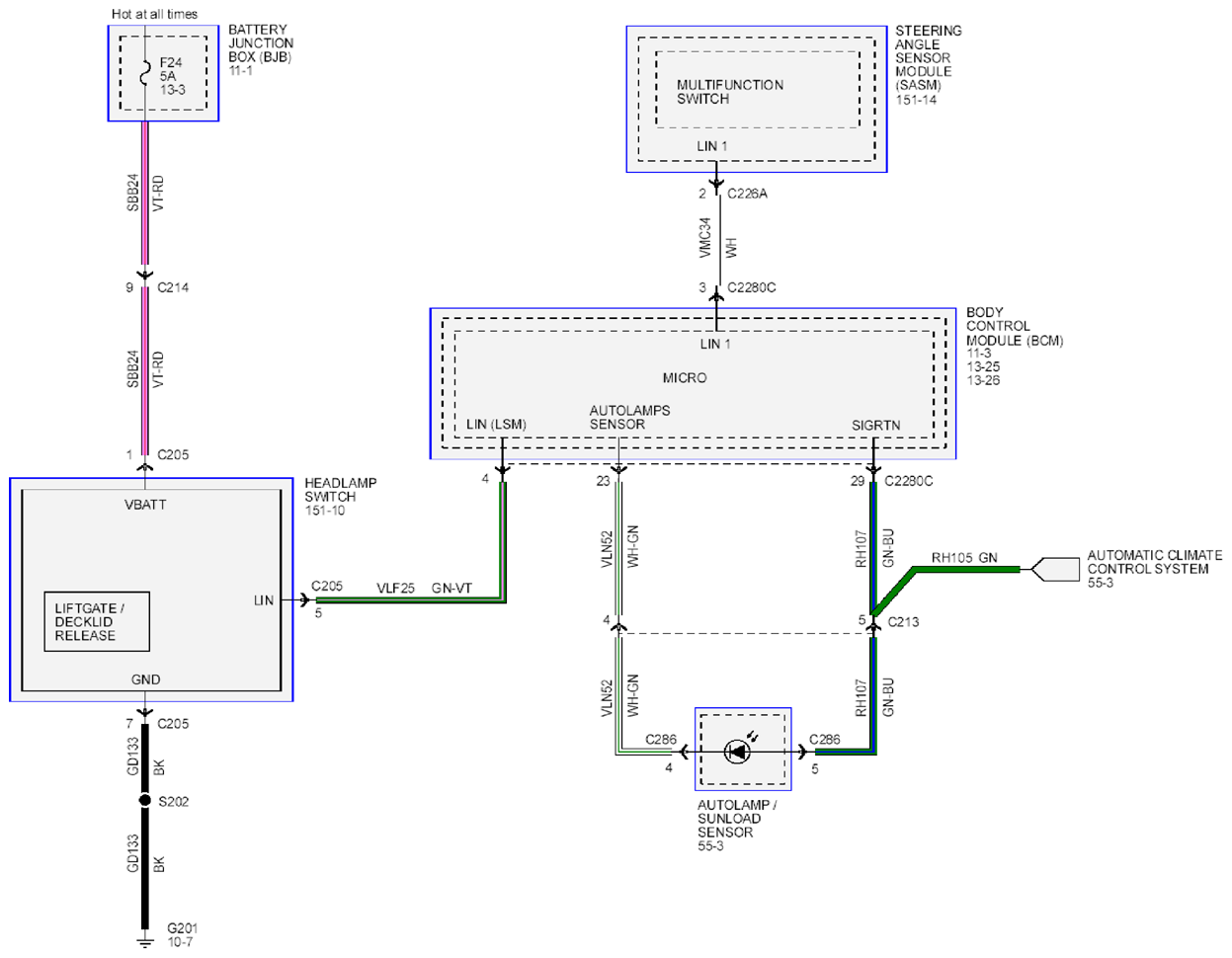

Fig 1: Headlamps, Autolamps - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

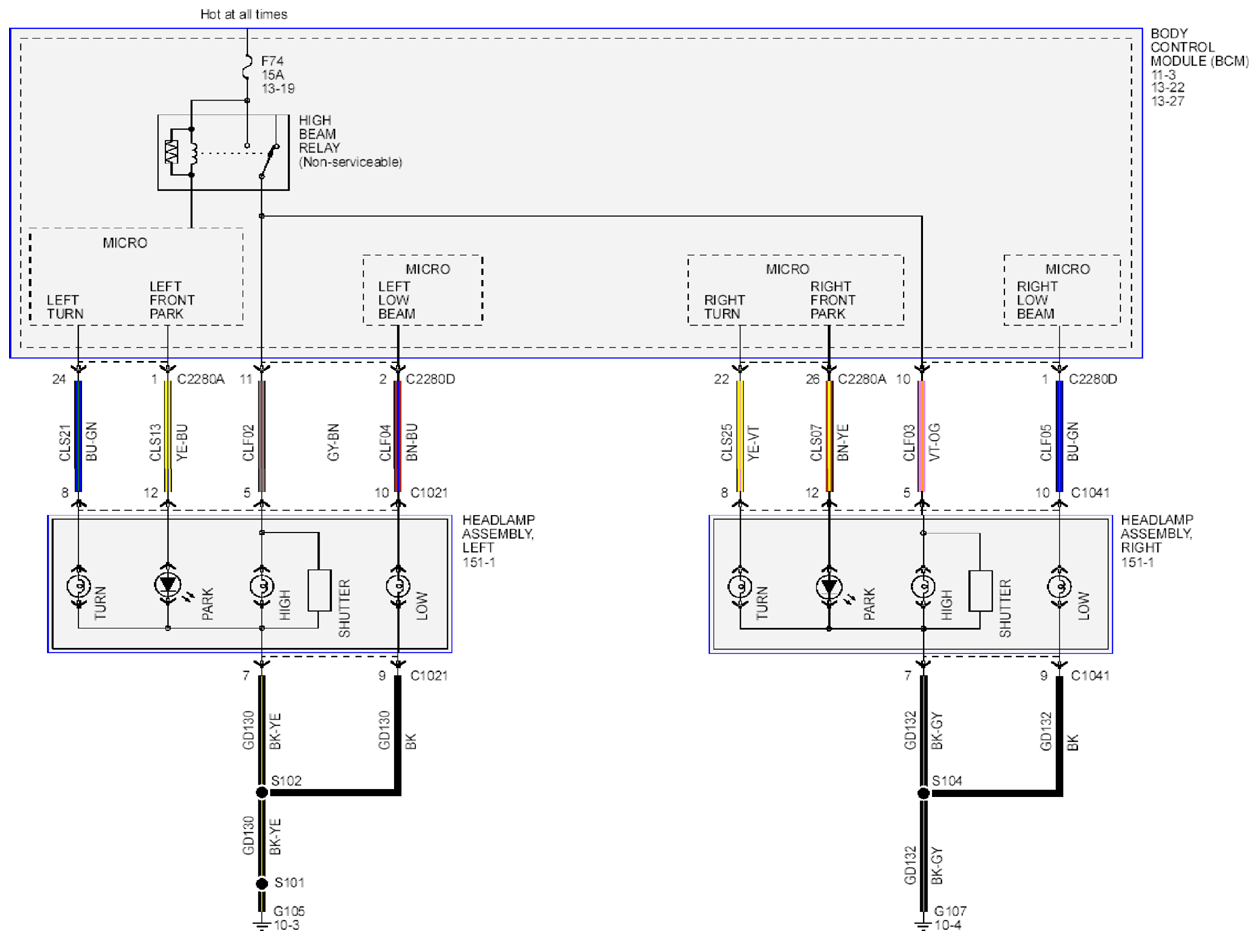

Fig 2: Headlamps, Autolamps - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
