Electronic Engine Controls

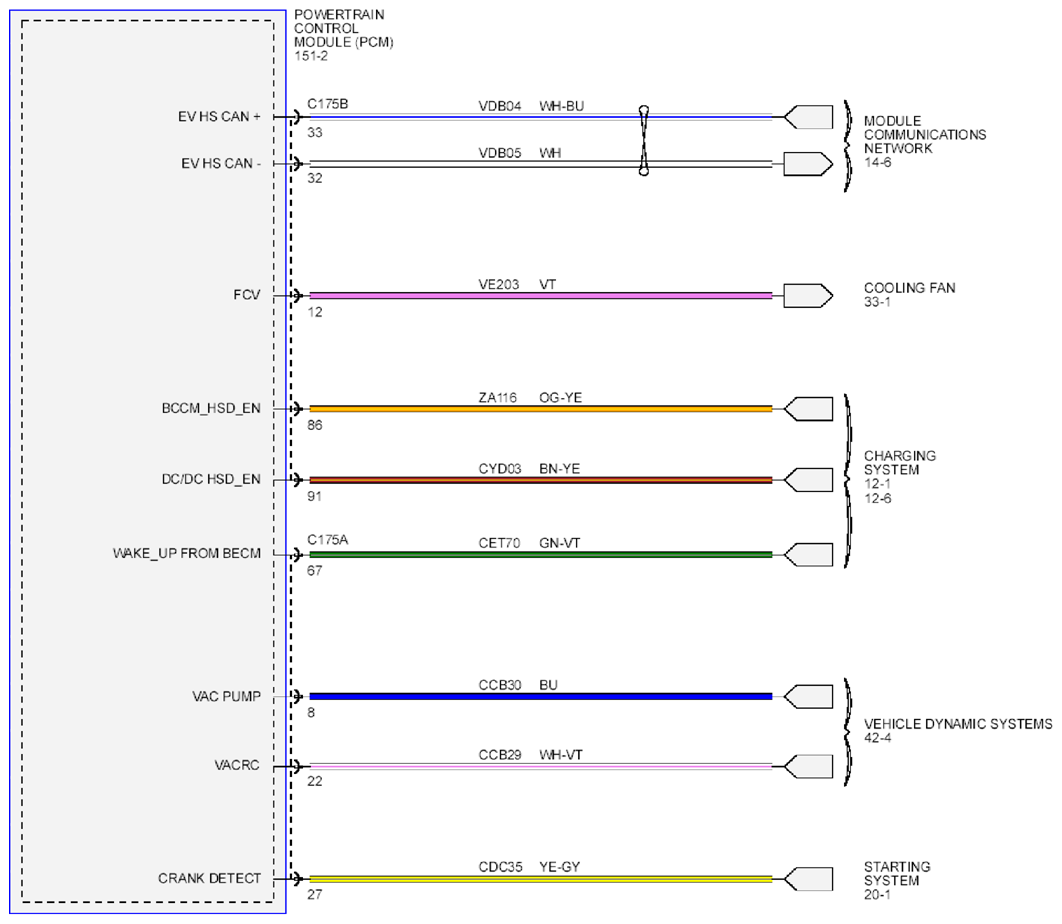

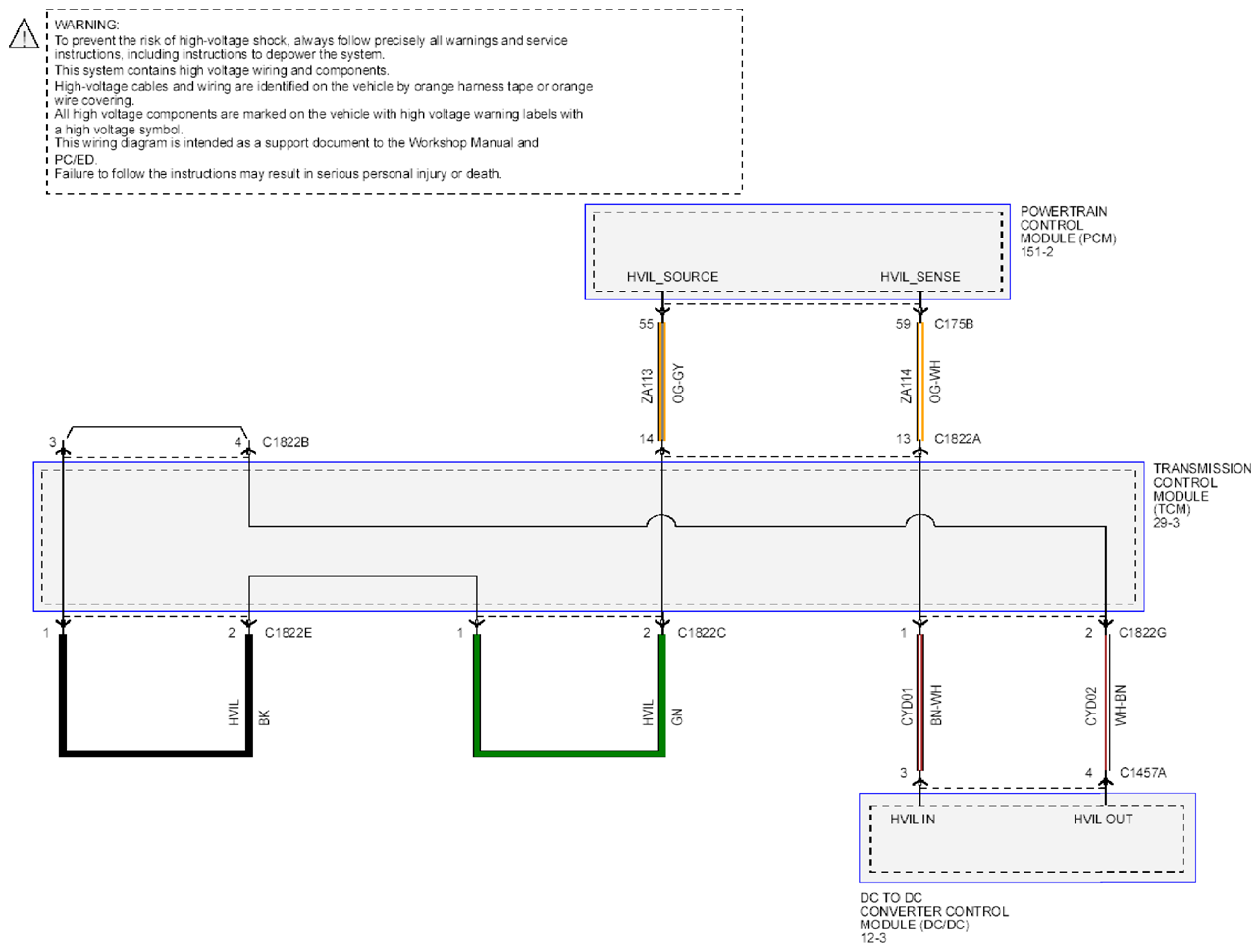

Fig 1: Electronic Engine Controls System - Wiring Diagram (1 Of 13)

Courtesy of FORD MOTOR CO.

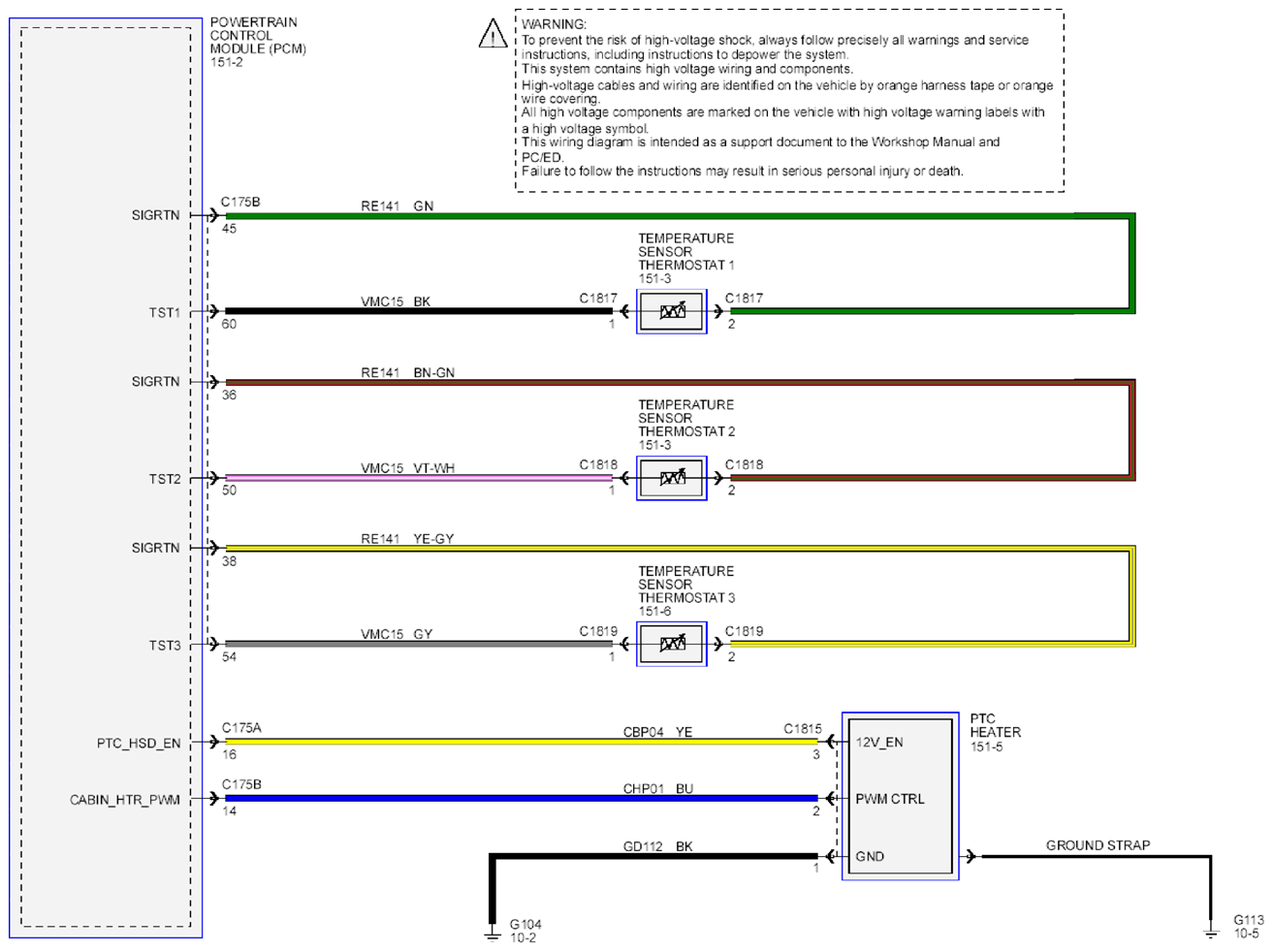

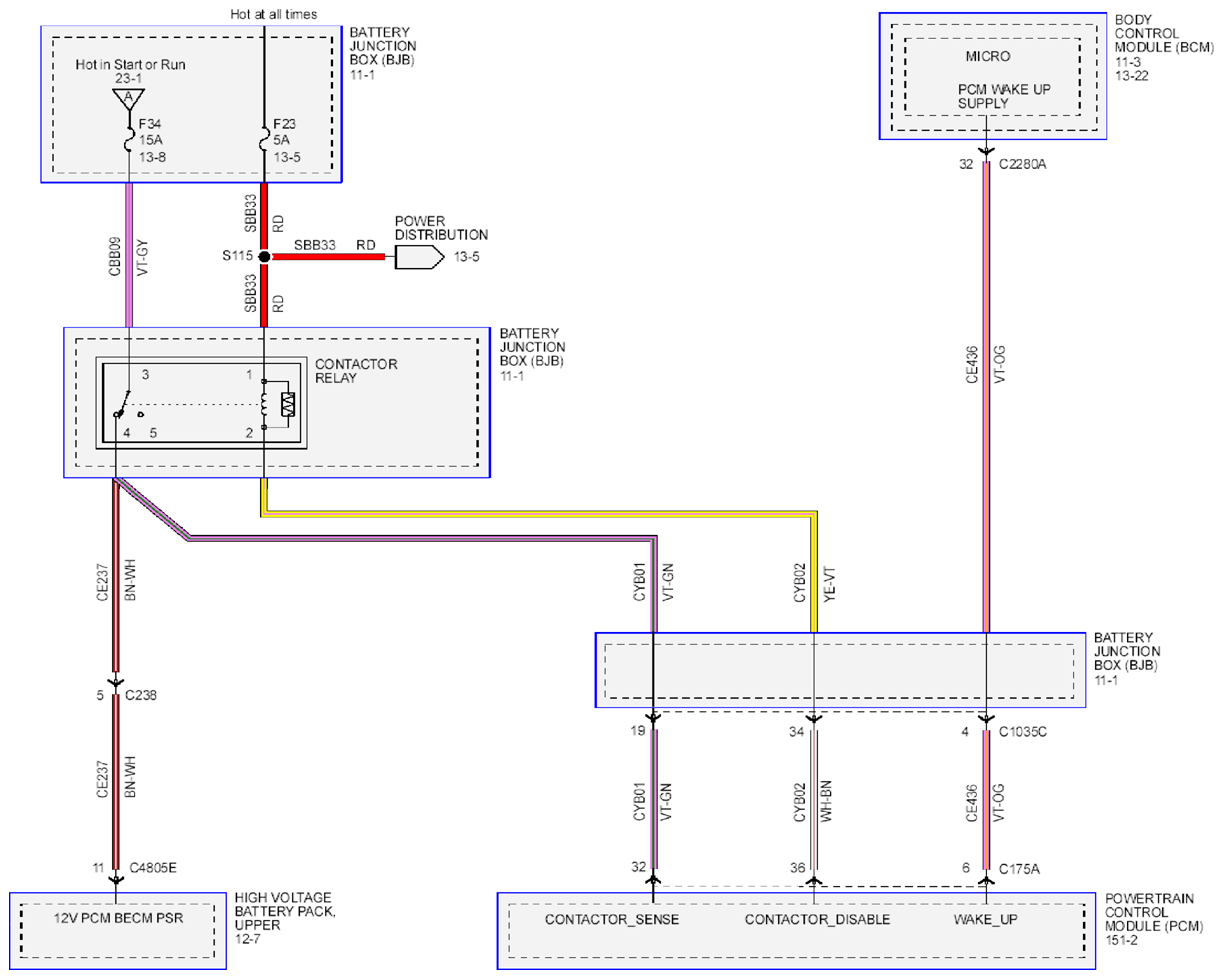

Fig 2: Electronic Engine Controls System - Wiring Diagram (2 Of 13)

Courtesy of FORD MOTOR CO.

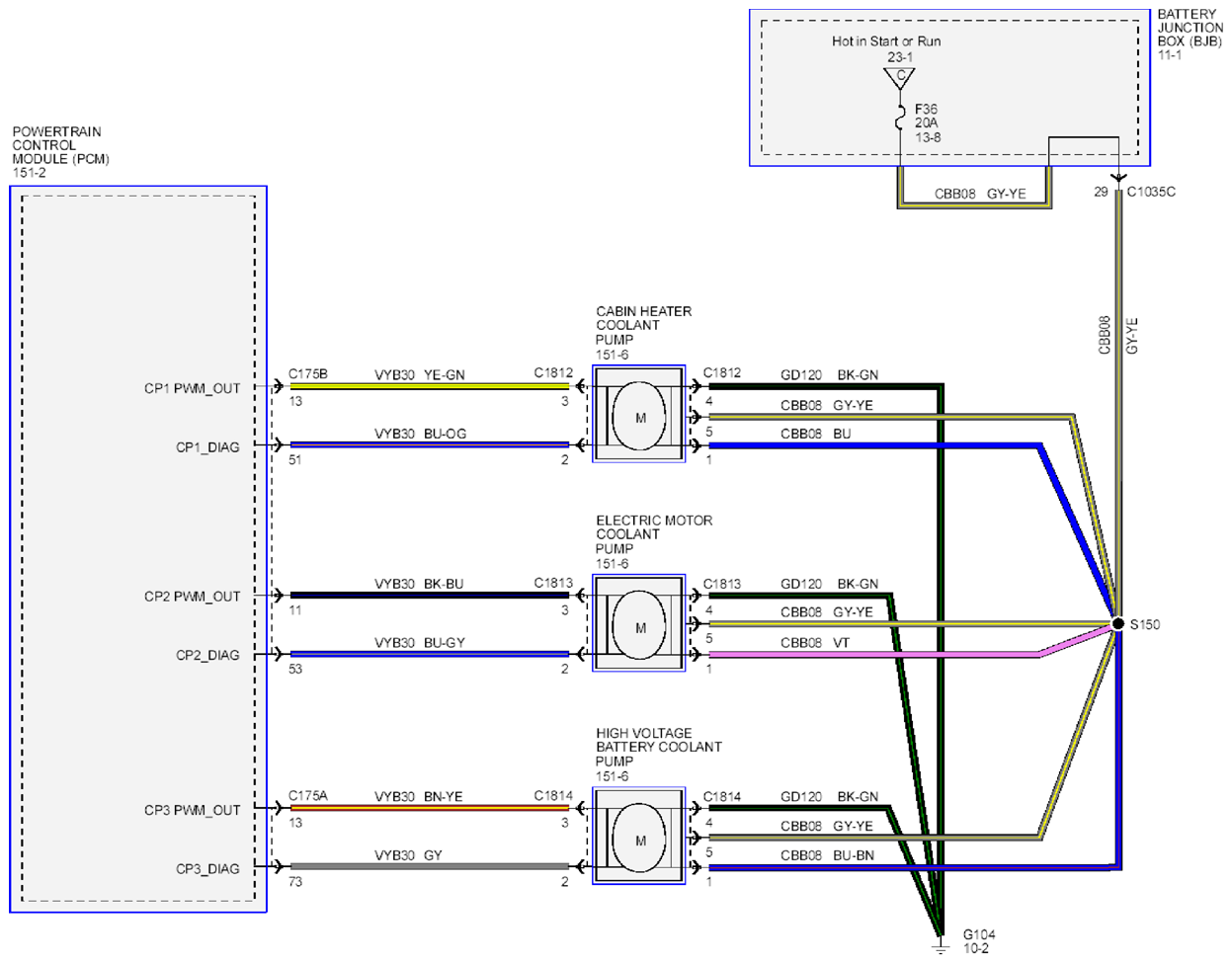

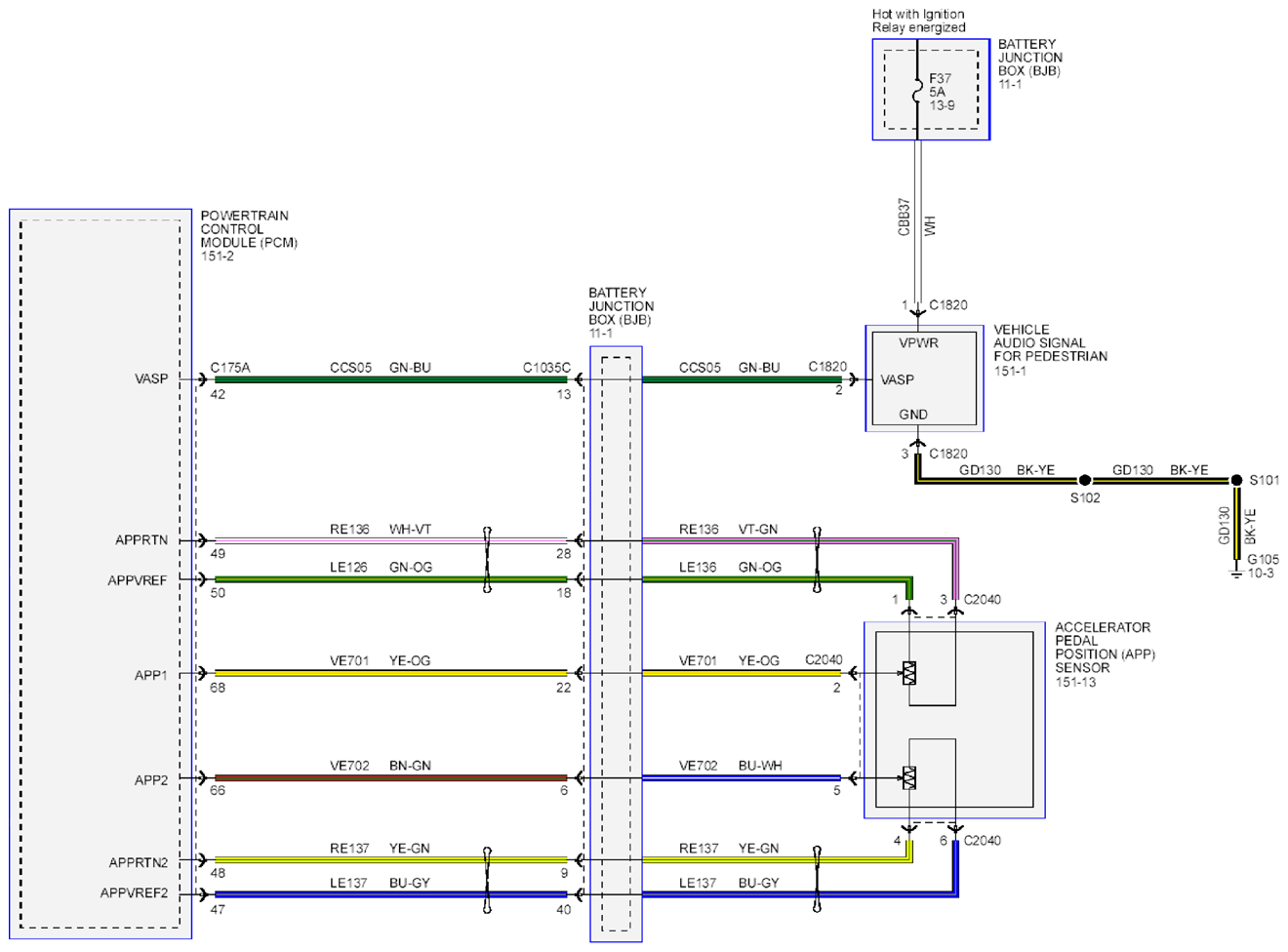

Fig 3: Electronic Engine Controls System - Wiring Diagram (3 Of 13)

Courtesy of FORD MOTOR CO.

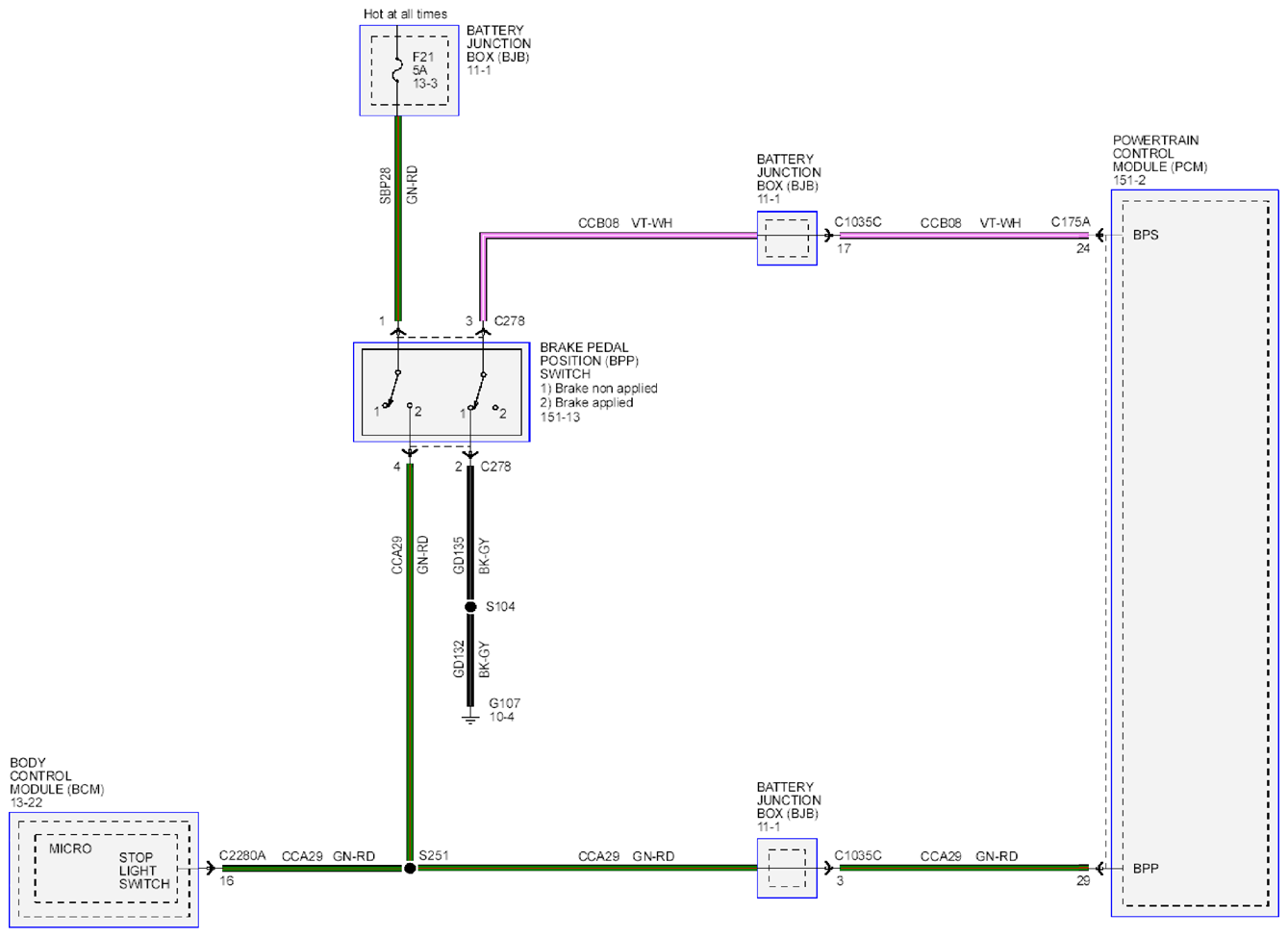

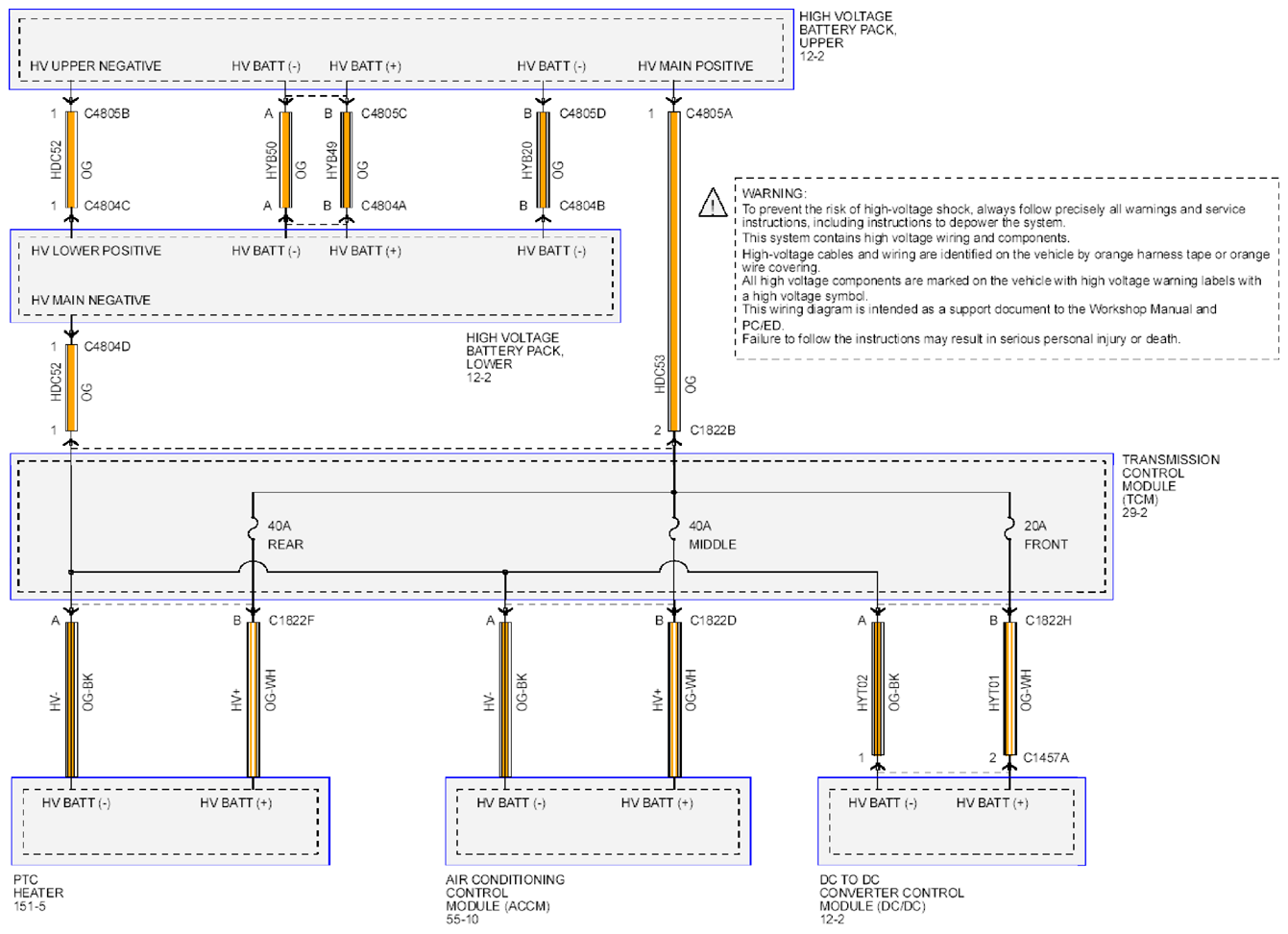

Fig 4: Electronic Engine Controls System - Wiring Diagram (4 Of 13)

Courtesy of FORD MOTOR CO.

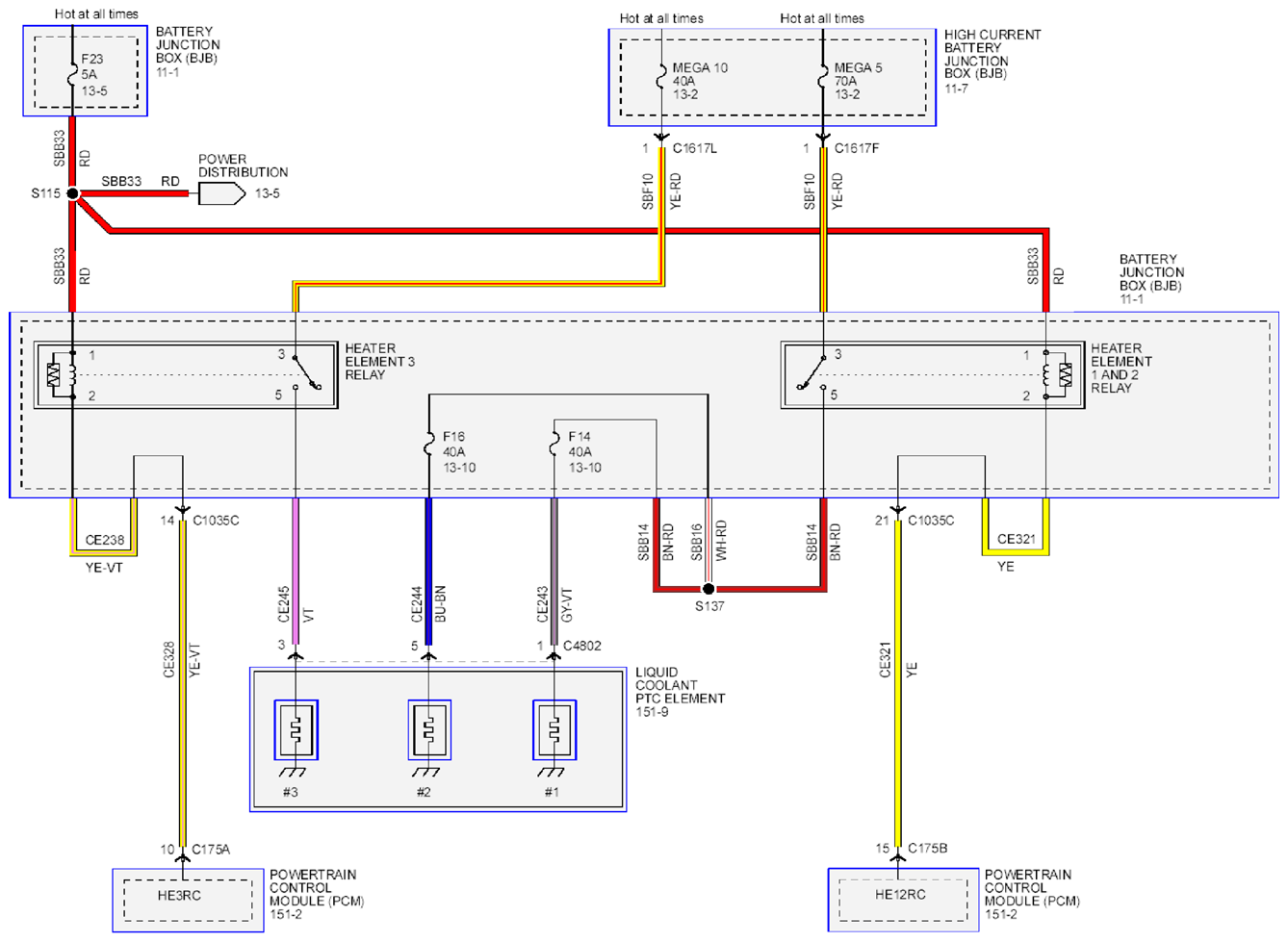

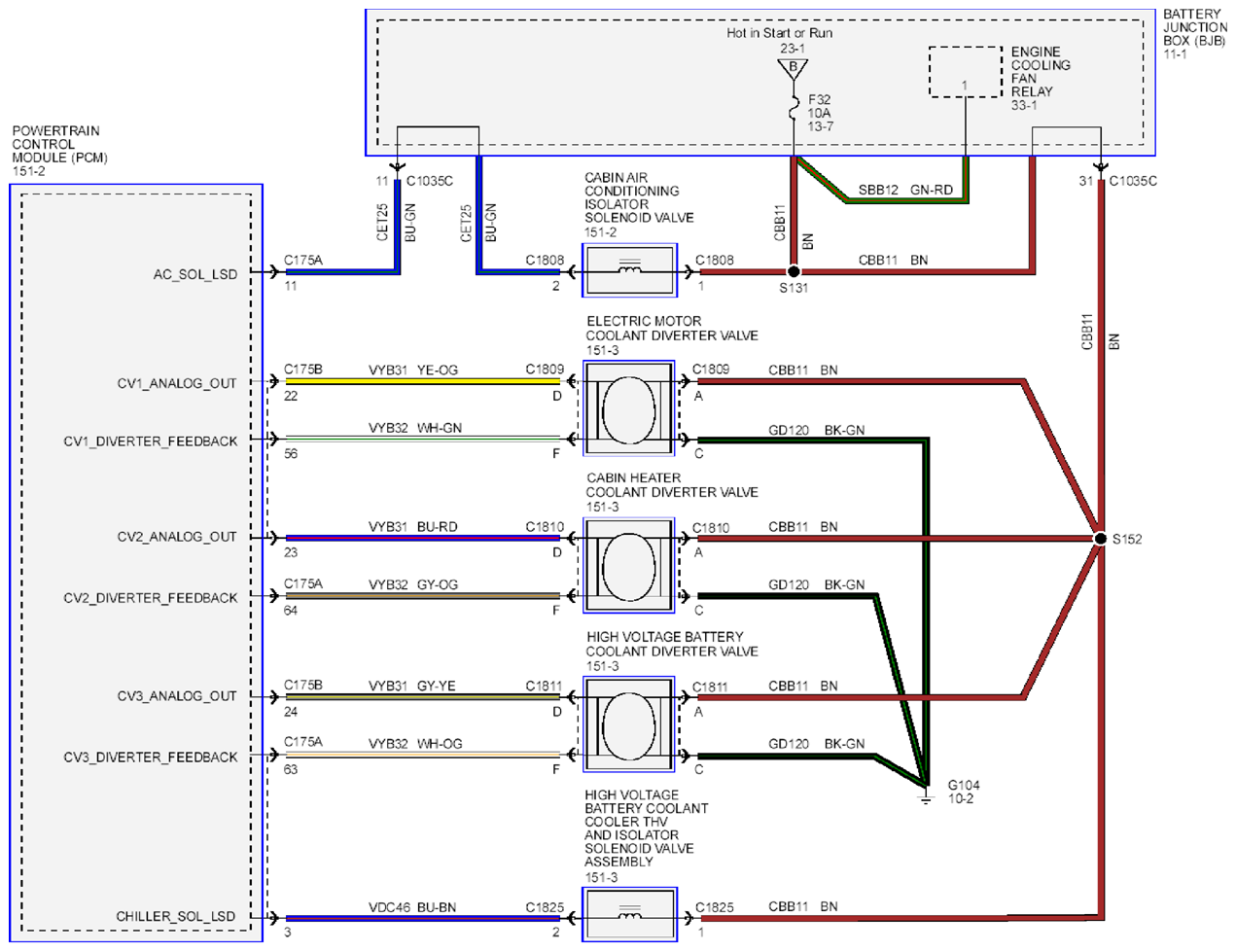

Fig 5: Electronic Engine Controls System - Wiring Diagram (5 Of 13)

Courtesy of FORD MOTOR CO.

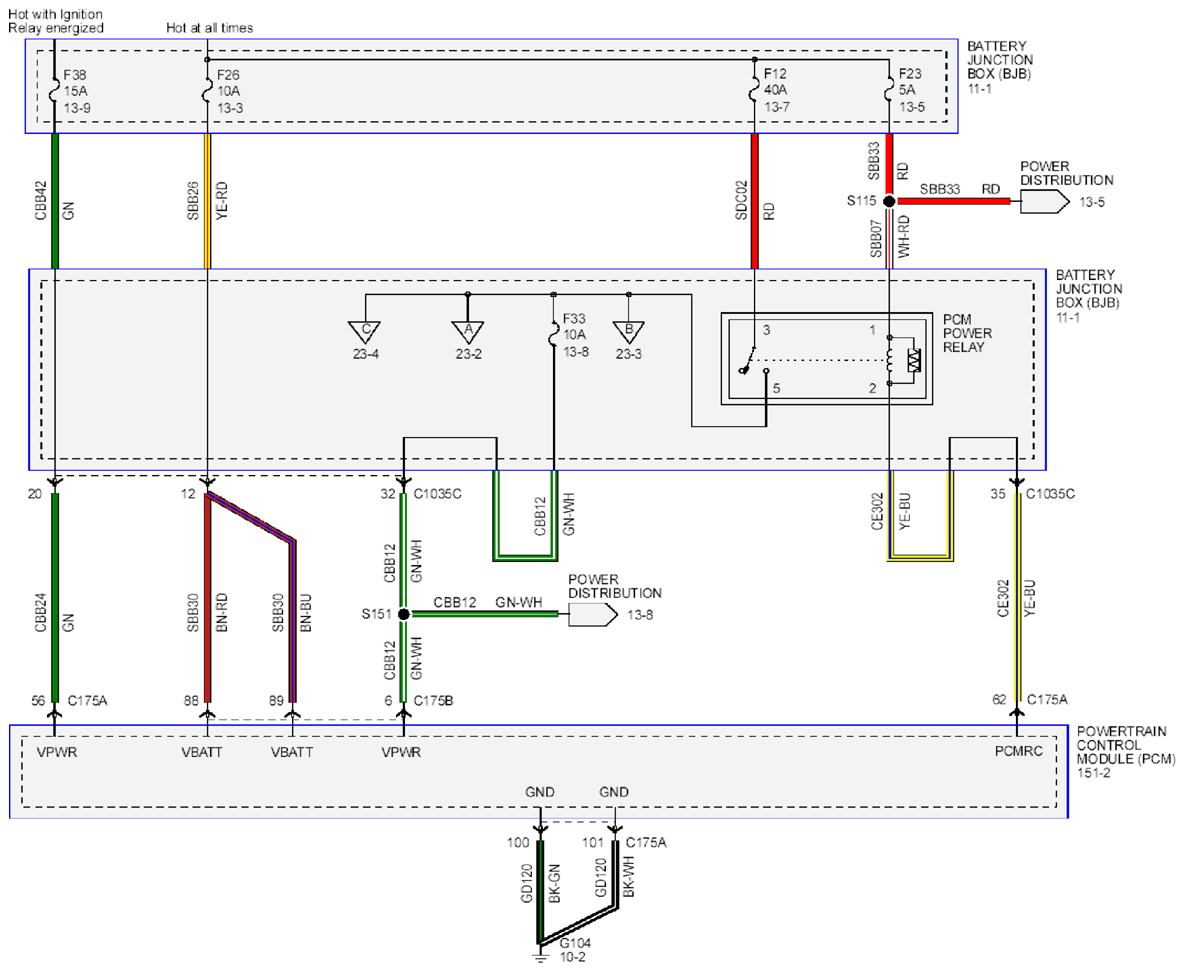

Fig 6: Electronic Engine Controls System - Wiring Diagram (6 Of 13)

Courtesy of FORD MOTOR CO.

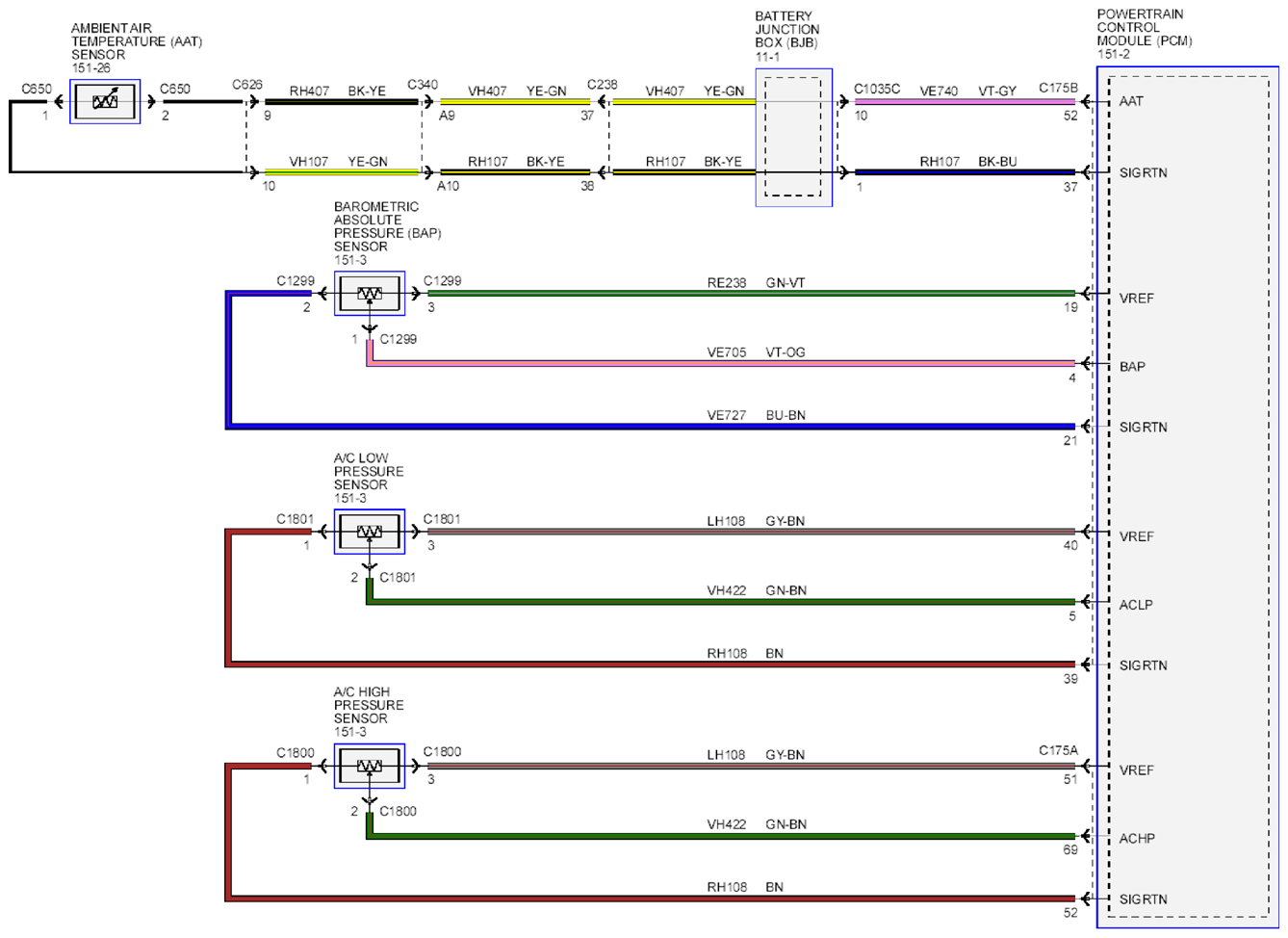

Fig 7: Electronic Engine Controls System - Wiring Diagram (7 Of 13)

Courtesy of FORD MOTOR CO.

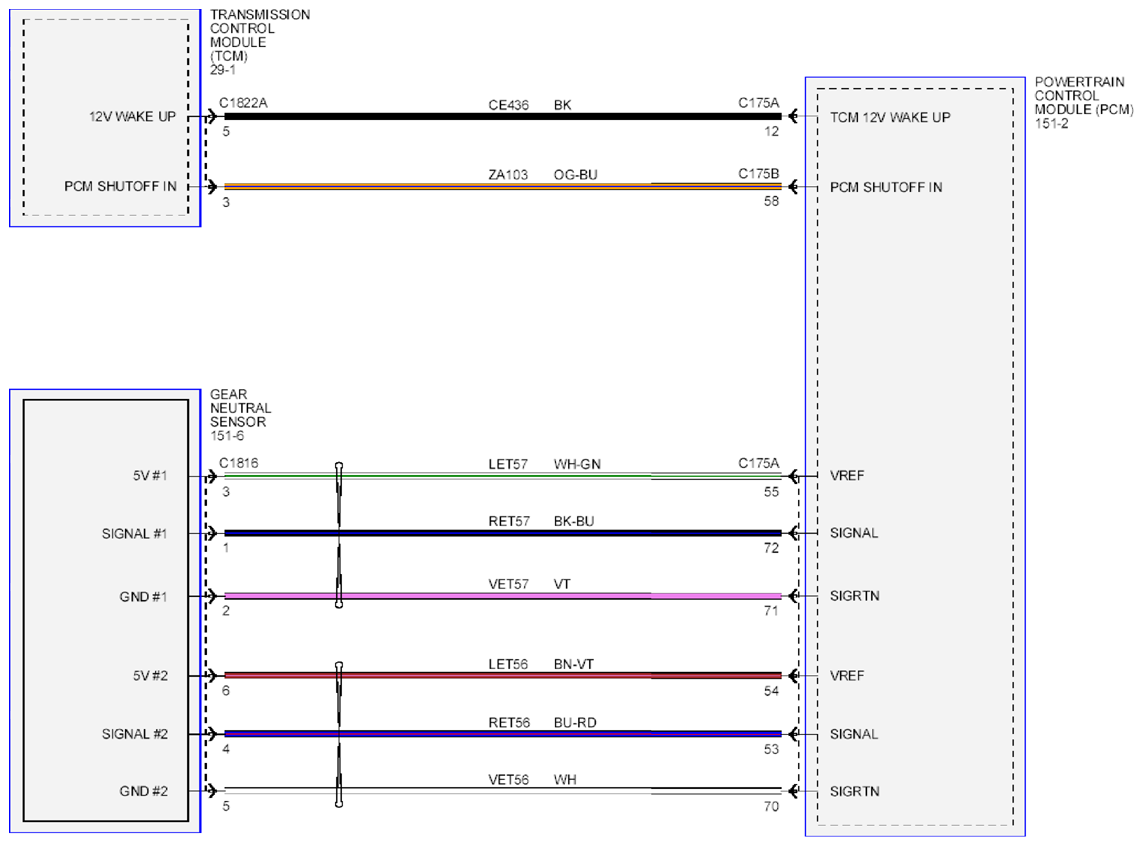

Fig 8: Electronic Engine Controls System - Wiring Diagram (8 Of 13)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls System - Wiring Diagram (9 Of 13)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls System - Wiring Diagram (10 Of 13)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls System - Wiring Diagram (11 Of 13)

Courtesy of FORD MOTOR CO.

Fig 12: Electronic Engine Controls System - Wiring Diagram (12 Of 13)

Courtesy of FORD MOTOR CO.

Fig 13: Electronic Engine Controls System - Wiring Diagram (13 Of 13)

Courtesy of FORD MOTOR CO.
