Cruise Control
Cruise Control
Fig 1: Cruise Control System - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

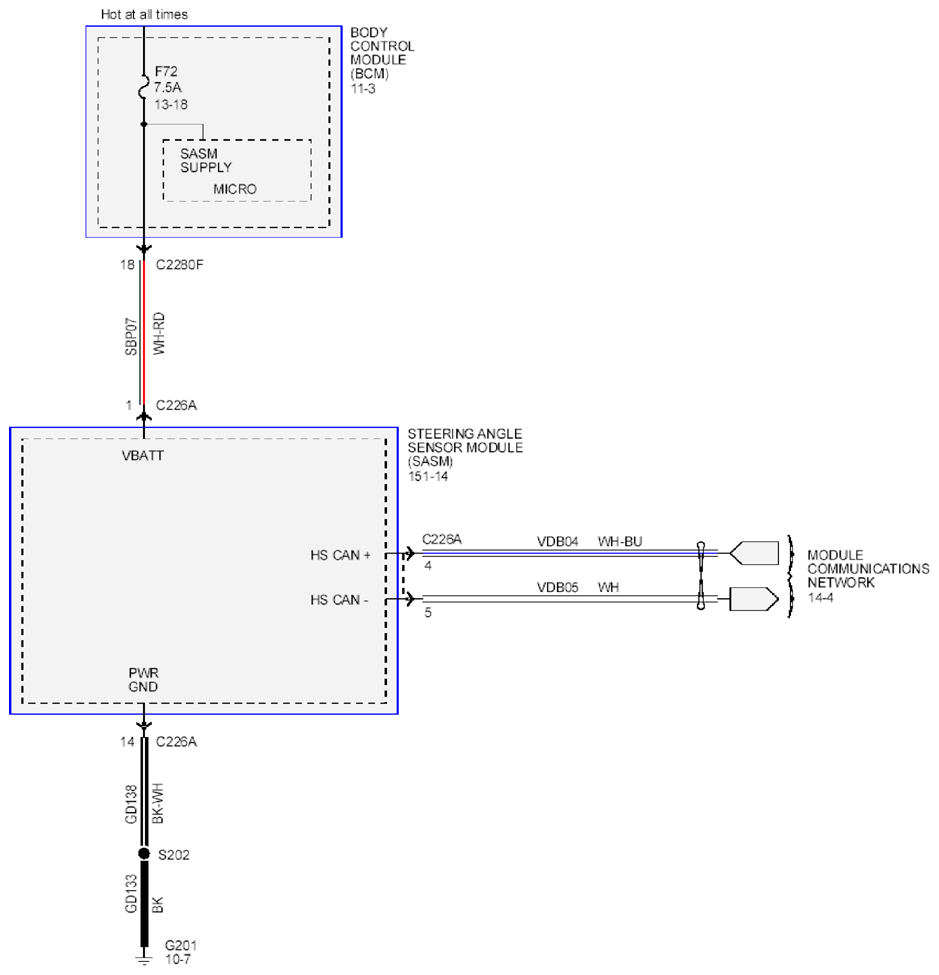

Fig 2: Cruise Control System - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

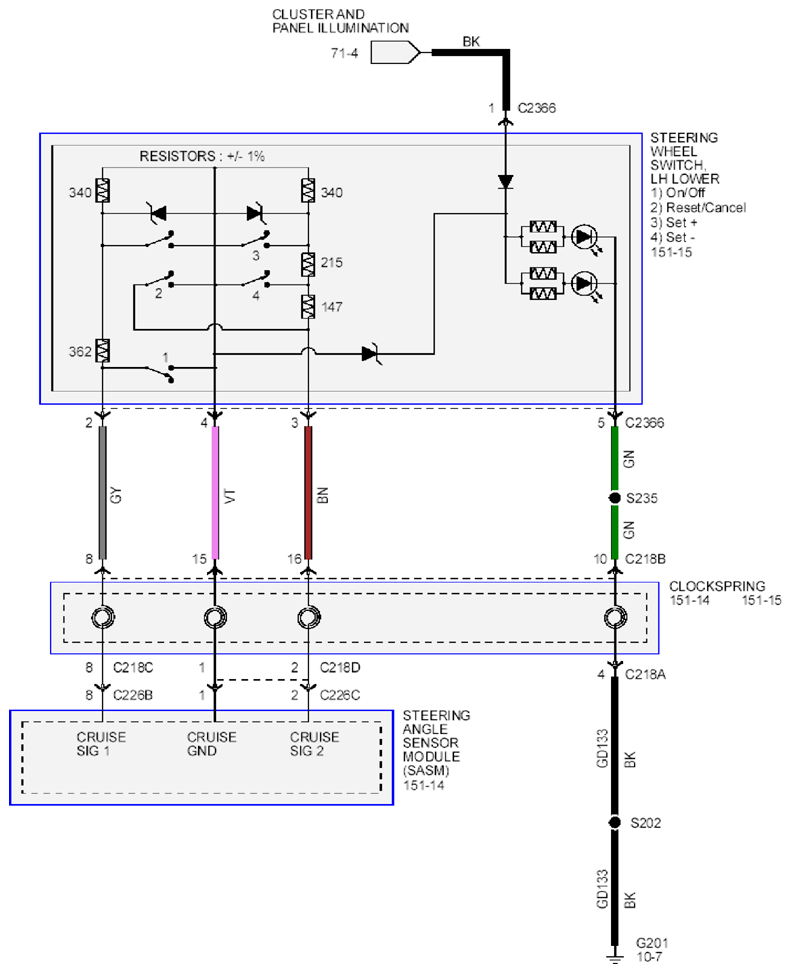

Fig 3: Cruise Control System - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

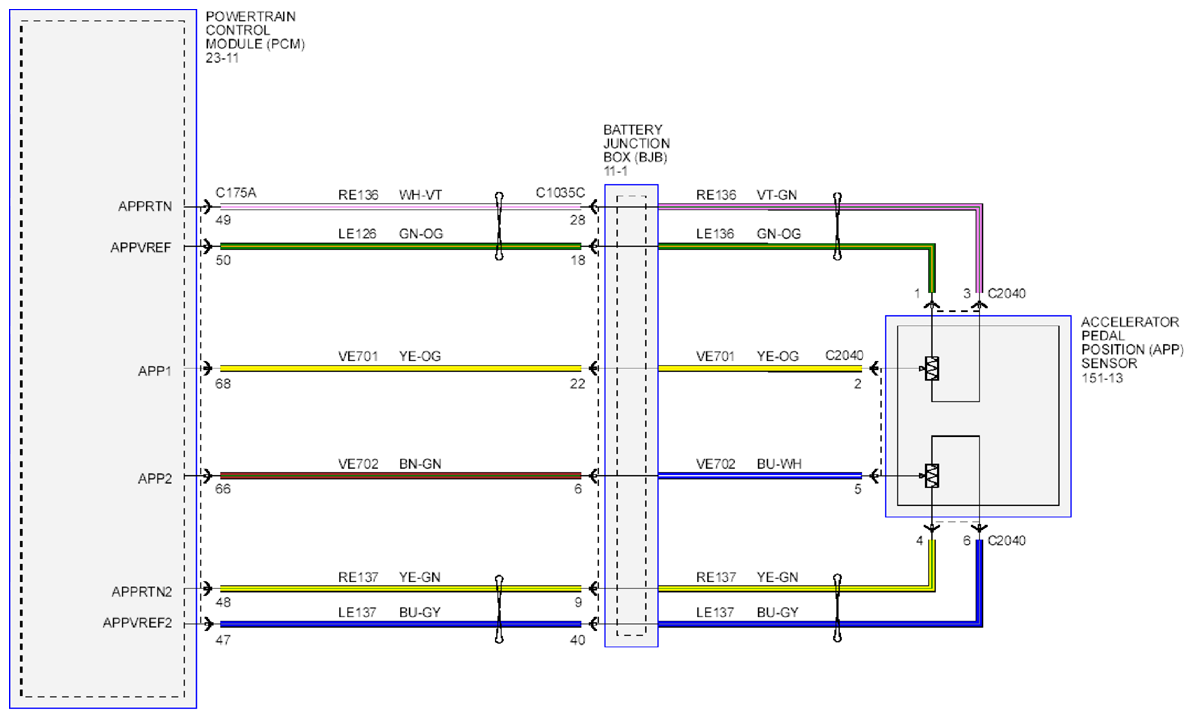

Fig 4: Cruise Control System - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
