Cooling Fan
Cooling Fan

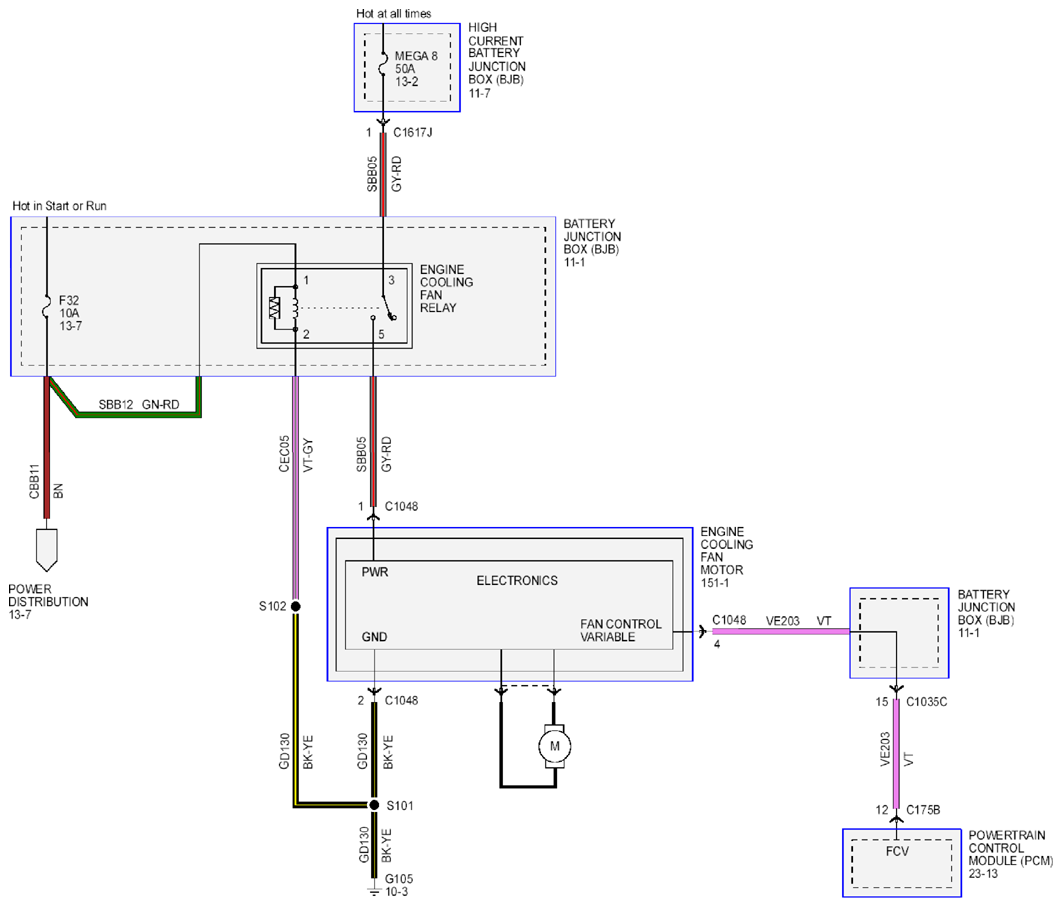

Fig 1: Cooling Fan System - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
