Cluster And Panel Illumination
Cluster And Panel Illumination

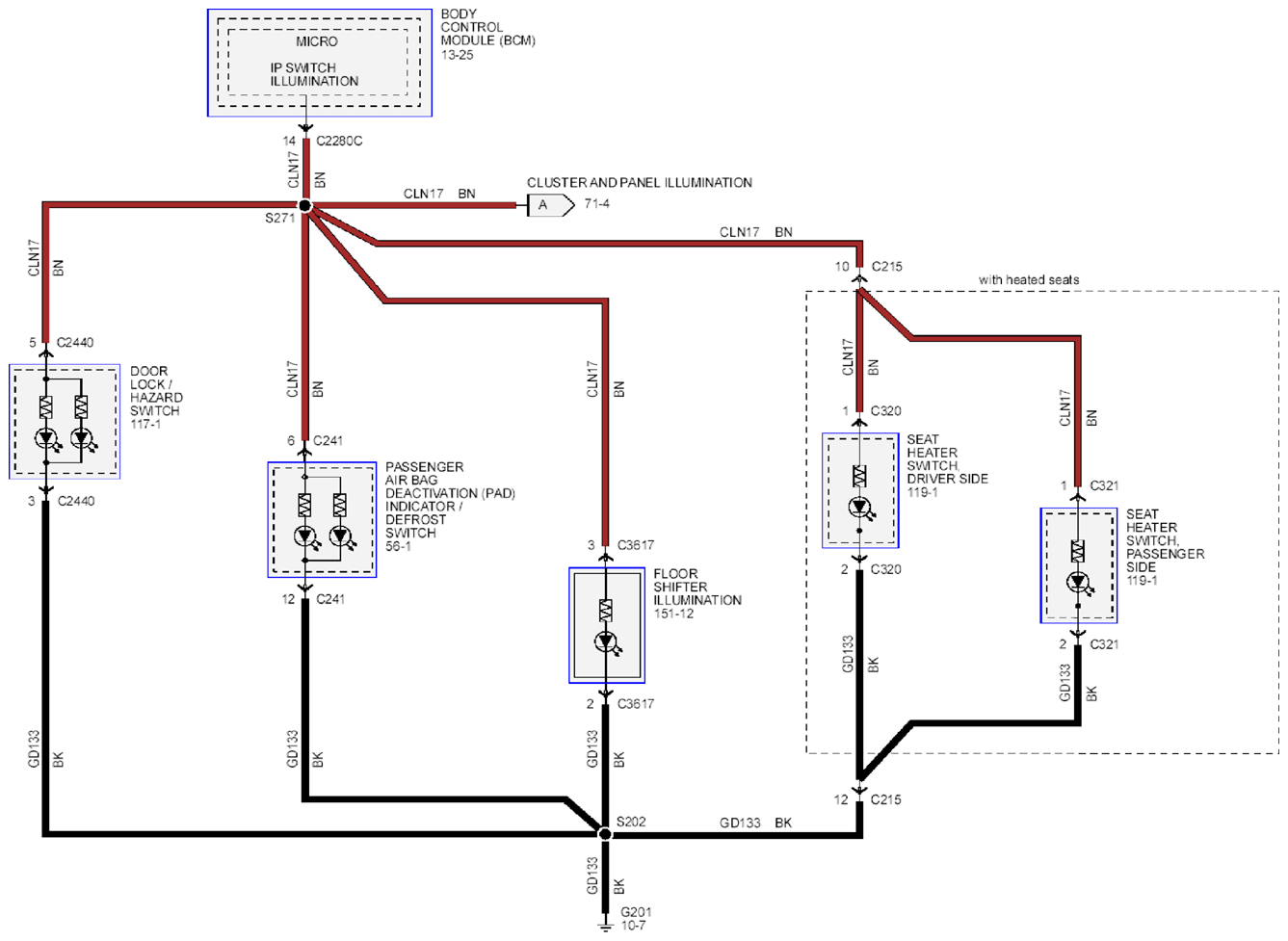

Fig 1: Cluster And Panel Illumination - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.
Fig 2: Cluster And Panel Illumination - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

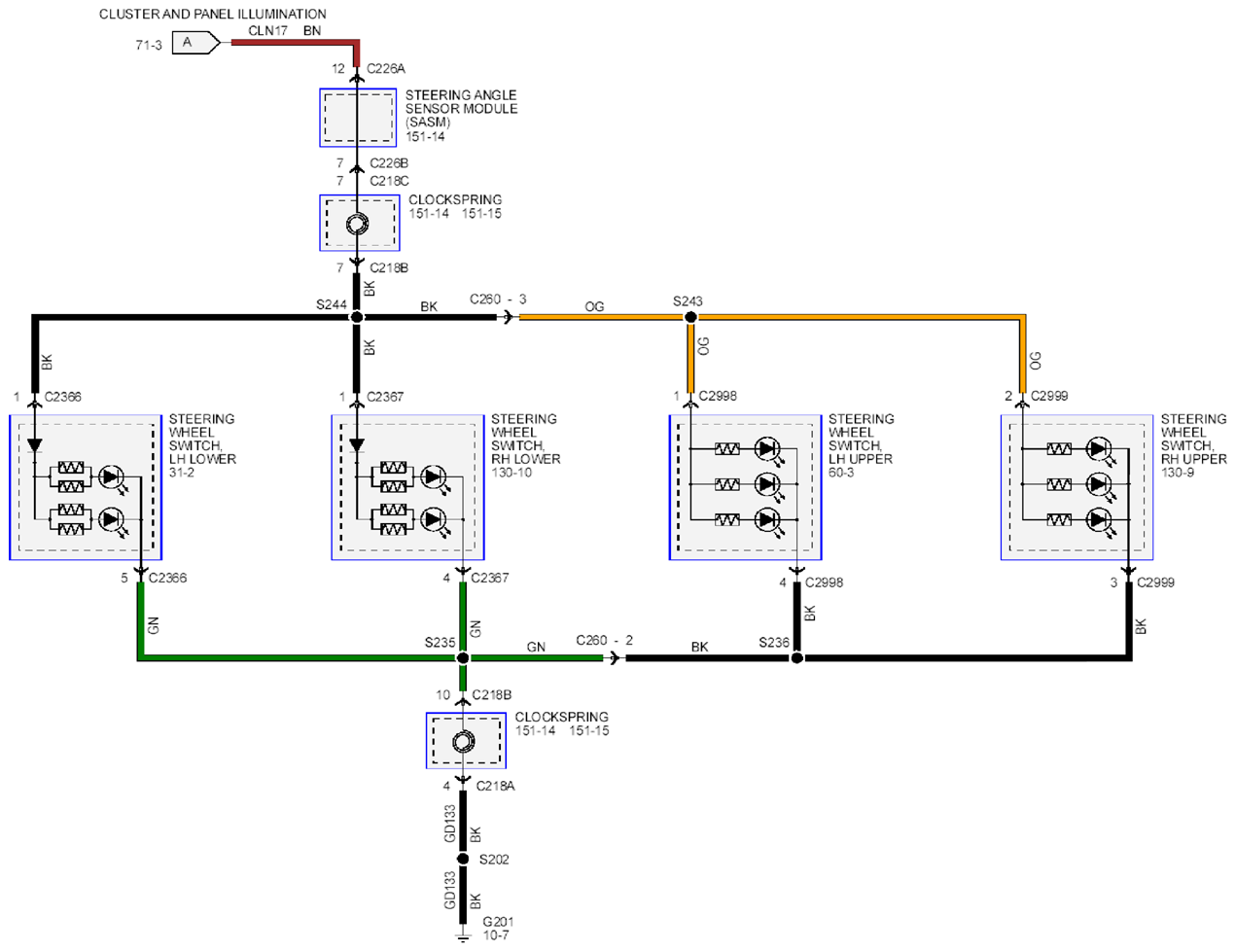

Fig 3: Cluster And Panel Illumination - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

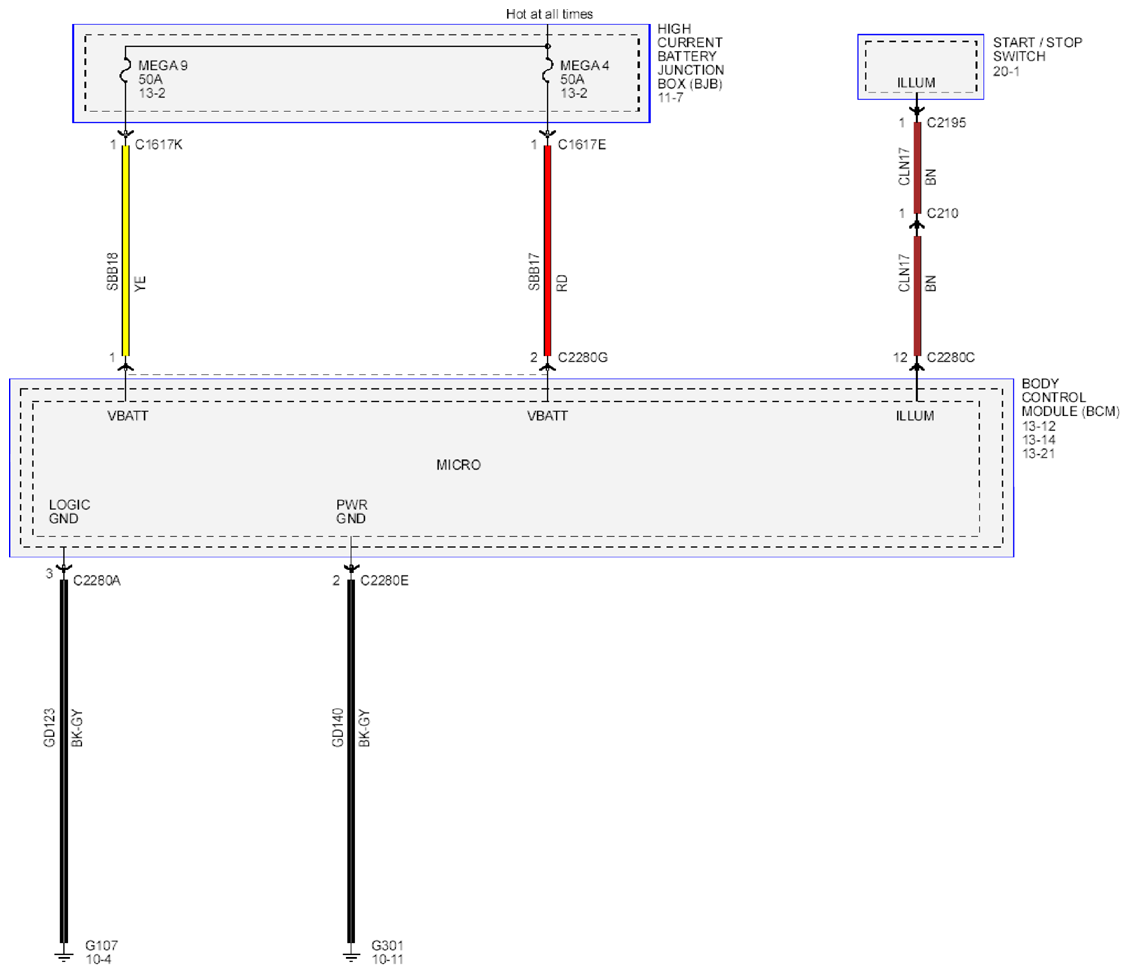

Fig 4: Cluster And Panel Illumination - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
