Charging System

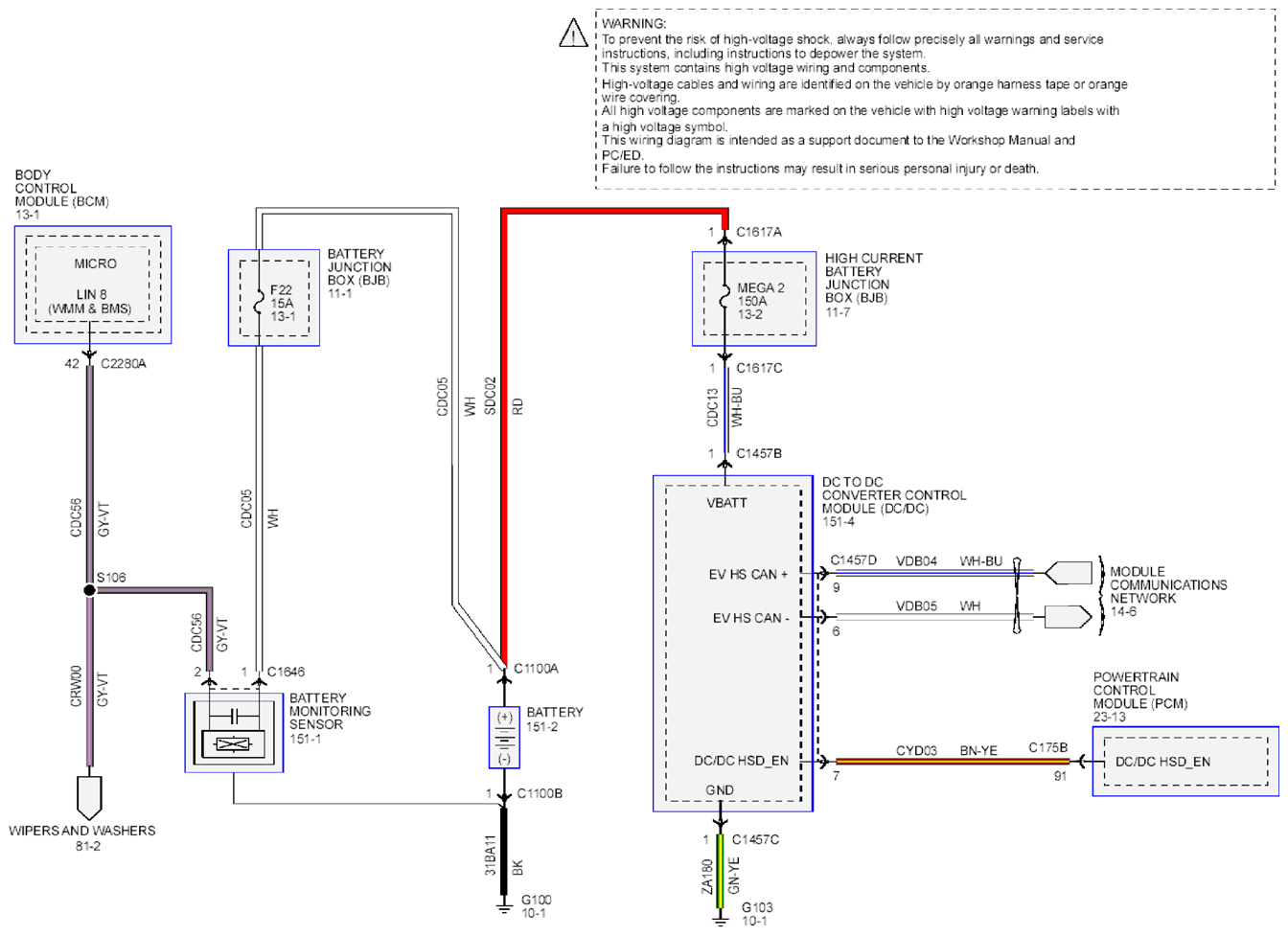

Fig 1: Charging System - Wiring Diagram (1 Of 9)

G09260769

Courtesy of FORD MOTOR CO.

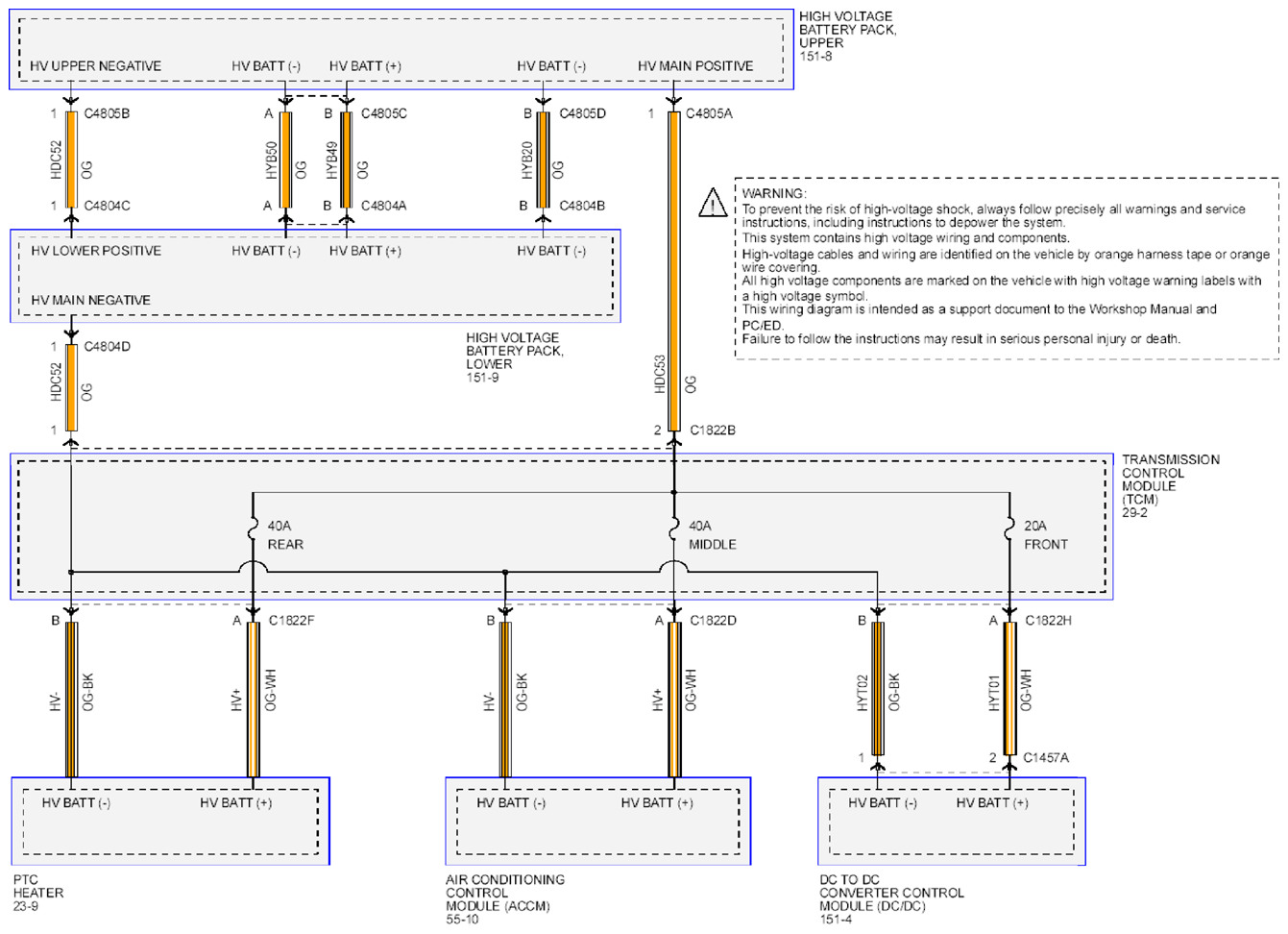

Fig 2: Charging System - Wiring Diagram (2 Of 9)

G09260770

Courtesy of FORD MOTOR CO.

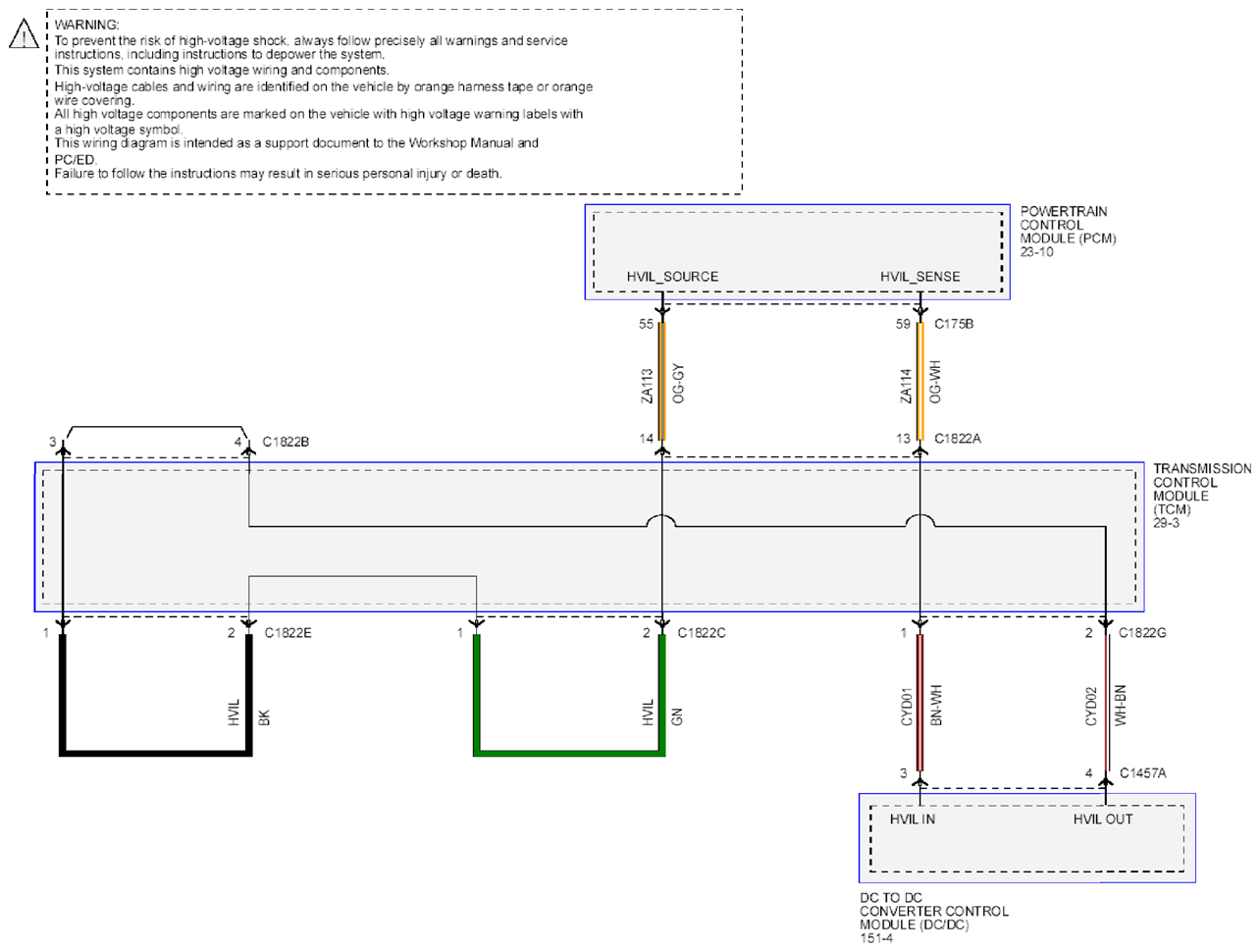

Fig 3: Charging System - Wiring Diagram (3 Of 9)

G09260771

Courtesy of FORD MOTOR CO.

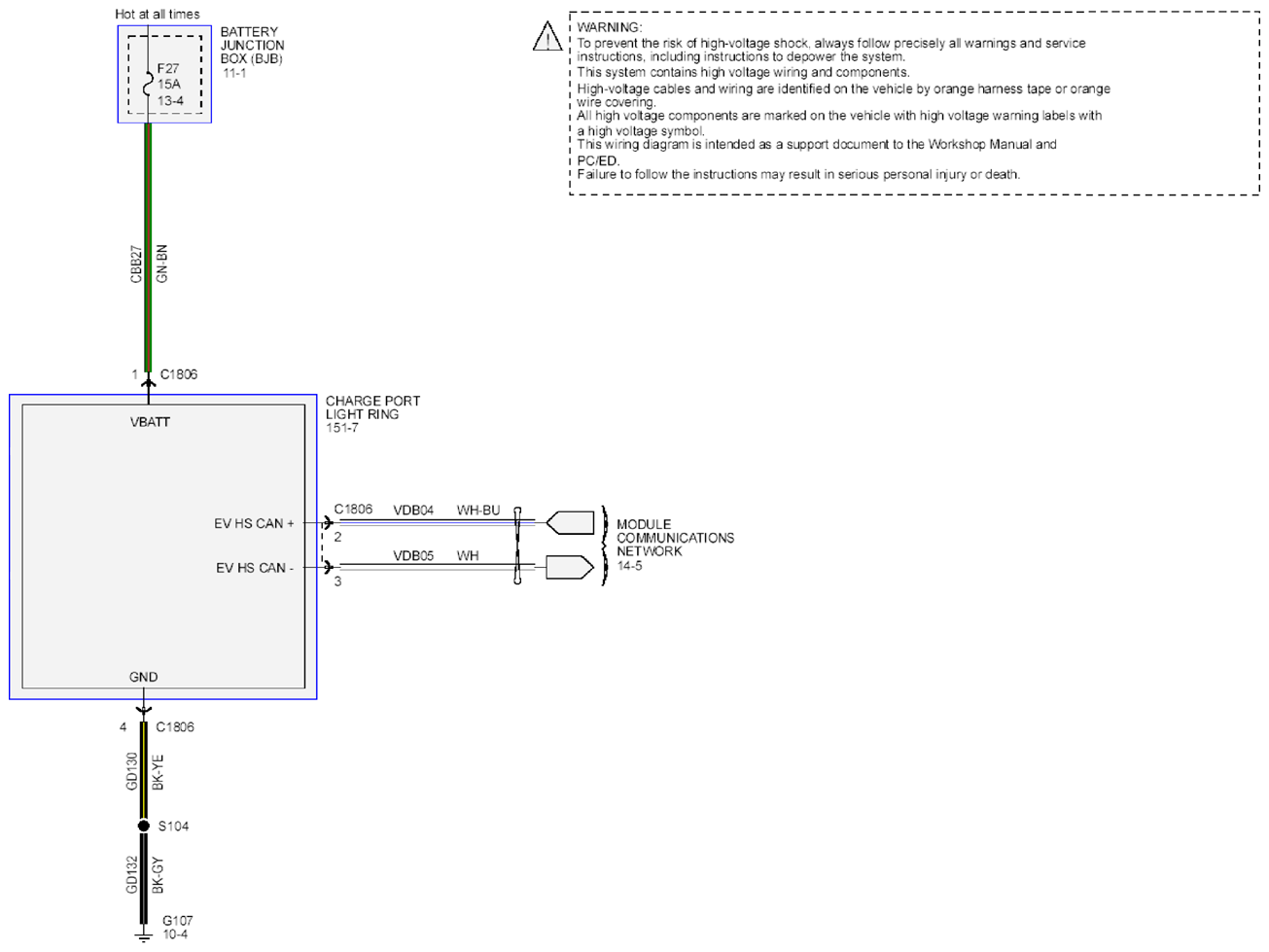

Fig 4: Charging System - Wiring Diagram (4 Of 9)

G09260772

Courtesy of FORD MOTOR CO.

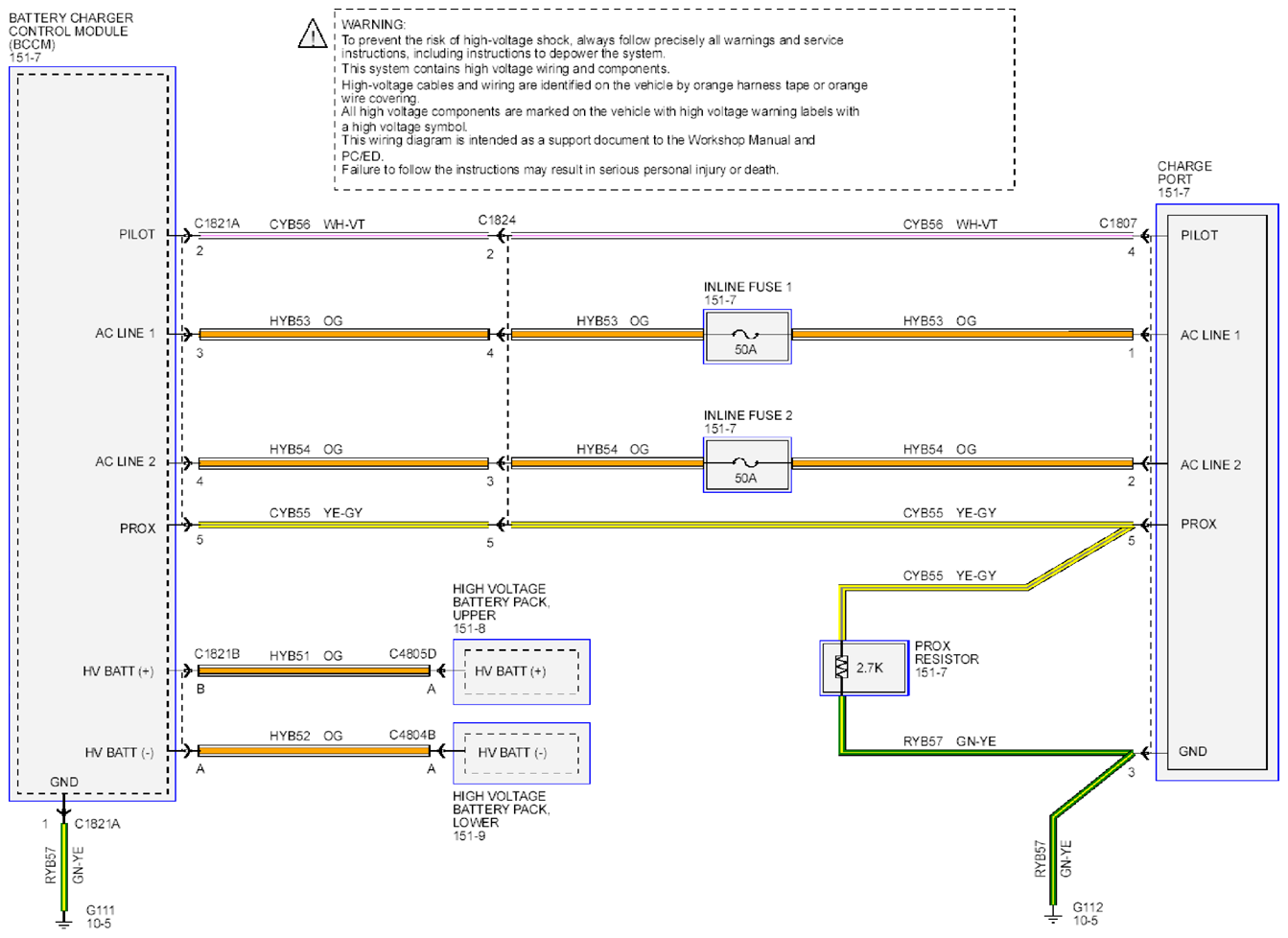

Fig 5: Charging System - Wiring Diagram (5 Of 9)

G09260773

Courtesy of FORD MOTOR CO.

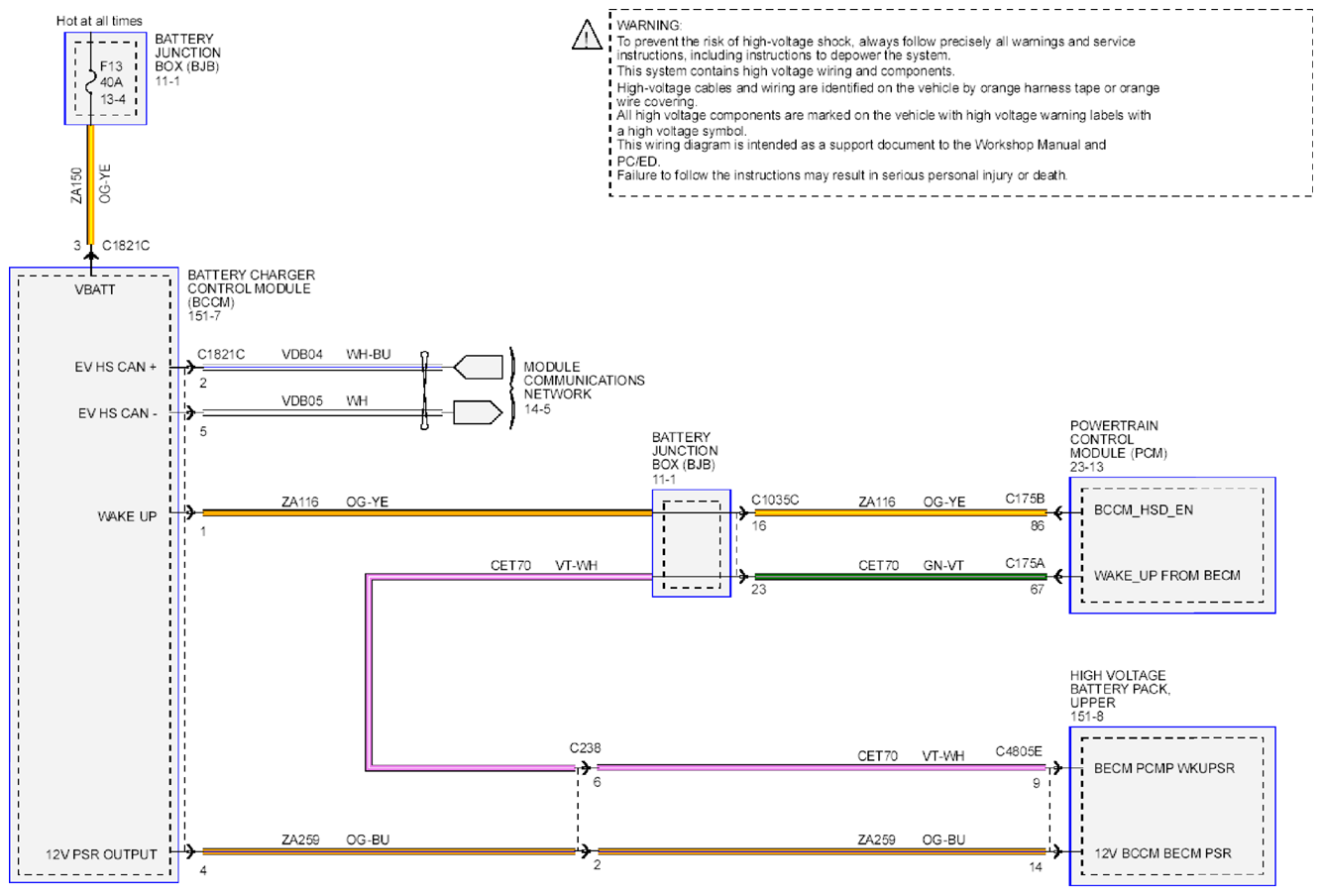

Fig 6: Charging System - Wiring Diagram (6 Of 9)

G09260774

Courtesy of FORD MOTOR CO.

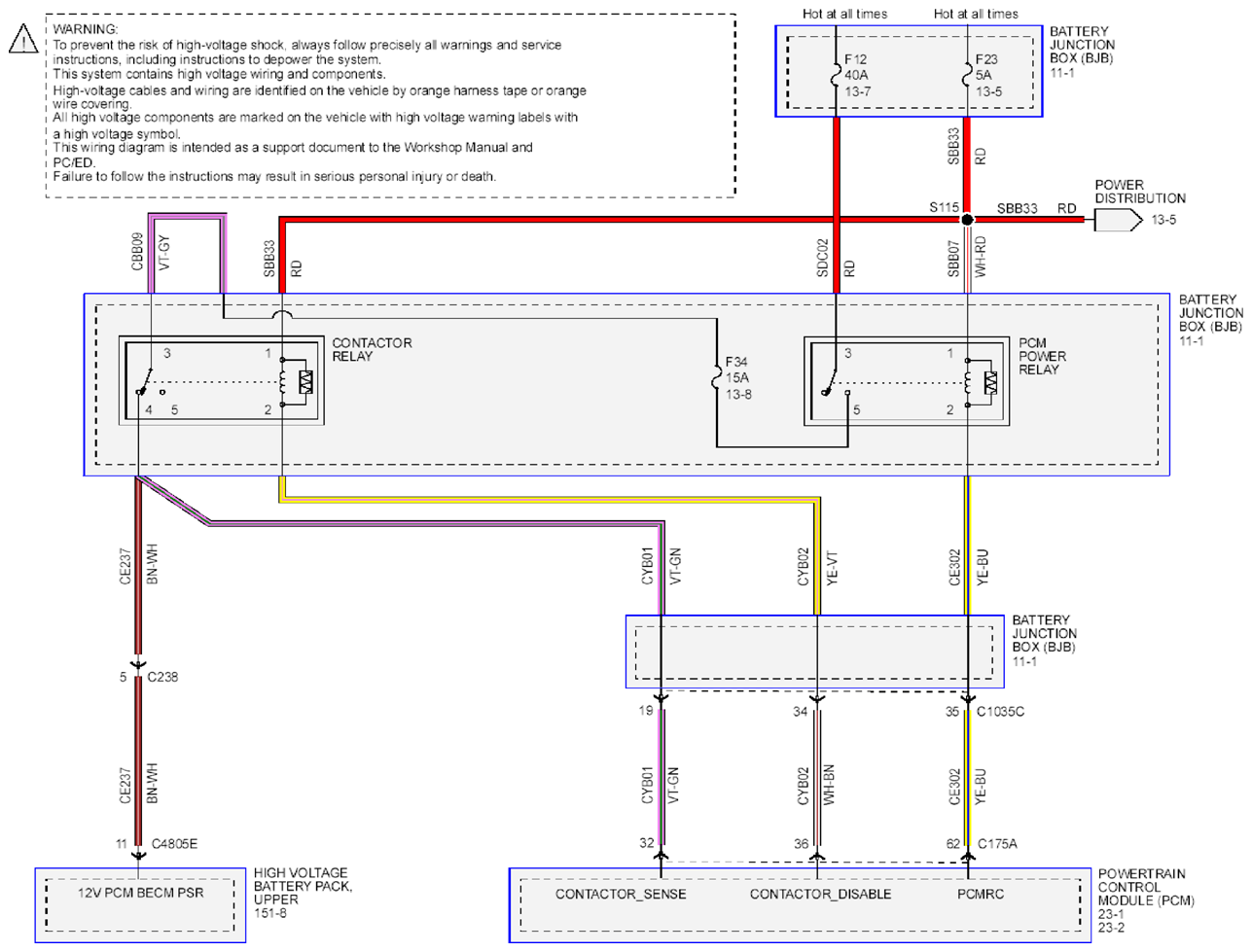

Fig 7: Charging System - Wiring Diagram (7 Of 9)

G09260775

Courtesy of FORD MOTOR CO.

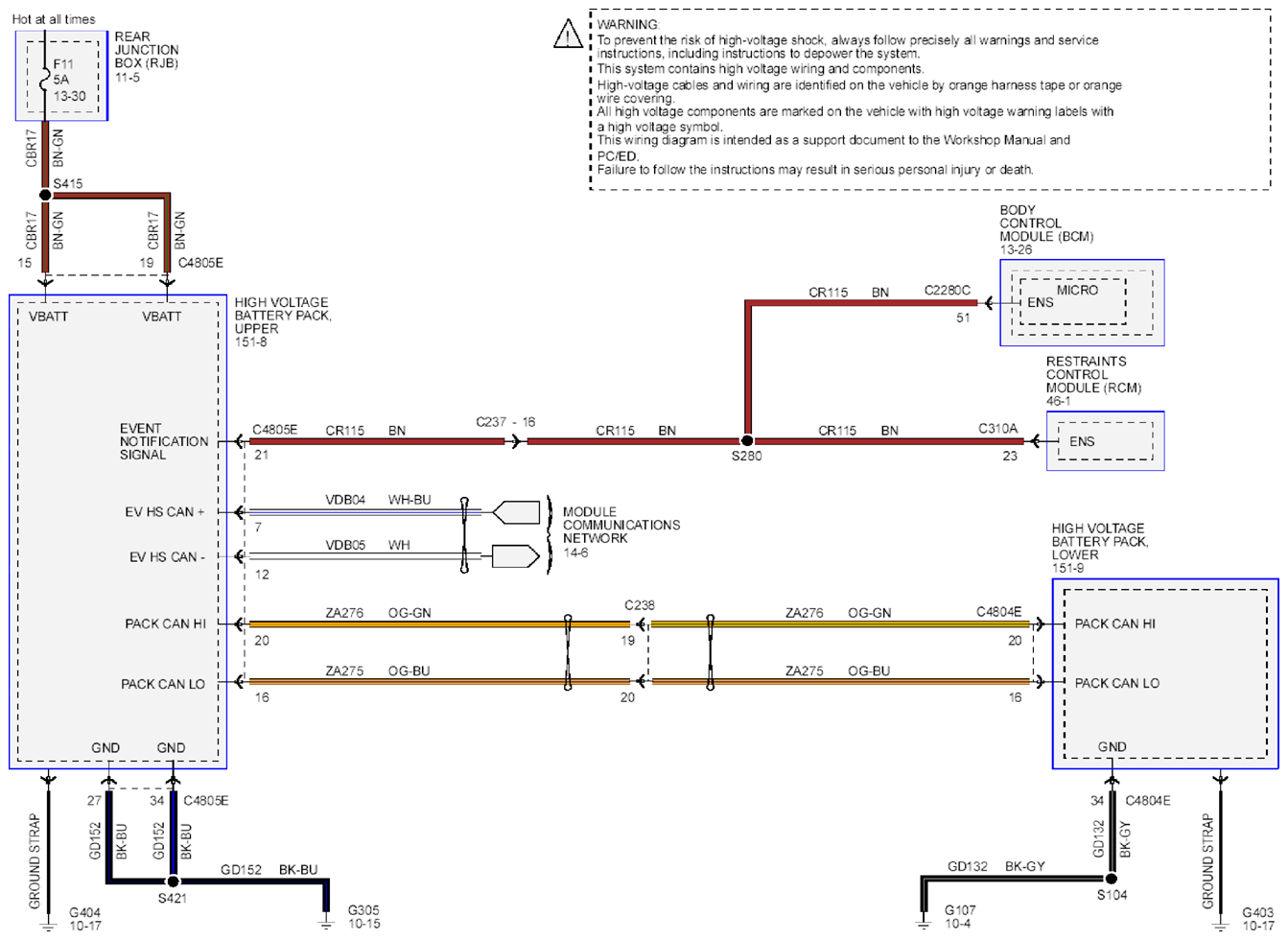

Fig 8: Charging System - Wiring Diagram (8 Of 9)

G09260776

Courtesy of FORD MOTOR CO.

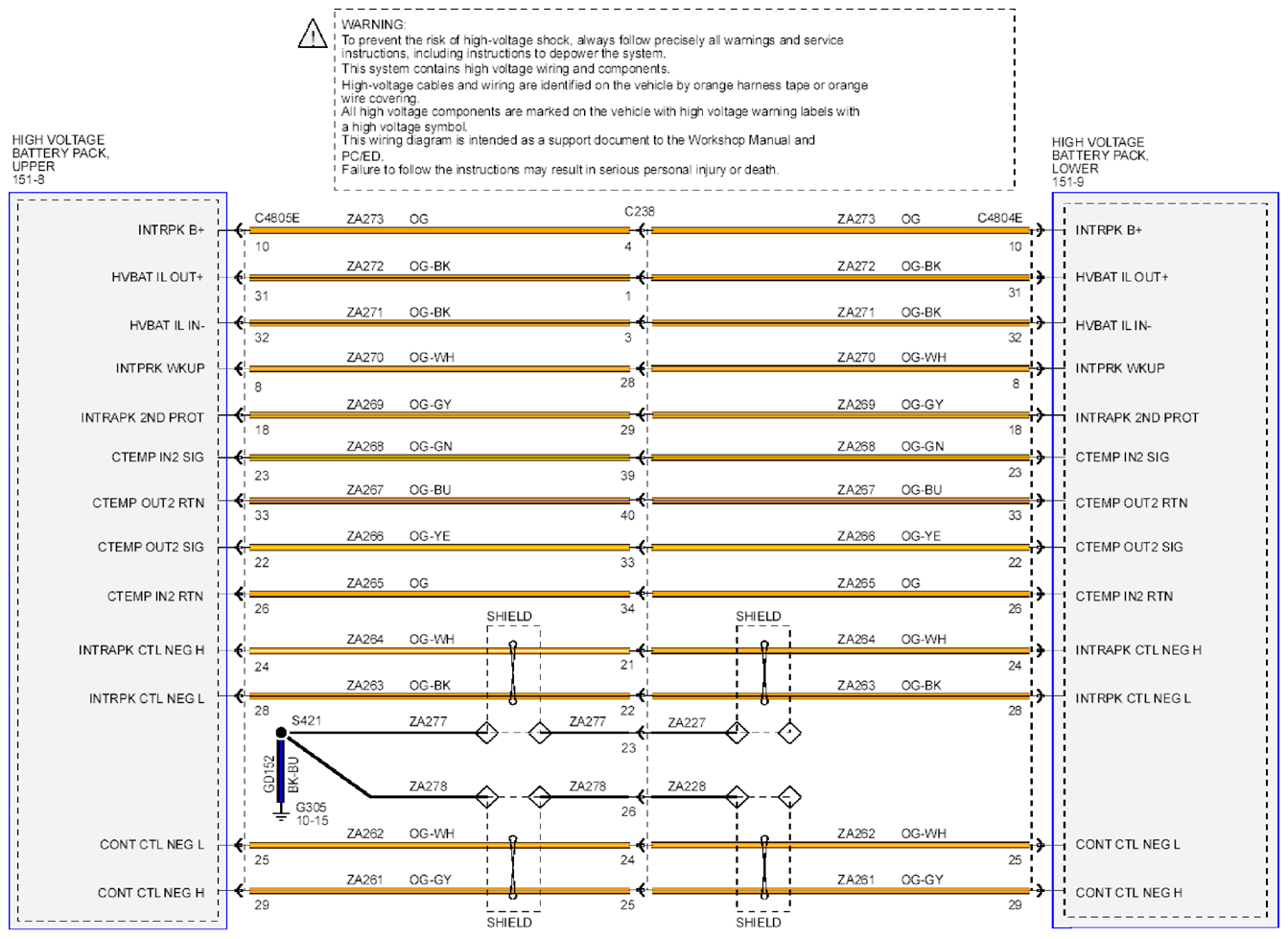

Fig 9: Charging System - Wiring Diagram (9 Of 9)

G09260777

Courtesy of FORD MOTOR CO.
