Automatic Climate Control System

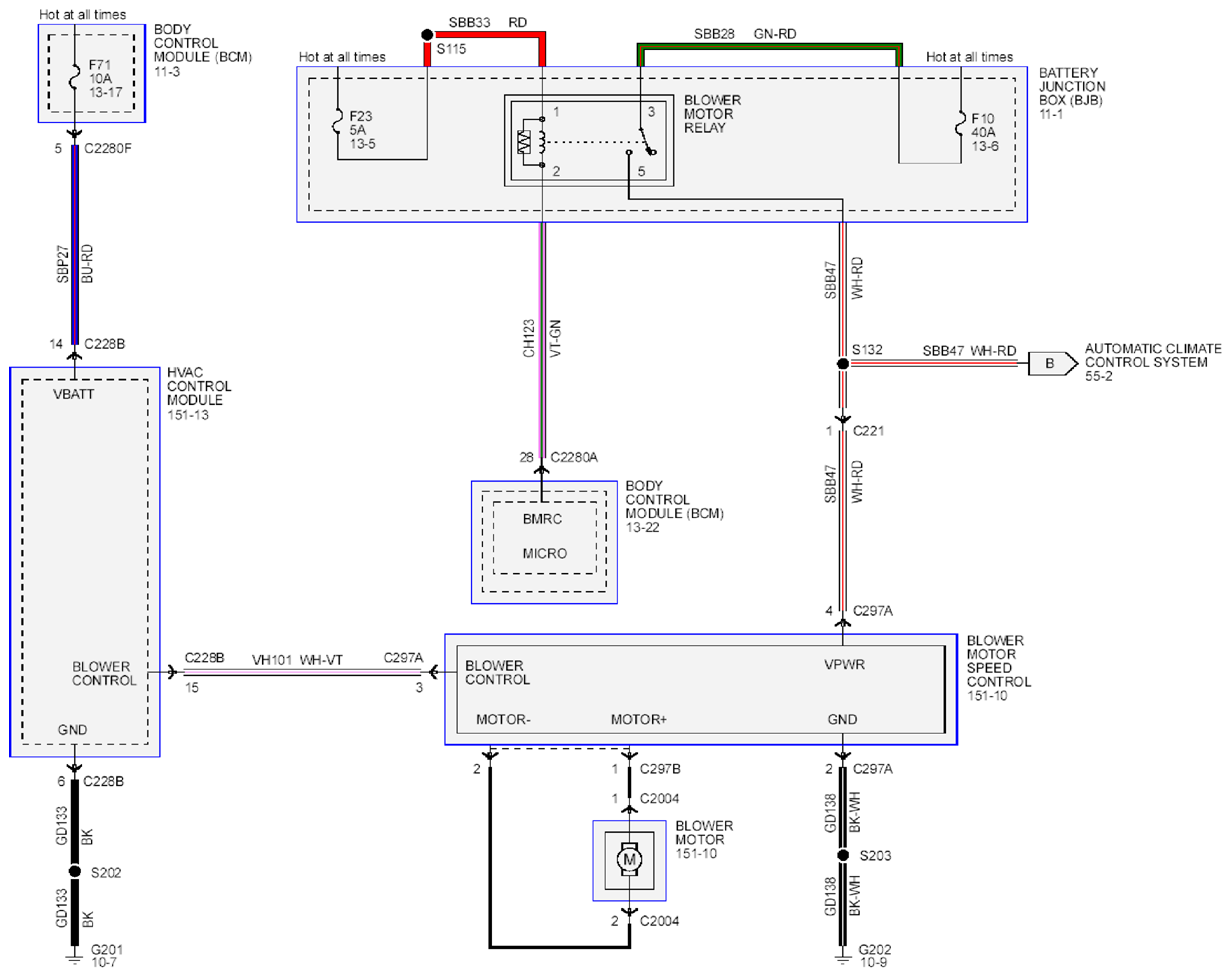

Fig 1: Automatic Climate Control System - Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR CO.

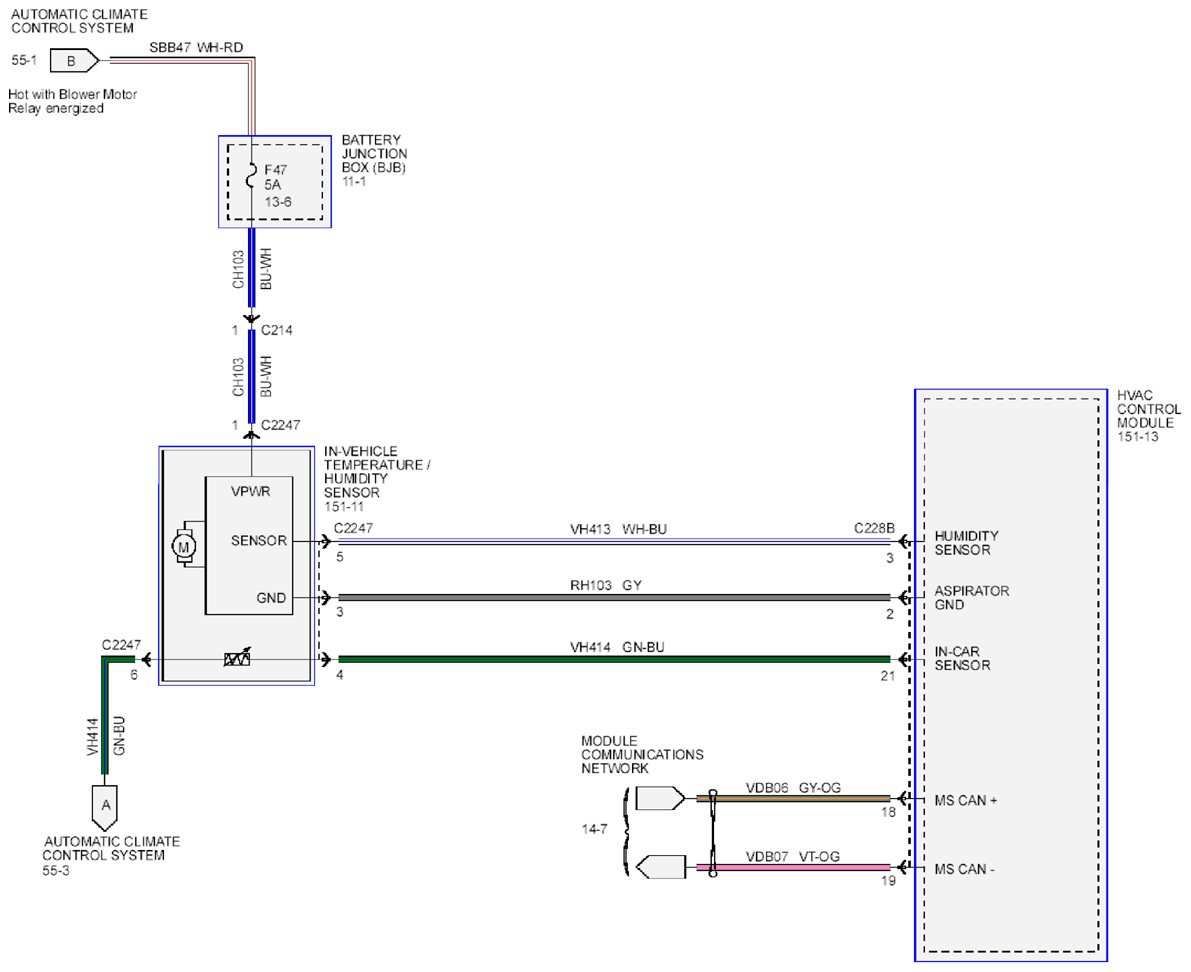

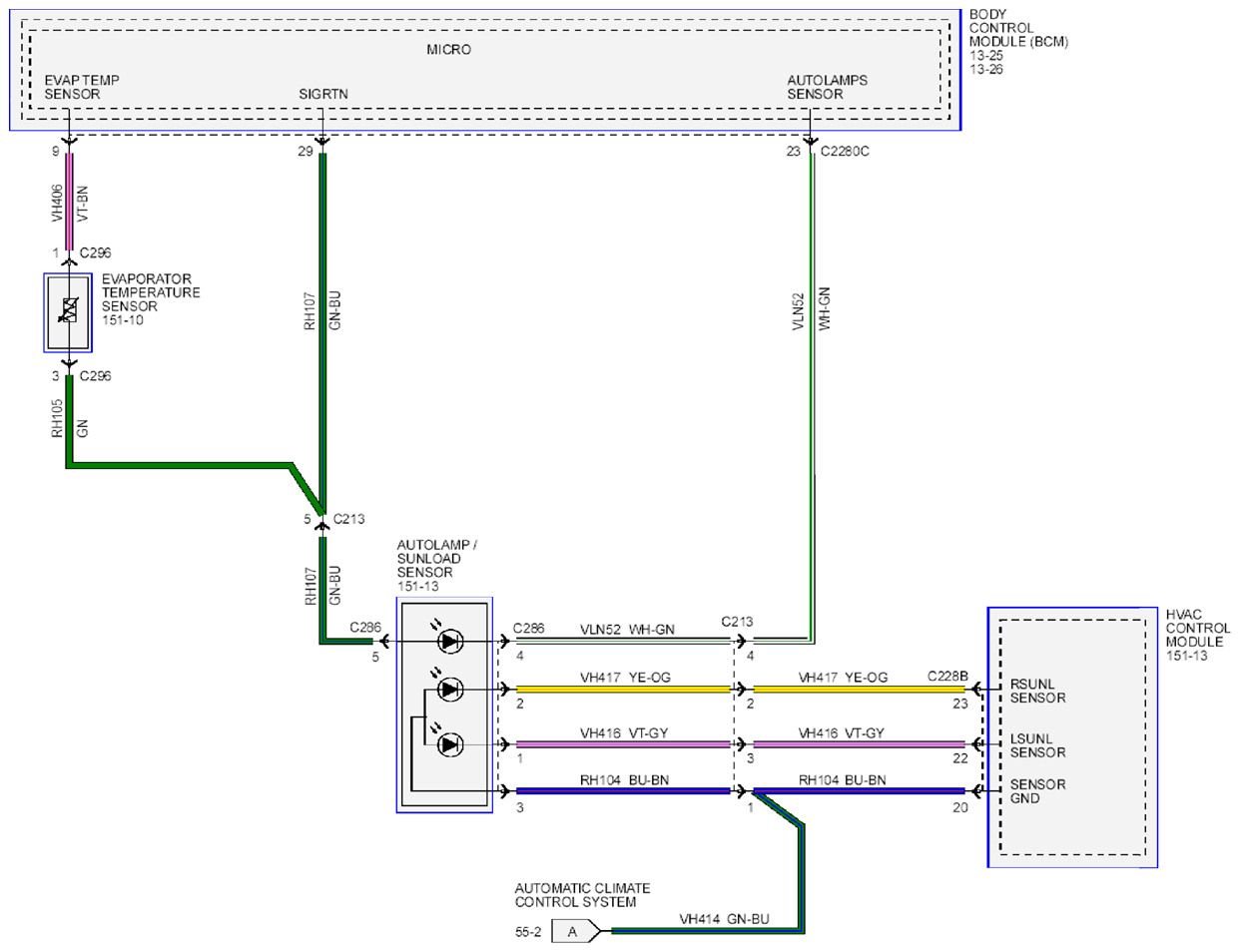

Fig 2: Automatic Climate Control System - Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR CO.

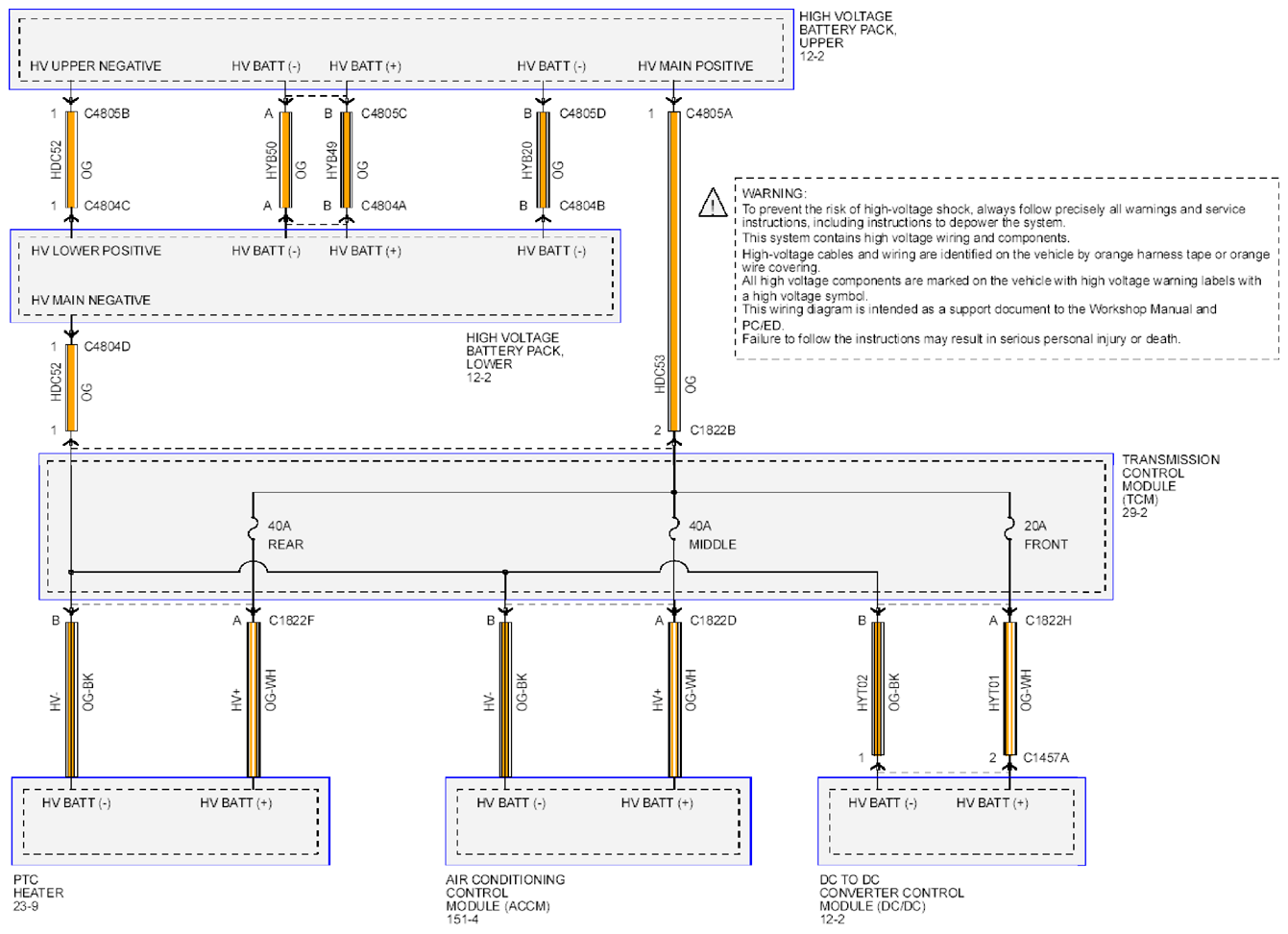

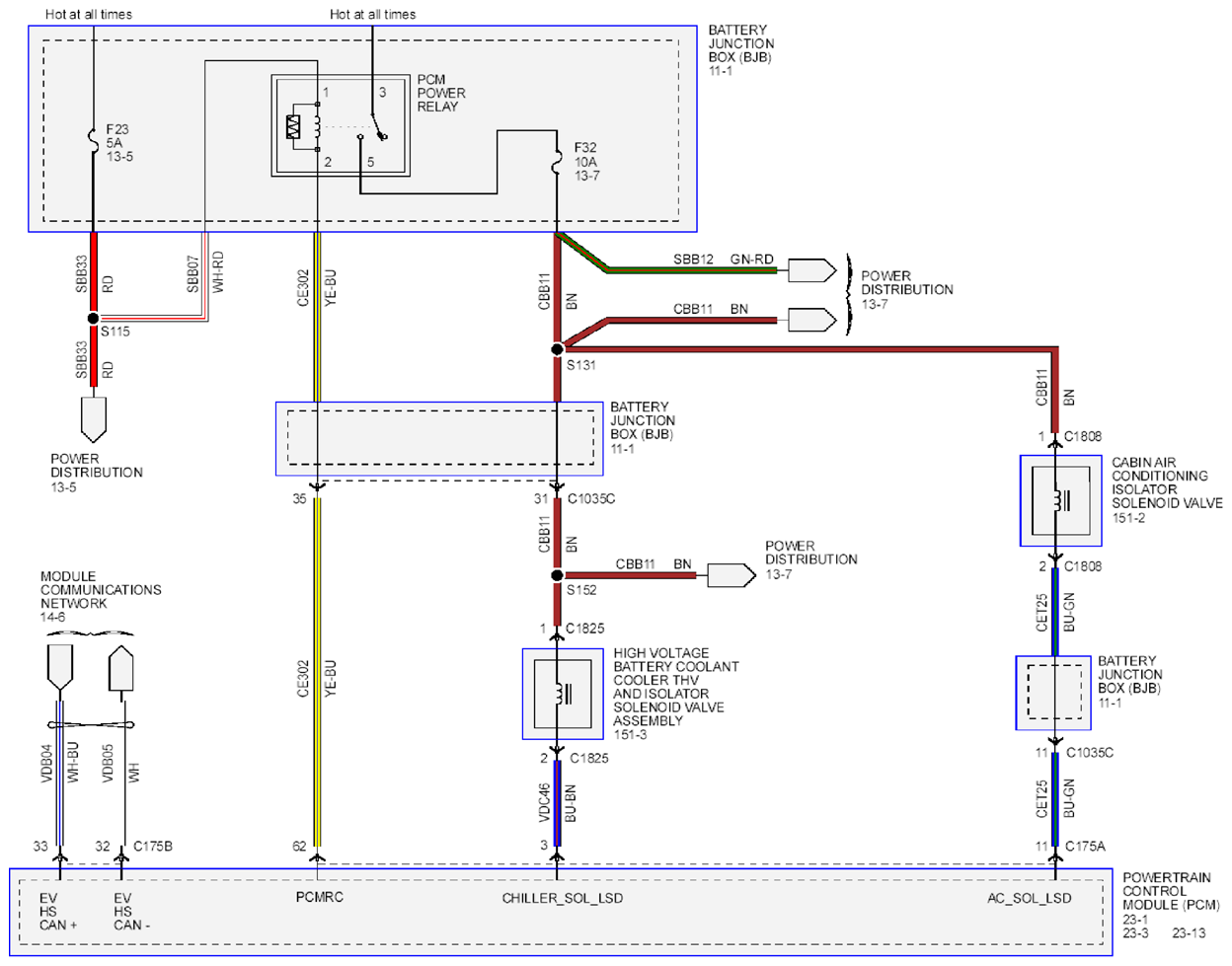

Fig 3: Automatic Climate Control System - Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR CO.

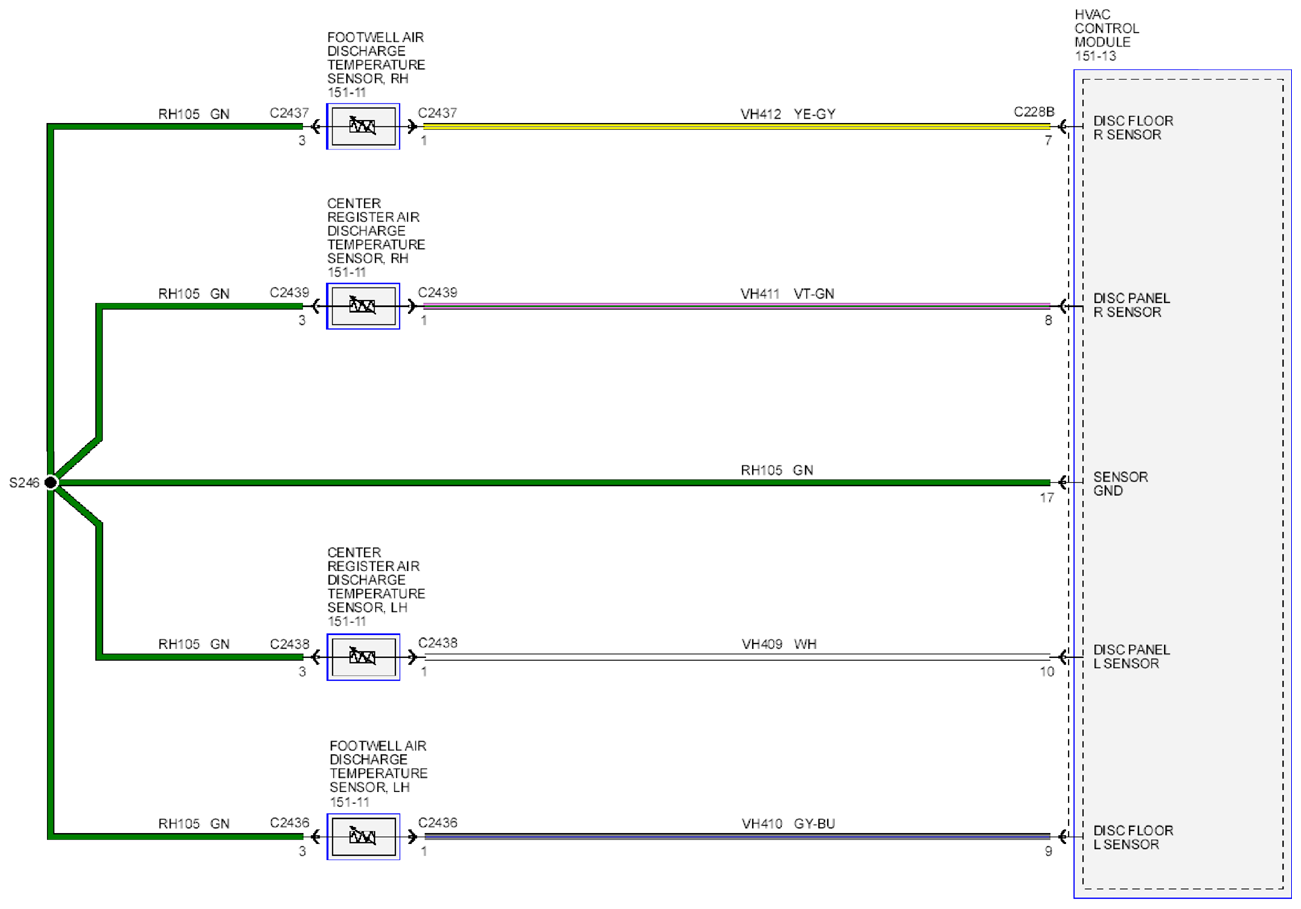

Fig 4: Automatic Climate Control System - Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR CO.

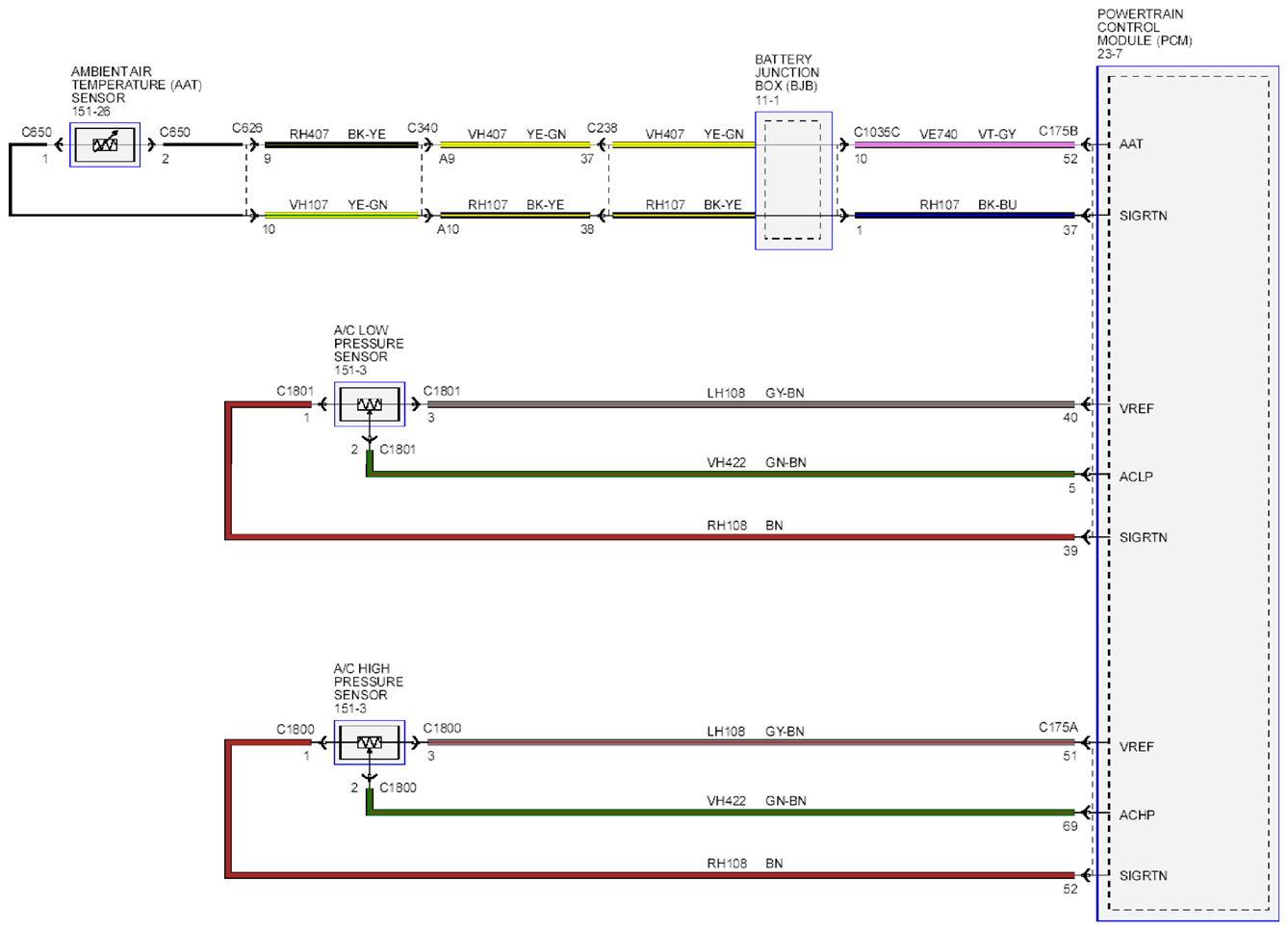

Fig 5: Automatic Climate Control System - Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR CO.

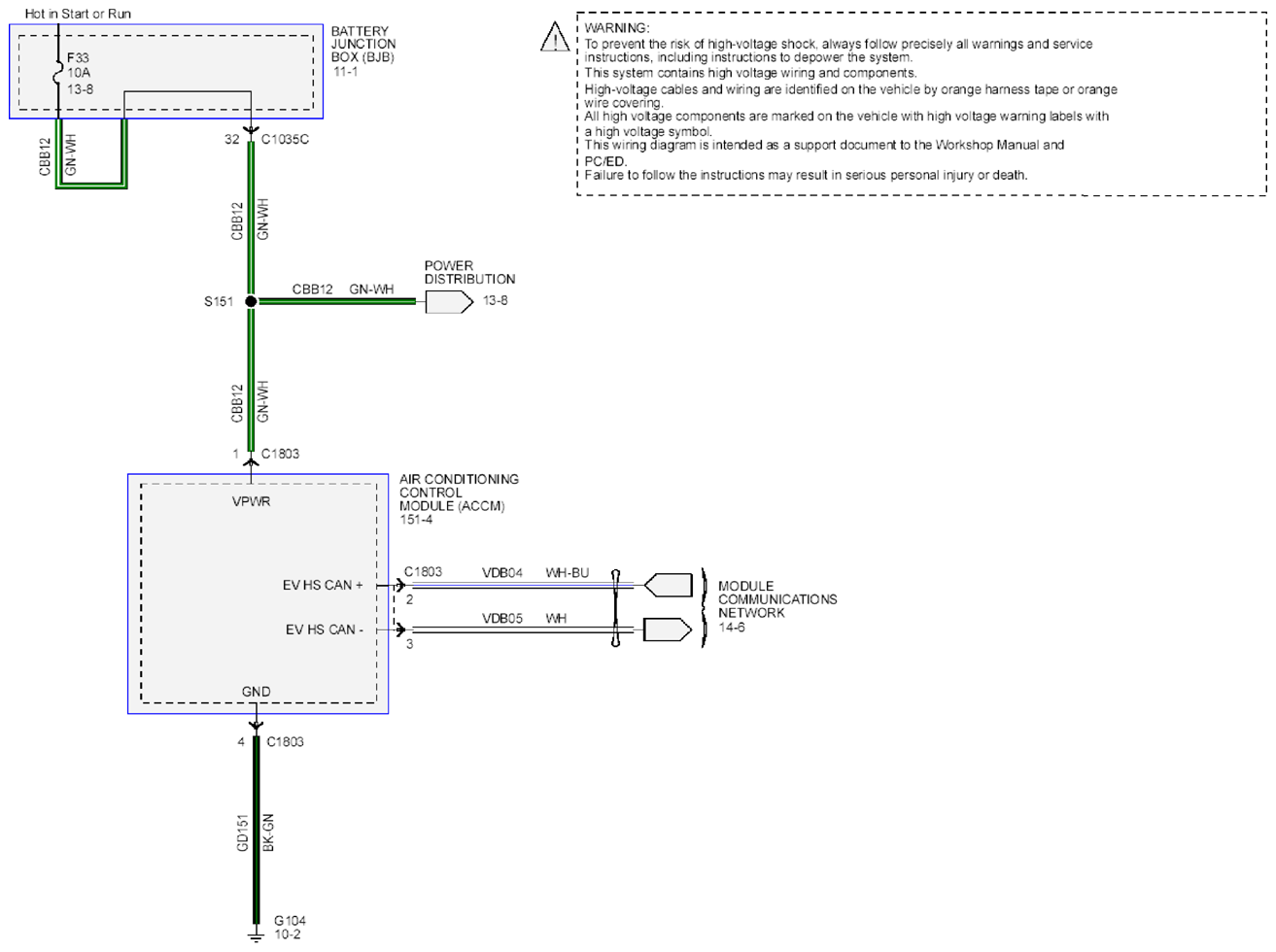

Fig 6: Automatic Climate Control System - Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR CO.

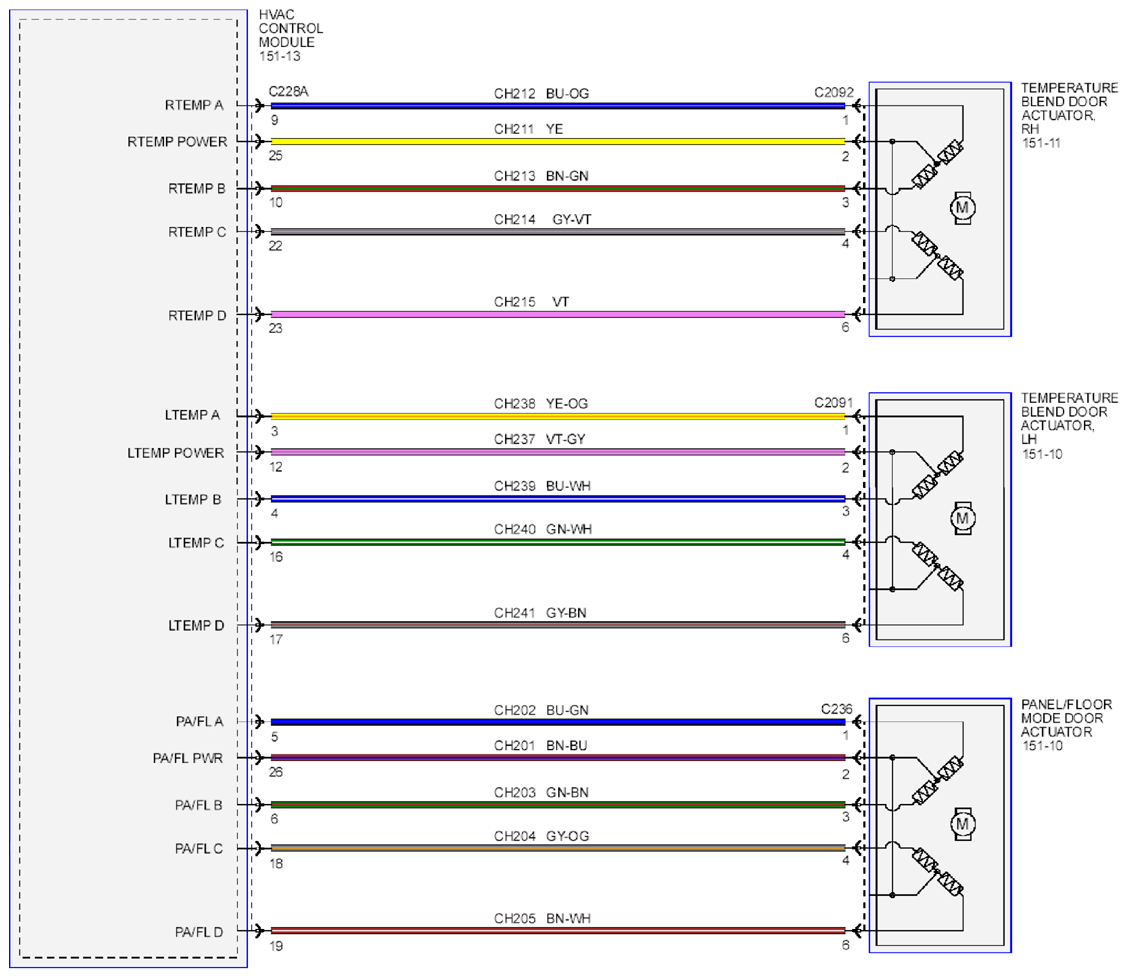

Fig 7: Automatic Climate Control System - Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR CO.

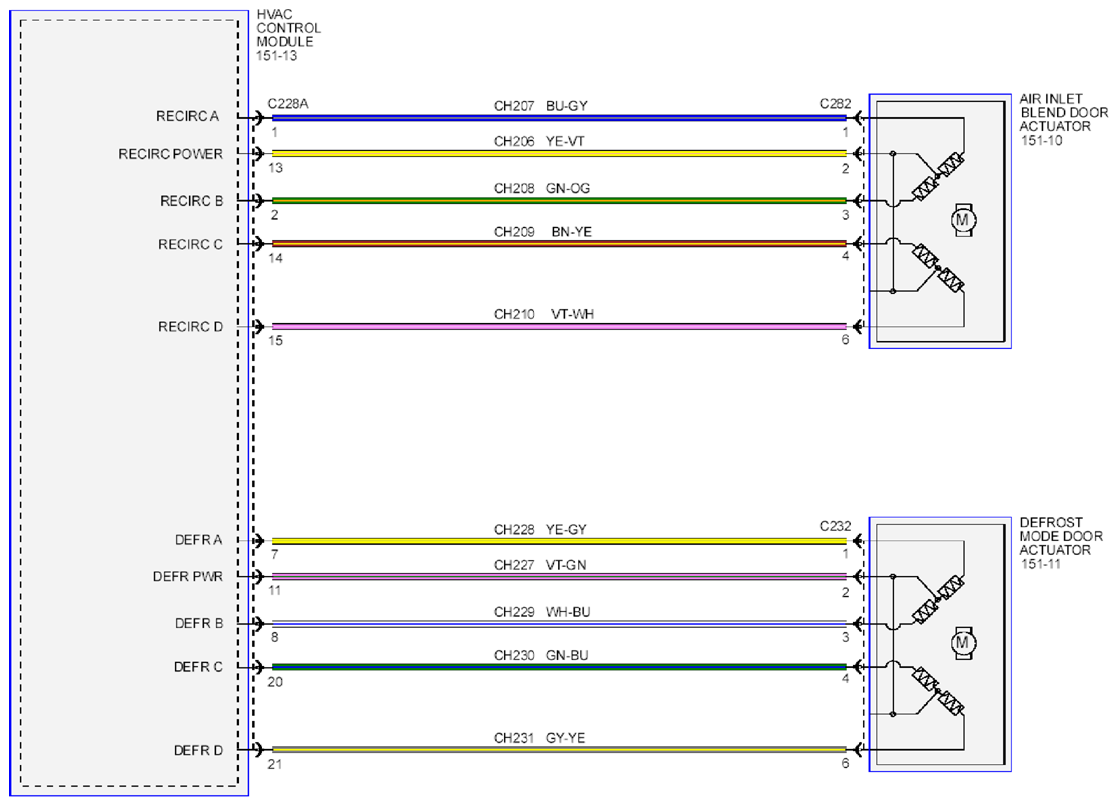

Fig 8: Automatic Climate Control System - Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Automatic Climate Control System - Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR CO.

Fig 10: Automatic Climate Control System - Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Automatic Climate Control System - Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR CO.
