Sync Gen 2

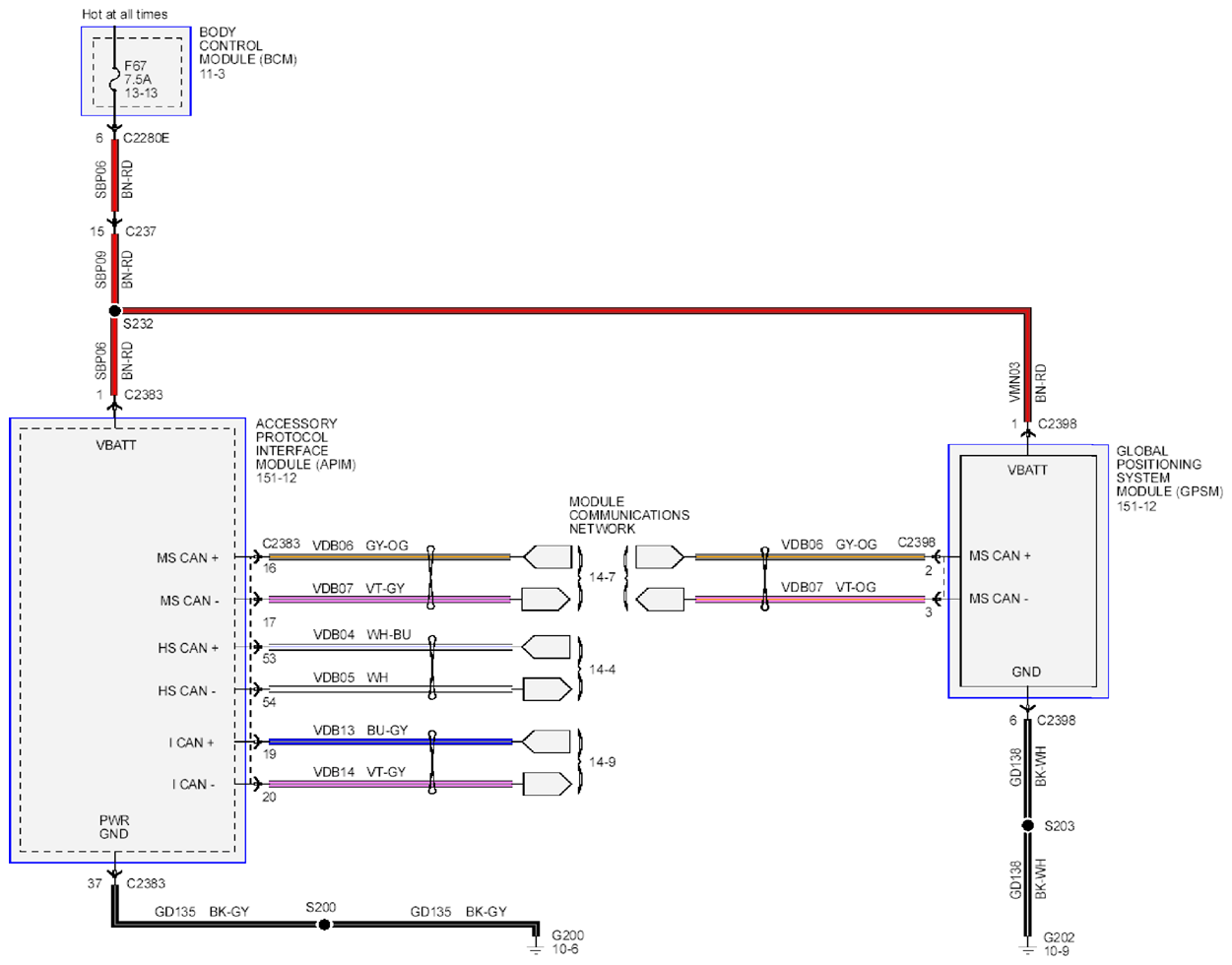

Fig 1: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 1 Of 5)
G09260945Courtesy of FORD MOTOR CO.

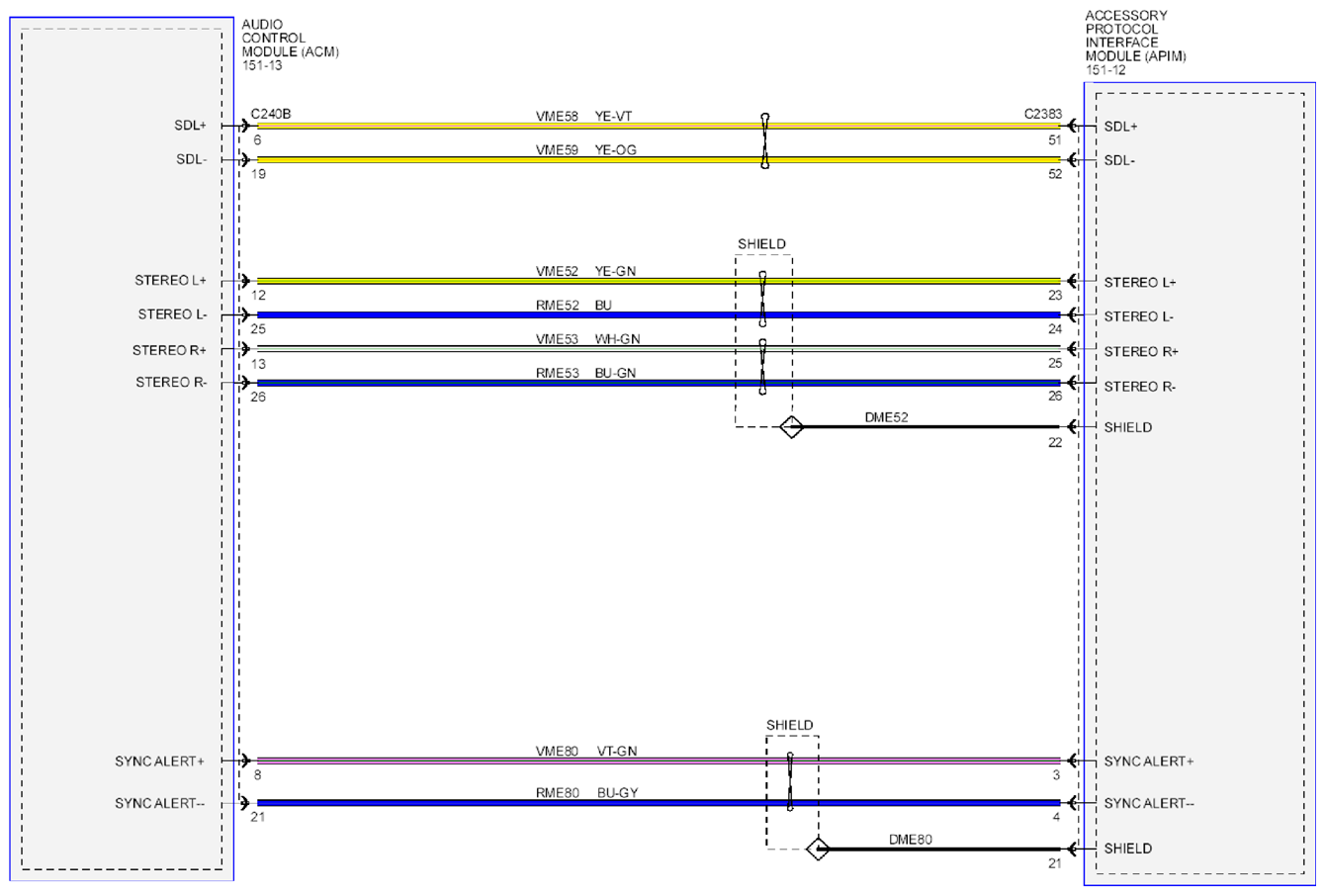

Fig 2: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 2 Of 5)
G09260946Courtesy of FORD MOTOR CO.

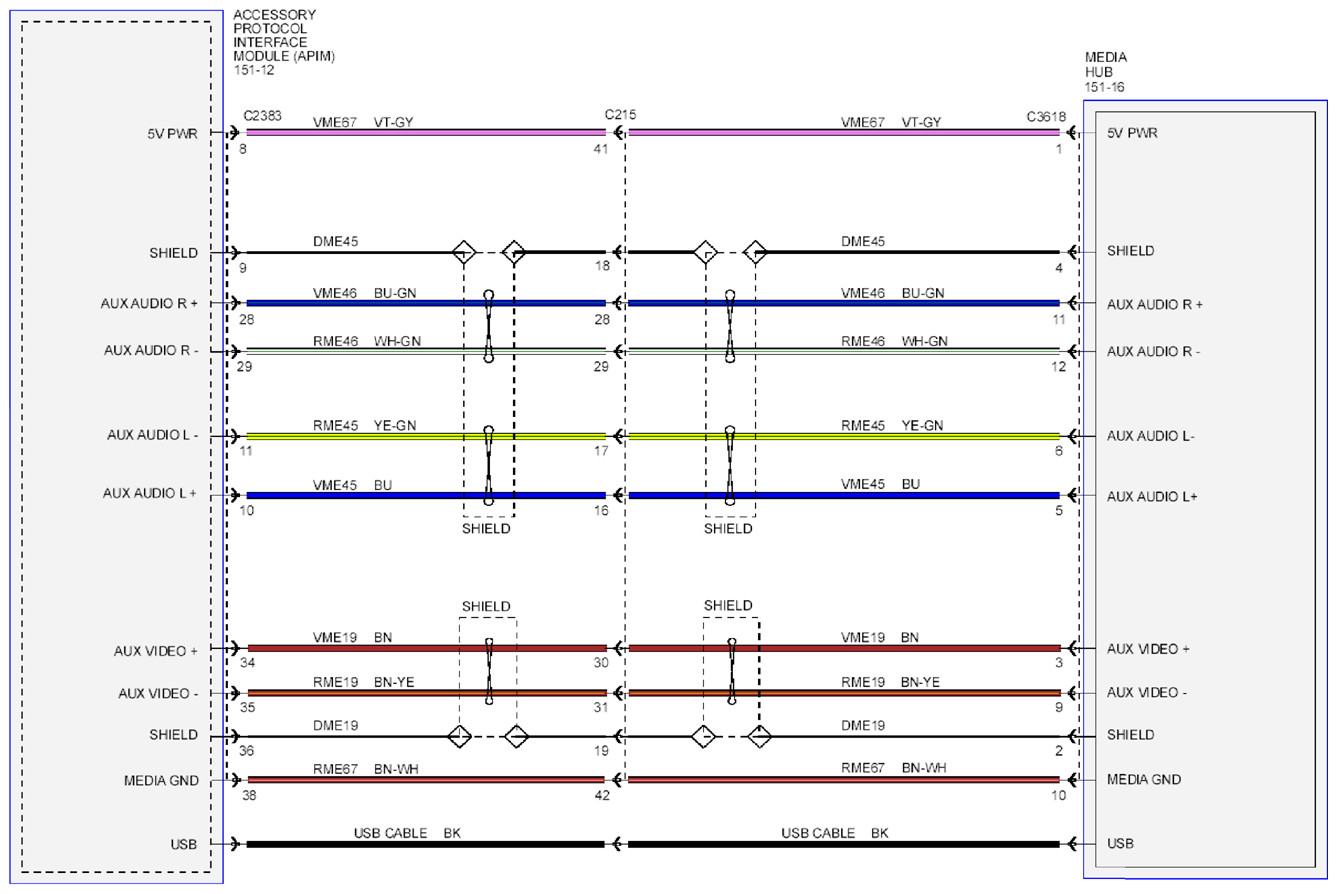

Fig 3: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 3 Of 5)
G09260947Courtesy of FORD MOTOR CO.

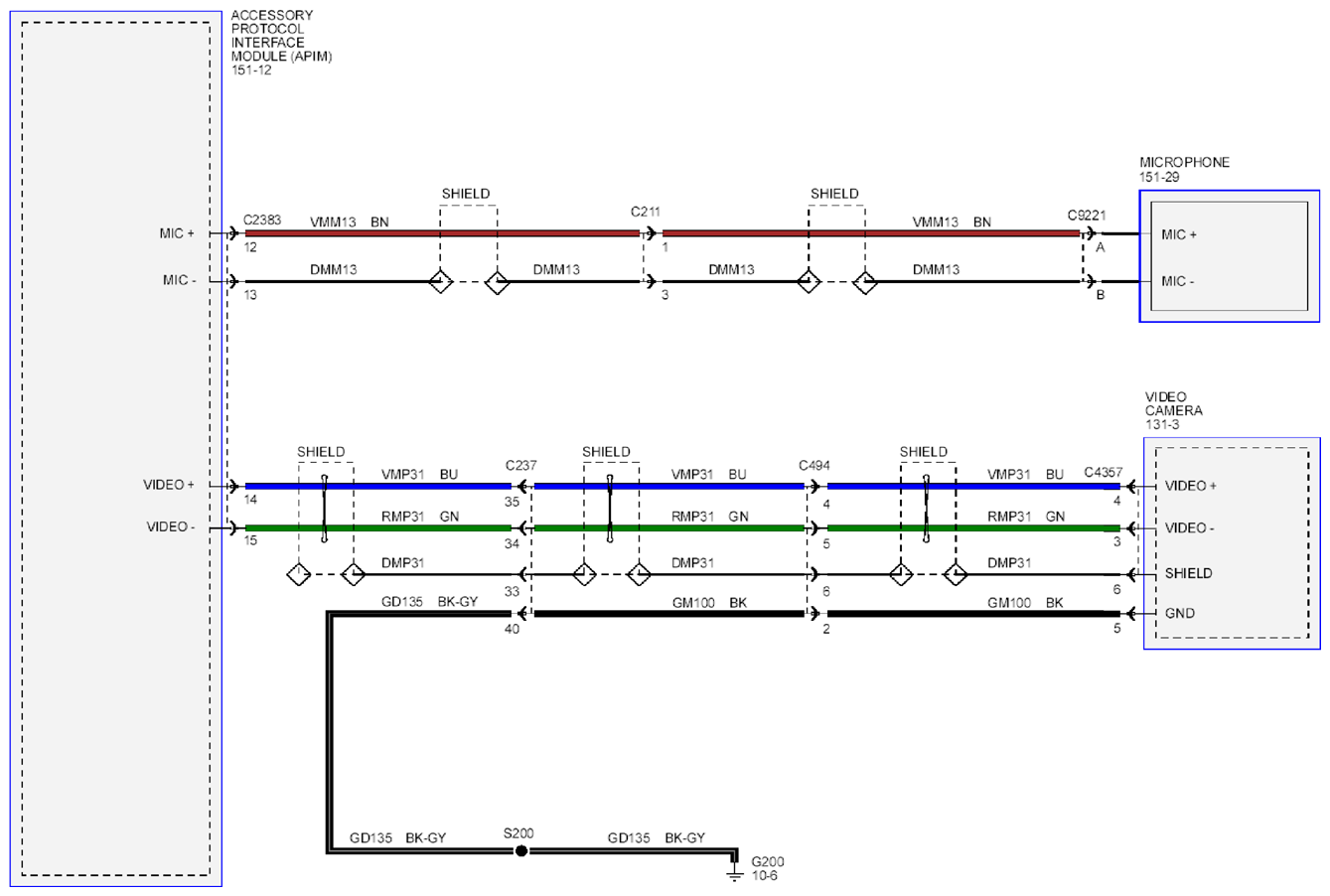

Fig 4: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 4 Of 5)
G09260948Courtesy of FORD MOTOR CO.
Fig 5: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 5 Of 5)
G09260949Courtesy of FORD MOTOR CO.
