OEM Wiring Diagrams -- Electric
>>
Audio System Navigation
>>
RH Upper Switch
RH Upper Switch

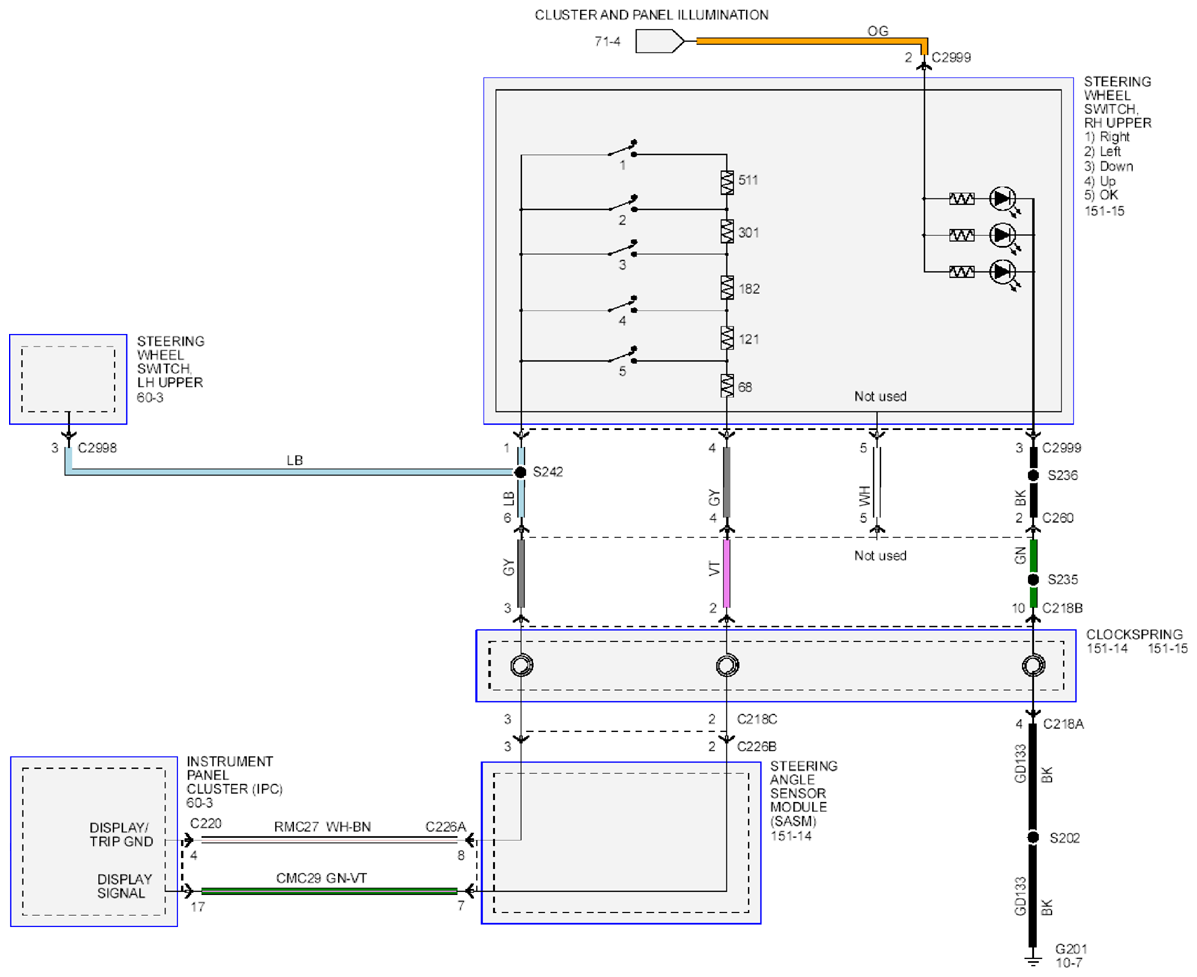

Fig 1: Audio System Navigation - Wiring Diagram (Upper Switch)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
