RH Lower Switch

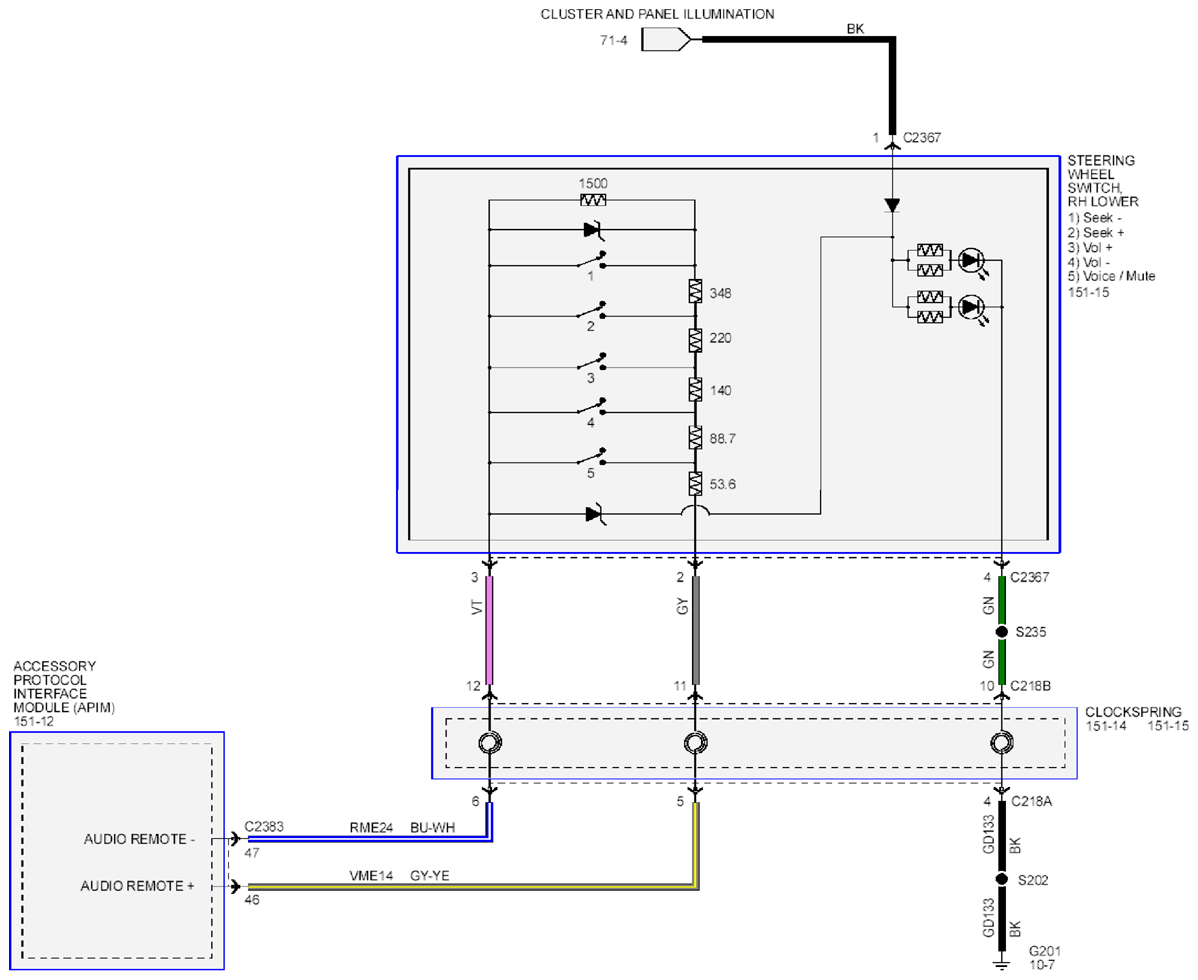

Fig 1: Audio System Navigation - Wiring Diagram (RH Lower Switch; 1 Of 2)
G09260951Courtesy of FORD MOTOR CO.
Fig 2: Audio System Navigation - Wiring Diagram (RH Lower Switch; 2 Of 2)
G09260952Courtesy of FORD MOTOR CO.
