Focus Electric
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Electric
>>
Audio System Navigation
>>
Notes
Audio System Navigation: Notes

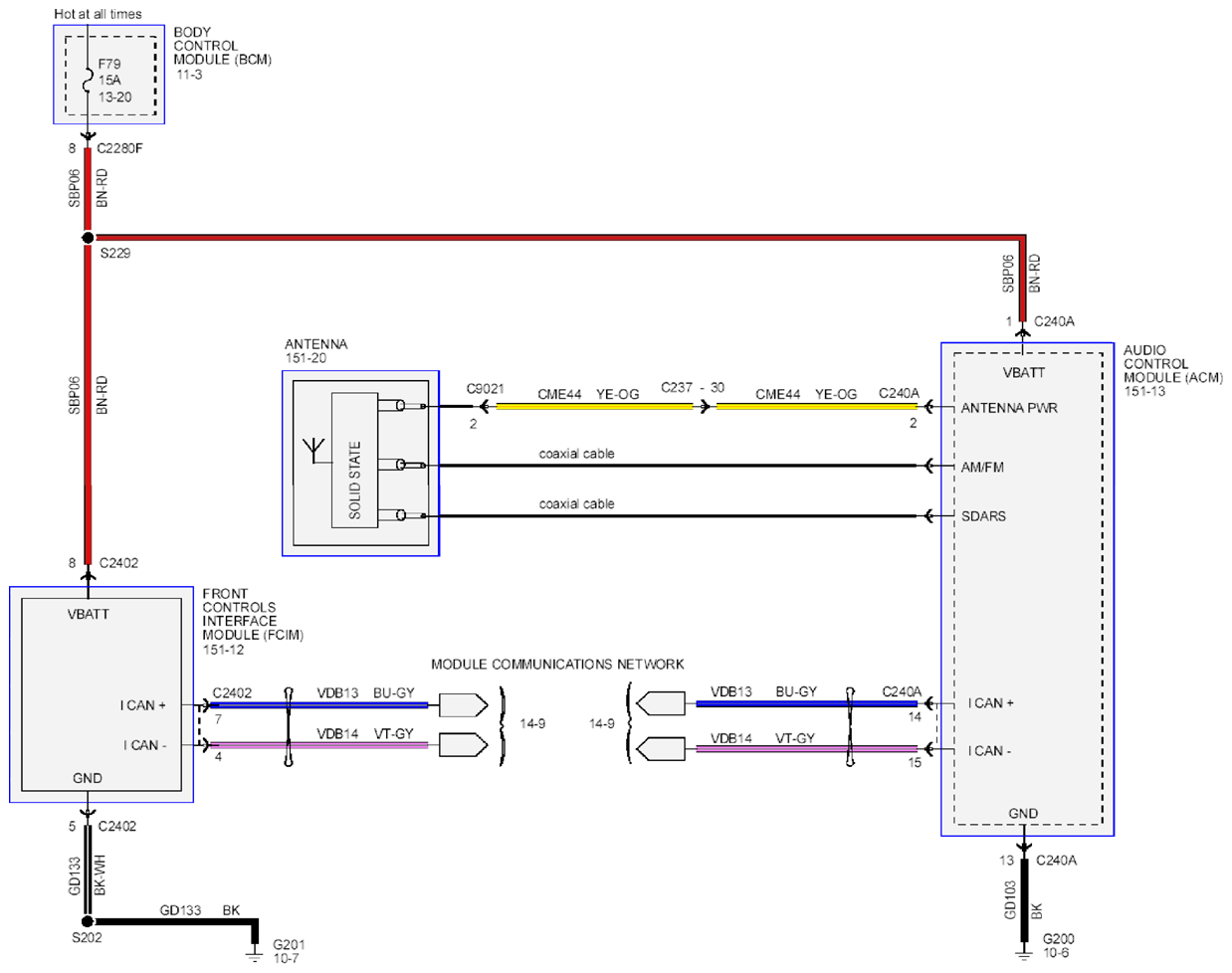

Fig 1: Audio System/ Navigation - Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

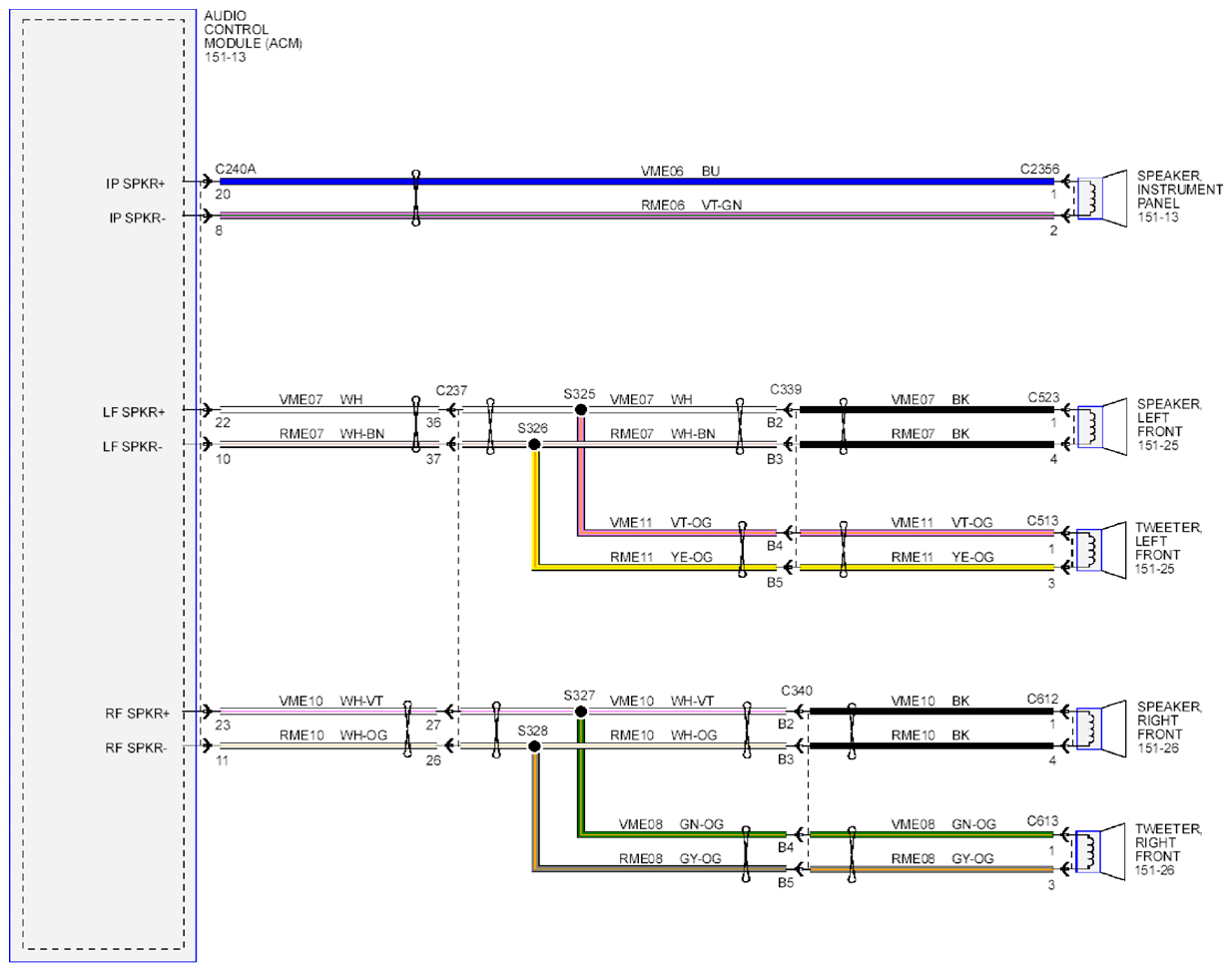

Fig 2: Audio System/ Navigation - Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

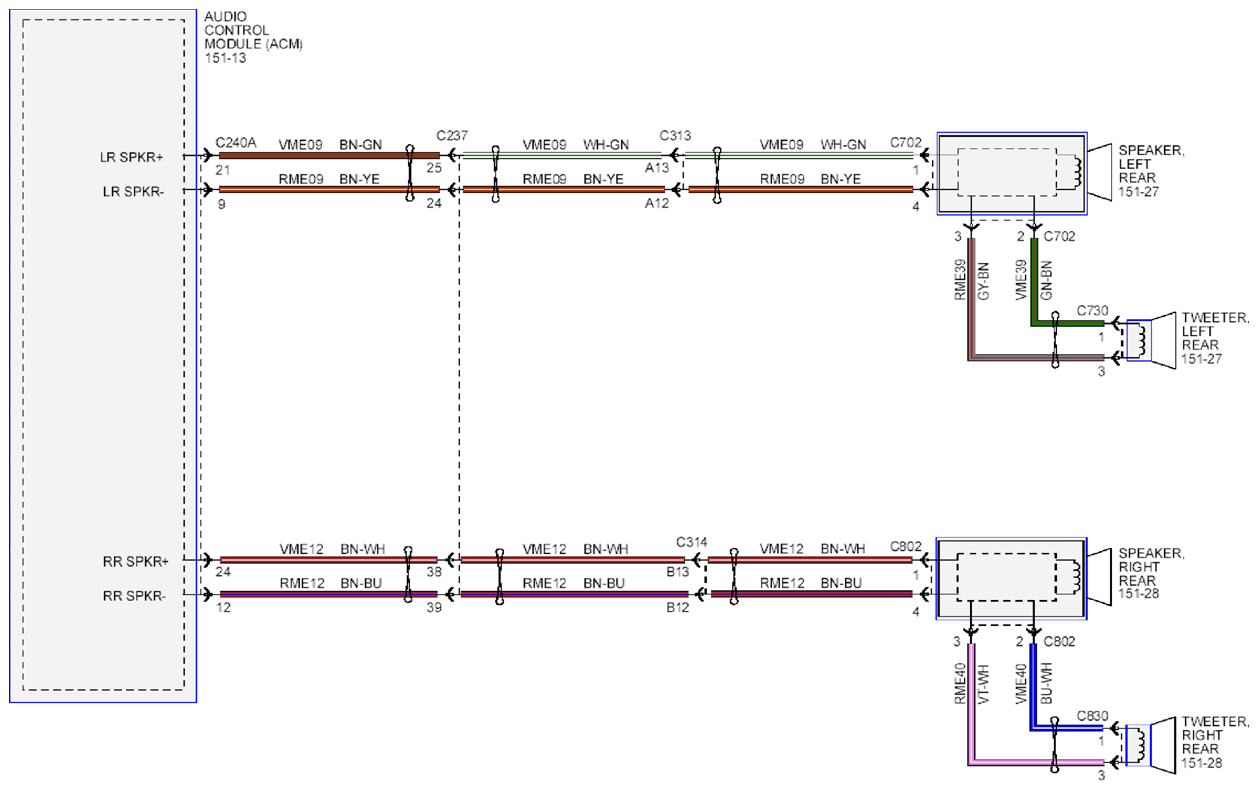

Fig 3: Audio System/ Navigation - Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
