Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Instrument Cluster
Instrument Cluster

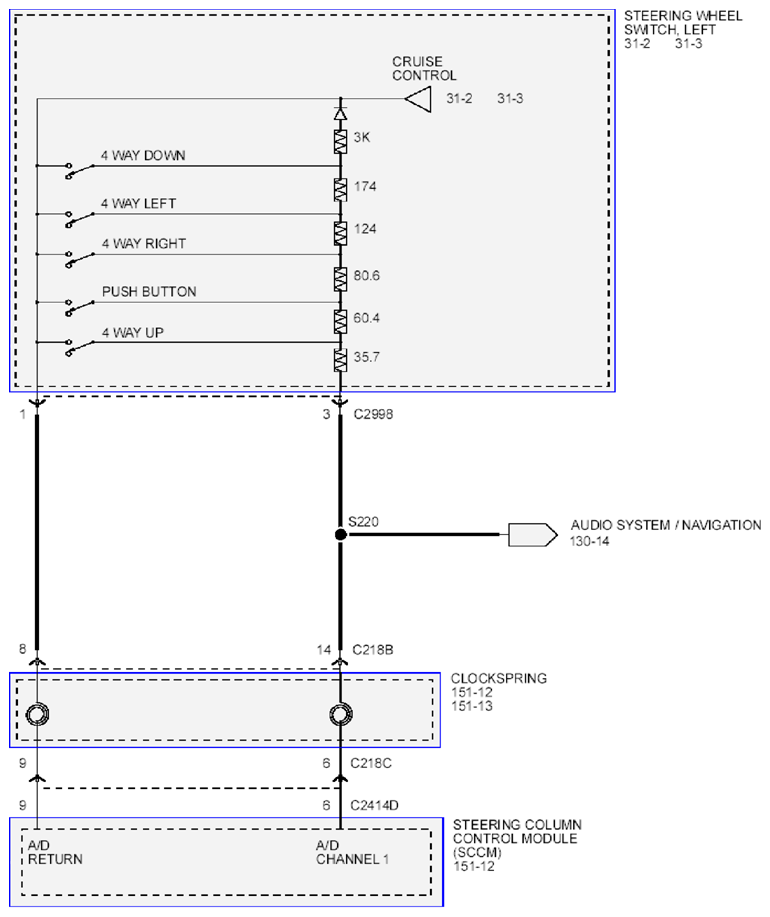

Fig 1: Instrument Cluster - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

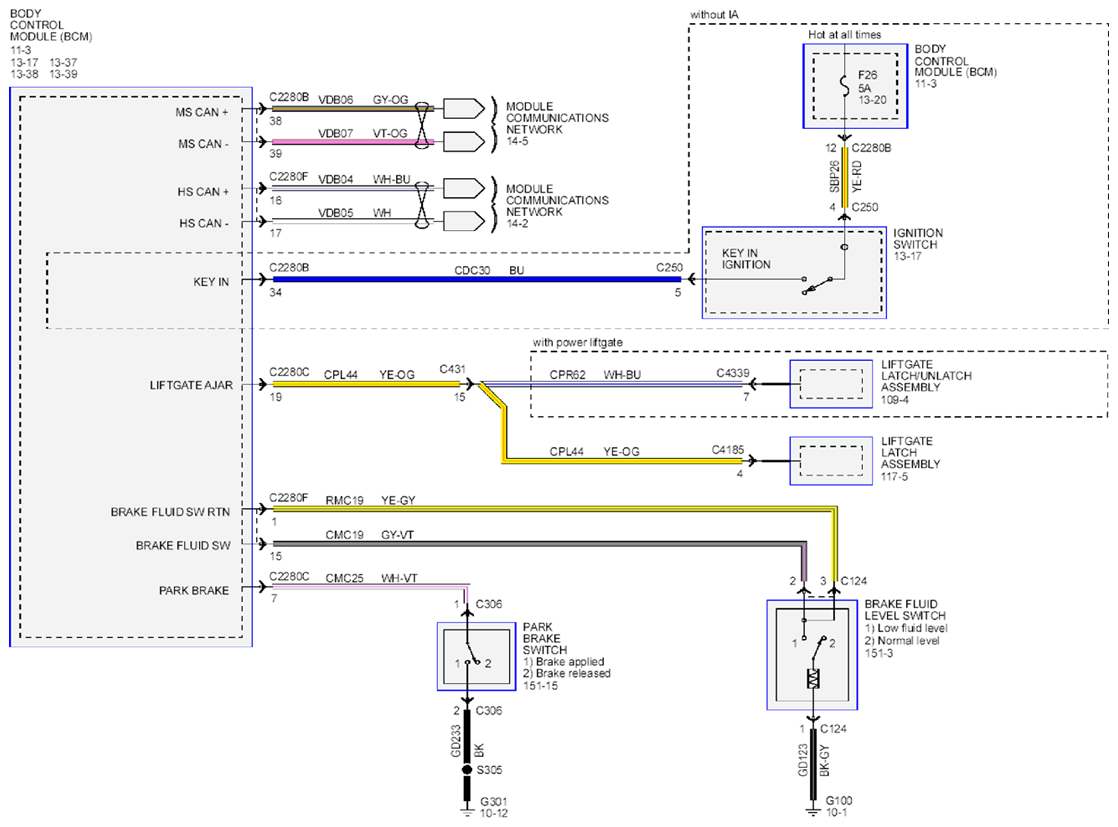

Fig 2: Instrument Cluster - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

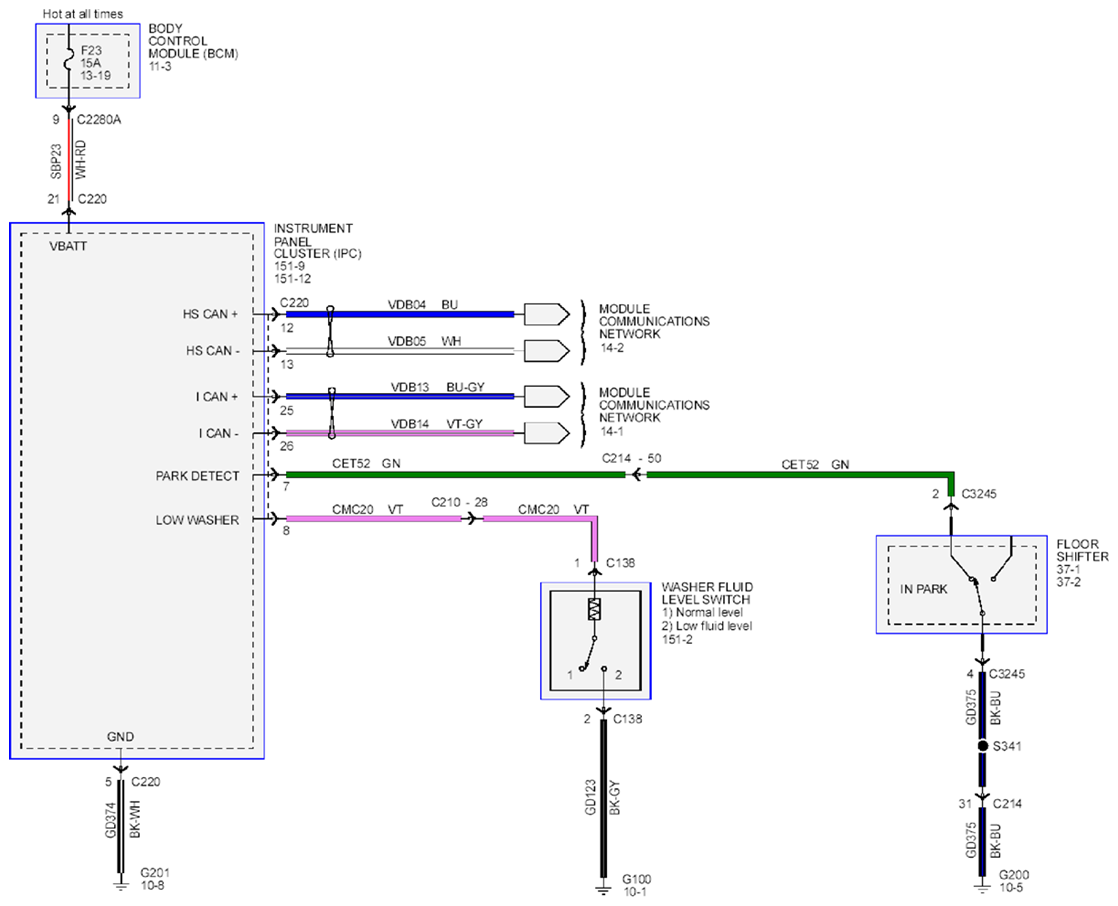

Fig 3: Instrument Cluster - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

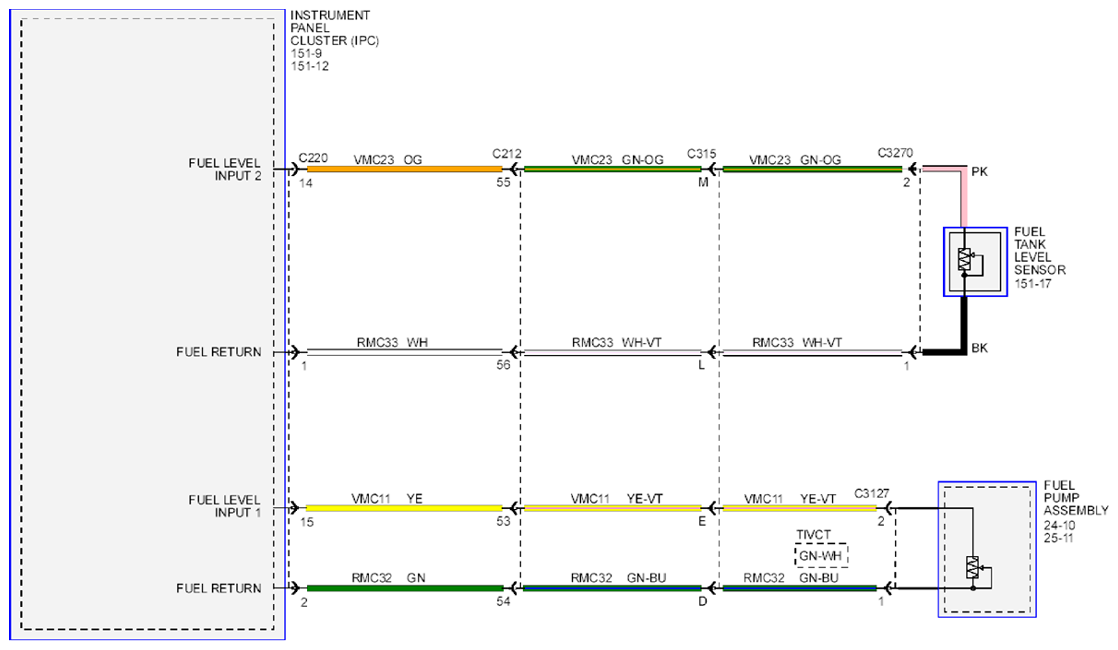

Fig 4: Instrument Cluster - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

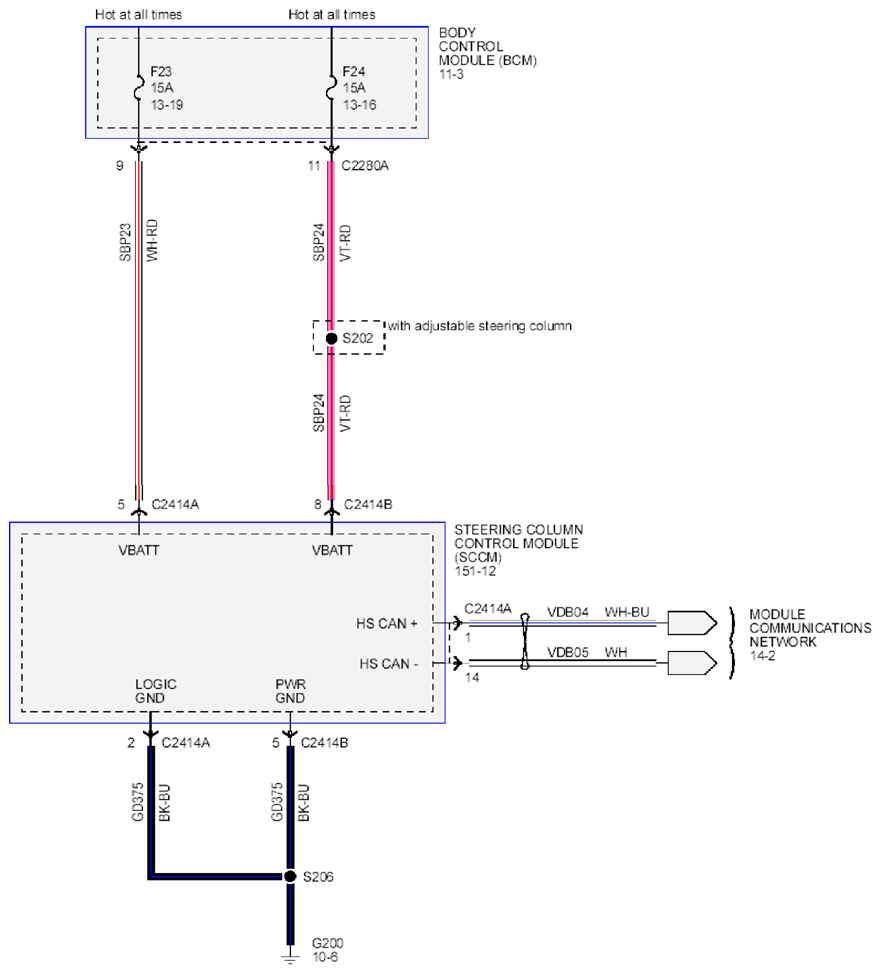

Fig 5: Instrument Cluster - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

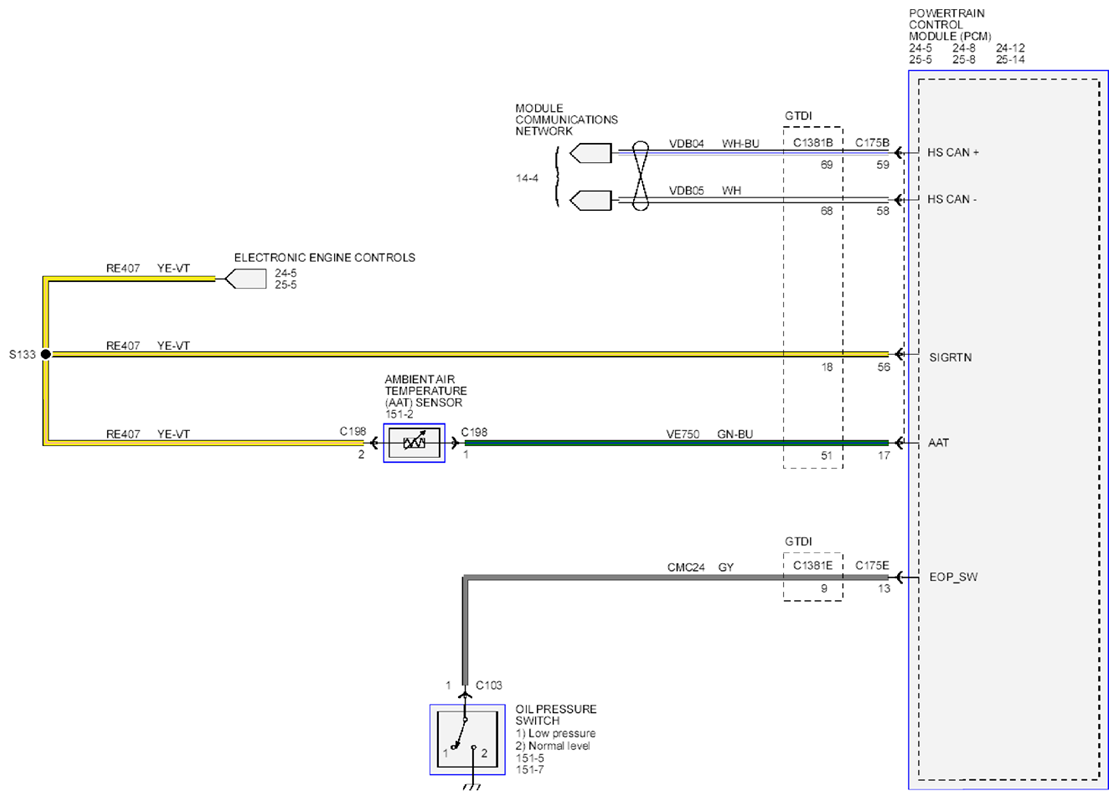

Fig 6: Instrument Cluster - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
