Power Distribution BCM
>>
F9, F18, F19, F20, F21, F27, F30, F82, F84
F9, F18, F19, F20, F21, F27, F30, F82, F84

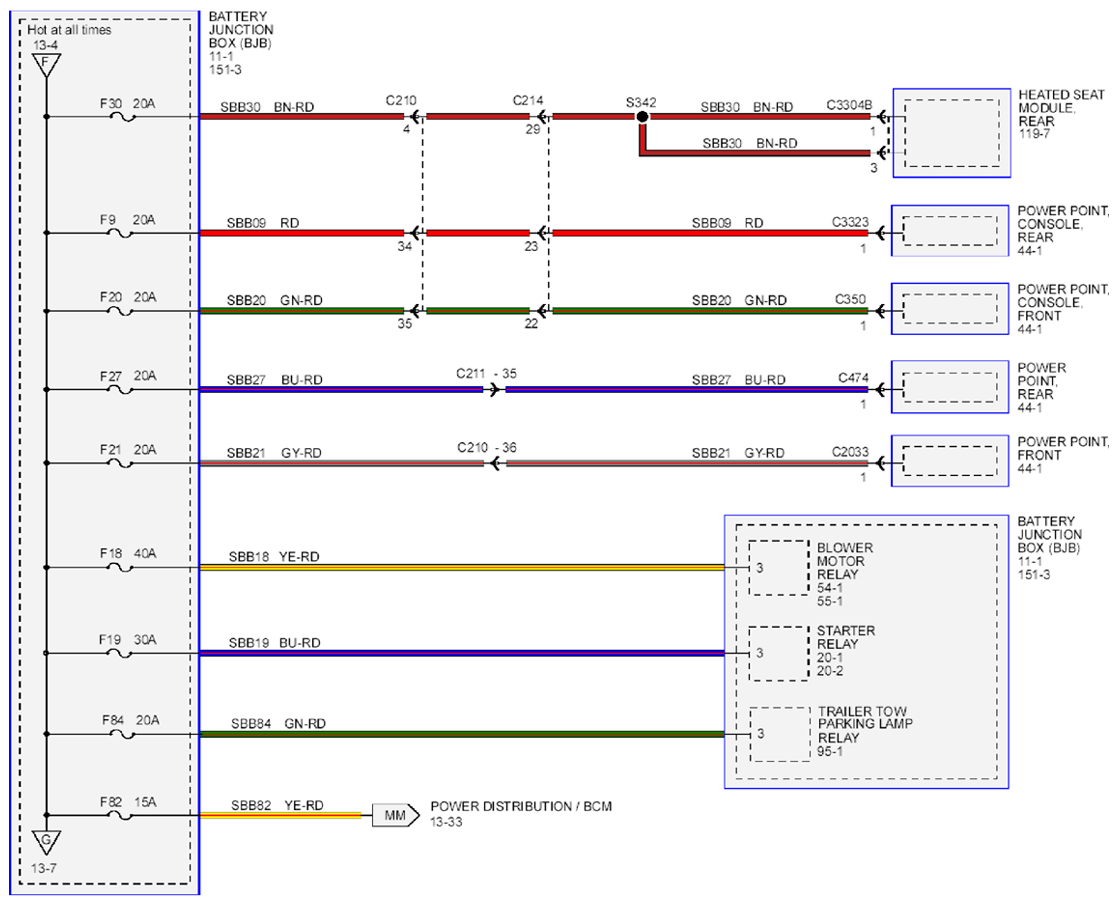

Fig 1: Power Distribution Wiring Diagram - F9, F18, F19, F20, F21, F27, F30, F82, F84
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
