Parking, Rear And License Lamps

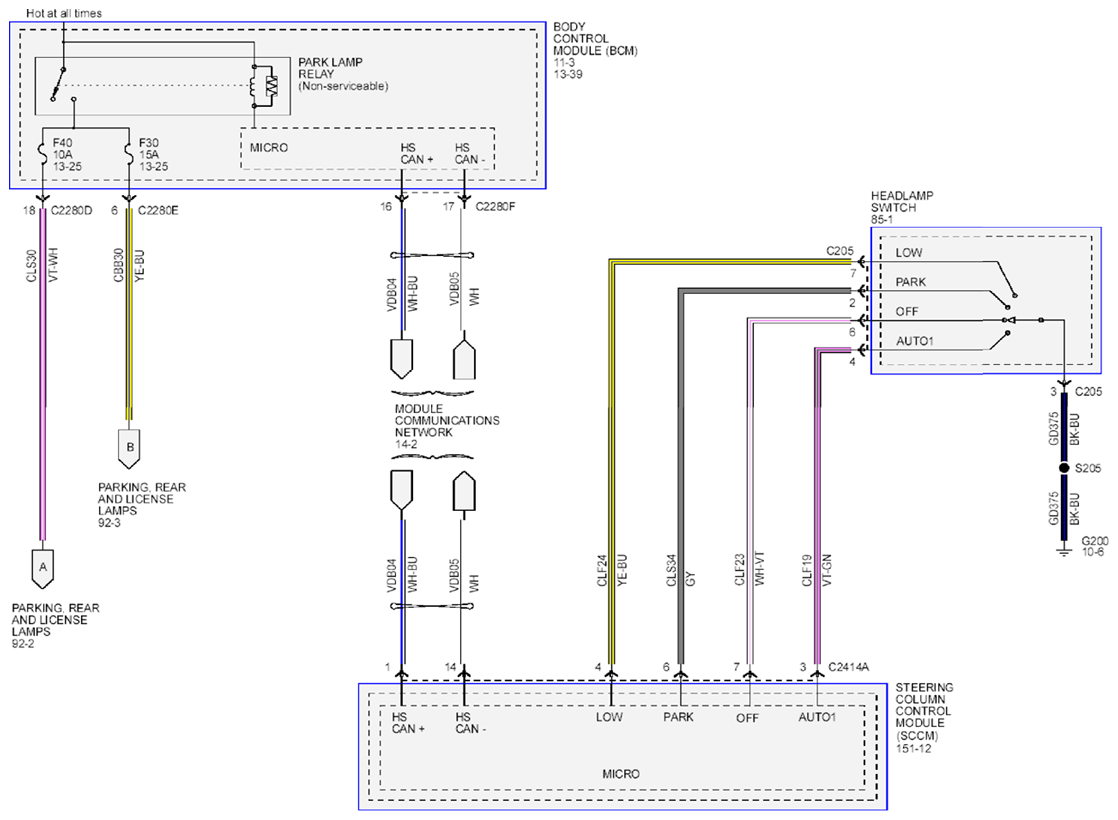

Fig 1: Parking, Rear And License Lamps - Wiring Diagram (1 Of 3)
G09252482Courtesy of FORD MOTOR CO.

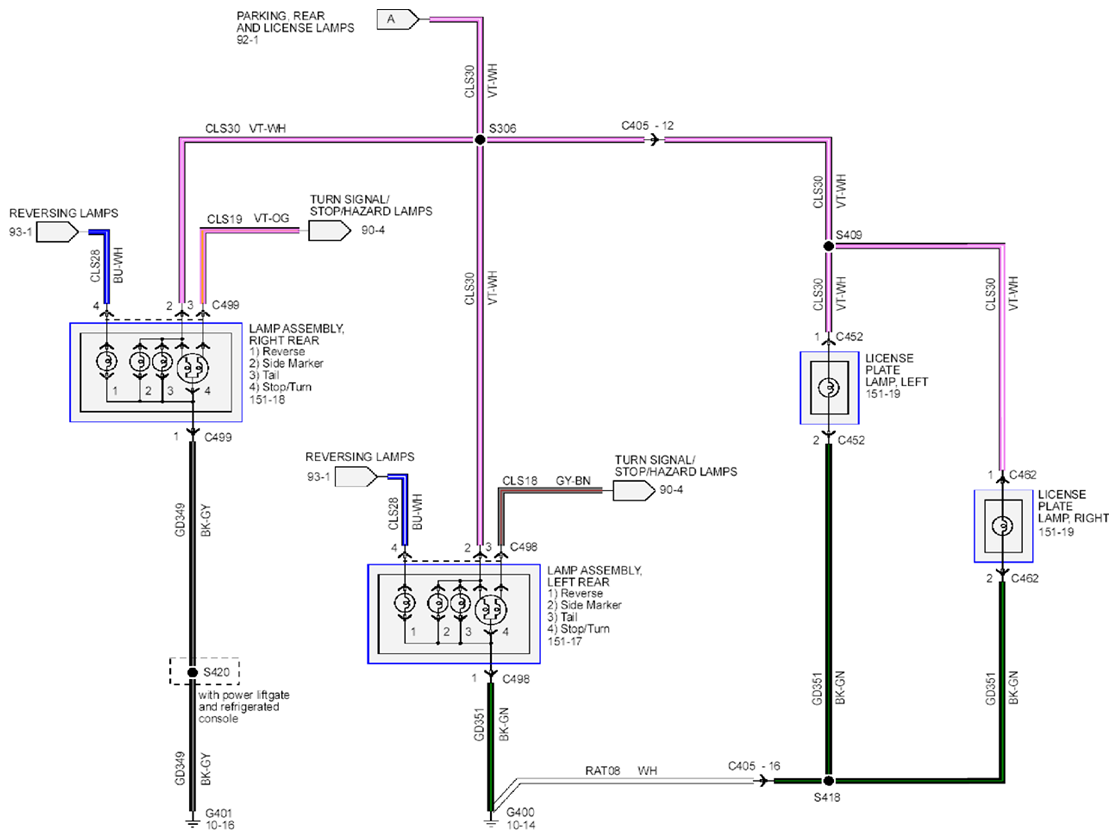

Fig 2: Parking, Rear And License Lamps - Wiring Diagram (2 Of 3)
G09252483Courtesy of FORD MOTOR CO.

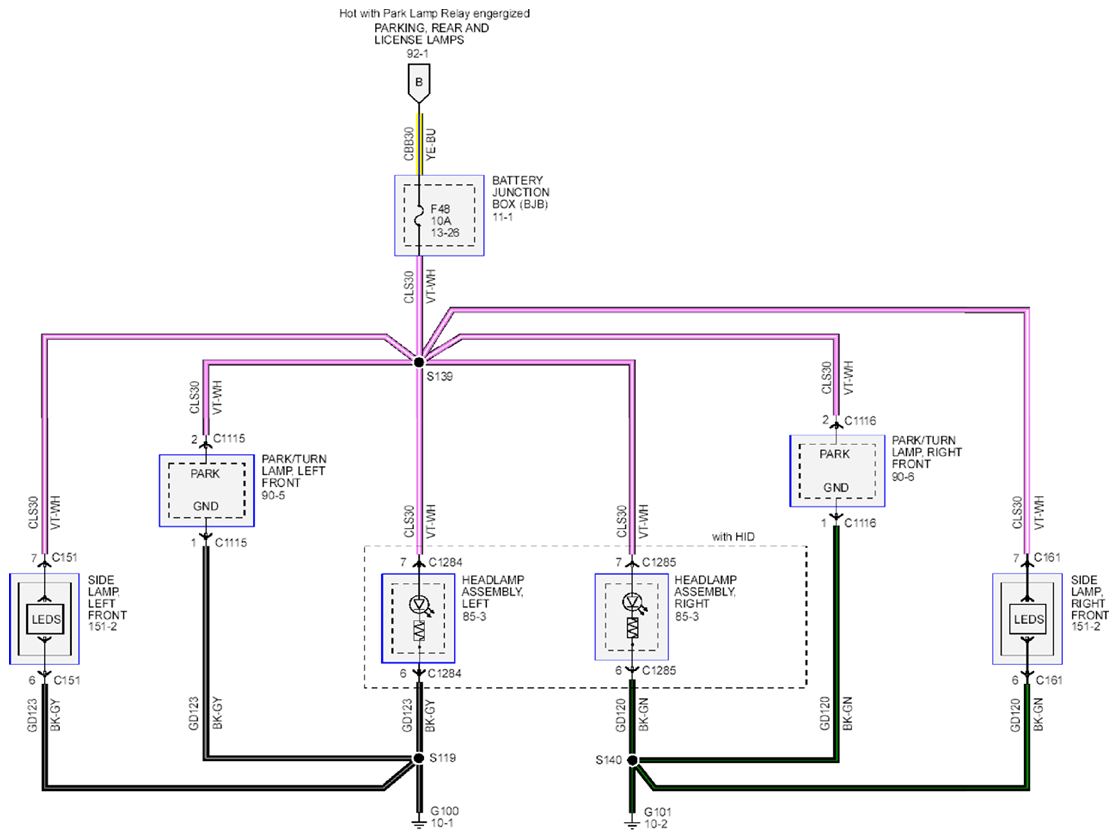

Fig 3: Parking, Rear And License Lamps - Wiring Diagram (3 Of 3)
G09252484Courtesy of FORD MOTOR CO.
