Parking Aid
>>
With Park Assist
With Park Assist

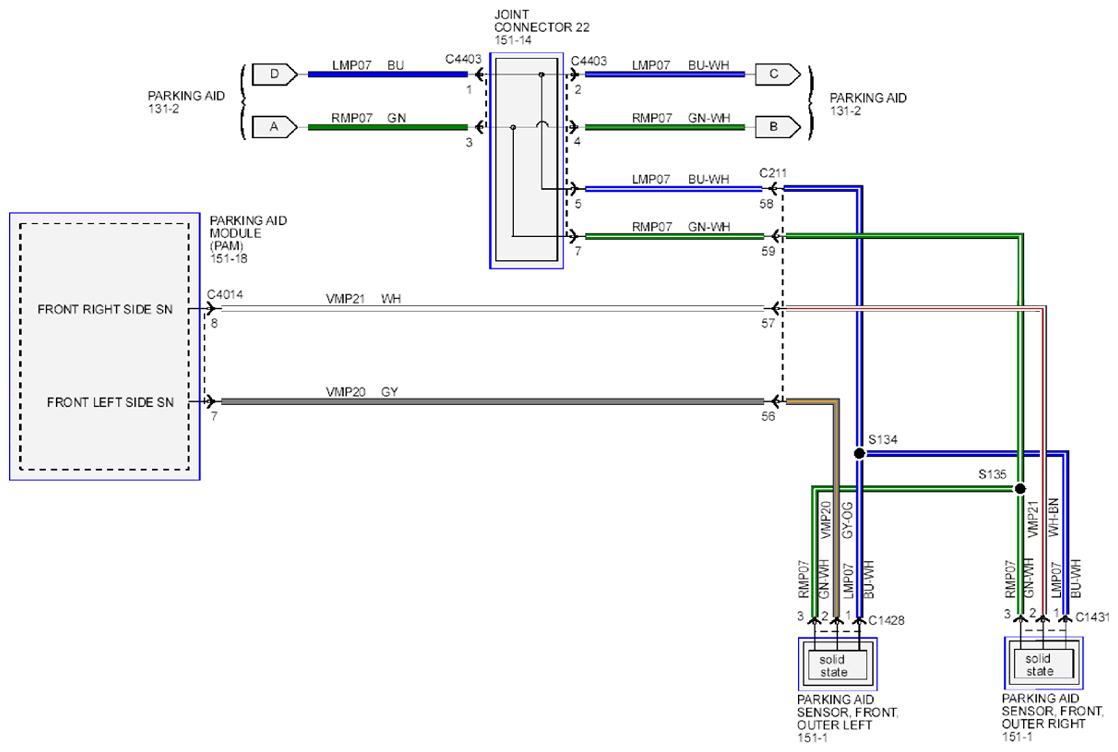

Fig 1: Parking Aid Wiring Diagram - With Park Assist
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
