Rear View Camera - SYNC GEN 2 (8" Display)

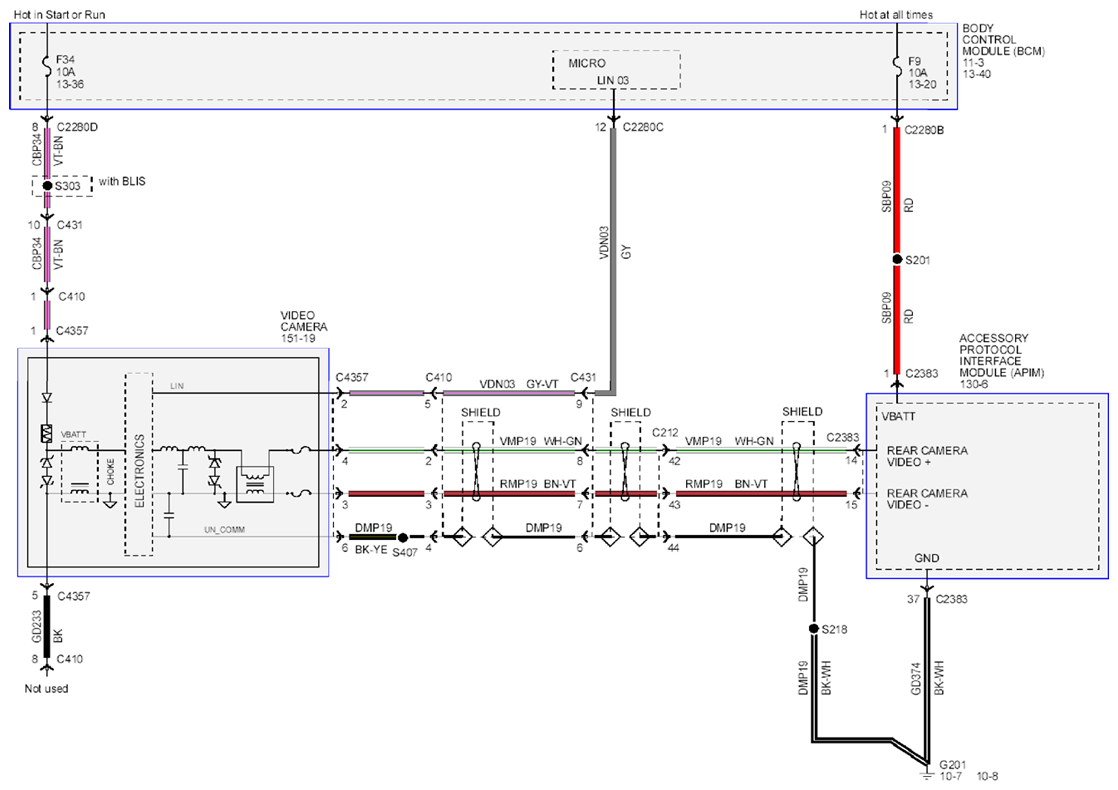

Fig 1: Rear View Camera Wiring Diagram - SYNC GEN 2 (8" Display)

G09252562

Courtesy of FORD MOTOR CO.
