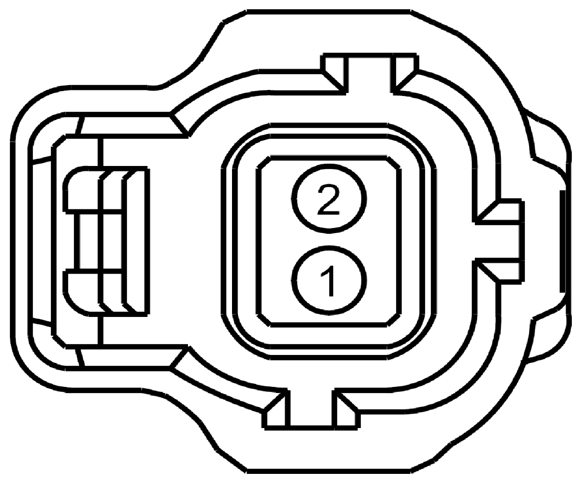

Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C377)

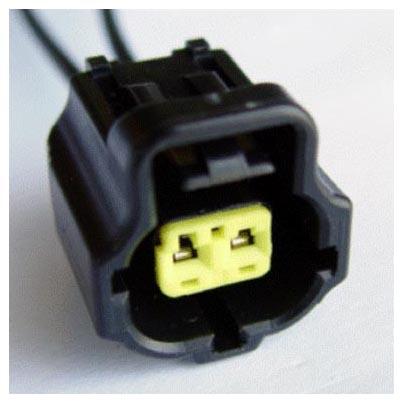

Fig 1: Identifying Evaporative Emission Canister Vent Valve Connector (C377)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB23 (WH-RD)	20	FUSE - 86 OR CIRCUIT BREAKER
2	CE114 (GN-BU)	20	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV)

Available Pigtail Kits
Pigtail Kit Part Number WPT-322	Service Part Number: 3U2Z-14S411-JZA  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Resistor - Daytime Running Lamp (DRL) Sensor - Air Charge Temperature Sensor - Brake Pressure Solenoid - Canister Vent Switch - Brake Pressure
