Third Row Seat Recline Motor, Left Connector End View (C4245)

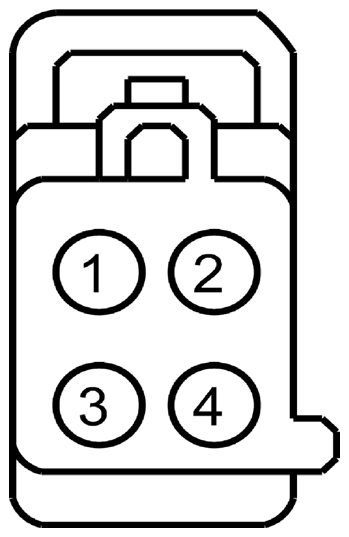

Fig 1: Identifying Third Row Seat Recline Motor, Left Connector (C4245)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPSB7 (YE-GN)	14	CTRL MOD. - 3RD ROW SEAT RIGHT RECLINE NEGATIVE (-)
2	LPSB8 (BN-YE)	20	SENSOR - 3RD ROW SEAT RIGHT RECLINE
3	CPSB6 (GY-BN)	14	CTRL MOD. - 3RD ROW SEAT RIGHT RECLINE POSITIVE (+)
4	RPSB5 (WH-BU)	20	SENSOR - 3RD ROW SEAT RIGHT STOW/RECLINE

Available Pigtail Kits
Pigtail Kit Part Number WPT-1191	Service Part Number: BU2Z-14S411-AEA  Gauge: 14 18  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Motor - Seat Recline Motor - Steering Column Adjust
