Safety Belt Inflator, 2ND Row, Left Connector End View (C3644)

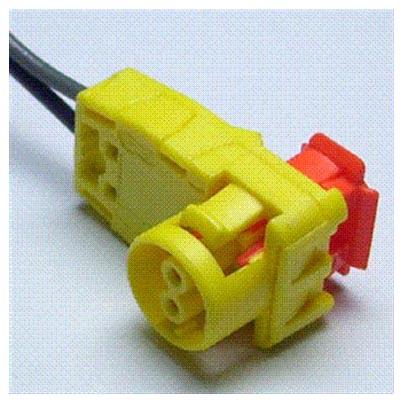

Fig 1: Identifying Safety Belt Inflator, 2nd Row, Left Connector (C3644)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR107 (BU-WH)	20	CTRL MOD. - SAFETY BELT INFLATOR SEAT MOUNTED ROW 2 LH SIDE +	60/40 Bench
2	RR107 (GN-WH)	20	CTRL MOD. - SAFETY BELT INFLATOR SEAT MOUNTED ROW 2 LH SIDE -	60/40 Bench

Available Pigtail Kits
Pigtail Kit Part Number WPT-1227	Service Part Number: BU2Z-14S411-BKA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
