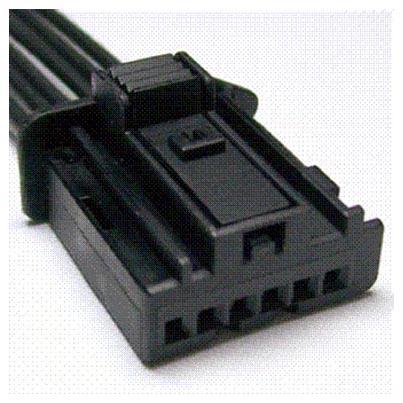

Auxiliary Temperature Blend Door Actuator Connector End View (C4341)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | |
| 2 | VHA09 (VT-BN) | 22 | SENSOR - AUX. TEMPERATURE DOOR POSITION | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | |
| 4 | * | * | Not Used | |
| 5 | CH244 (GY) | 22 | CTRL MOD. - CLIMATE # AUX. DOOR MOTOR TEMP. LEFT COIL 2/OPEN (IF PLUS) | |
| 6 | CH245 (BU-BN) | 22 | CTRL MOD. - CLIMATE # AUX. DOOR MOTOR TEMP. LEFT COIL 1/CLOSE (IF PLUS) |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1151 | Service Part Number: BU2Z-14S411-MA Gauge: 18 Pin material: Tin Cavities: 6 Vehicle Uses
|
