Antenna Module Connector End View (C9021)

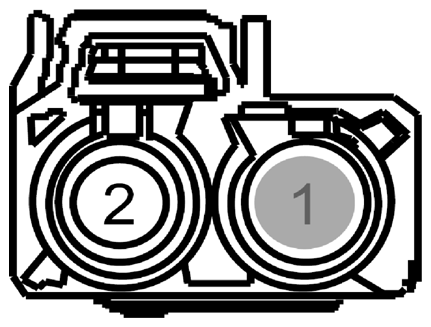

Fig 1: Identifying Antenna Module Connector (C9021)
G09253439Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 * * Not Used
2 VME43 (BU) 20 CTRL MOD. - ANTENNA # SATELLITE DIGITAL RADIO +
