Component Location Charts

Fig 1: Identifying A/C Compressor Clutch Field Coil Connector (C100)

G09253473

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Crankshaft Position Sensor Connector (C101)

G09253474

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Generator Connector (C102A And C102B)

G09253475

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Generator Connector (C102A And C102B)

G09253476

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Oil Pressure Switch Connector (C103) (3.5L GTDI)

G09253477

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Oil Pressure Switch Connector (C103) (3.5L TIVCT)

G09253478

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Knock Sensor Connector (C109) (3.5L GTDI)

G09253479

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Knock Sensor Connector (C109) (3.5L TIVCT)

G09253480

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Coil On Plug 1 Connector (C111)

G09253481

Courtesy of FORD MOTOR CO.

Fig 10: Identifying Coil On Plug 2 Connector (C112)

G09253482

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Coil On Plug 3 Connector (C113)

G09253483

Courtesy of FORD MOTOR CO.

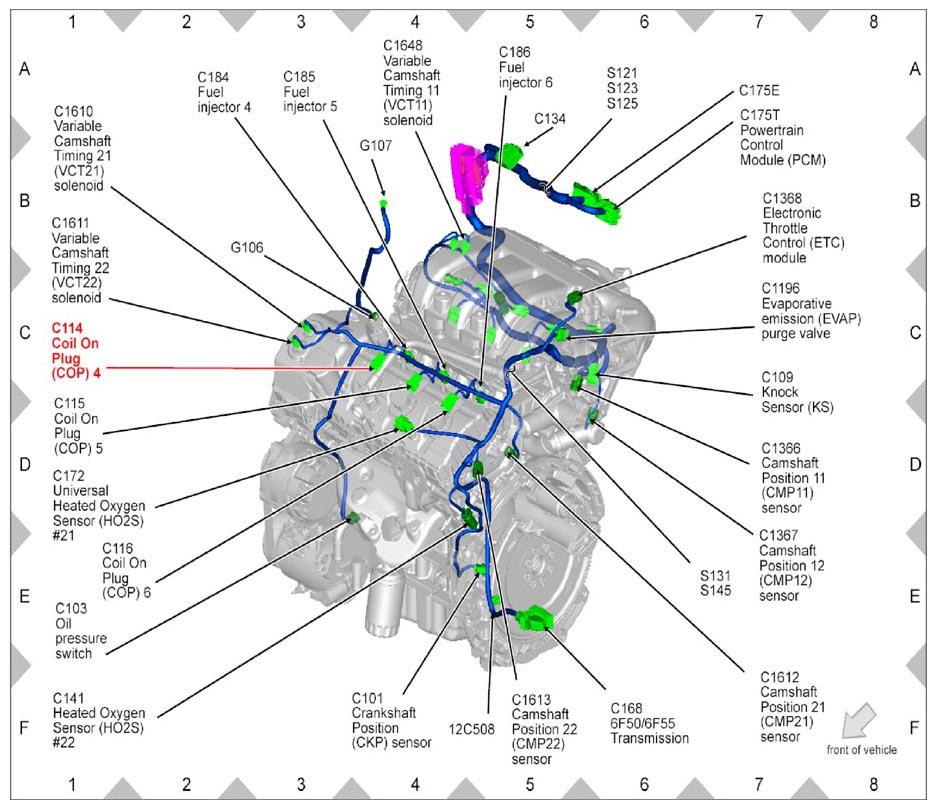

Fig 12: Identifying Coil On Plug 4 Connector (C114)

G09253484

Courtesy of FORD MOTOR CO.

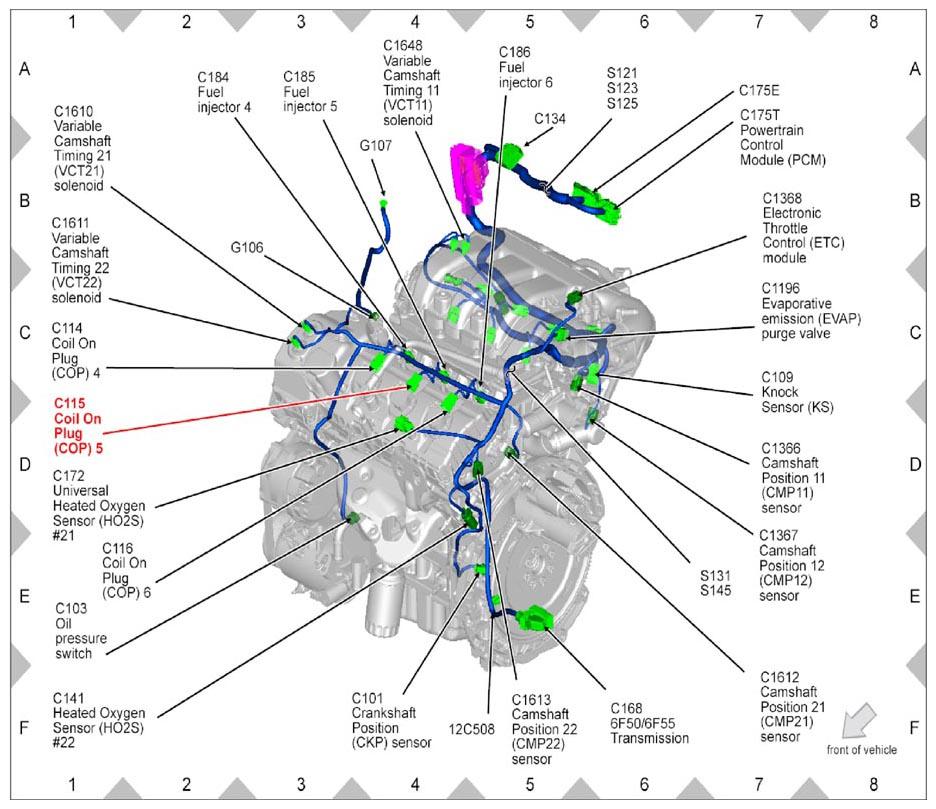

Fig 13: Identifying Coil On Plug 5 Connector (C115)

G09253485

Courtesy of FORD MOTOR CO.

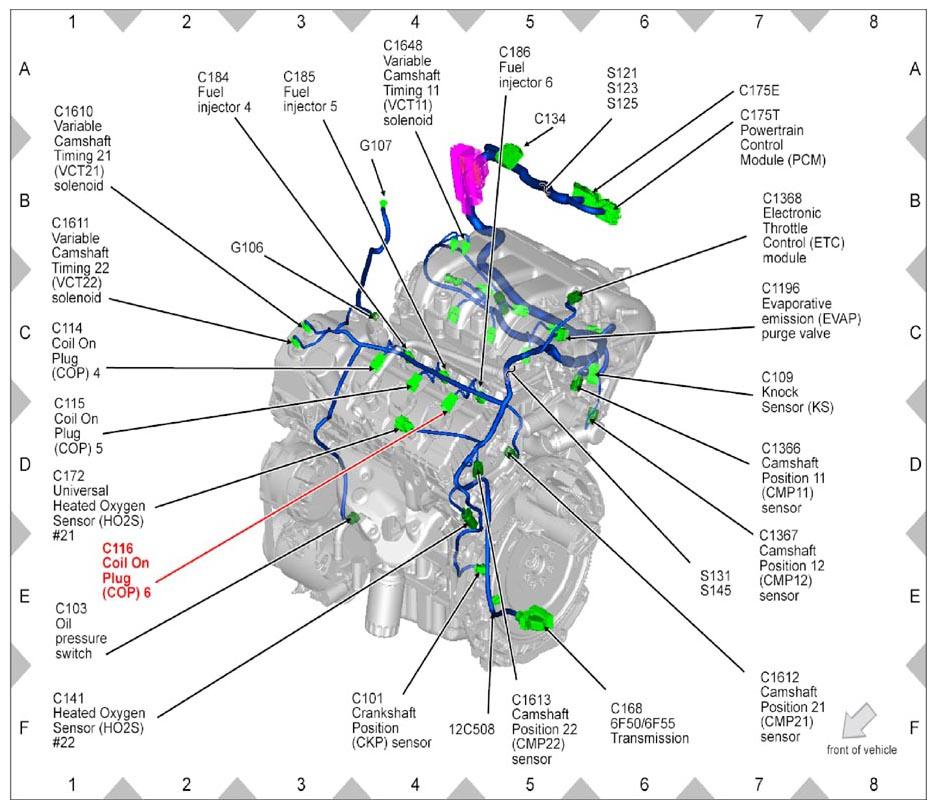

Fig 14: Identifying Coil On Plug 6 Connector (C116)

G09253486

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Fuel Injection Pump Connector (C119)

G09253487

Courtesy of FORD MOTOR CO.

Fig 16: Identifying Brake Fluid Level Switch Connector (C124)

G09253488

Courtesy of FORD MOTOR CO.

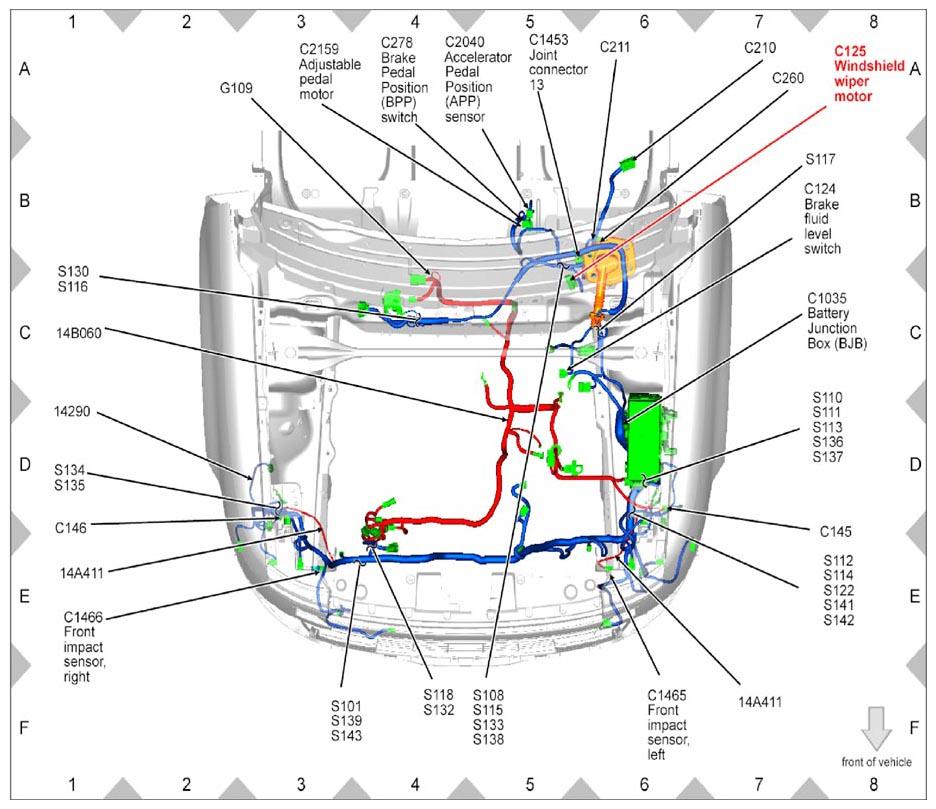

Fig 17: Identifying Windshield Wiper Motor Connector (C125)

G09253489

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Hood Switch Connector (C127)

G09253490

Courtesy of FORD MOTOR CO.

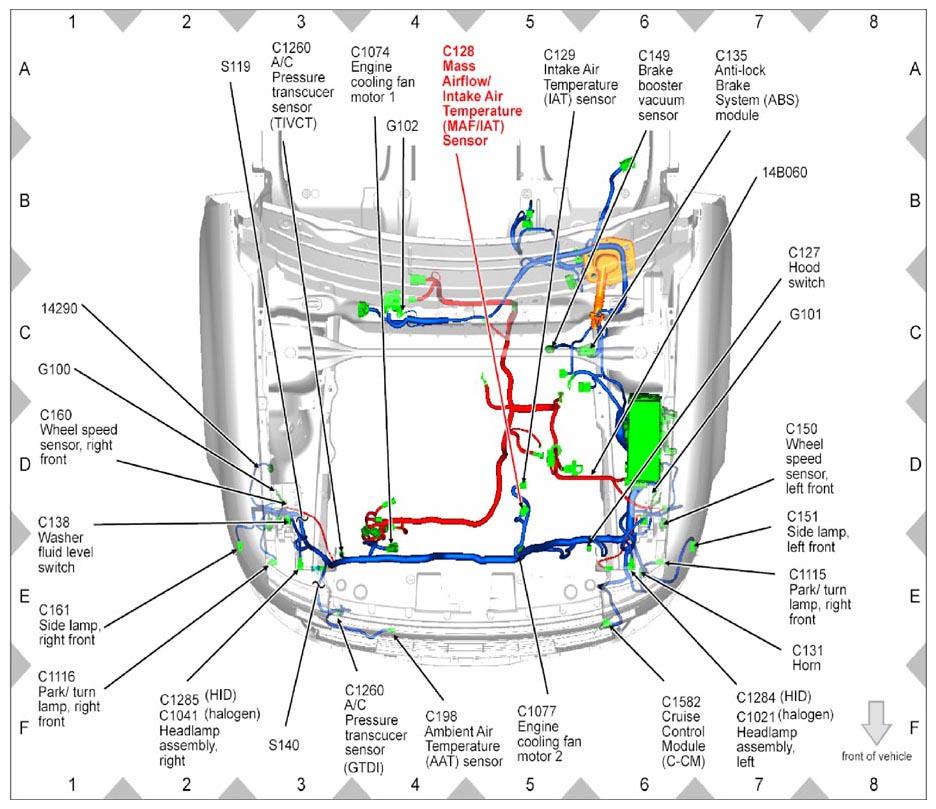

Fig 19: Identifying Mass Airflow/Intake Air Temperature Sensor Connector (C128)

G09253491

Courtesy of FORD MOTOR CO.

Fig 20: Identifying Intake Air Temperature Sensor Connector (C129)

G09253492

Courtesy of FORD MOTOR CO.

Fig 21: Identifying Horn Connector (C131)

G09253493

Courtesy of FORD MOTOR CO.

Fig 22: Identifying, Connector (C134) Under Dash Panel, RH Side

G09253494

Courtesy of FORD MOTOR CO.

Fig 23: Identifying Connector (C134) (3.5L GTDI)

G09253495

Courtesy of FORD MOTOR CO.

Fig 24: Identifying Connector (C134) (3.5L TIVCT)

G09253496

Courtesy of FORD MOTOR CO.

Fig 25: Identifying Anti-Lock Brake System Module Connector (C135)

G09253497

Courtesy of FORD MOTOR CO.

Fig 26: Identifying Windshield Washer Pump Motor Connector (C137)

G09253498

Courtesy of FORD MOTOR CO.

Fig 27: Identifying Washer Fluid Level Switch Connector (C138)

G09253499

Courtesy of FORD MOTOR CO.

Fig 28: Identifying Heated Oxygen Sensor Connector No. 22 (C141) (3.5L GTDI)

G09253500

Courtesy of FORD MOTOR CO.

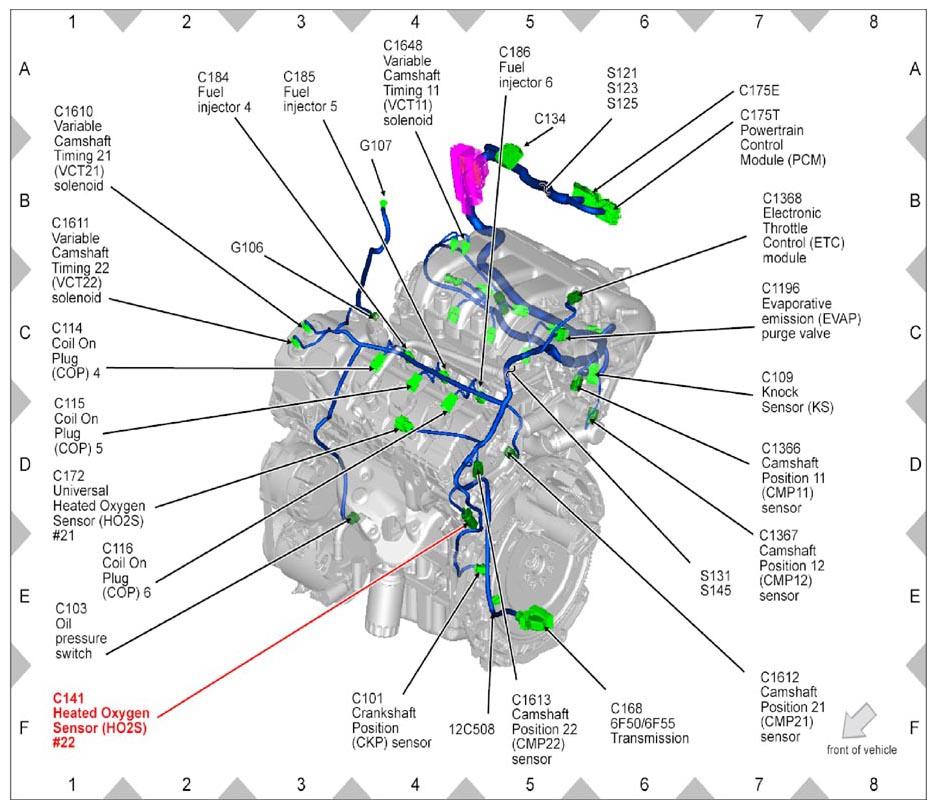

Fig 29: Identifying Heated Oxygen Sensor No. 22 Connector (C141) (3.5L TIVCT)

G09253501

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Heated Oxygen Sensor No. 12 Connector (C142)

G09253502

Courtesy of FORD MOTOR CO.

Fig 31: Identifying Connector (C144) (3.5L GTDI)

G09253503

Courtesy of FORD MOTOR CO.

Fig 32: Identifying Connector (C145) (3.5L TIVCT)

G09253504

Courtesy of FORD MOTOR CO.

Fig 33: Identifying Connector (C146)

G09253505

Courtesy of FORD MOTOR CO.

Fig 34: Identifying Brake Booster Vacuum Sensor Connector (C149)

G09253506

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Wheel Speed Sensor, Left Front Connector (C150)

G09253507

Courtesy of FORD MOTOR CO.

Fig 36: Identifying Slide Lamp Left Front Connector (C151)

G09253508

Courtesy of FORD MOTOR CO.

Fig 37: Identifying Fog Lamp, Left Front Connector (C152)

G09253509

Courtesy of FORD MOTOR CO.

Fig 38: Identifying Wheel Speed Sensor, Right Front Connector (C160)

G09253510

Courtesy of FORD MOTOR CO.

Fig 39: Identifying Side Lamp, Right Front Connector (C161)

G09253511

Courtesy of FORD MOTOR CO.

Fig 40: Identifying Fog Lamp, Right Front Connector (C162)

G09253512

Courtesy of FORD MOTOR CO.

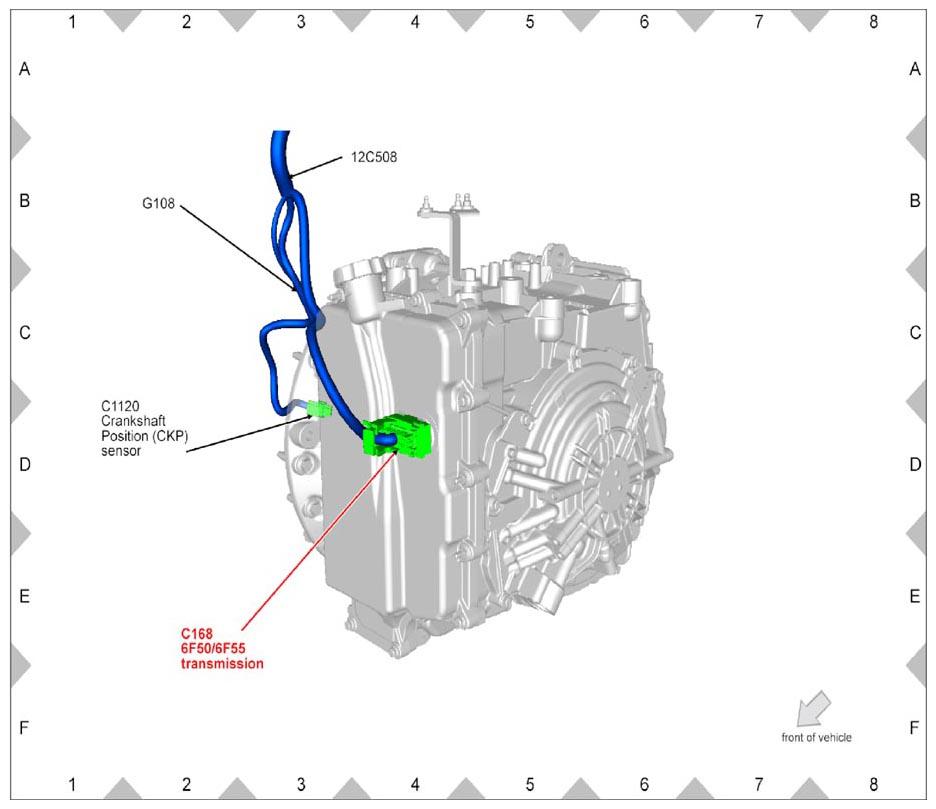

Fig 41: Identifying Transmission Connector 6F50/6F55 (C168)

G09253513

Courtesy of FORD MOTOR CO.

Fig 42: Identifying Transmission Connector 6F50/6F55 (C168) (3.5L GTDI)

G09253514

Courtesy of FORD MOTOR CO.

Fig 43: Identifying Transmission Connector 6F50/6F55 (C168) (3.5L TIVCT)

G09253515

Courtesy of FORD MOTOR CO.

Fig 44: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C171)

G09253516

Courtesy of FORD MOTOR CO.

Fig 45: Identifying Universal Heated Oxygen Sensor No. 21 Connector (C172)

G09253517

Courtesy of FORD MOTOR CO.

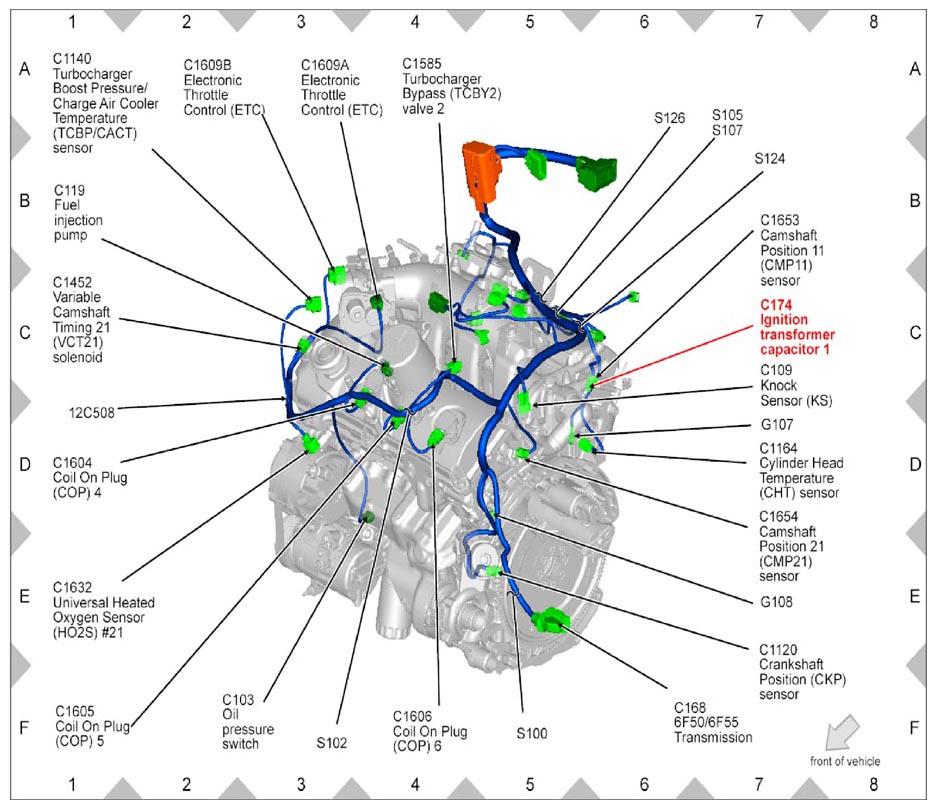

Fig 46: Identifying Ignition Transformer Capacitor 1 Connector (C174)

G09253518

Courtesy of FORD MOTOR CO.

Fig 47: Identifying Powertrain Control Module Connector (C175B) Under Dash Panel, RH Side

G09253519

Courtesy of FORD MOTOR CO.

Fig 48: Identifying Powertrain Control Module Connector (C175E)

G09253520

Courtesy of FORD MOTOR CO.

Fig 49: Identifying Powertrain Control Module Connector (C175T)

G09253521

Courtesy of FORD MOTOR CO.

Fig 50: Identifying Fuel Injector 1 Connector (C181)

G09253522

Courtesy of FORD MOTOR CO.

Fig 51: Identifying Fuel Injector 2 Connector (C182)

G09253523

Courtesy of FORD MOTOR CO.

Fig 52: Identifying Fuel Injector 3 Connector (C183)

G09253524

Courtesy of FORD MOTOR CO.

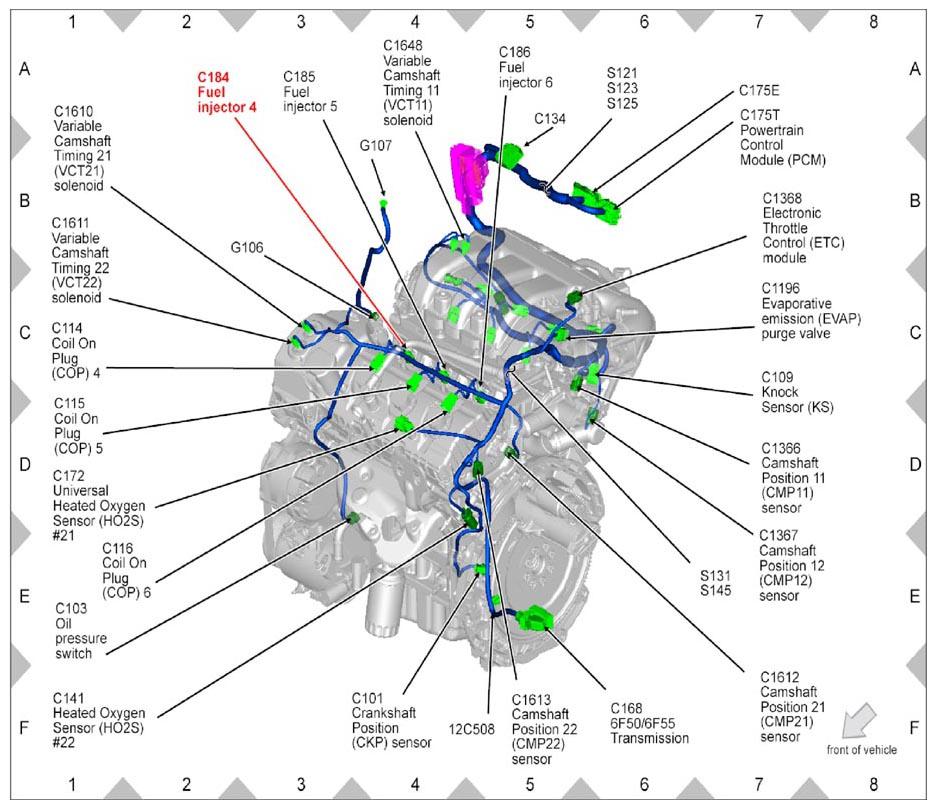

Fig 53: Identifying Fuel Injector Connector 4 (C184)

G09253525

Courtesy of FORD MOTOR CO.

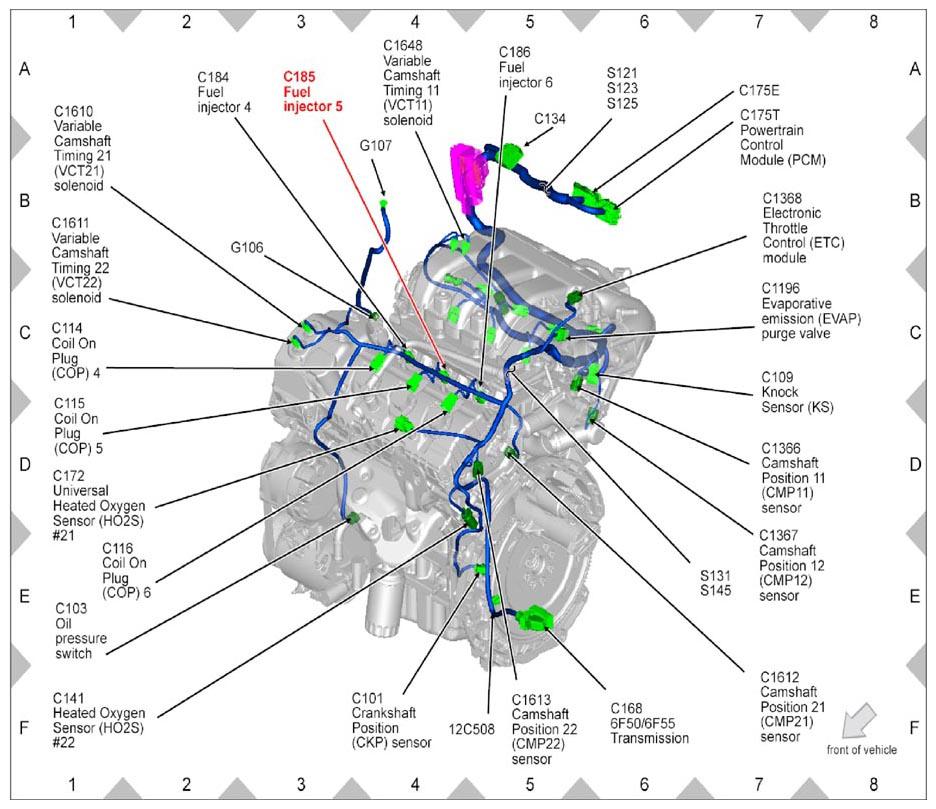

Fig 54: Identifying Fuel Injector 5 Connector (C185)

G09253526

Courtesy of FORD MOTOR CO.

Fig 55: Identifying Fuel Injector 6 Connector (C186)

G09253527

Courtesy of FORD MOTOR CO.

Fig 56: Identifying Connector (C192)

G09253528

Courtesy of FORD MOTOR CO.

Fig 57: Identifying Connector (C197A)

G09253529

Courtesy of FORD MOTOR CO.

Fig 58: Identifying Starter Motor Connector (C197B)

G09253530

Courtesy of FORD MOTOR CO.

Fig 59: Identifying Ambient Air Temperature Sensor (C198)

G09253531

Courtesy of FORD MOTOR CO.

Fig 60: Identifying Headlamp Switch Connector (C205)

G09253532

Courtesy of FORD MOTOR CO.

Fig 61: Identifying Connector (C210)

G09253533

Courtesy of FORD MOTOR CO.

Fig 62: Identifying Connector (C211)

G09253534

Courtesy of FORD MOTOR CO.

Fig 63: Identifying Connector (C212)

G09253535

Courtesy of FORD MOTOR CO.

Fig 64: Identifying Connector (C213)

G09253536

Courtesy of FORD MOTOR CO.

Fig 65: Identifying Connector (C214)

G09253537

Courtesy of FORD MOTOR CO.

Fig 66: Identifying Connector (C215)

G09253538

Courtesy of FORD MOTOR CO.

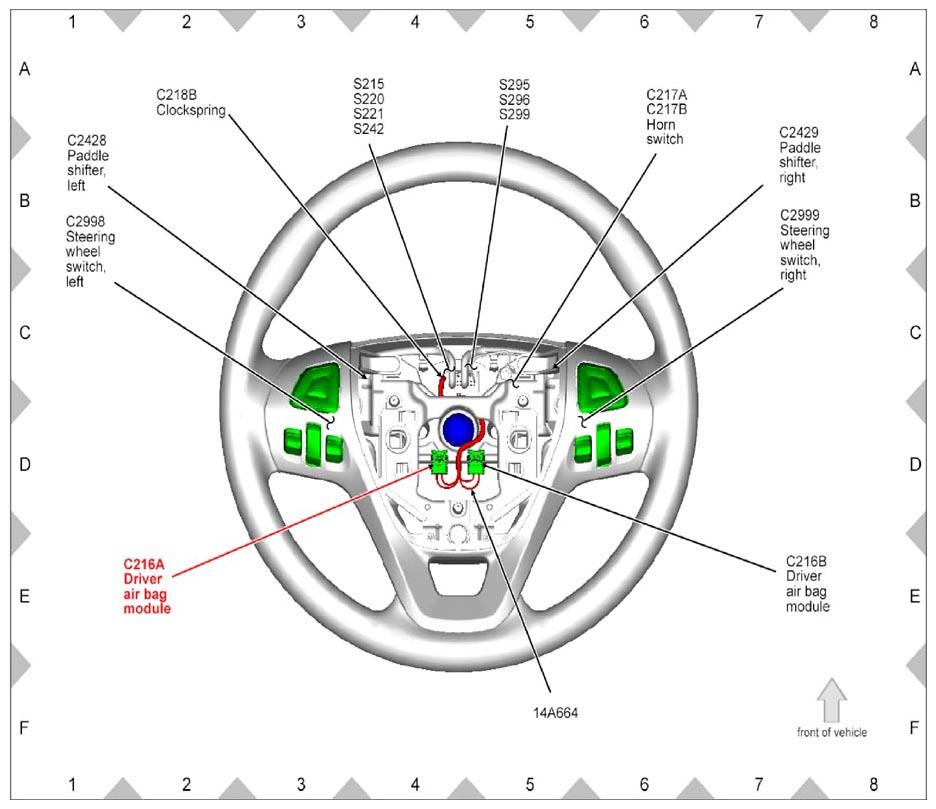

Fig 67: Identifying Driver Air Bag Module Connector (C216A)

G09253539

Courtesy of FORD MOTOR CO.

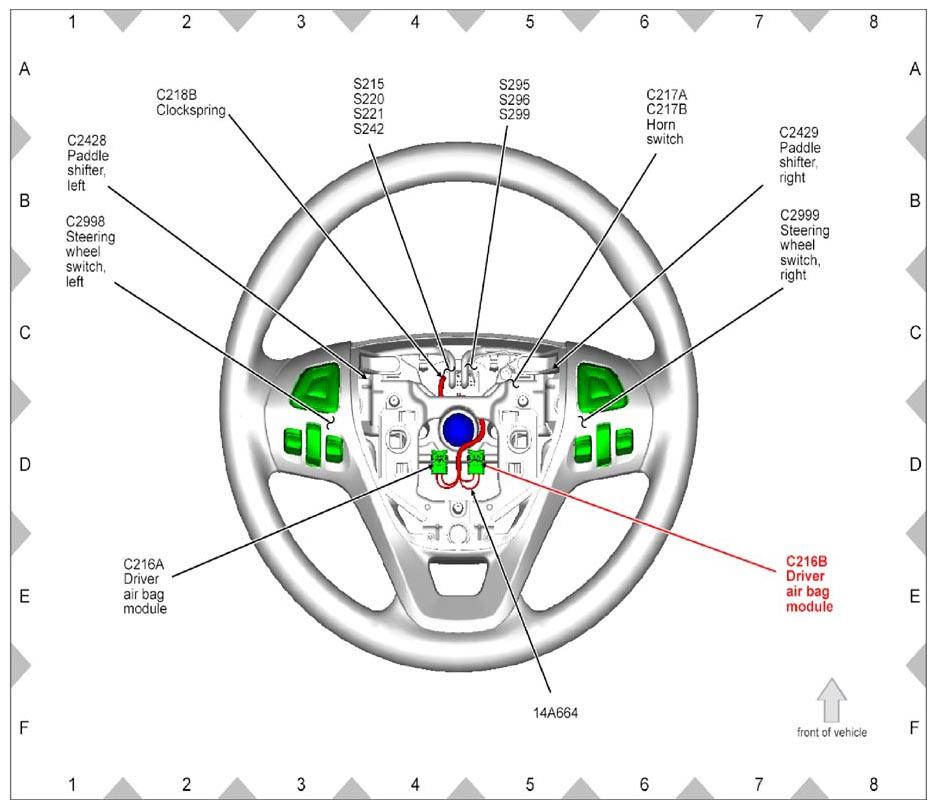

Fig 68: Identifying Driver Air Bag Module Connector (C216B)

G09253540

Courtesy of FORD MOTOR CO.

Fig 69: Identifying Horn Switch Connector (C217A And C217B)

G09253541

Courtesy of FORD MOTOR CO.

Fig 70: Identifying Horn Switch Connector (C217A And C217B)

G09253542

Courtesy of FORD MOTOR CO.

Fig 71: Identifying Clockspring Connector (C218A)

G09253543

Courtesy of FORD MOTOR CO.

Fig 72: Identifying Clockspring Connector (C218B)

G09253544

Courtesy of FORD MOTOR CO.

Fig 73: Identifying Connector (C218C)

G09253545

Courtesy of FORD MOTOR CO.

Fig 74: Identifying Connector (C219)

G09253546

Courtesy of FORD MOTOR CO.

Fig 75: Identifying Instrument Panel Cluster Connector (C220)

G09253547

Courtesy of FORD MOTOR CO.

Fig 76: Identifying Steering Column Telescoping Motor Connector (C227)

G09253548

Courtesy of FORD MOTOR CO.

Fig 77: Identifying HVAC Module, DATC Connector (C228A)

G09253549

Courtesy of FORD MOTOR CO.

Fig 78: Identifying HVAC Module, DATC Connector (C228B)

G09253550

Courtesy of FORD MOTOR CO.

Fig 79: Identifying HVAC Module, DATC Connector (C228C)

G09253551

Courtesy of FORD MOTOR CO.

Fig 80: Identifying Speaker, Left A-Pillar Connector (C230 And C2421)

G09253552

Courtesy of FORD MOTOR CO.

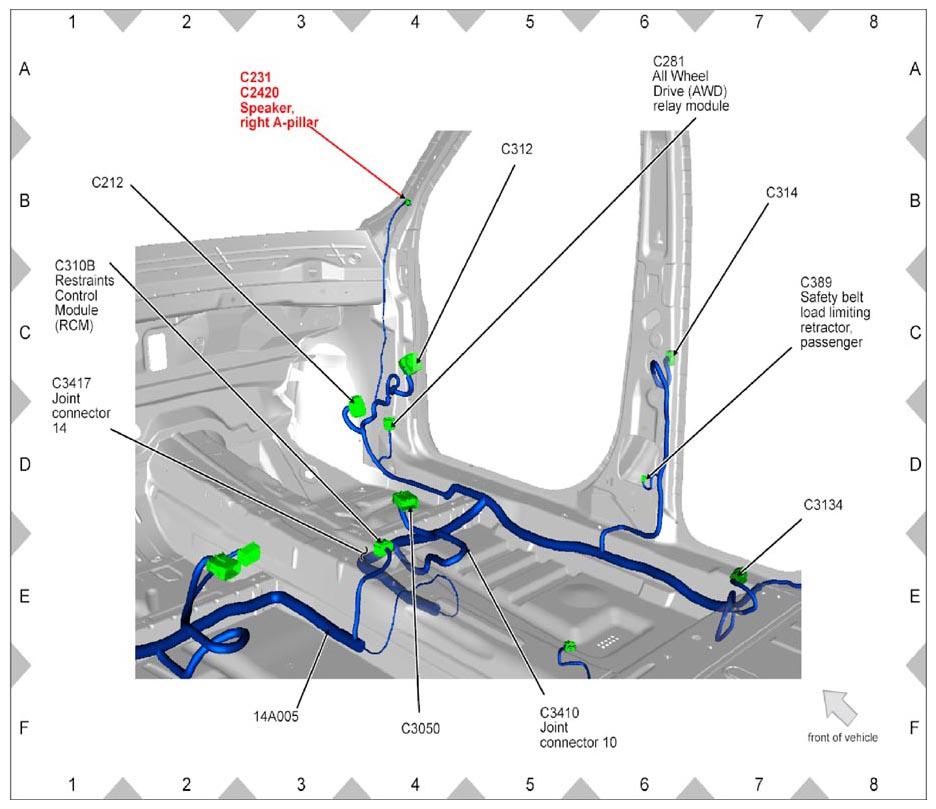

Fig 81: Identifying Speaker, Right A-Pillar Connector (C231 And C2420)

G09253553

Courtesy of FORD MOTOR CO.

Fig 82: Identifying Audio Control Module Connector (C240A)

G09253554

Courtesy of FORD MOTOR CO.

Fig 83: Identifying Audio Control Module Connector (C240B)

G09253555

Courtesy of FORD MOTOR CO.

Fig 84: Identifying Ignition Switch Connector (C250)

G09253556

Courtesy of FORD MOTOR CO.

Fig 85: Identifying Data Link Connector (C251)

G09253557

Courtesy of FORD MOTOR CO.

Fig 86: Identifying Passive Anti-Theft Transceiver Connector (C252)

G09253558

Courtesy of FORD MOTOR CO.

Fig 87: Identifying Glove Box Lamp Connector (C254)

G09253559

Courtesy of FORD MOTOR CO.

Fig 88: Identifying Passenger Air Bag Module Connector (C256A)

G09253560

Courtesy of FORD MOTOR CO.

Fig 89: Identifying Passenger Air Bag Module Connector (C256B)

G09253561

Courtesy of FORD MOTOR CO.

Fig 90: Identifying Connector (C260)

G09253562

Courtesy of FORD MOTOR CO.

Fig 91: Identifying Joint Connector 1 (C261)

G09253563

Courtesy of FORD MOTOR CO.

Fig 92: Identifying Blower Motor Speed Control Connector (C271)

G09253564

Courtesy of FORD MOTOR CO.

Fig 93: Identifying Brake Pedal Position Switch Connector (C278)

G09253565

Courtesy of FORD MOTOR CO.

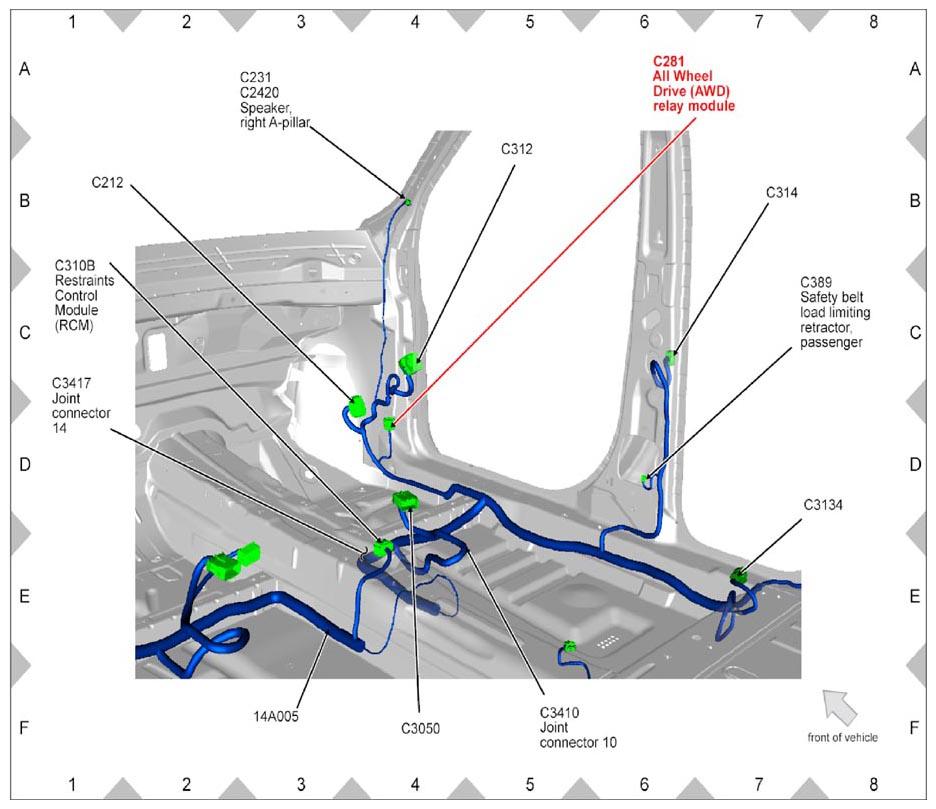

Fig 94: Identifying All Wheel Drive Relay Module Connector (C281)

G09253566

Courtesy of FORD MOTOR CO.

Fig 95: Identifying Autolamp/Sunload Sensor Connector (C286)

G09253567

Courtesy of FORD MOTOR CO.

Fig 96: Identifying Sunload Sensor Connector (C287)

G09253568

Courtesy of FORD MOTOR CO.

Fig 97: Identifying Air Inlet Mode Door Actuator Connector (C289)

G09253569

Courtesy of FORD MOTOR CO.

Fig 98: Identifying Evaporator Discharge Air Temperature Sensor Connector (C296)

G09253570

Courtesy of FORD MOTOR CO.

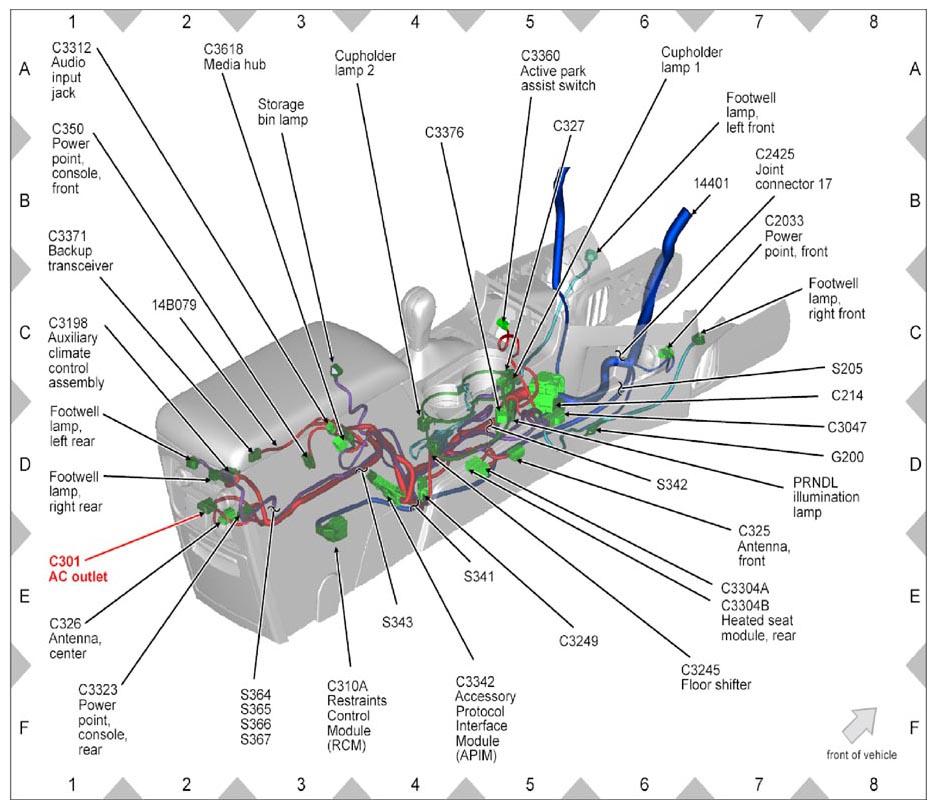

Fig 99: Identifying AC Outlet Connector (C301)

G09253571

Courtesy of FORD MOTOR CO.

Fig 100: Identifying Park Brake Switch Connector (C306)

G09253572

Courtesy of FORD MOTOR CO.

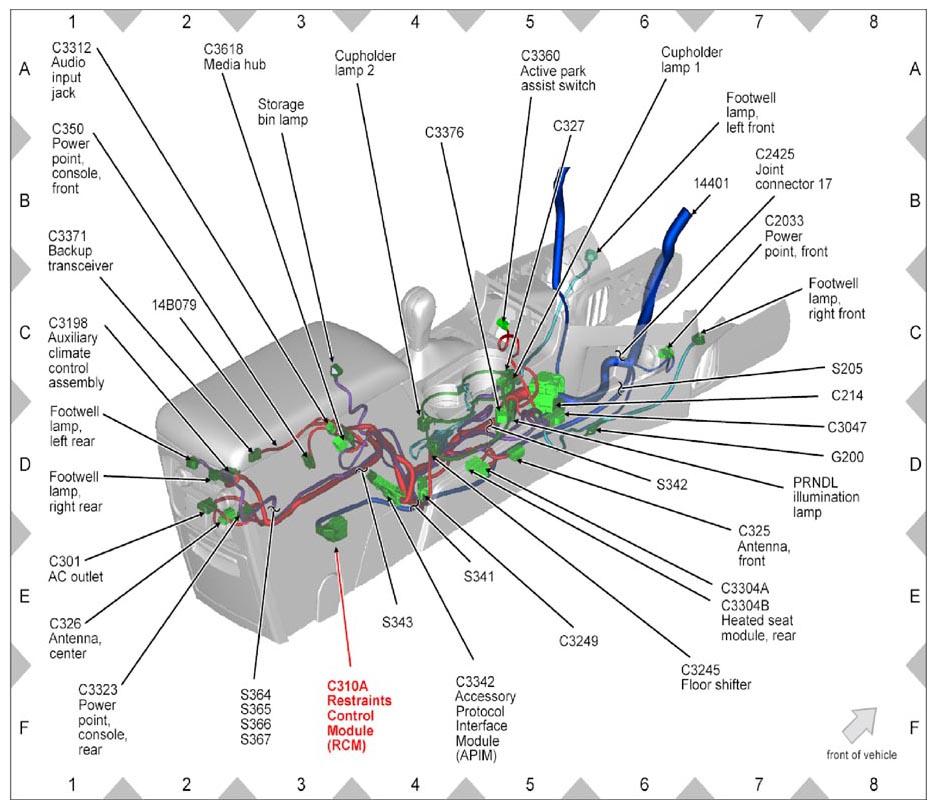

Fig 101: Identifying Restraints Control Module Connector (C310A)

G09253573

Courtesy of FORD MOTOR CO.

Fig 102: Identifying Restraints Control Module Connector (C310B)

G09253574

Courtesy of FORD MOTOR CO.

Fig 103: Identifying Connector (C311)

G09253575

Courtesy of FORD MOTOR CO.

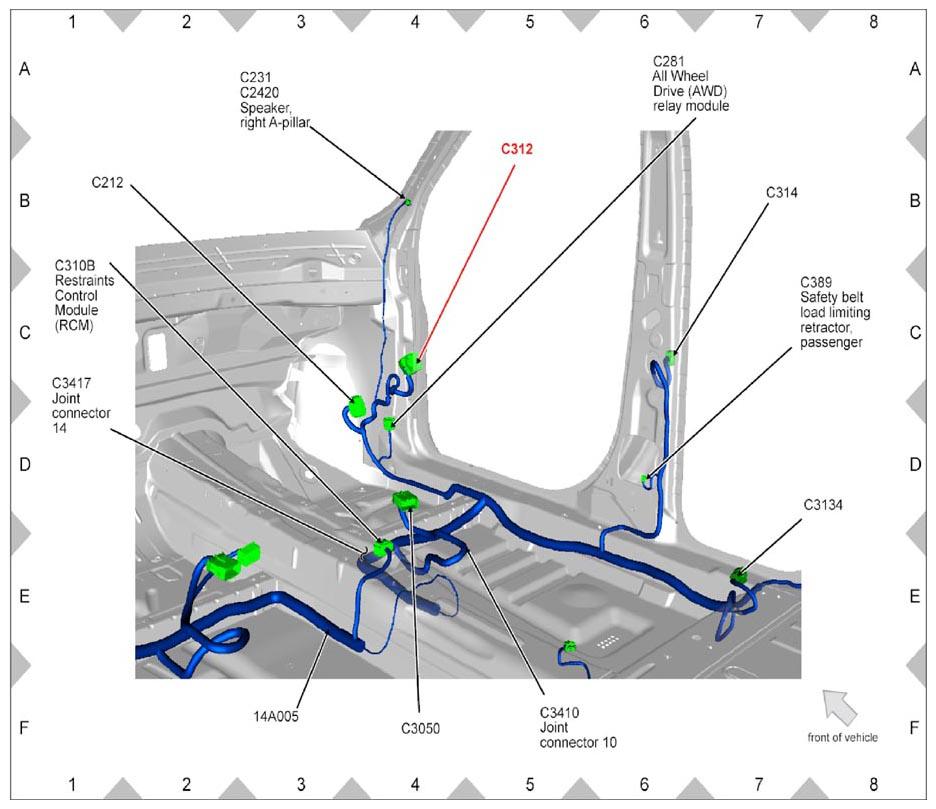

Fig 104: Identifying Connector (C312)

G09253576

Courtesy of FORD MOTOR CO.

Fig 105: Identifying Connector (C313)

G09253577

Courtesy of FORD MOTOR CO.

Fig 106: Identifying Connector (C314)

G09253578

Courtesy of FORD MOTOR CO.

Fig 107: Identifying Connector (C315)

G09253579

Courtesy of FORD MOTOR CO.

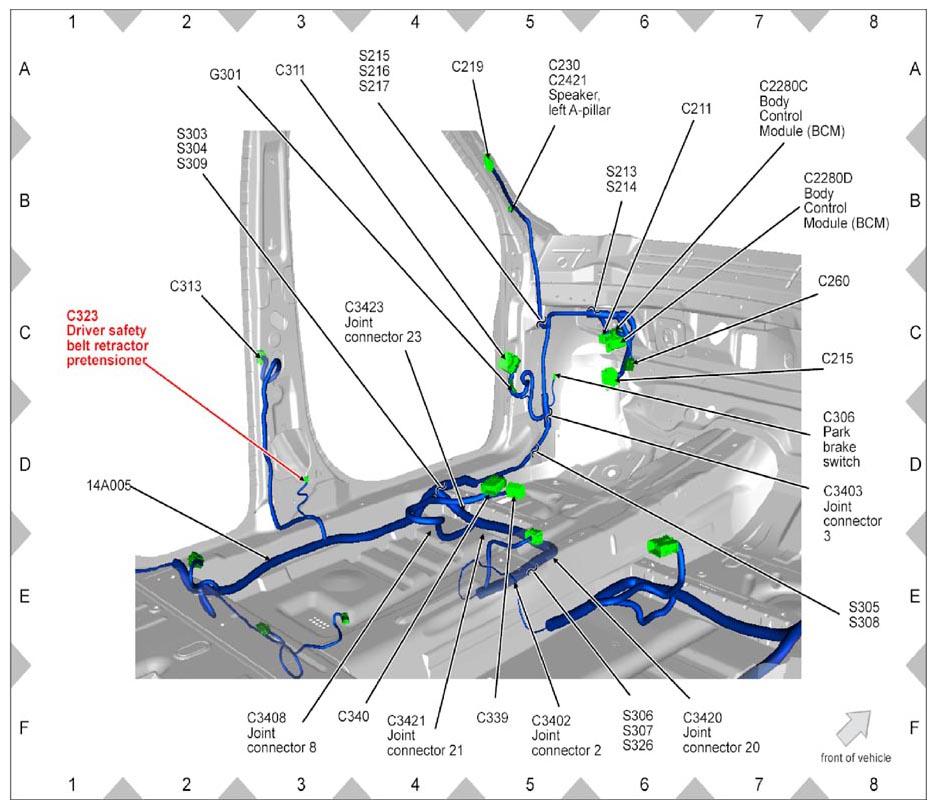

Fig 108: Identifying Driver Safety Belt Retractor Pretensioner Connector (C323)

G09253580

Courtesy of FORD MOTOR CO.

Fig 109: Identifying Antenna, Front Connector (C325)

G09253581

Courtesy of FORD MOTOR CO.

Fig 110: Identifying Antenna, Center Connector (C326)

G09253582

Courtesy of FORD MOTOR CO.

Fig 111: Identifying Connector (C327)

G09253583

Courtesy of FORD MOTOR CO.

Fig 112: Identifying Seat Control Switch, Passenger Side Front Connector (C330)

G09253584

Courtesy of FORD MOTOR CO.

Fig 113: Identifying Passenger Seat Horizontal Motor Connector (C332)

G09253585

Courtesy of FORD MOTOR CO.

Fig 114: Identifying Seat Cushion Heater, Right Front Connector (C334)

G09253586

Courtesy of FORD MOTOR CO.

Fig 115: Identifying Seat Backrest Heater Mat, Right Front Connector (C335)

G09253587

Courtesy of FORD MOTOR CO.

Fig 116: Identifying Side Air Bag Module, Passenger Connector (C337)

G09253588

Courtesy of FORD MOTOR CO.

Fig 117: Identifying Connector (C339)

G09253589

Courtesy of FORD MOTOR CO.

Fig 118: Identifying Connector (C340)

G09253590

Courtesy of FORD MOTOR CO.

Fig 119: Identifying Driver Seat Module Connector (C341A)

G09253591

Courtesy of FORD MOTOR CO.

Fig 120: Identifying Driver Seat Module Connector (C341B)

G09253592

Courtesy of FORD MOTOR CO.

Fig 121: Identifying Driver Seat Module Connector (C341C)

G09253593

Courtesy of FORD MOTOR CO.

Fig 122: Identifying Driver Seat Module Connector (C341D)

G09253594

Courtesy of FORD MOTOR CO.

Fig 123: Identifying Power Point, Console, Front Connector

G09253595

Courtesy of FORD MOTOR CO.

Fig 124: Identifying Seat Position Sensor, Driver Connector (C356)

G09253596

Courtesy of FORD MOTOR CO.

Fig 125: Identifying Seat Control Switch, Driver Side Front Connector (C360 And C369)

G09253597

Courtesy of FORD MOTOR CO.

Fig 126: Identifying Driver Seat Horizontal Motor Connector (C362)

G09253598

Courtesy of FORD MOTOR CO.

Fig 127: Identifying Driver Seat Rear Height Motor Connector (C363)

G09253599

Courtesy of FORD MOTOR CO.

Fig 128: Identifying Seat Cushion Heater, Left Front Connector (C364)

G09253600

Courtesy of FORD MOTOR CO.

Fig 129: Identifying Seat Backrest Heater Mat, Left Front Connector (C365)

G09253601

Courtesy of FORD MOTOR CO.

Fig 130: Identifying Side Air Bag Module, Driver Connector (C367)

G09253602

Courtesy of FORD MOTOR CO.

Fig 131: Identifying Seat Control Switch, Driver Side Front Connector (C360 And C369)

G09253603

Courtesy of FORD MOTOR CO.

Fig 132: Identifying Evaporative Emission Canister Vent Valve Connector (C377)

G09253604

Courtesy of FORD MOTOR CO.

Fig 133: Identifying Driver Seat Front Height Motor Connector (C382)

G09253605

Courtesy of FORD MOTOR CO.

Fig 134: Identifying Safety Belt Load Limiting Retractor, Passenger Connector (C389)

G09253606

Courtesy of FORD MOTOR CO.

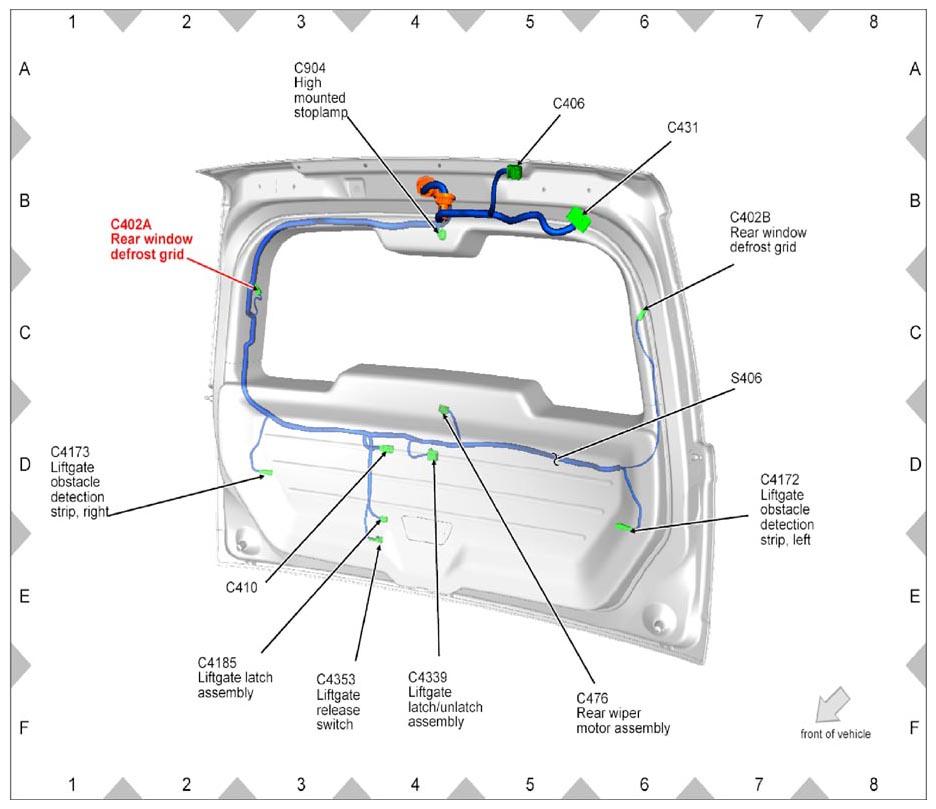

Fig 135: Identifying Rear Window Defrost Grid Connector (C402)

G09253607

Courtesy of FORD MOTOR CO.

Fig 136: Identifying Rear Window Defrost Grid Connector (C402B)

G09253608

Courtesy of FORD MOTOR CO.

Fig 137: Identifying Connector (C405)

G09253609

Courtesy of FORD MOTOR CO.

Fig 138: Identifying Connector (C406)

G09253610

Courtesy of FORD MOTOR CO.

Fig 139: Identifying Connector (C406)

G09253611

Courtesy of FORD MOTOR CO.

Fig 140: Identifying Connector (C408)

G09253612

Courtesy of FORD MOTOR CO.

Fig 141: Identifying Connector (C410)

G09253613

Courtesy of FORD MOTOR CO.

Fig 142: Identifying Connector (C422)

G09253614

Courtesy of FORD MOTOR CO.

Fig 143: Identifying Connector (C423)

G09253615

Courtesy of FORD MOTOR CO.

Fig 144: Identifying Connector (C431) LH D-Pillar, Top

G09253616

Courtesy of FORD MOTOR CO.

Fig 145: Identifying Connector (C431) (With Power Liftgate) In Liftgate

G09253617

Courtesy of FORD MOTOR CO.

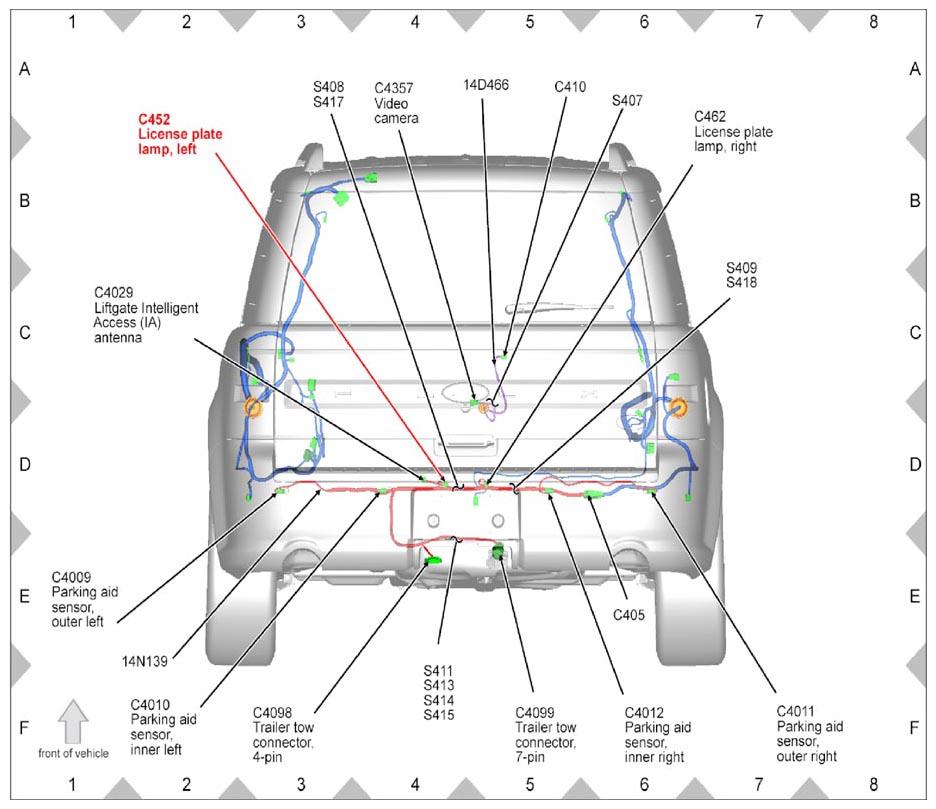

Fig 146: Identifying License Plate Lamp, Left Connector (C452)

G09253618

Courtesy of FORD MOTOR CO.

Fig 147: Identifying License Plate Lamp, Right Connector (C462)

G09253619

Courtesy of FORD MOTOR CO.

Fig 148: Identifying Connector (C465)

G09253620

Courtesy of FORD MOTOR CO.

Fig 149: Identifying Power Point, Rear Connector (C474)

G09253621

Courtesy of FORD MOTOR CO.

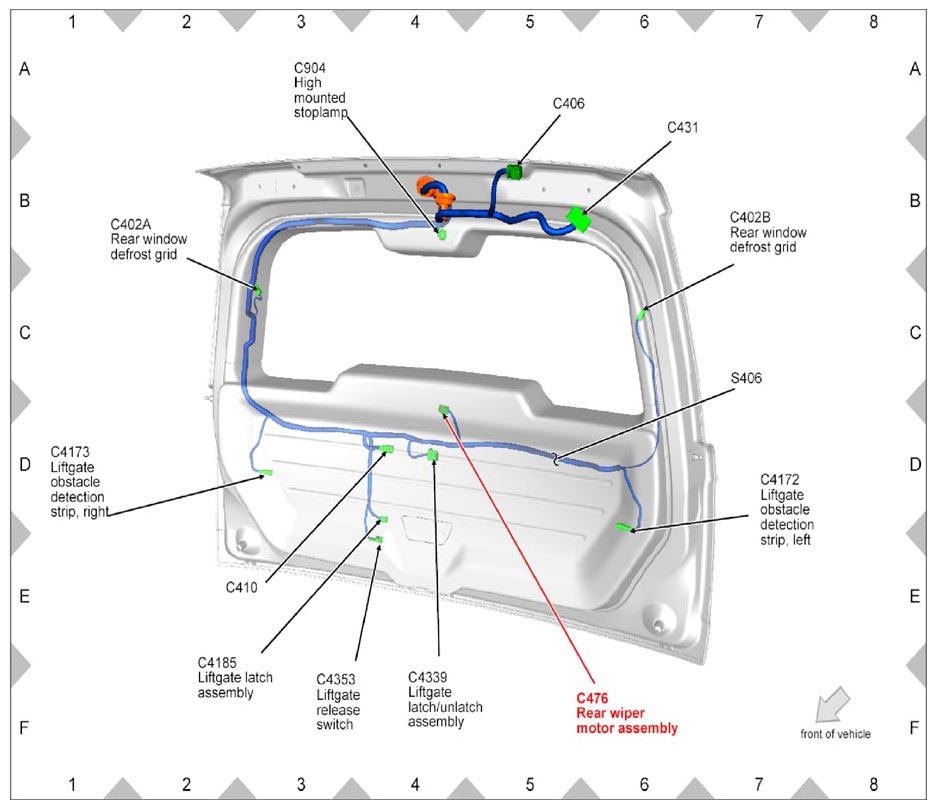

Fig 150: Identifying Rear Wiper Motor Assembly Connector (C476)

G09253622

Courtesy of FORD MOTOR CO.

Fig 151: Identifying Speaker, Left D-Pillar Connector (C484)

G09253623

Courtesy of FORD MOTOR CO.

Fig 152: Identifying Speaker, Right D-Pillar Connector (C485)

G09253624

Courtesy of FORD MOTOR CO.

Fig 153: Identifying Lamp Assembly, Left Rear Connector (C498)

G09253625

Courtesy of FORD MOTOR CO.

Fig 154: Identifying Lamp Assembly, Right Rear Connector (C499)

G09253626

Courtesy of FORD MOTOR CO.

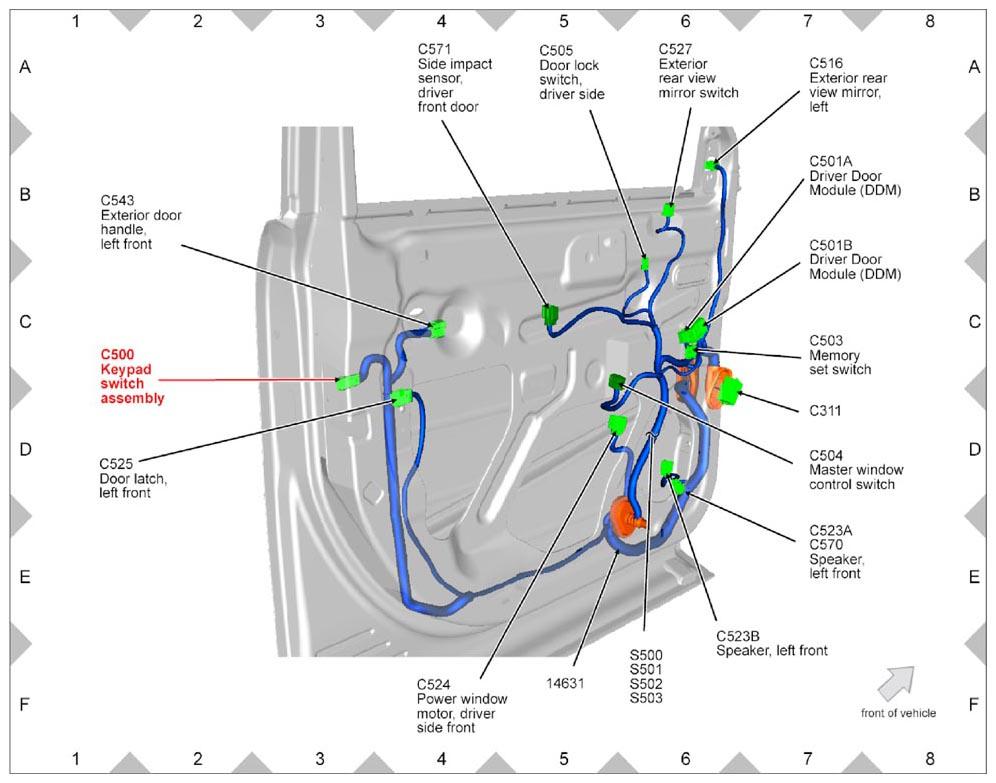

Fig 155: Identifying Key Pad Switch Assembly Connector (C500)

G09253627

Courtesy of FORD MOTOR CO.

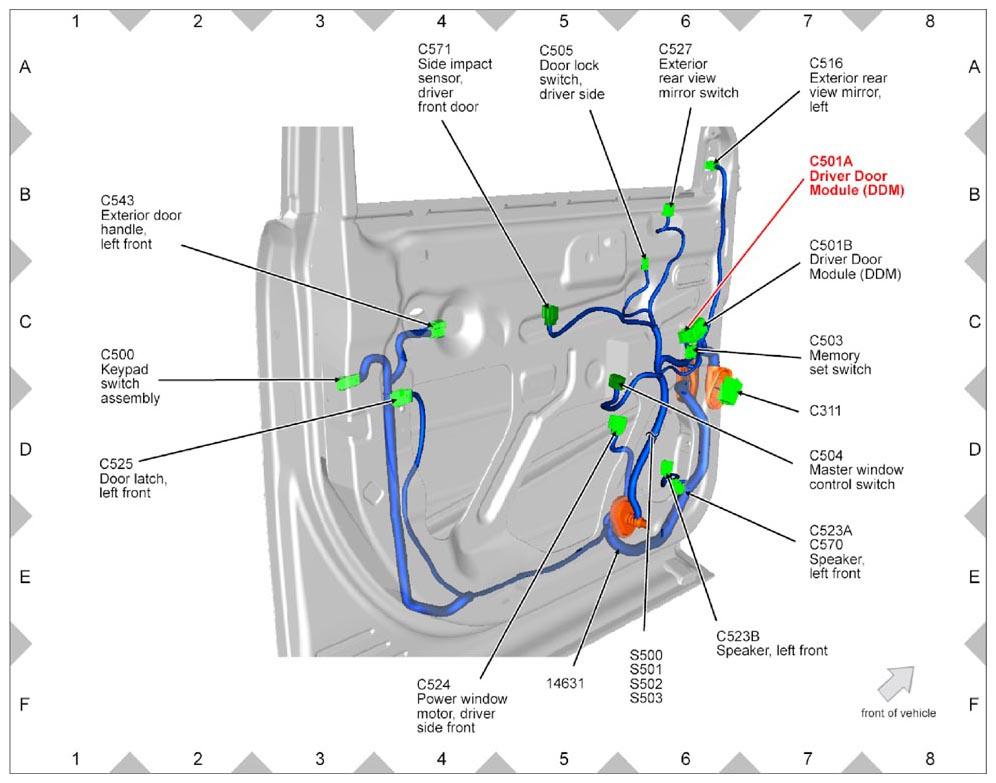

Fig 156: Identifying Driver Door Module Connector (C501A)

G09253628

Courtesy of FORD MOTOR CO.

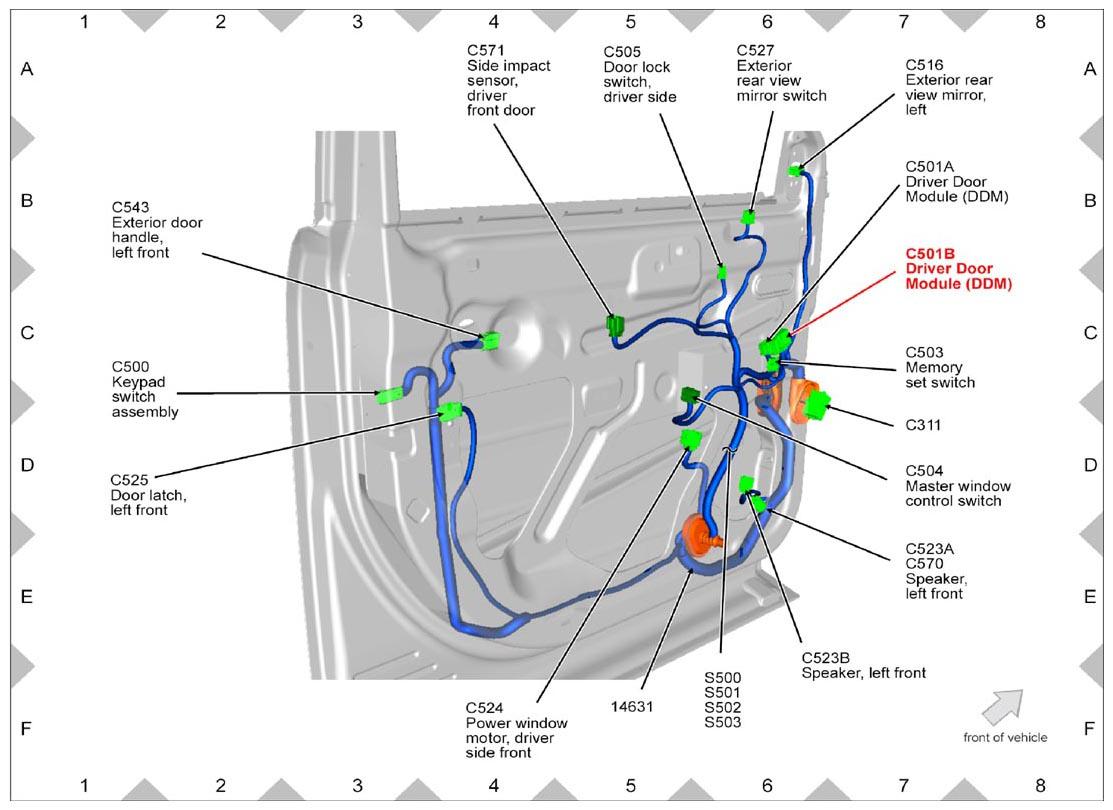

Fig 157: Identifying Driver Door Module Connector (C501B)

G09253629

Courtesy of FORD MOTOR CO.

Fig 158: Identifying Memory Set Switch Connector (C503)

G09253630

Courtesy of FORD MOTOR CO.

Fig 159: Identifying Master Window Control Switch Connector (C504)

G09253631

Courtesy of FORD MOTOR CO.

Fig 160: Identifying Door Lock Switch, Driver Side Connector (C505)

G09253632

Courtesy of FORD MOTOR CO.

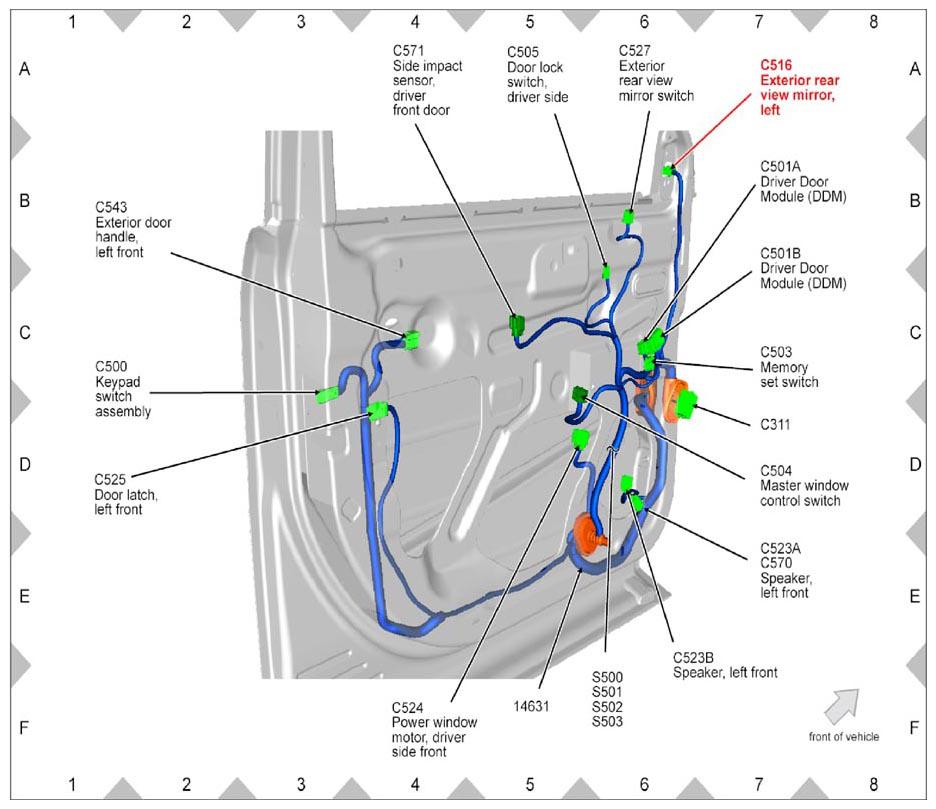

Fig 161: Identifying Exterior Rear View Mirror, Left Connector (C516)

G09253633

Courtesy of FORD MOTOR CO.

Fig 162: Identifying Speaker, Left Front Connector (C523A And C570)

G09253634

Courtesy of FORD MOTOR CO.

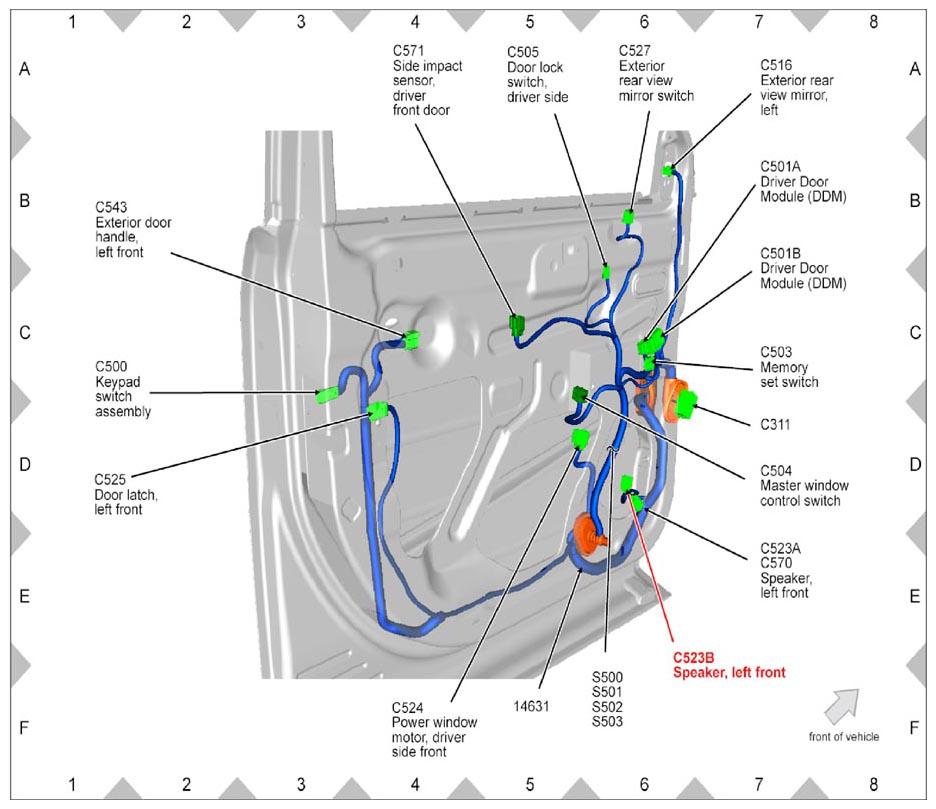

Fig 163: Identifying Speaker, Left Front Connector (C523B)

G09253635

Courtesy of FORD MOTOR CO.

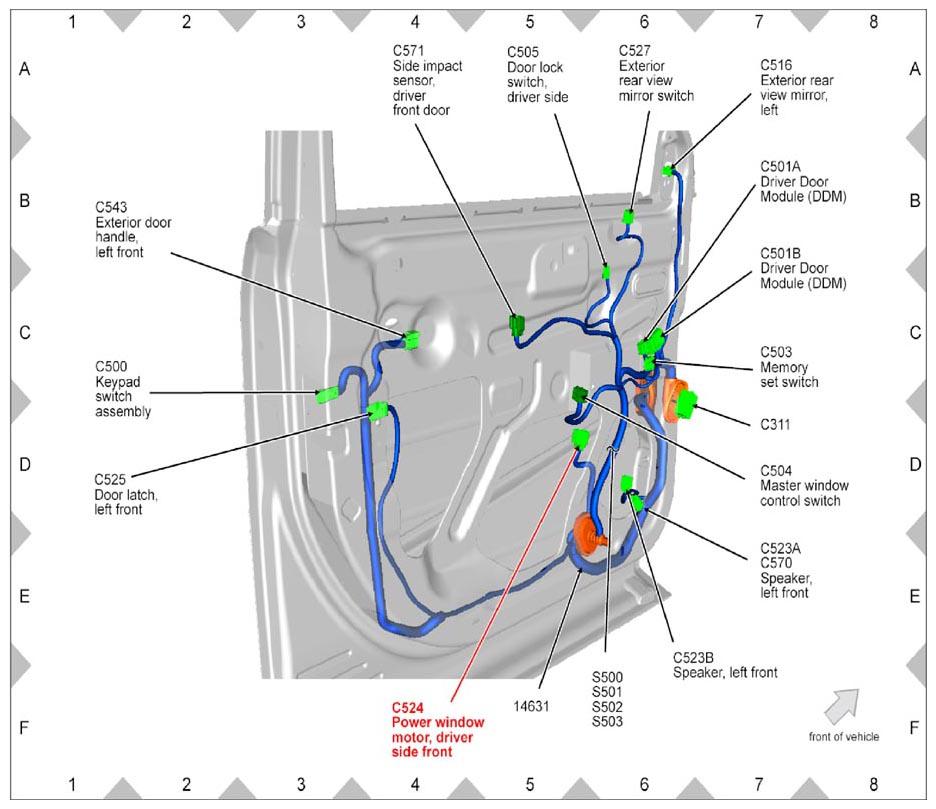

Fig 164: Identifying Power Window Motor, Driver Side Front Connector (C524)

G09253636

Courtesy of FORD MOTOR CO.

Fig 165: Identifying Door Latch, Left Front Connector (C525)

G09253637

Courtesy of FORD MOTOR CO.

Fig 166: Identifying Exterior Rear View Mirror Switch Connector (C527)

G09253638

Courtesy of FORD MOTOR CO.

Fig 167: Identifying Exterior Door Handle, Left Front Connector (C543)

G09253639

Courtesy of FORD MOTOR CO.

Fig 168: Identifying Speaker, Left Front Connector (C523A And C570)

G09253640

Courtesy of FORD MOTOR CO.

Fig 169: Identifying Side Impact Sensor, Driver Front Door Connector (C571)

G09253641

Courtesy of FORD MOTOR CO.

Fig 170: Identifying Door Latch, Right Front Connector (C603)

G09253642

Courtesy of FORD MOTOR CO.

Fig 171: Identifying Window Control Switch, Passenger Side Connector (C604)

G09253643

Courtesy of FORD MOTOR CO.

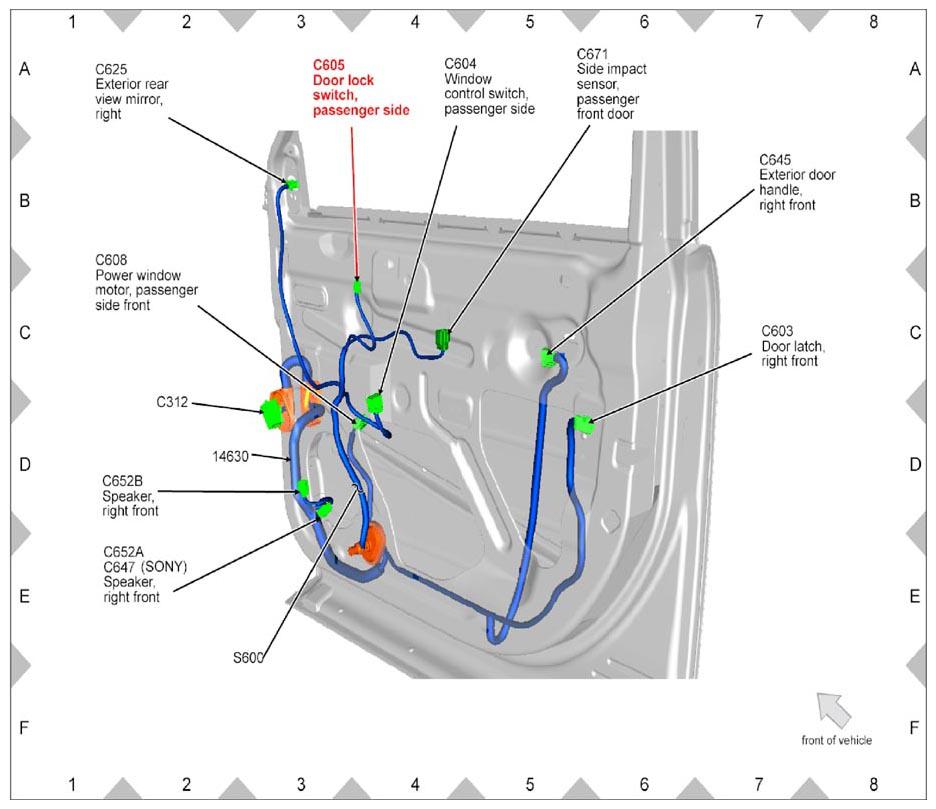

Fig 172: Identifying Door Lock Switch, Passenger Side Connector (C605)

G09253644

Courtesy of FORD MOTOR CO.

Fig 173: Identifying Power Window Motor, Passenger Side Front Connector (C608)

G09253645

Courtesy of FORD MOTOR CO.

Fig 174: Identifying Exterior Rear View Mirror, Right Connector (C625)

G09253646

Courtesy of FORD MOTOR CO.

Fig 175: Identifying Exterior Door Handle, Right Front Connector (C645)

G09253647

Courtesy of FORD MOTOR CO.

Fig 176: Identifying Speaker, Right Front Connector (C652A And C647)

G09253648

Courtesy of FORD MOTOR CO.

Fig 177: Identifying Speaker, Right Front Connector (C652B)

G09253650

Courtesy of FORD MOTOR CO.

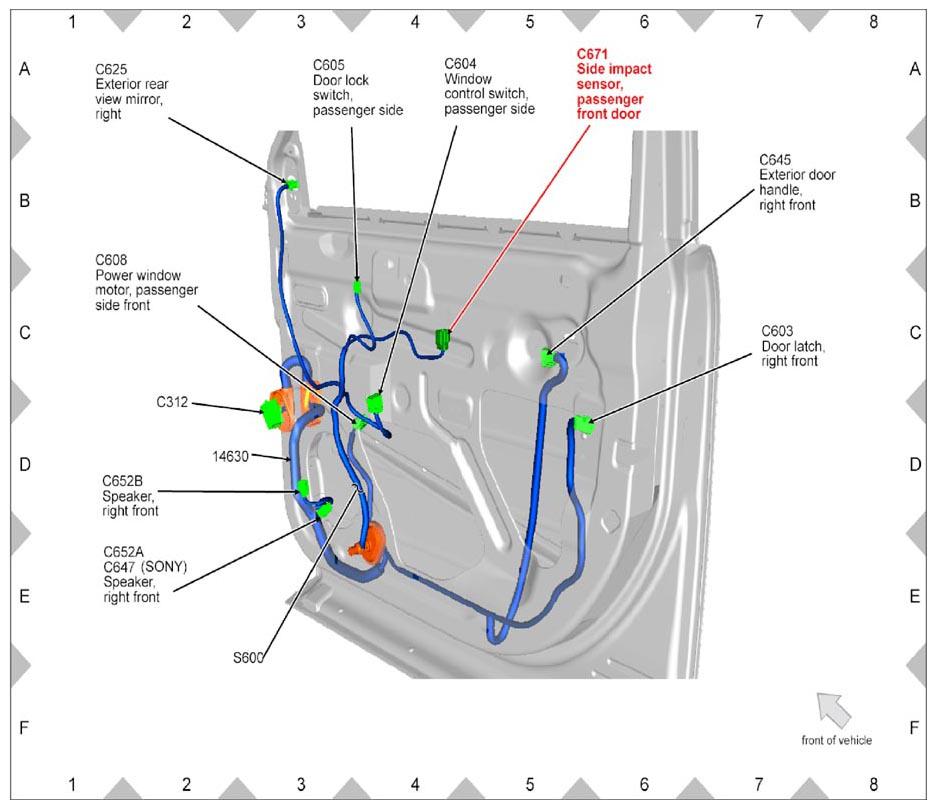

Fig 178: Identifying Side Impact Sensor, Passenger Front Door Connector (C671)

G09253651

Courtesy of FORD MOTOR CO.

Fig 179: Identifying Window Control Switch, Left Rear Connector (C701)

G09253652

Courtesy of FORD MOTOR CO.

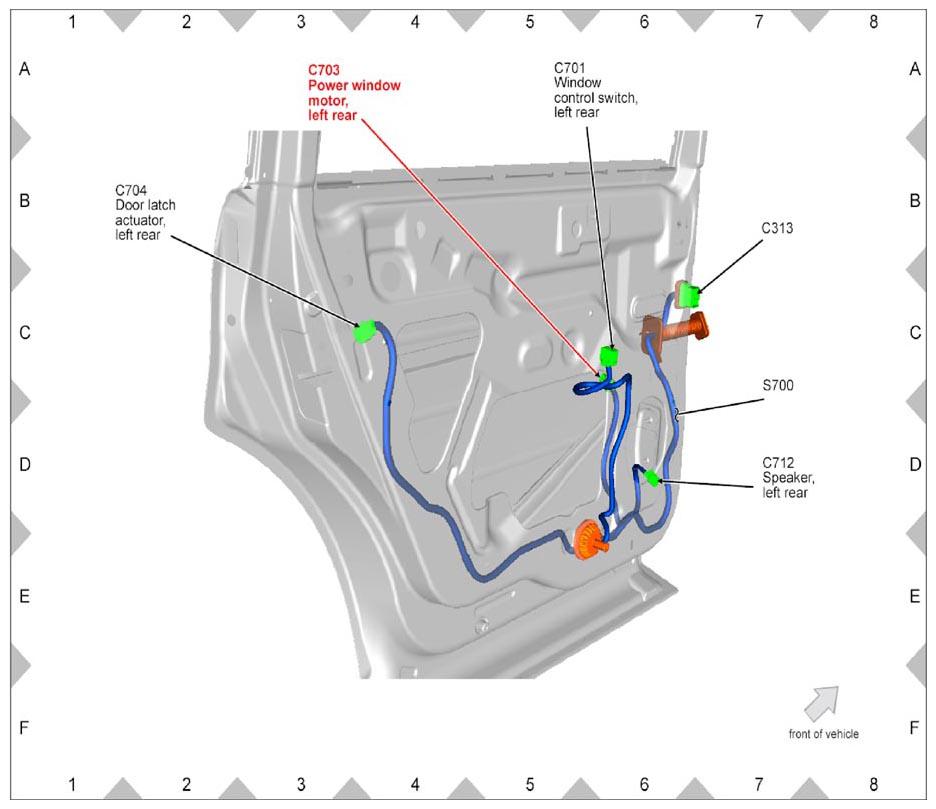

Fig 180: Identifying Power Window Motor, Left Rear Connector (C703)

G09253653

Courtesy of FORD MOTOR CO.

Fig 181: Identifying Door Latch Actuator, Left Rear Connector (C704)

G09253654

Courtesy of FORD MOTOR CO.

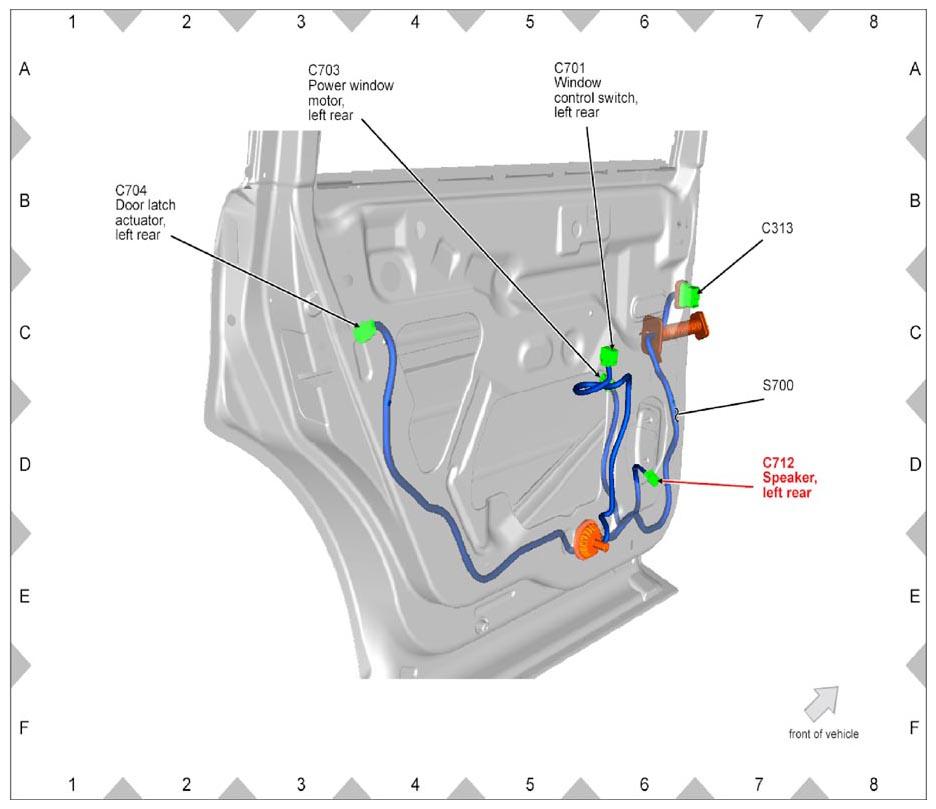

Fig 182: Identifying Speaker, Left Rear Connector (C712)

G09253655

Courtesy of FORD MOTOR CO.

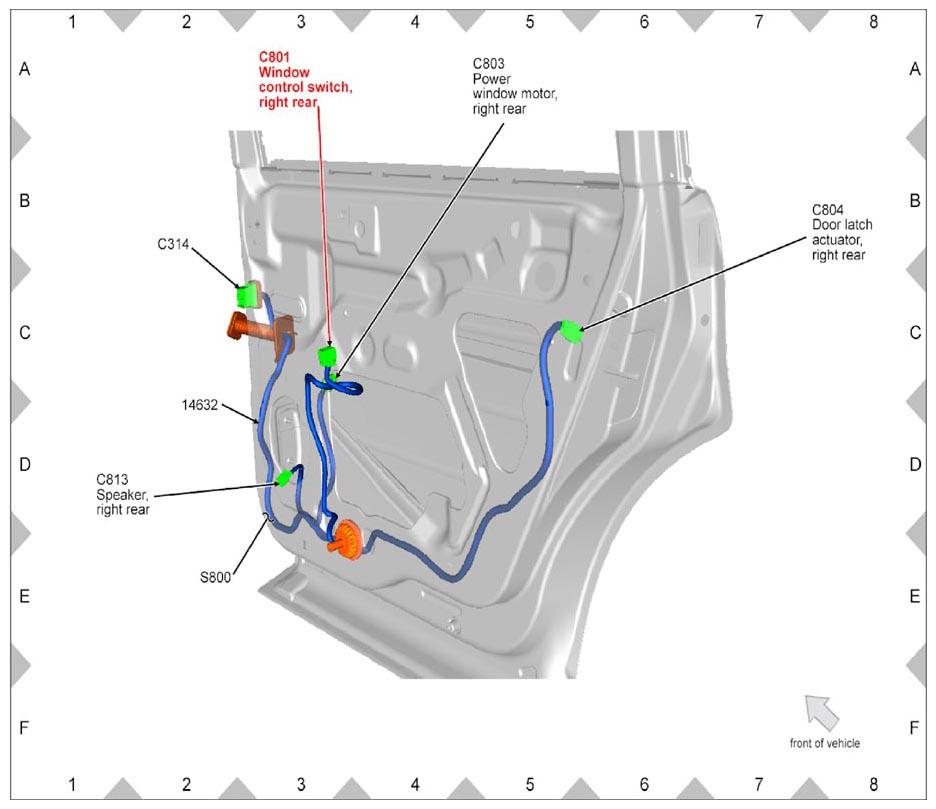

Fig 183: Identifying Window Control Switch, Right Rear Connector (C801)

G09253656

Courtesy of FORD MOTOR CO.

Fig 184: Identifying Power Window Motor, Right Rear Connector (C803)

G09253657

Courtesy of FORD MOTOR CO.

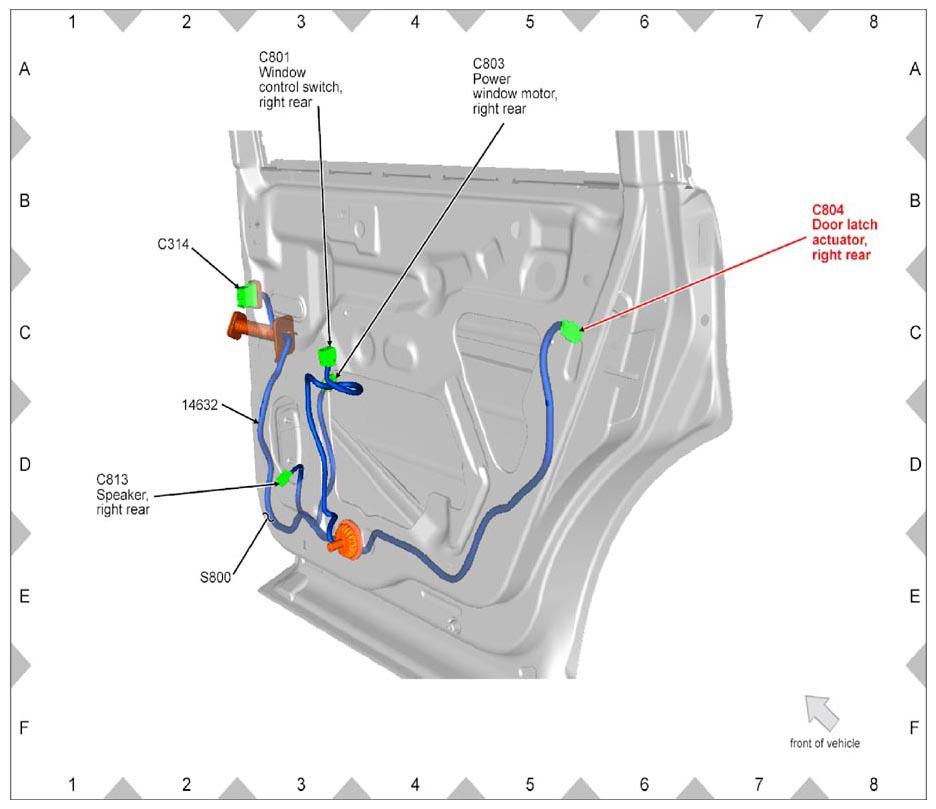

Fig 185: Identifying Door Latch Actuator, Right Rear Connector (C804)

G09253658

Courtesy of FORD MOTOR CO.

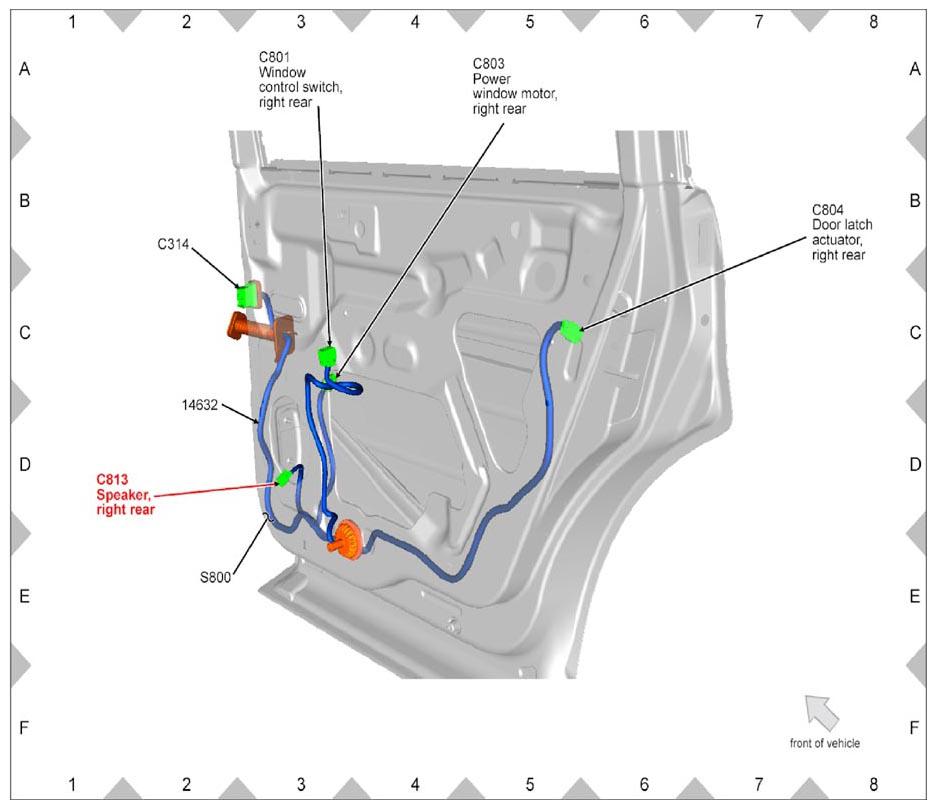

Fig 186: Identifying Speaker, Right Rear Connector (C813)

G09253659

Courtesy of FORD MOTOR CO.

Fig 187: Identifying High Mounted Stoplamp Connector (C904)

G09253660

Courtesy of FORD MOTOR CO.

Fig 188: Identifying Vanity Mirror Lamp, Right Connector (C906)

G09253661

Courtesy of FORD MOTOR CO.

Fig 189: Identifying Vanity Mirror Lamp, Left Connector (C907)

G09253662

Courtesy of FORD MOTOR CO.

Fig 190: Identifying Auto-Dimming Interior Mirror Unit Connector (C911)

G09253663

Courtesy of FORD MOTOR CO.

Fig 191: Identifying Roof Opening Panel Control Switch Connector (C912)

G09253664

Courtesy of FORD MOTOR CO.

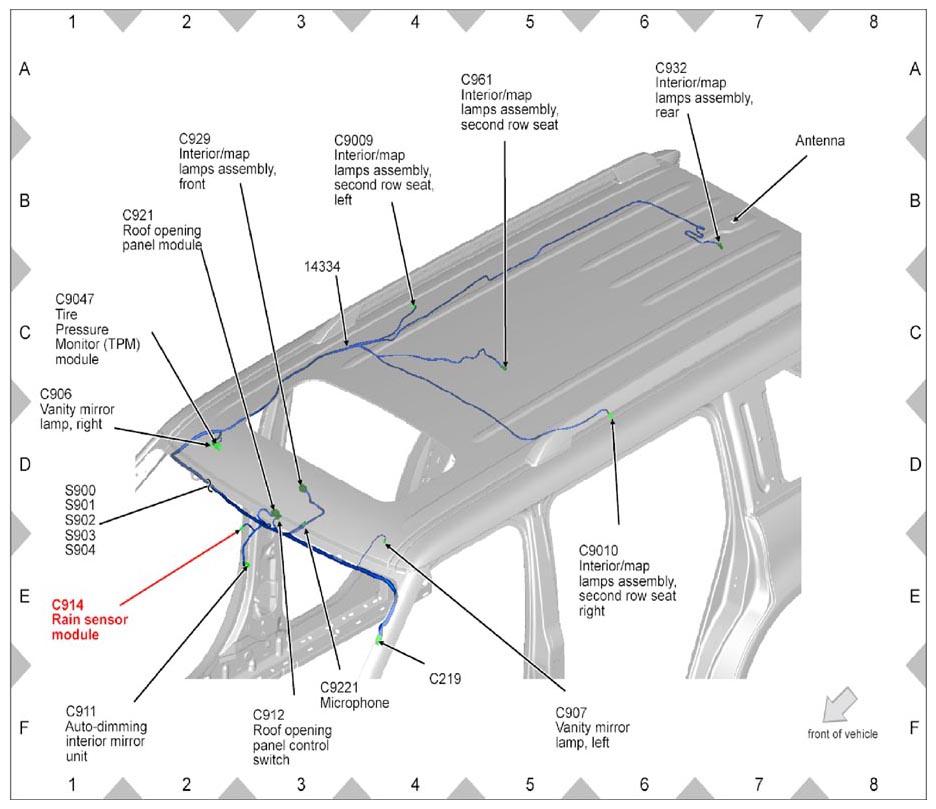

Fig 192: Identifying Rain Sensor Module Connector (C914)

G09253665

Courtesy of FORD MOTOR CO.

Fig 193: Identifying Roof Opening Panel Module Connector (C921)

G09253666

Courtesy of FORD MOTOR CO.

Fig 194: Identifying Interior/Map Lamps Assembly, Front Connector (C929)

G09253667

Courtesy of FORD MOTOR CO.

Fig 195: Identifying Interior/Map Lamps Assembly, Rear Connector (C932)

G09253668

Courtesy of FORD MOTOR CO.

Fig 196: Identifying Interior/Map Lamps Assembly, Second Row Seat Connector (C961)

G09253669

Courtesy of FORD MOTOR CO.

Fig 197: Identifying Headlamp Assembly, Left Connector (C1021)

G09253670

Courtesy of FORD MOTOR CO.

Fig 198: Identifying Battery Junction Box Connector (C1035)

G09253671

Courtesy of FORD MOTOR CO.

Fig 199: Identifying Headlamp Assembly, Right Connector (C1041)

G09253672

Courtesy of FORD MOTOR CO.

Fig 200: Identifying Connector (C1045)

G09253673

Courtesy of FORD MOTOR CO.

Fig 201: Identifying Connector (C1046)

G09253674

Courtesy of FORD MOTOR CO.

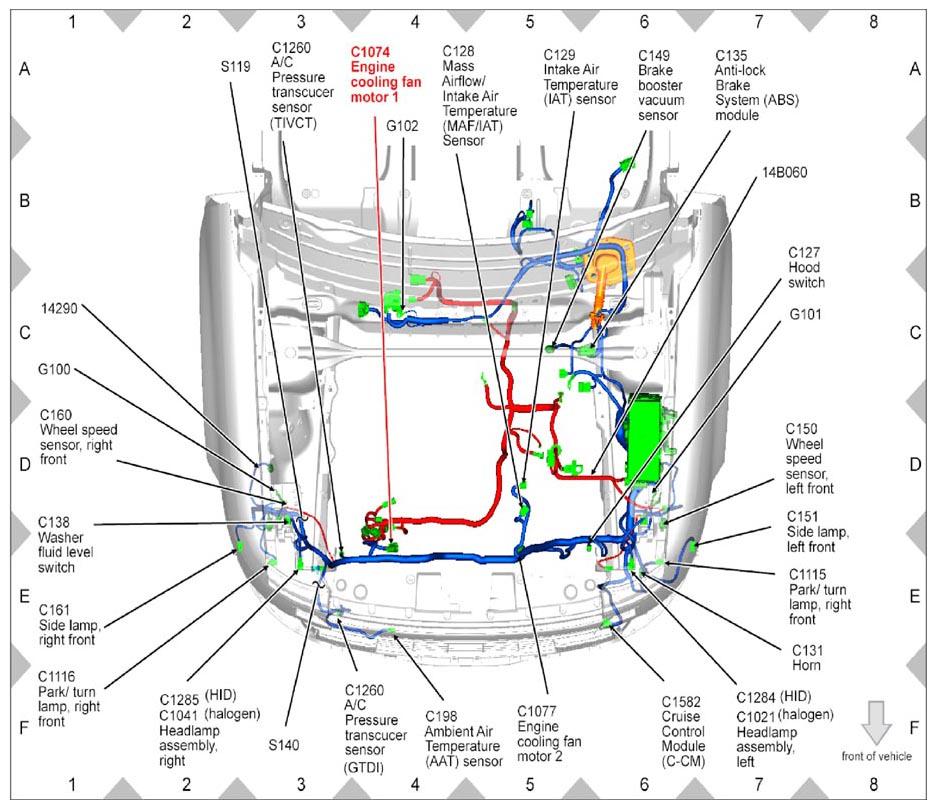

Fig 202: Identifying Engine Cooling Fan Motor 1 Connector (C1074)

G09253675

Courtesy of FORD MOTOR CO.

Fig 203: Identifying Engine Cooling Fan Motor 2 Connector (C1077)

G09253676

Courtesy of FORD MOTOR CO.

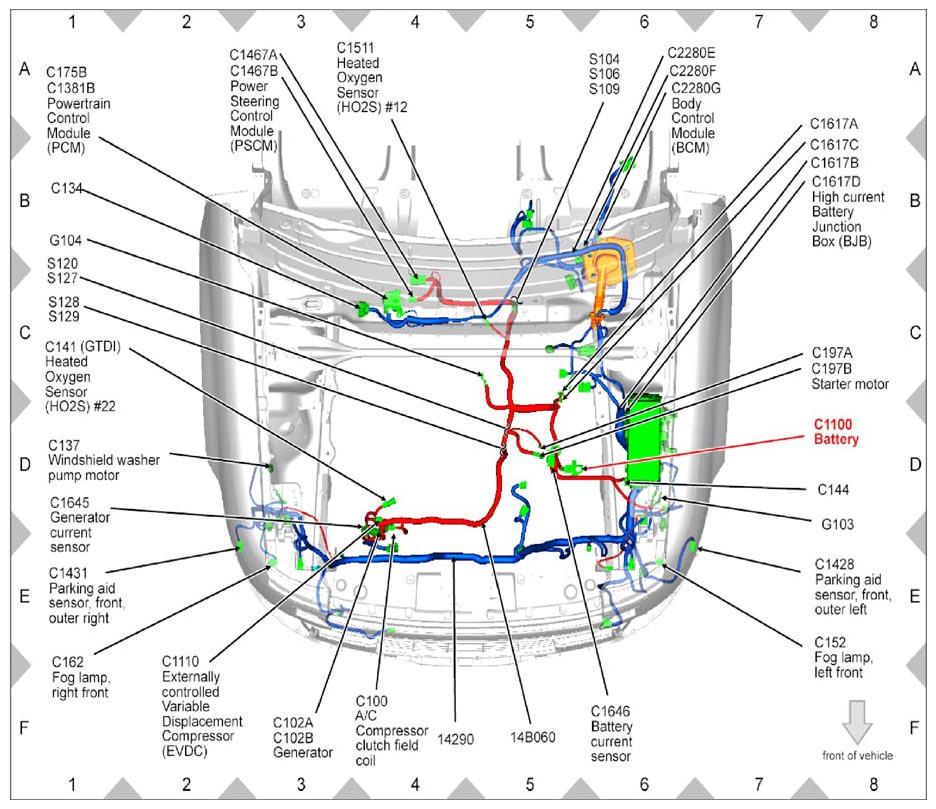

Fig 204: Identifying Battery Connector (C1100)

G09253677

Courtesy of FORD MOTOR CO.

Fig 205: Identifying Externally Controlled Variable Displacement Compressor Connector (C1110)

G09253678

Courtesy of FORD MOTOR CO.

Fig 206: Identifying Park/Turn Lamp, Right Front Connector (C1115)

G09253679

Courtesy of FORD MOTOR CO.

Fig 207: Identifying Park/Turn Lamp, Right Front Connector (C1116)

G09253680

Courtesy of FORD MOTOR CO.

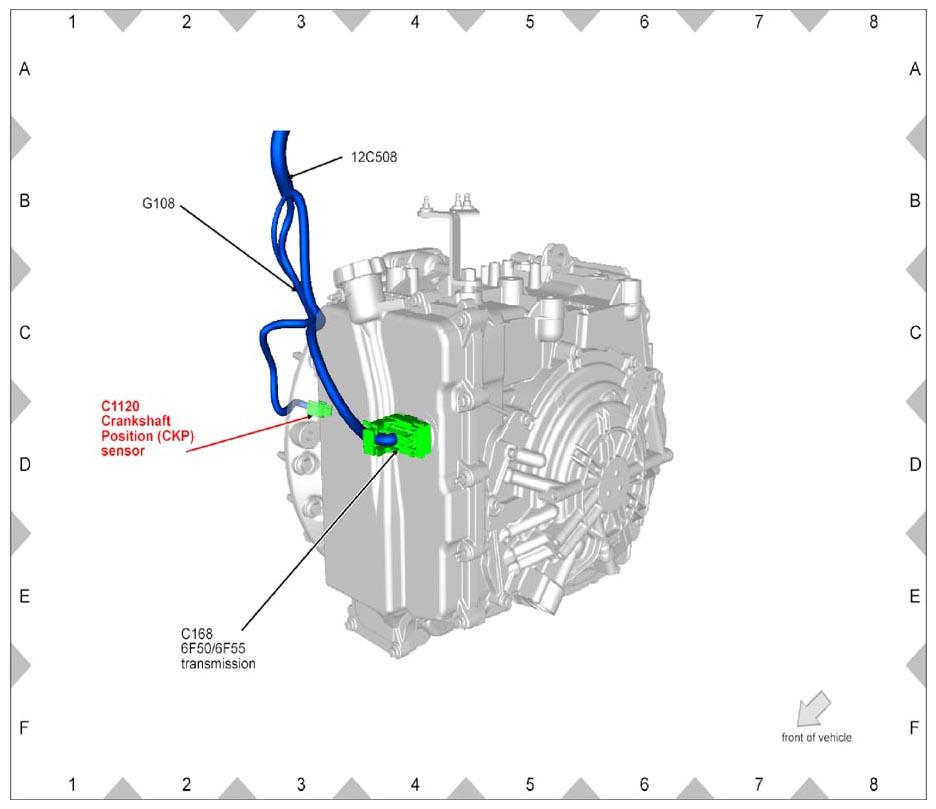

Fig 208: Identifying Crankshaft Position Sensor Connector (C1120) On Transmission

G09253681

Courtesy of FORD MOTOR CO.

Fig 209: Identifying Crankshaft Position Sensor Connector (C1120)(3.5L GTDI)

G09253682

Courtesy of FORD MOTOR CO.

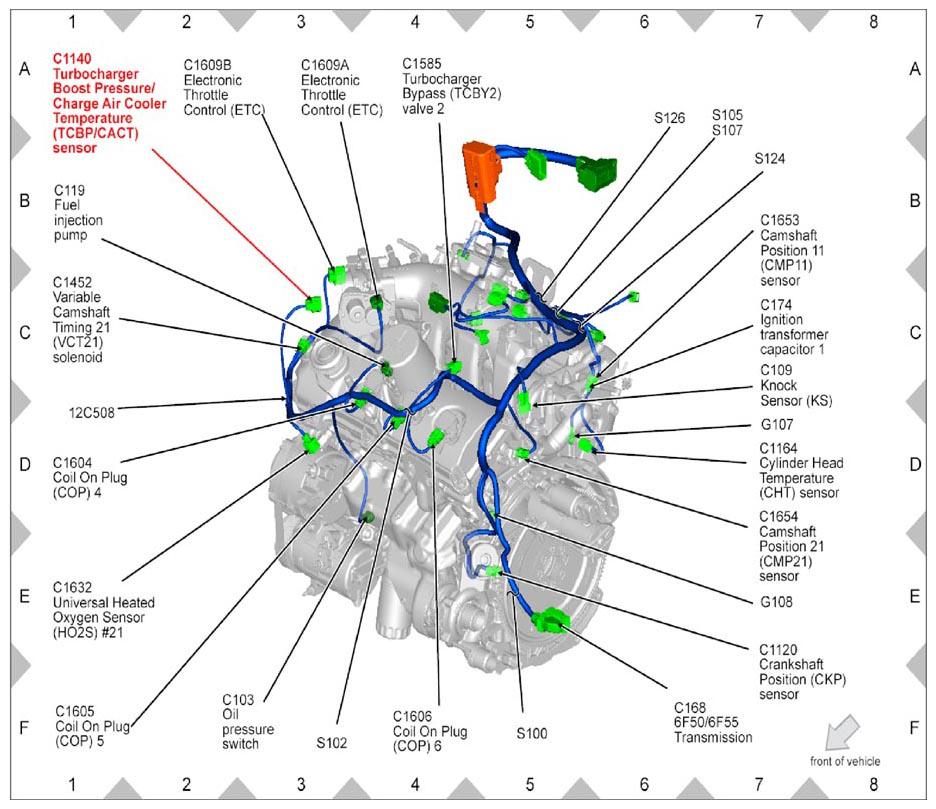

Fig 210: Identifying Turbocharger Boost Pressure/Charger Air Cooler Sensor Connector (C1140)

G09253683

Courtesy of FORD MOTOR CO.

Fig 211: Identifying Cylinder Head Temperature Sensor Connector (C1164)(3.5L GTDI)

G09253684

Courtesy of FORD MOTOR CO.

Fig 212: Identifying Cylinder Head Temperature Sensor Connector (C1164)(3.5L TIVCT)

G09253685

Courtesy of FORD MOTOR CO.

Fig 213: Identifying Fuel Injector 1 Connector (C1181)

G09253686

Courtesy of FORD MOTOR CO.

Fig 214: Identifying Fuel Injector 2 Connector (C1182)

G09253687

Courtesy of FORD MOTOR CO.

Fig 215: Identifying Fuel Injector 3 Connector (C1183)

G09253688

Courtesy of FORD MOTOR CO.

Fig 216: Identifying Fuel Injector 4 Connector (C1184)

G09253689

Courtesy of FORD MOTOR CO.

Fig 217: Identifying Fuel Injector 5 Connector (C1185)

G09253690

Courtesy of FORD MOTOR CO.

Fig 218: Identifying Fuel Injector 6 Connector (C1186)

G09253691

Courtesy of FORD MOTOR CO.

Fig 219: Identifying Evaporative Emission Purge Valve Connector (C1196)(3.5L GTDI)

G09253692

Courtesy of FORD MOTOR CO.

Fig 220: Identifying Evaporative Emission Purge Valve Connector (C1196)(3.5L TIVCT)

G09253693

Courtesy of FORD MOTOR CO.

Fig 221: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector (C1246)

G09253694

Courtesy of FORD MOTOR CO.

Fig 222: Identifying A/C Pressure Transducer Sensor Connector (C1260)(3.5L GTDI)

G09253695

Courtesy of FORD MOTOR CO.

Fig 223: Identifying A/C Pressure Transducer Sensor Connector (C1260)(3.5L TIVCT)

G09253696

Courtesy of FORD MOTOR CO.

Fig 224: Identifying Left HID Headlamps Connector (C1284)

G09253697

Courtesy of FORD MOTOR CO.

Fig 225: Identifying Right HID Headlamps Connector (C1285)

G09253698

Courtesy of FORD MOTOR CO.

Fig 226: Identifying Fuel Rail Pressure Sensor Connector (C1360)

G09253699

Courtesy of FORD MOTOR CO.

Fig 227: Identifying Camshaft Position 11 Sensor Connector (C1366)

G09253700

Courtesy of FORD MOTOR CO.

Fig 228: Identifying Camshaft Position 12 Sensor Connector (C1367)

G09253701

Courtesy of FORD MOTOR CO.

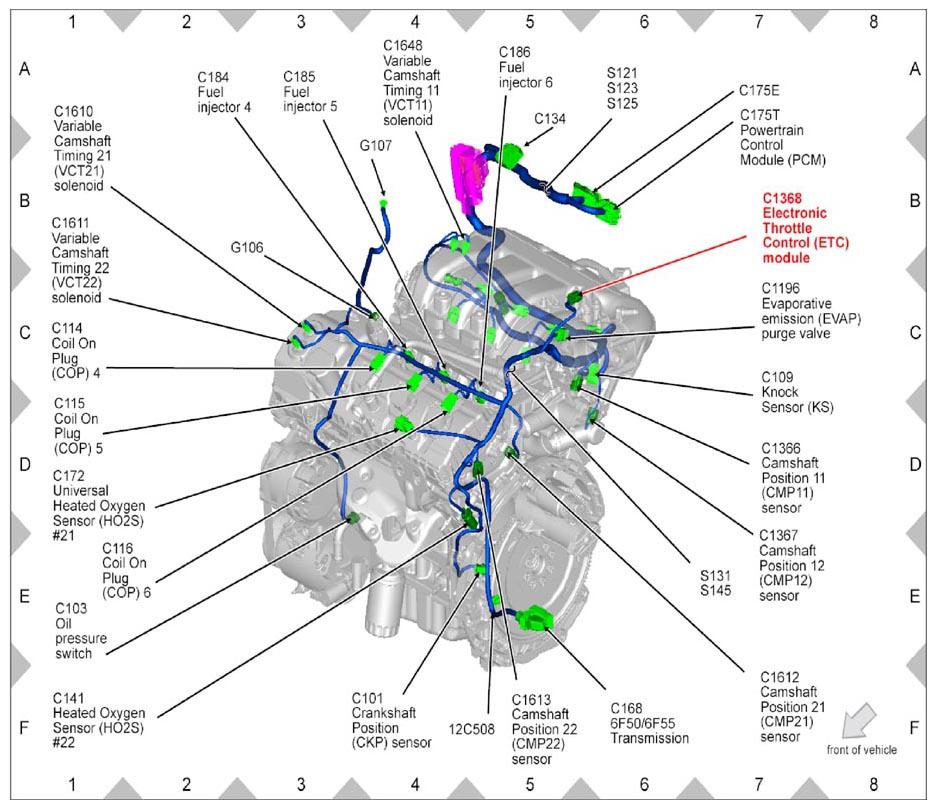

Fig 229: Identifying Electronic Throttle Control Module Connector (C1368)

G09253702

Courtesy of FORD MOTOR CO.

Fig 230: Identifying Powertrain Control Module Connector (C1381B)

G09253703

Courtesy of FORD MOTOR CO.

Fig 231: Identifying Powertrain Control Module Connector (C1381E)

G09253704

Courtesy of FORD MOTOR CO.

Fig 232: Identifying Parking Aid Sensor, Front, Outer Left Connector (C1438)

G09253705

Courtesy of FORD MOTOR CO.

Fig 233: Identifying Parking Aid Sensor, Front, Outer Right Connector (C1431)

G09253706

Courtesy of FORD MOTOR CO.

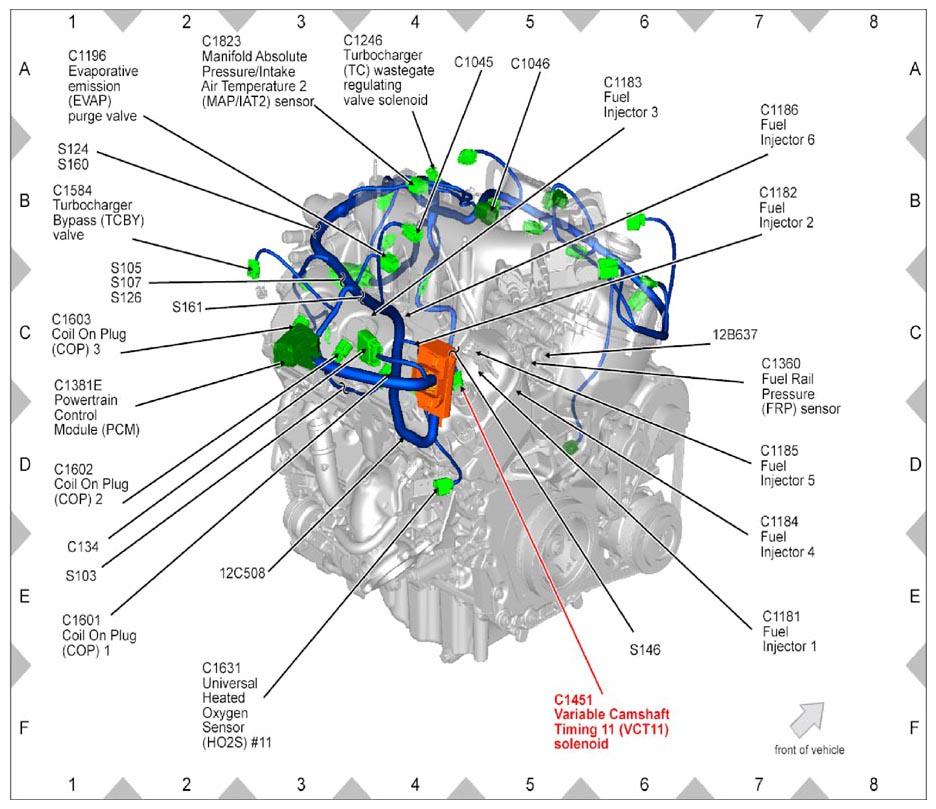

Fig 234: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1351)

G09253707

Courtesy of FORD MOTOR CO.

Fig 235: Identifying Variable Camshaft Timing 21 Solenoid Connector (C1452)

G09253708

Courtesy of FORD MOTOR CO.

Fig 236: Identifying Joint Connector 13 (C1453)

G09253709

Courtesy of FORD MOTOR CO.

Fig 237: Identifying Front Impact Sensor, Left Connector (C1465)

G09253710

Courtesy of FORD MOTOR CO.

Fig 238: Identifying Front Impact Sensor, Right Connector (C1466)

G09253711

Courtesy of FORD MOTOR CO.

Fig 239: Identifying Power Steering Control Module Connector (C1467A)

G09253712

Courtesy of FORD MOTOR CO.

Fig 240: Identifying Power Steering Control Module Connector (C1467B)

G09253713

Courtesy of FORD MOTOR CO.

Fig 241: Identifying Heated Oxygen Sensor No. 12 Connector (C1511)

G09253714

Courtesy of FORD MOTOR CO.

Fig 242: Identifying Cruiser Control Module Connector (C1582)

G09253715

Courtesy of FORD MOTOR CO.

Fig 243: Identifying Turbocharger Bypass Valve Connector (C1584)

G09253716

Courtesy of FORD MOTOR CO.

Fig 244: Identifying Turbocharger Bypass Valve 2 Connector (C1585)

G09253717

Courtesy of FORD MOTOR CO.

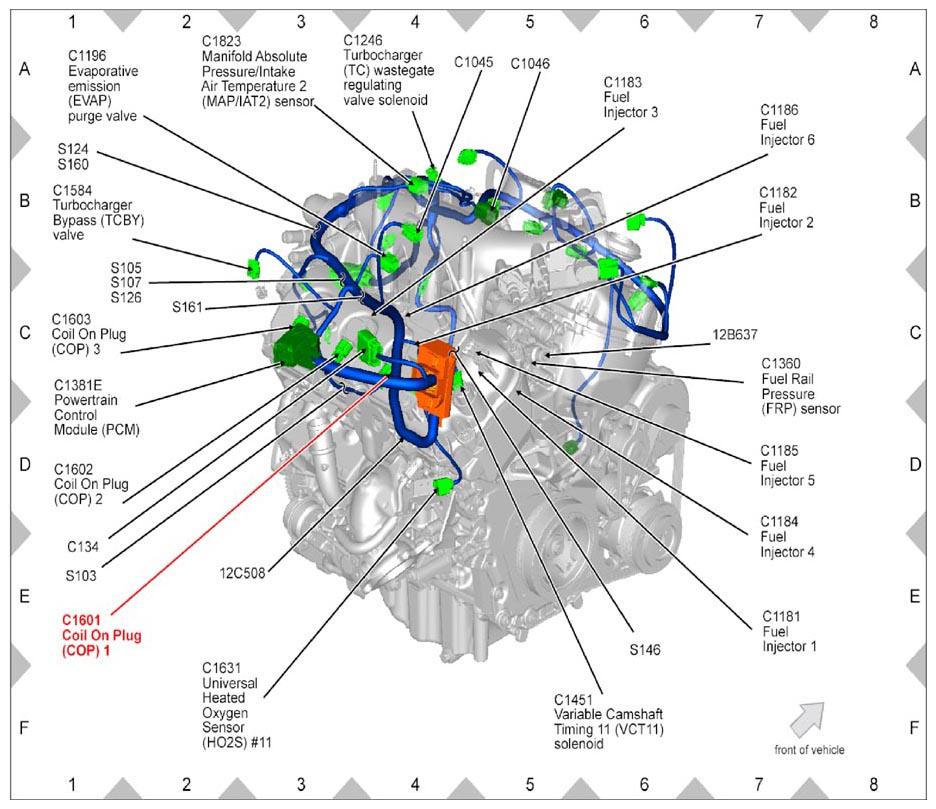

Fig 245: Identifying Coil On Plug 1 Connector (C1601)

G09253718

Courtesy of FORD MOTOR CO.

Fig 246: Identifying Coil On Plug 2 Connector (C1602)

G09253719

Courtesy of FORD MOTOR CO.

Fig 247: Identifying Coil On Plug 3 Connector (C1603)

G09253720

Courtesy of FORD MOTOR CO.

Fig 248: Identifying Coil On Plug 4 Connector (C1604)

G09253721

Courtesy of FORD MOTOR CO.

Fig 249: Identifying Coil On Plug 5 Connector (C1605)

G09253722

Courtesy of FORD MOTOR CO.

Fig 250: Identifying Coil On Plug 6 Connector (C1606)

G09253723

Courtesy of FORD MOTOR CO.

Fig 251: Identifying Electronic Throttle Control Connector (C1609A)

G09253724

Courtesy of FORD MOTOR CO.

Fig 252: Identifying Electronic Throttle Control Connector (C1609B)

G09253725

Courtesy of FORD MOTOR CO.

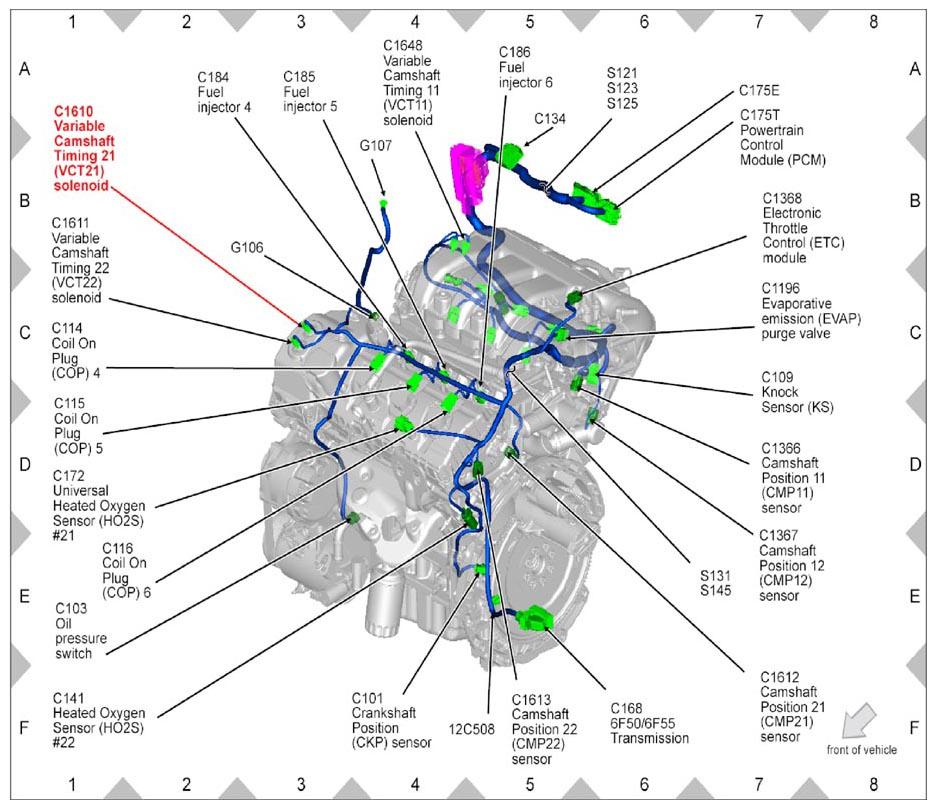

Fig 253: Identifying Variable Camshaft Timing 21 Solenoid Connector (C1610)

G09253726

Courtesy of FORD MOTOR CO.

Fig 254: Identifying Variable Camshaft Timing 22 Solenoid Connector (C1611)

G09253727

Courtesy of FORD MOTOR CO.

Fig 255: Identifying Camshaft Position 21 Sensor Connector (C1612)

G09253728

Courtesy of FORD MOTOR CO.

Fig 256: Identifying Camshaft Position 22 Sensor Connector (C1613)

G09253729

Courtesy of FORD MOTOR CO.

Fig 257: Identifying High Current Battery Junction Box Connector (C1617A)

G09253730

Courtesy of FORD MOTOR CO.

Fig 258: Identifying High Current Battery Junction Box Connector (C1617B)

G09253731

Courtesy of FORD MOTOR CO.

Fig 259: Identifying High Current Battery Junction Box Connector (C1617C)

G09253732

Courtesy of FORD MOTOR CO.

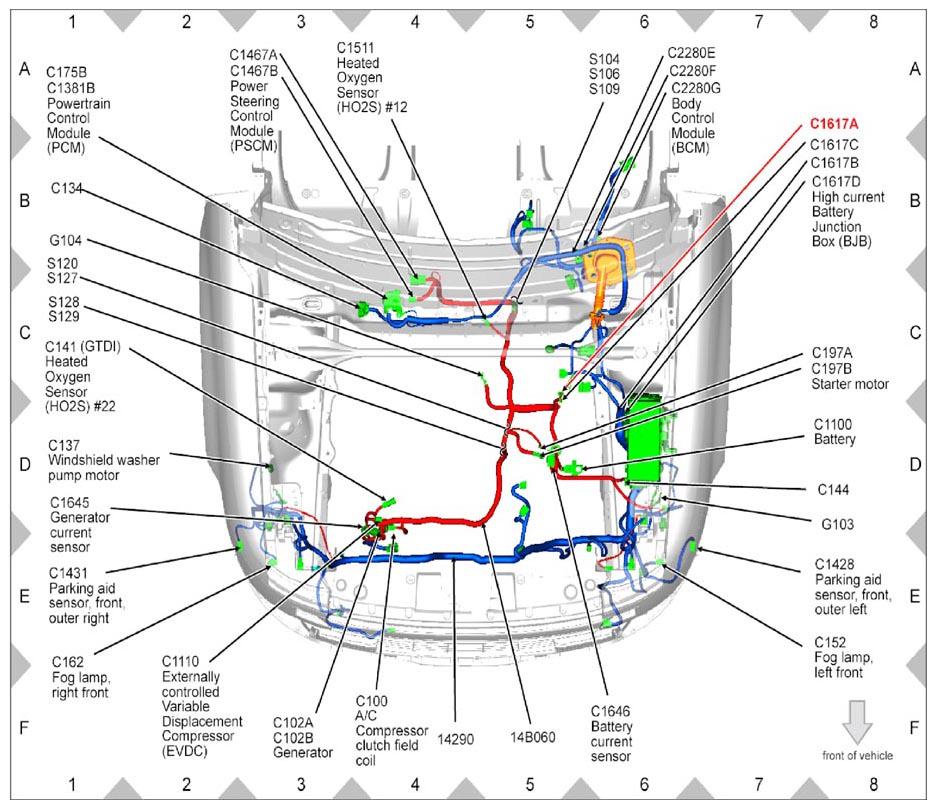

Fig 260: Identifying High Current Battery Junction Box Connector (C1617D)

G09253733

Courtesy of FORD MOTOR CO.

Fig 261: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C1631)

G09253734

Courtesy of FORD MOTOR CO.

Fig 262: Identifying Universal Heated Oxygen Sensor No. 21 Connector (C1632)

G09253735

Courtesy of FORD MOTOR CO.

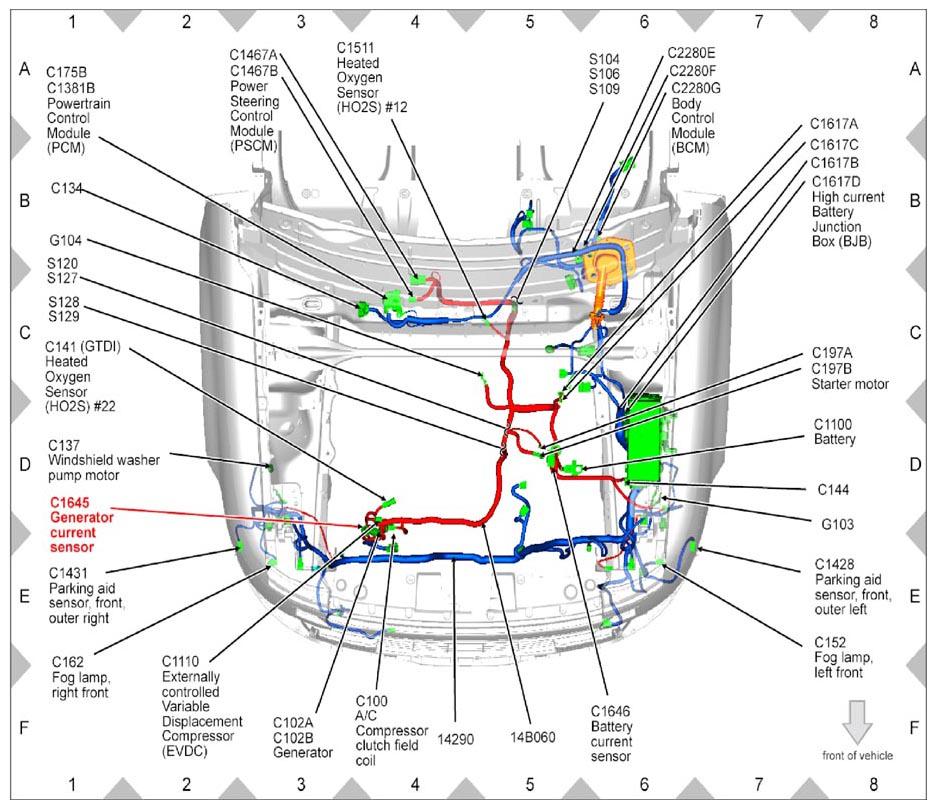

Fig 263: Identifying Generator Current Sensor Connector (C1645)

G09253736

Courtesy of FORD MOTOR CO.

Fig 264: Identifying Battery Current Sensor Connector (C1646)

G09253737

Courtesy of FORD MOTOR CO.

Fig 265: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1648)

G09253738

Courtesy of FORD MOTOR CO.

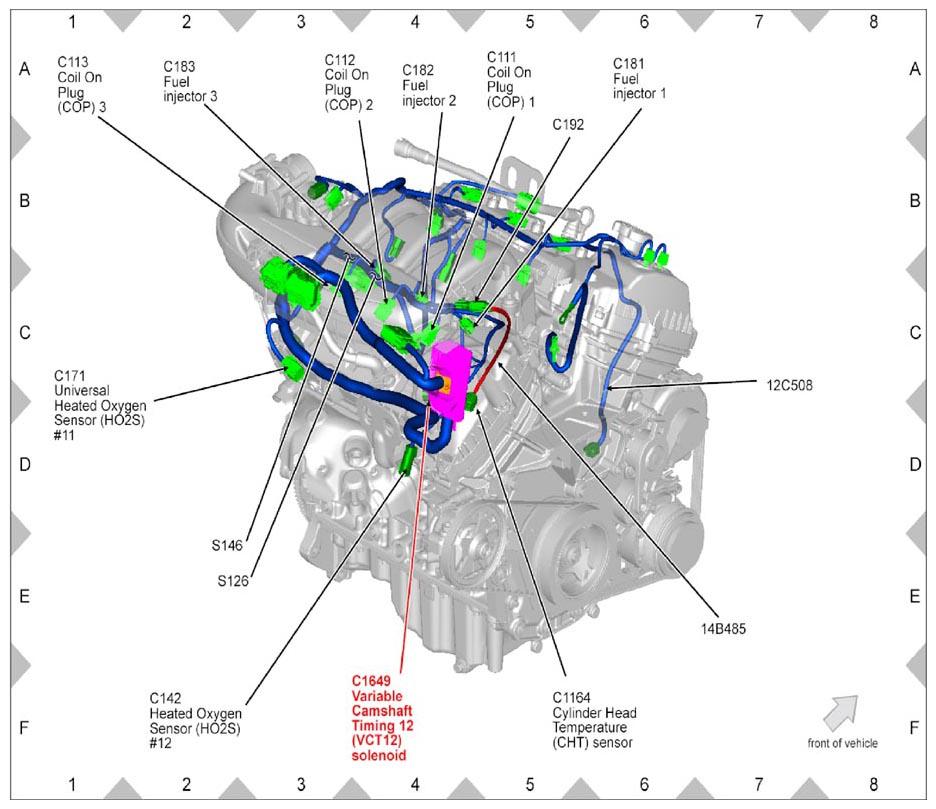

Fig 266: Identifying Variable Camshaft Timing 12 Solenoid Connector (C1649)

G09253739

Courtesy of FORD MOTOR CO.

Fig 267: Identifying Camshaft Position 11 Sensor Connector (C1653)

G09253740

Courtesy of FORD MOTOR CO.

Fig 268: Identifying Camshaft Position Sensor Connector (C1654)

G09253741

Courtesy of FORD MOTOR CO.

Fig 269: Identifying Manifold Absolute Pressure/Intake Air Temperature 2 Sensor Connector (C1823)

G09253742

Courtesy of FORD MOTOR CO.

Fig 270: Identifying Blower Motor Connector (C2004)

G09253743

Courtesy of FORD MOTOR CO.

Fig 271: Identifying Power Point (Front) Connector (C2033)

G09253744

Courtesy of FORD MOTOR CO.

Fig 272: Identifying Accelerator Pedal Position Sensor Connector (C2040)

G09253745

Courtesy of FORD MOTOR CO.

Fig 273: Identifying Instrument Panel Dimmer Switch Connector (C2065)

G09253746

Courtesy of FORD MOTOR CO.

Fig 274: Identifying Temperature Blend Door Actuator, Driver Connector (C2091)

G09253747

Courtesy of FORD MOTOR CO.

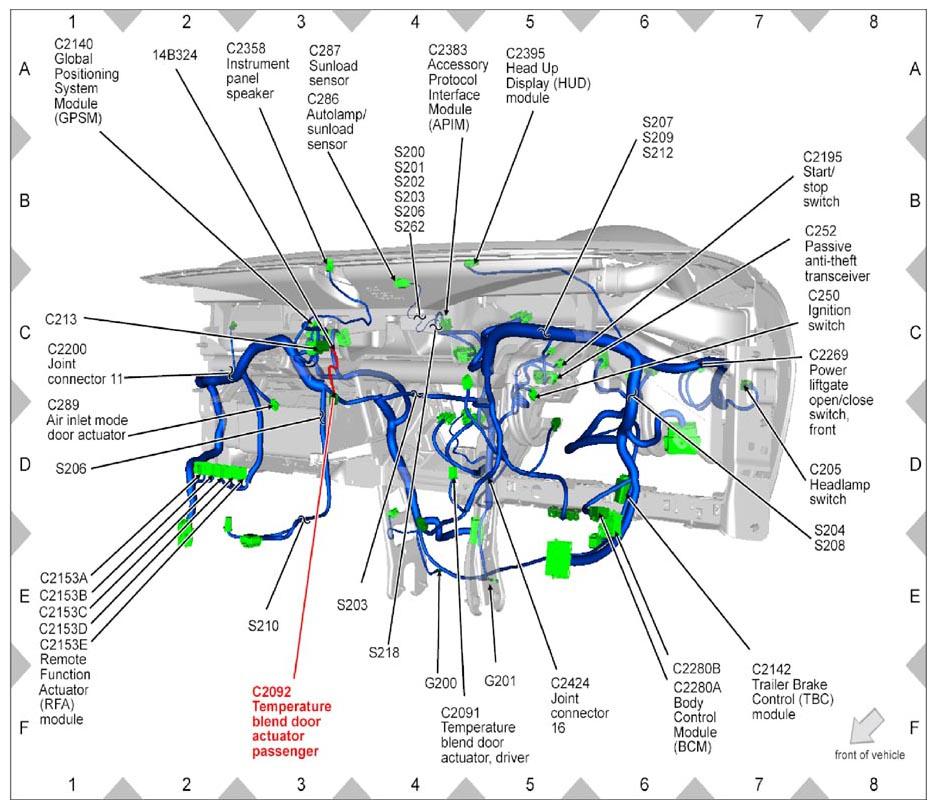

Fig 275: Identifying Temperature Blend Door Actuator, Passenger Connector (C2092)

G09253748

Courtesy of FORD MOTOR CO.

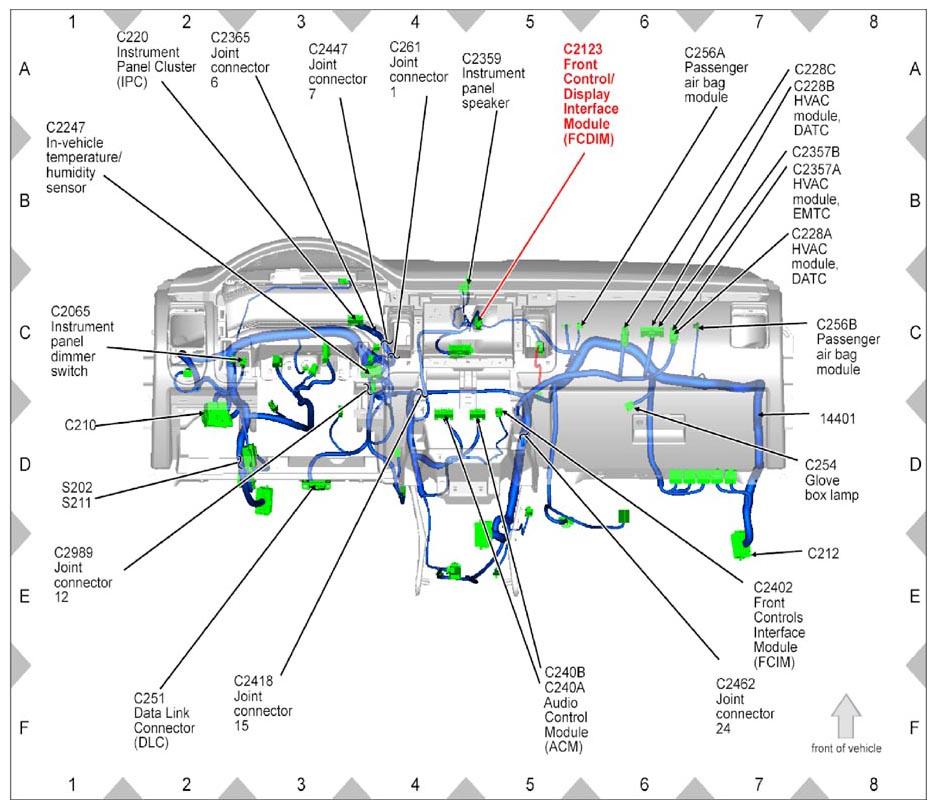

Fig 276: Identifying Front Control/Display Interface Module Connector (C2123)

G09253749

Courtesy of FORD MOTOR CO.

Fig 277: Identifying Global Positioning System Module Connector (C2140)

G09253750

Courtesy of FORD MOTOR CO.

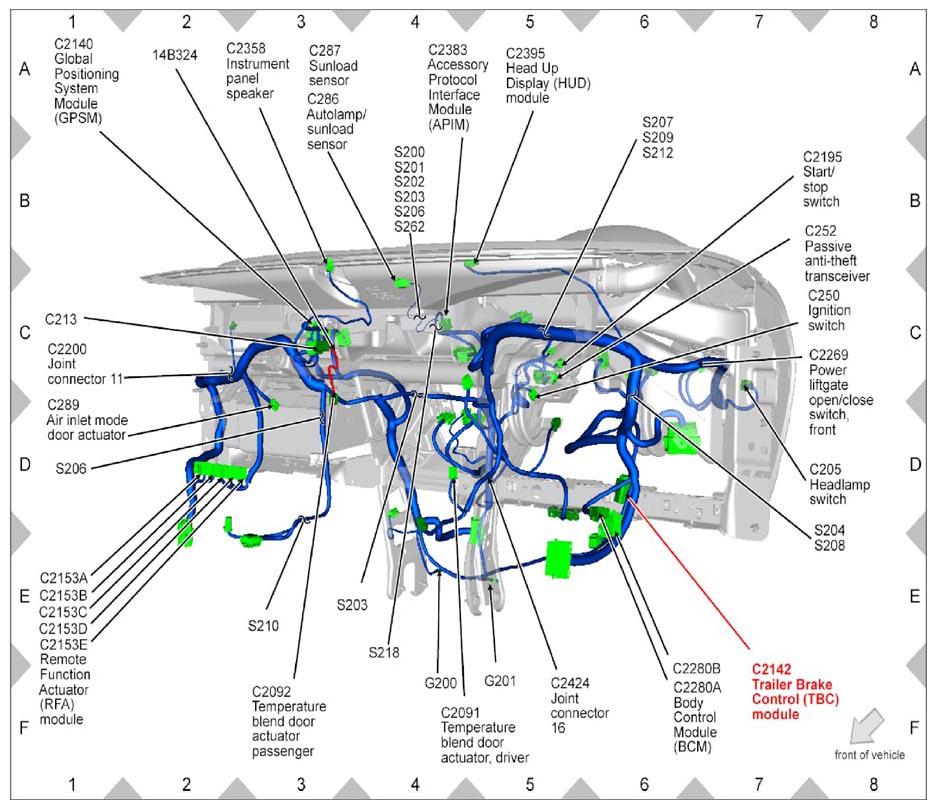

Fig 278: Identifying Trailer Brake Control Module Connector (C2142)

G09253751

Courtesy of FORD MOTOR CO.

Fig 279: Identifying Remote Function Actuator Module Connector (C2153A)

G09253752

Courtesy of FORD MOTOR CO.

Fig 280: Identifying Remote Function Actuator Module Connector (C2153B)

G09253753

Courtesy of FORD MOTOR CO.

Fig 281: Identifying Remote Function Actuator Module Connector (C2153C)

G09253754

Courtesy of FORD MOTOR CO.

Fig 282: Identifying Remote Function Actuator Module Connector (C2153D)

G09253755

Courtesy of FORD MOTOR CO.

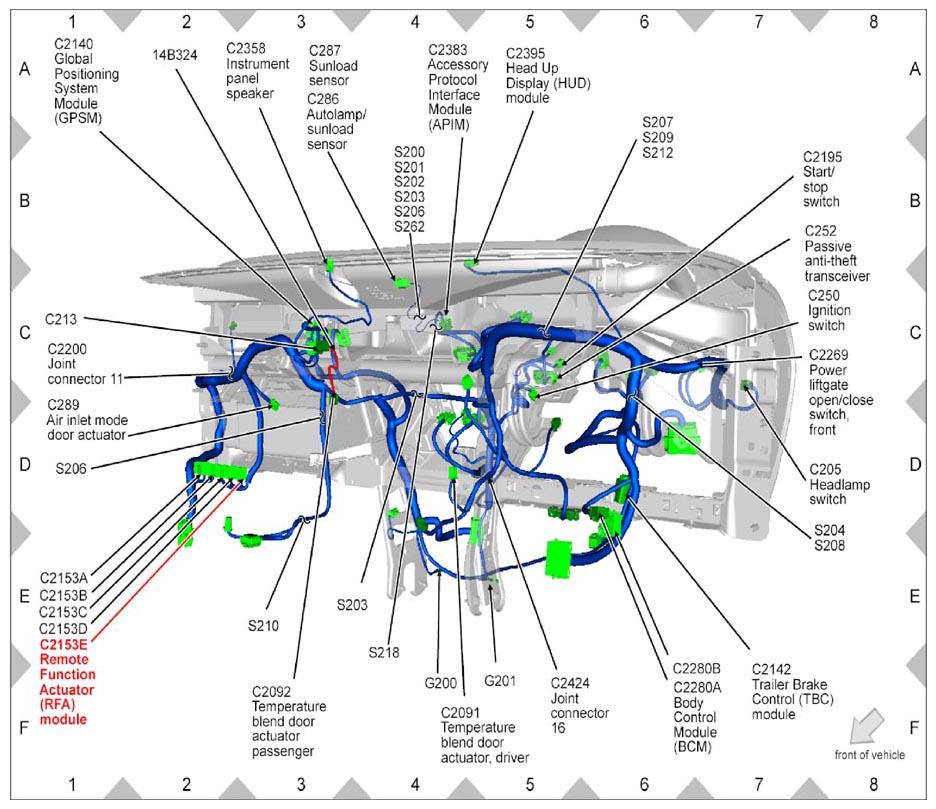

Fig 283: Identifying Remote Function Actuator Module Connector (C2153E)

G09253756

Courtesy of FORD MOTOR CO.

Fig 284: Identifying Adjustable Pedal Motor Connector (C2159)

G09253757

Courtesy of FORD MOTOR CO.

Fig 285: Identifying Start/Stop Switch Connector (C2195)

G09253758

Courtesy of FORD MOTOR CO.

Fig 286: Identifying Joint Connector 11 (C2200)

G09253759

Courtesy of FORD MOTOR CO.

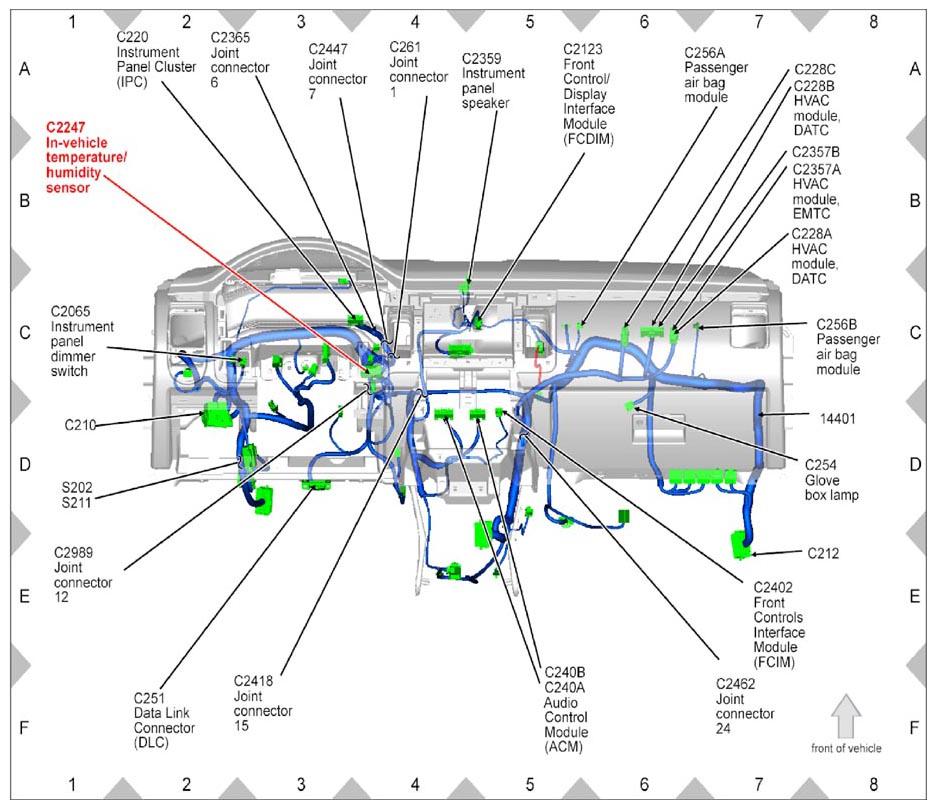

Fig 287: Identifying In-Vehicle Temperature/Humidity Sensor Connector (C2247)

G09253760

Courtesy of FORD MOTOR CO.

Fig 288: Identifying Steering Column Control Tilting Motor Connector (C2250)

G09253761

Courtesy of FORD MOTOR CO.

Fig 289: Identifying Power Liftgate Open/Close Switch (Front) Connector (C2269)

G09253762

Courtesy of FORD MOTOR CO.

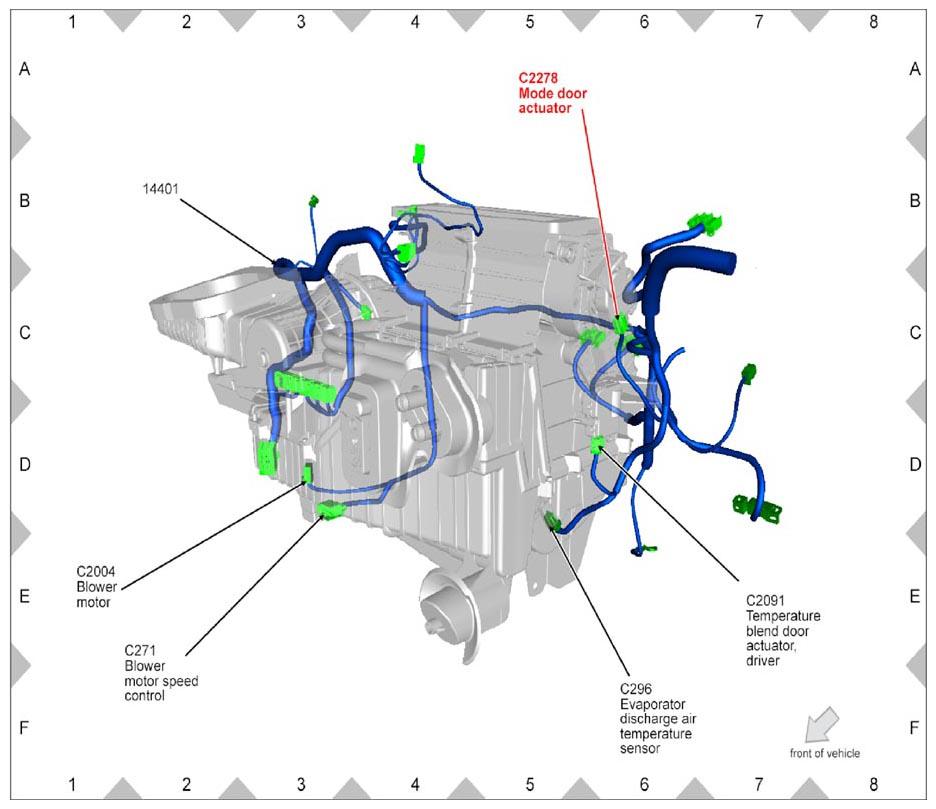

Fig 290: Identifying Mode Door Actuator Connector (C2278)

G09253763

Courtesy of FORD MOTOR CO.

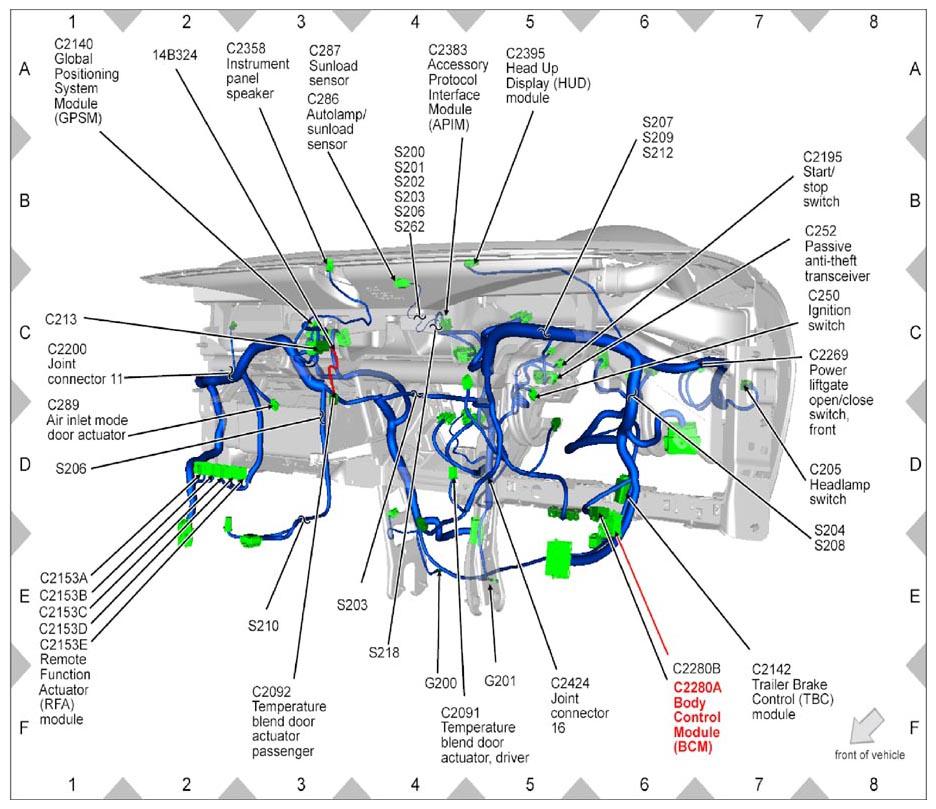

Fig 291: Identifying Body Control Module Connector (C2280A)

G09253764

Courtesy of FORD MOTOR CO.

Fig 292: Identifying Body Control Module Connector (C2280B)

G09253765

Courtesy of FORD MOTOR CO.

Fig 293: Identifying Body Control Module Connector (C2280C)

G09253766

Courtesy of FORD MOTOR CO.

Fig 294: Identifying Body Control Module Connector (C2280D)

G09253767

Courtesy of FORD MOTOR CO.

Fig 295: Identifying Body Control Module Connector (C2280E)

G09253768

Courtesy of FORD MOTOR CO.

Fig 296: Identifying Body Control Module Connector (C2280F)

G09253769

Courtesy of FORD MOTOR CO.

Fig 297: Identifying Body Control Module Connector (C2280G)

G09253770

Courtesy of FORD MOTOR CO.

Fig 298: Identifying HVAC Module, EMTC Connector (C2357A)

G09253771

Courtesy of FORD MOTOR CO.

Fig 299: Identifying HVAC Module, EMTC Connector (C2357B)

G09253772

Courtesy of FORD MOTOR CO.

Fig 300: Identifying Instrument Panel Speaker Connector (C2358)

G09253773

Courtesy of FORD MOTOR CO.

Fig 301: Identifying Instrument Panel Speaker Connector (C2359)

G09253774

Courtesy of FORD MOTOR CO.

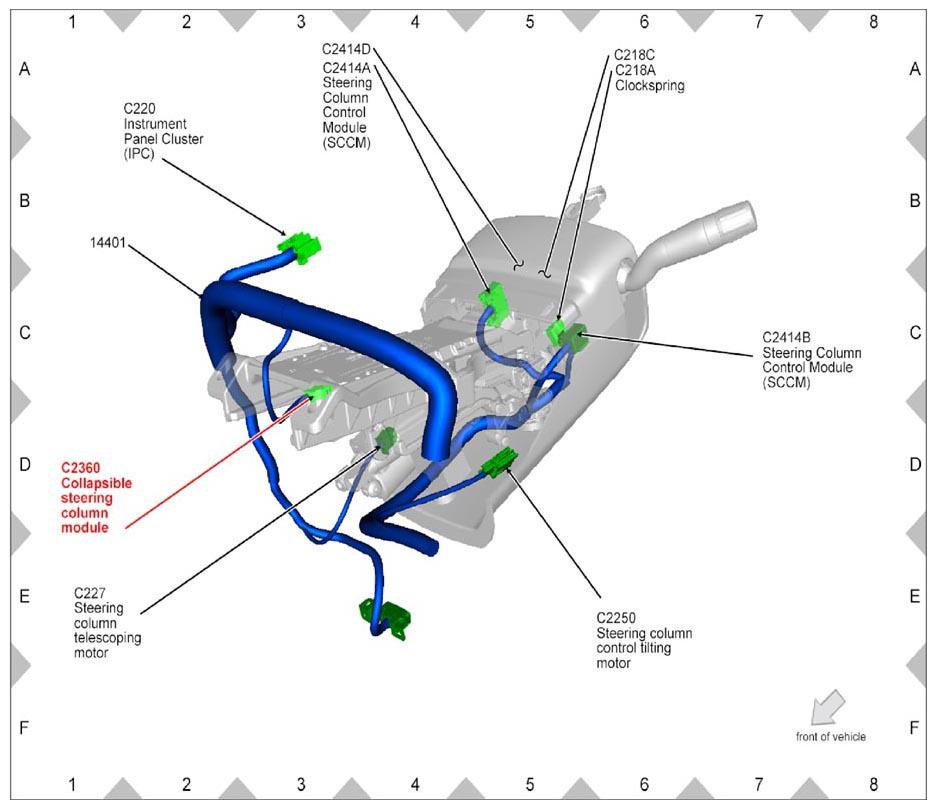

Fig 302: Identifying Collapsible Steering Column Module Connector (C2360)

G09253775

Courtesy of FORD MOTOR CO.

Fig 303: Identifying Joint Connector 6 (C2365)

G09253776

Courtesy of FORD MOTOR CO.

Fig 304: Identifying Accessory Protocol Interface Module Connector (C2383)

G09253777

Courtesy of FORD MOTOR CO.

Fig 305: Identifying Head Up Display Module Connector (C2395)

G09253778

Courtesy of FORD MOTOR CO.

Fig 306: Identifying Front Control Interface Module Connector (C2402)

G09253779

Courtesy of FORD MOTOR CO.

Fig 307: Identifying Steering Column Control Module Connector (C2414A)

G09253780

Courtesy of FORD MOTOR CO.

Fig 308: Identifying Steering Column Control Module Connector (C2414B)

G09253781

Courtesy of FORD MOTOR CO.

Fig 309: Identifying Steering Column Control Module Connector (C2414D)

G09253782

Courtesy of FORD MOTOR CO.

Fig 310: Identifying Joint Connector 15 (C2418)

G09253783

Courtesy of FORD MOTOR CO.

Fig 311: Identifying Speaker, Right A-Pillar Connector (C231 And C2420)

G09253784

Courtesy of FORD MOTOR CO.

Fig 312: Identifying Speaker, Left A-Pillar Connector (C230 And C2414)

G09253785

Courtesy of FORD MOTOR CO.

Fig 313: Identifying Joint Connector 16 (C2424)

G09253786

Courtesy of FORD MOTOR CO.

Fig 314: Identifying Joint Connector 17 (C2425)

G09253787

Courtesy of FORD MOTOR CO.

Fig 315: Identifying Paddle Shifter, Left Connector (C2428)

G09253788

Courtesy of FORD MOTOR CO.

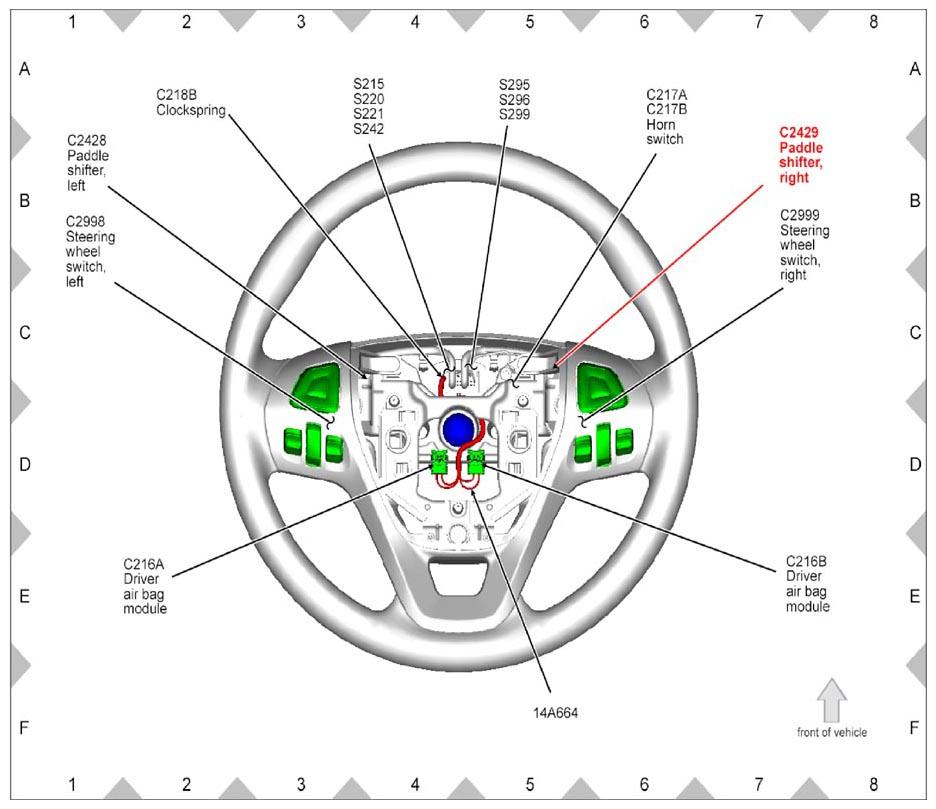

Fig 316: Identifying Paddle Shifter, Right Connector (C2429)

G09253789

Courtesy of FORD MOTOR CO.

Fig 317: Identifying Joint Connector 7 (C2447)

G09253790

Courtesy of FORD MOTOR CO.

Fig 318: Identifying Joint Connector 24 (C2462)

G09253791

Courtesy of FORD MOTOR CO.

Fig 319: Identifying Joint Connector 12 (C2989)

G09253792

Courtesy of FORD MOTOR CO.

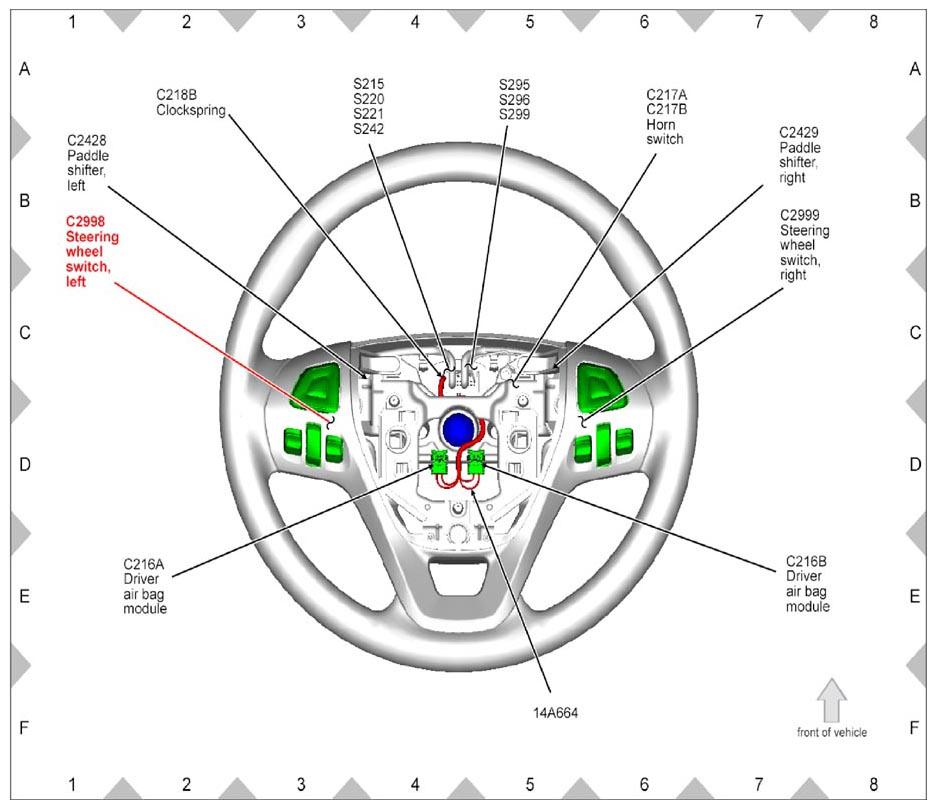

Fig 320: Identifying Steering Wheel Switch, Left Connector (C2998)

G09253793

Courtesy of FORD MOTOR CO.

Fig 321: Identifying Steering Wheel Switch, Right Connector (C2999)

G09253794

Courtesy of FORD MOTOR CO.

Fig 322: Identifying Seat Backrest Thermo-Electric Device, Driver Side Connector (C3034)

G09253795

Courtesy of FORD MOTOR CO.

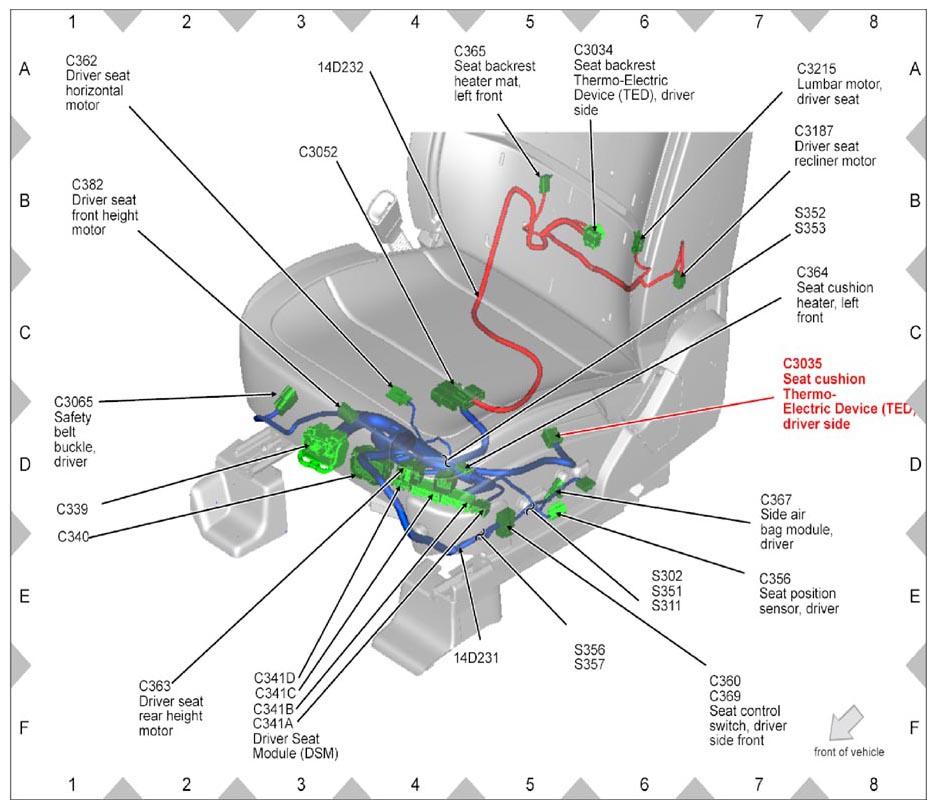

Fig 323: Identifying Seat Cushion Thermo-Electric Device, Driver Side Connector (C3025)

G09253796

Courtesy of FORD MOTOR CO.

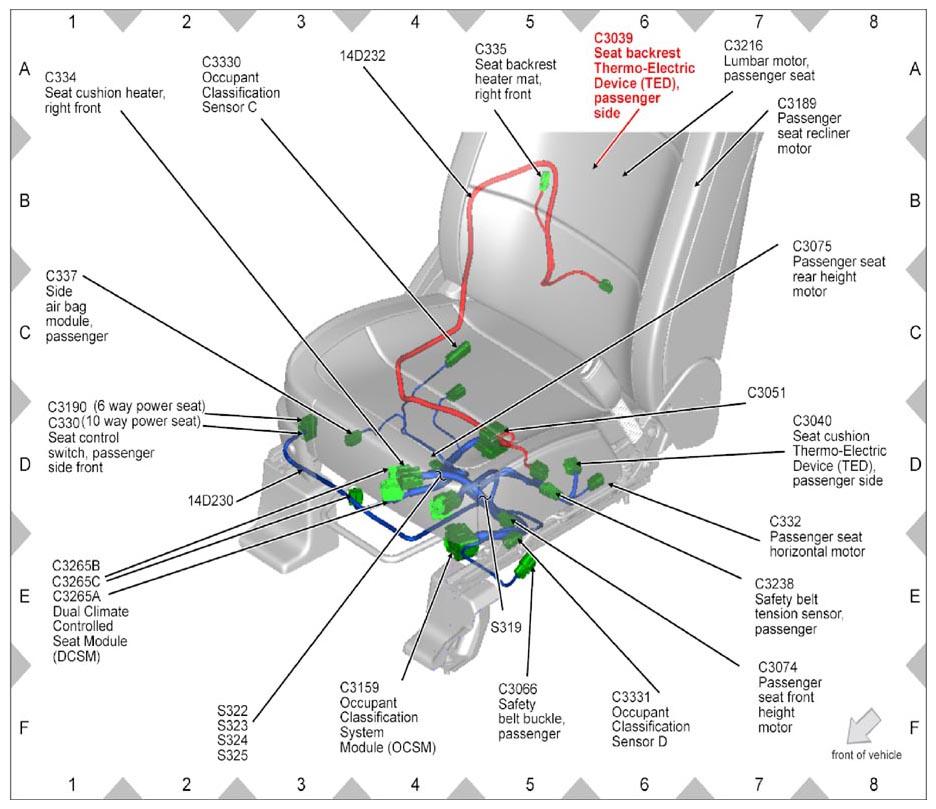

Fig 324: Identifying Seat Backrest Thermo-Electric Device, Passenger Side Connector (C3039)

G09253797

Courtesy of FORD MOTOR CO.

Fig 325: Identifying Seat Cushion Thermo-Electric Device, Passenger Side Connector (C3040)

G09253798

Courtesy of FORD MOTOR CO.

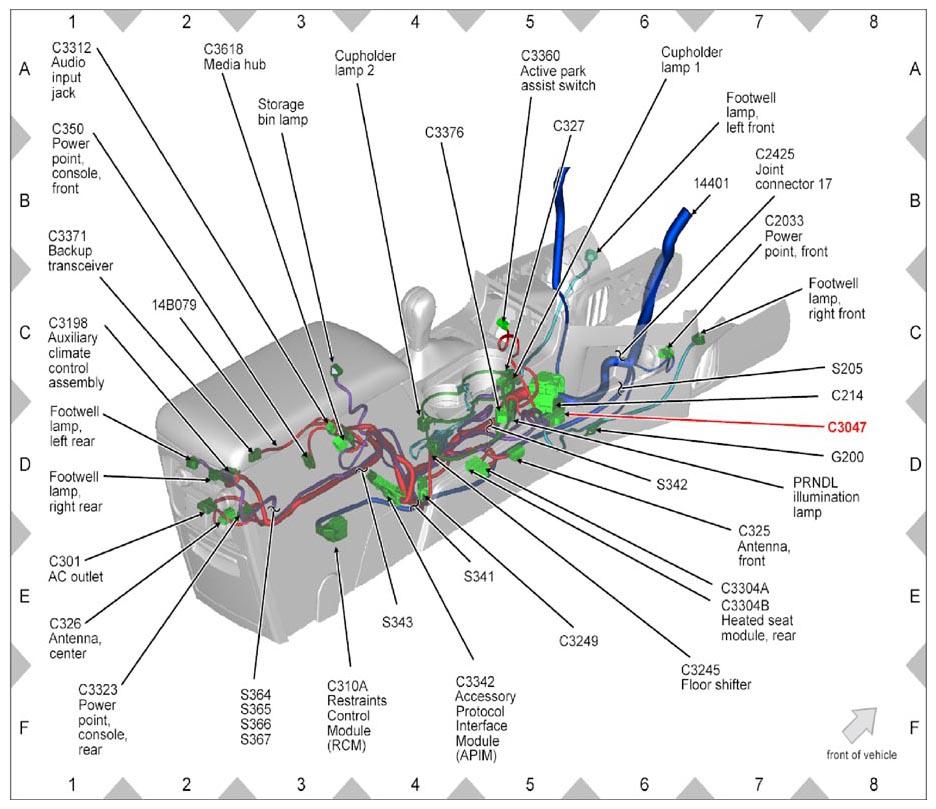

Fig 326: Identifying Connector C3047

G09253799

Courtesy of FORD MOTOR CO.

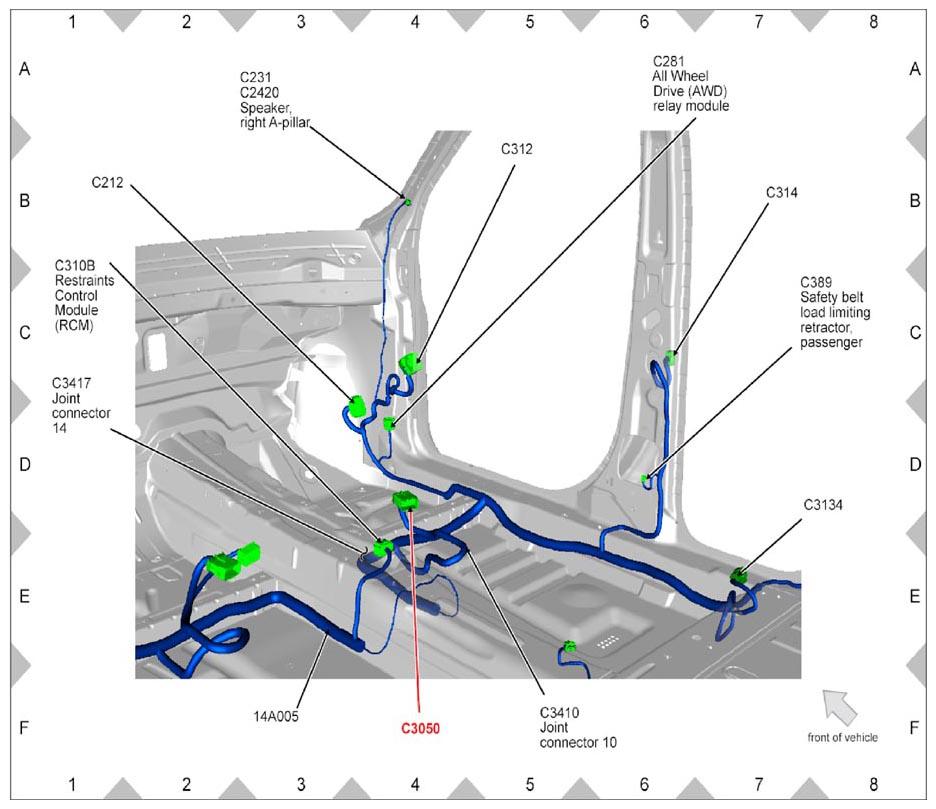

Fig 327: Identifying Connector (C3050)

G09253800

Courtesy of FORD MOTOR CO.

Fig 328: Identifying Connector (C3051)

G09253801

Courtesy of FORD MOTOR CO.

Fig 329: Identifying Connector (C3052)

G09253802

Courtesy of FORD MOTOR CO.

Fig 330: Identifying Safety Belt Buckle, Driver Connector (C3065)

G09253803

Courtesy of FORD MOTOR CO.

Fig 331: Identifying Safety Belt Buckle, Passenger Connector (C3066)

G09253804

Courtesy of FORD MOTOR CO.

Fig 332: Identifying Passenger Seat Front Height Motor Connector (C3074)

G09253805

Courtesy of FORD MOTOR CO.

Fig 333: Identifying Passenger Seat Rear Height Motor Connector (C3075)

G09253806

Courtesy of FORD MOTOR CO.

Fig 334: Identifying Wheel Speed Sensor, Right Rear Connector (C3116)

G09253807

Courtesy of FORD MOTOR CO.

Fig 335: Identifying Wheel Speed Sensor, Left Rear Connector (C3117)

G09253808

Courtesy of FORD MOTOR CO.

Fig 336: Identifying Fuel Tank Pressure Sensor Connector (C3123)

G09253809

Courtesy of FORD MOTOR CO.

Fig 337: Identifying Fuel Pump Assembly Connector (C3127)

G09253810

Courtesy of FORD MOTOR CO.

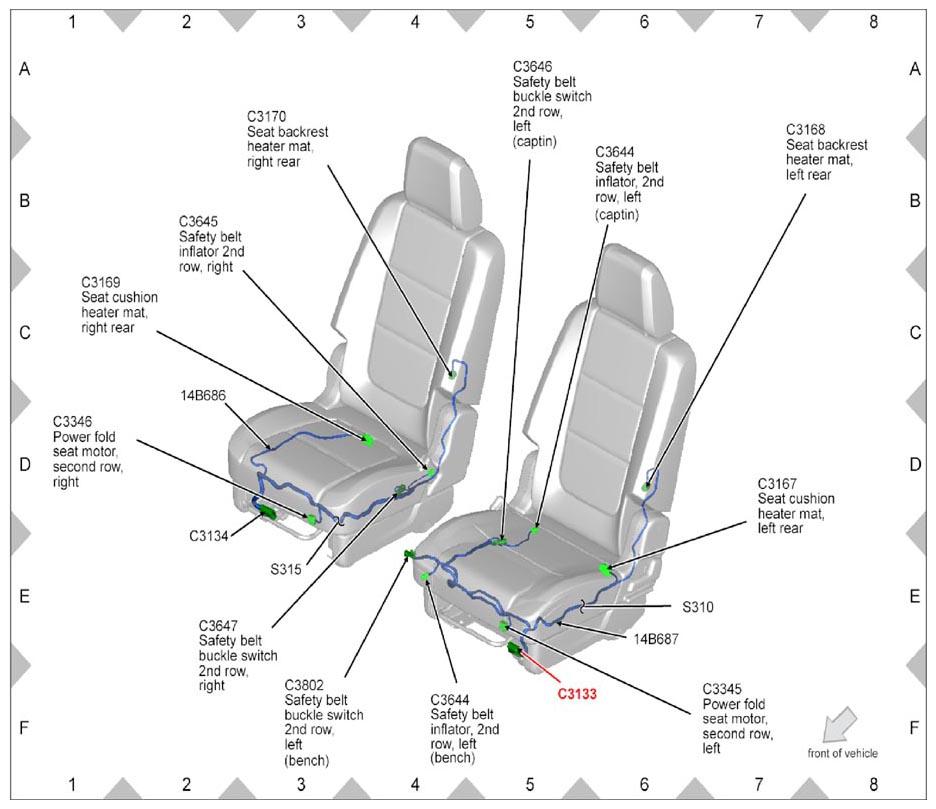

Fig 338: Identifying Connector (C3133)

G09253811

Courtesy of FORD MOTOR CO.

Fig 339: Identifying Connector (C3134)

G09253812

Courtesy of FORD MOTOR CO.

Fig 340: Identifying Connector (C3138)

G09253813

Courtesy of FORD MOTOR CO.

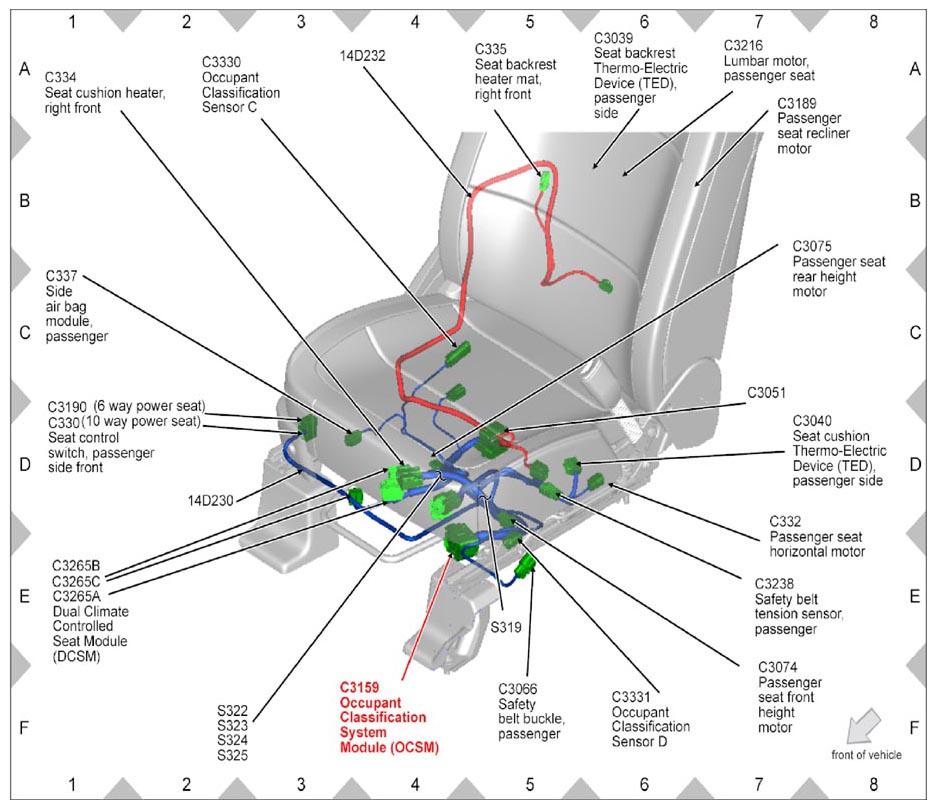

Fig 341: Identifying Occupant Classification System Module Connector (C3159)

G09253814

Courtesy of FORD MOTOR CO.

Fig 342: Identifying Seat Cushion Heater Mat, Left Rear Connector (C3167)

G09253815

Courtesy of FORD MOTOR CO.

Fig 343: Identifying Seat Backrest Heater Mat, Left Rear Connector (C3168)

G09253816

Courtesy of FORD MOTOR CO.

Fig 344: Identifying Seat Cushion Heater Mat, Right Rear Connector (C3169)

G09253817

Courtesy of FORD MOTOR CO.

Fig 345: Identifying Seat Backrest Heater Mat, Right Rear Connector (C3170)

G09253818

Courtesy of FORD MOTOR CO.

Fig 346: Identifying Driver Seat Recliner Motor Connector (C3186)

G09253819

Courtesy of FORD MOTOR CO.

Fig 347: Identifying Passenger Seat Recliner Motor Connector (C3189)

G09253820

Courtesy of FORD MOTOR CO.

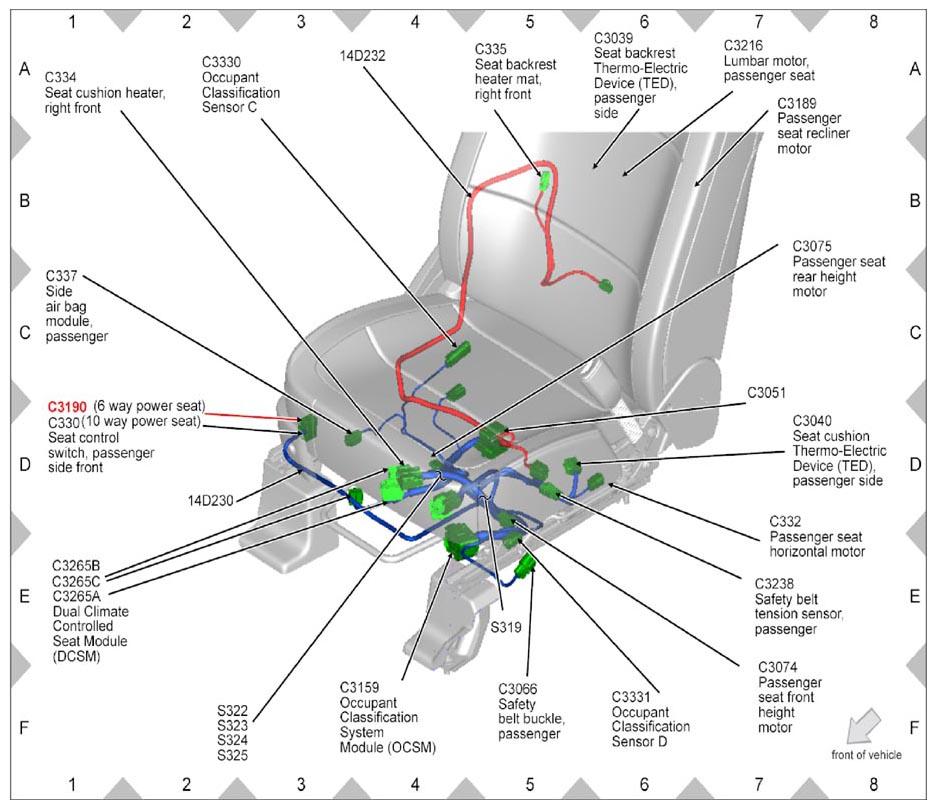

Fig 348: Identifying Passenger Seat, Seat Control Switch Connector (C3190)

G09253821

Courtesy of FORD MOTOR CO.

Fig 349: Identifying Auxiliary Climate Control Assembly Connector (C3198)

G09253822

Courtesy of FORD MOTOR CO.

Fig 350: Identifying Side Impact Sensor, LH Side Second Row (C3210)

G09253823

Courtesy of FORD MOTOR CO.

Fig 351: Identifying Side Impact Sensor, RH Side Second Row Connector (C3212)

G09253824

Courtesy of FORD MOTOR CO.

Fig 352: Identifying Lumbar Motor Driver Seat Connector (C3215)

G09253825

Courtesy of FORD MOTOR CO.

Fig 353: Identifying Lumbar Motor, Passenger Seat Connector (C3216)

G09253826

Courtesy of FORD MOTOR CO.

Fig 354: Identifying Safety Belt Tension Sensor, Passenger Connector (C3238)

G09253827

Courtesy of FORD MOTOR CO.

Fig 355: Identifying Floor Shifter Connector (C3245)

G09253828

Courtesy of FORD MOTOR CO.

Fig 356: Identifying Connector (C3249)

G09253829

Courtesy of FORD MOTOR CO.

Fig 357: Identifying Dual Climate Controlled Seat Module Connector (C3265A)

G09253830

Courtesy of FORD MOTOR CO.

Fig 358: Identifying Dual Climate Controlled Seat Module Connector (C3265B)

G09253831

Courtesy of FORD MOTOR CO.

Fig 359: Identifying Dual Climate Controlled Seat Module Connector (C3265C)

G09253832

Courtesy of FORD MOTOR CO.

Fig 360: Identifying Fuel Tank Level Sensor Connector (C3270)

G09253833

Courtesy of FORD MOTOR CO.

Fig 361: Identifying Heated Seat Module, Rear Connector (C3304A)

G09253834

Courtesy of FORD MOTOR CO.

Fig 362: Identifying Heated Seat Module, Rear Connector (C3304B)

G09253835

Courtesy of FORD MOTOR CO.

Fig 363: Identifying Audio Input Jack Connector (C3312)

G09253836

Courtesy of FORD MOTOR CO.

Fig 364: Identifying Power Point, Console, Rear Connector (C3323)

G09253837

Courtesy of FORD MOTOR CO.

Fig 365: Identifying Occupant Classification Sensor C Connector (C3330)

G09253838

Courtesy of FORD MOTOR CO.

Fig 366: Identifying Occupant Classification Sensor D Connector (C3331)

G09253839

Courtesy of FORD MOTOR CO.

Fig 367: Identifying Accessory Protocol Interface Module Connector (C3342)

G09253840

Courtesy of FORD MOTOR CO.

Fig 368: Identifying Seat Control Switch, Second Row, Left Connector (C3343)

G09253841

Courtesy of FORD MOTOR CO.

Fig 369: Identifying Seat Control Switch, Second Row, Right Connector (C3344)

G09253842

Courtesy of FORD MOTOR CO.

Fig 370: Identifying Power Fold Seat Motor, Second Row, Left Connector (C3345)

G09253843

Courtesy of FORD MOTOR CO.

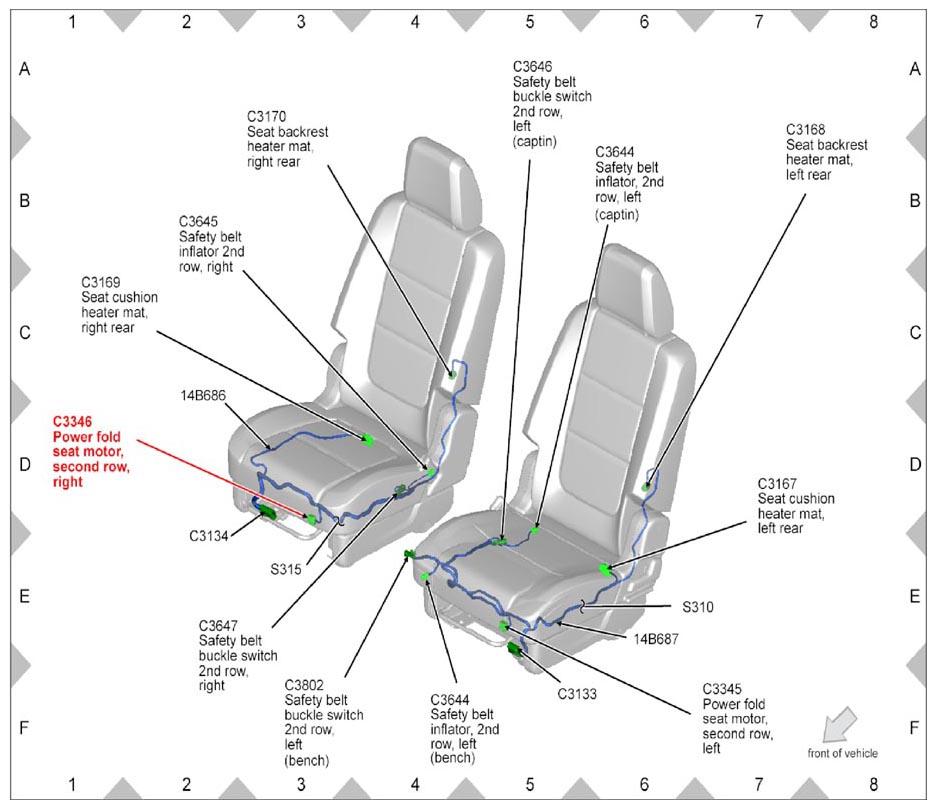

Fig 371: Identifying Power Fold Seat Motor, Second Row, Right Connector (C3346)

G09253844

Courtesy of FORD MOTOR CO.

Fig 372: Identifying Active Torque Control Coupling Solenoid Connector (C3347)

G09253845

Courtesy of FORD MOTOR CO.

Fig 373: Identifying Fuel Vapor Vent Valve Connector (C3355)

G09253846

Courtesy of FORD MOTOR CO.

Fig 374: Identifying Active Park Assist Switch Connector (C3360)

G09253847

Courtesy of FORD MOTOR CO.

Fig 375: Identifying Backup Transceiver Connector (C3371)

G09253848

Courtesy of FORD MOTOR CO.

Fig 376: Identifying Connector (C3376)

G09253849

Courtesy of FORD MOTOR CO.

Fig 377: Identifying Joint Connector 2 (C3402)

G09253850

Courtesy of FORD MOTOR CO.

Fig 378: Identifying Joint Connector 3 (C3403)

G09253851

Courtesy of FORD MOTOR CO.

Fig 379: Identifying Joint Connector 4 (C33404)

G09253852

Courtesy of FORD MOTOR CO.

Fig 380: Identifying Joint Connector 8 (C3408)

G09253853

Courtesy of FORD MOTOR CO.

Fig 381: Identifying Joint Connector 10 (C3410)

G09253854

Courtesy of FORD MOTOR CO.

Fig 382: Identifying Refrigerator Connector (C3415)

G09253855

Courtesy of FORD MOTOR CO.

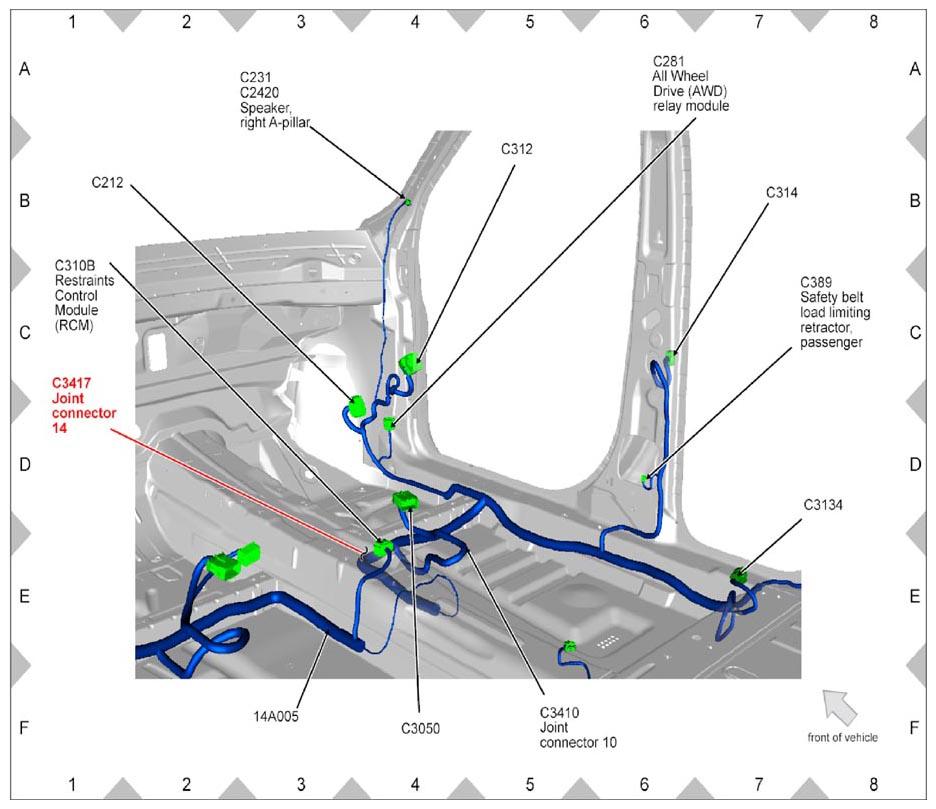

Fig 383: Identifying Joint Connector 14 (C3417)

G09253856

Courtesy of FORD MOTOR CO.

Fig 384: Identifying Joint Connector 19 (C3419)

G09253857

Courtesy of FORD MOTOR CO.

Fig 385: Identifying Joint Connector 20 (C3420)

G09253858

Courtesy of FORD MOTOR CO.

Fig 386: Identifying Joint Connector 21 (C3421)

G09253859

Courtesy of FORD MOTOR CO.

Fig 387: Identifying Joint Connector 23 (C3423)

G09253860

Courtesy of FORD MOTOR CO.

Fig 388: Identifying Refrigerator Switch Connector (C3428)

G09253861

Courtesy of FORD MOTOR CO.

Fig 389: Identifying EVAP Canister vent Valve Connector (C3433)

G09253862

Courtesy of FORD MOTOR CO.

Fig 390: Identifying Media Hub Connector (C3618)

G09253863

Courtesy of FORD MOTOR CO.

Fig 391: Identifying Safety Belt Inflator, 2nd Row, Left Connector (C3644)

G09253864

Courtesy of FORD MOTOR CO.

Fig 392: Identifying Safety Belt Inflator 2nd Row, Right Connector (C3645)

G09253865

Courtesy of FORD MOTOR CO.

Fig 393: Identifying Safety Belt Buckle Switch 2nd Row, Left Connector (C3646)

G09253866

Courtesy of FORD MOTOR CO.

Fig 394: Identifying Safety Belt Buckle Switch 2nd Row, Right Connector (C3647)

G09253867

Courtesy of FORD MOTOR CO.

Fig 395: Identifying Safety Belt Buckle Switch 2nd Row, Left Connector (C3902)

G09253868

Courtesy of FORD MOTOR CO.

Fig 396: Identifying Parking Aid Sensor, Outer Left Connector (C4009)

G09253869

Courtesy of FORD MOTOR CO.

Fig 397: Identifying Parking Aid Sensor, Inner Left Connector (C4010)

G09253870

Courtesy of FORD MOTOR CO.

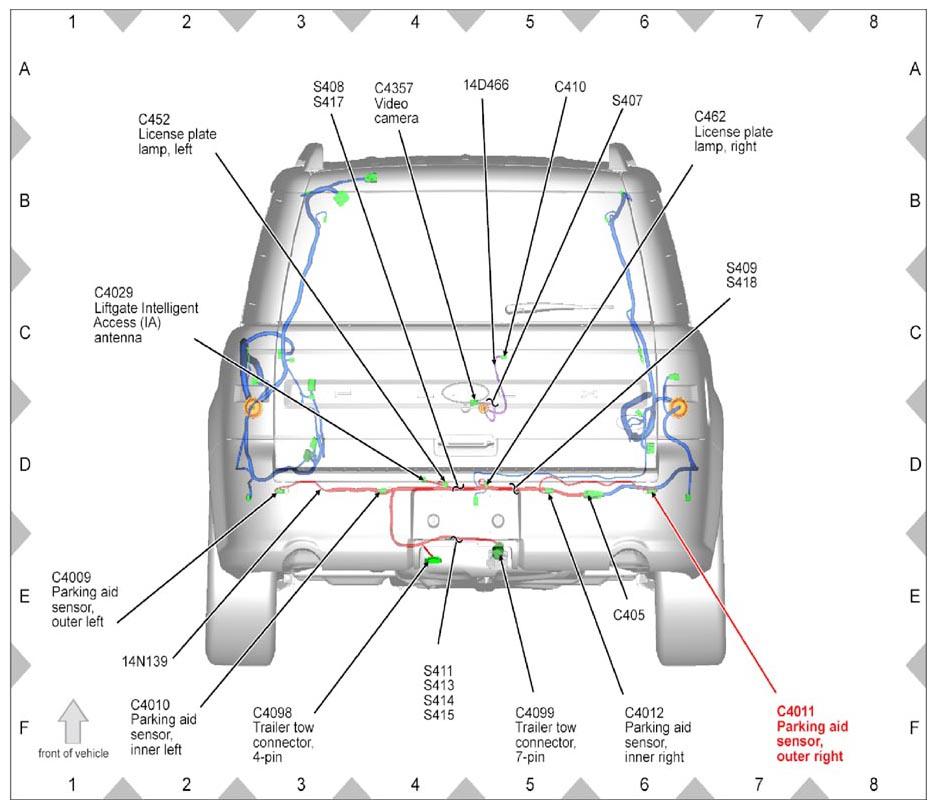

Fig 398: Identifying Parking Aid Sensor, Outer Right Connector (C4011)

G09253871

Courtesy of FORD MOTOR CO.

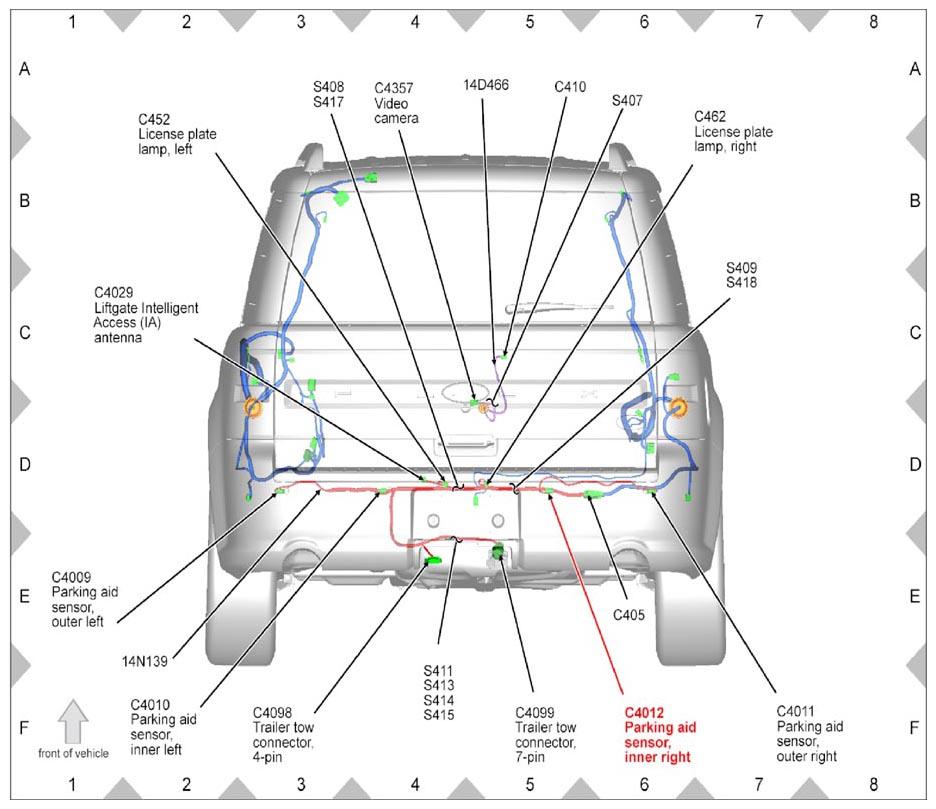

Fig 399: Identifying Parking Aid Sensor, Inner Right Connector (C4012)

G09253872

Courtesy of FORD MOTOR CO.

Fig 400: Identifying Parking Aid Module Connector (C4014)

G09253873

Courtesy of FORD MOTOR CO.

Fig 401: Identifying Parking Aid Speaker Connector (C4015)

G09253874

Courtesy of FORD MOTOR CO.

Fig 402: Identifying Liftgate Intelligent Access Antenna Connector (C4029)

G09253875

Courtesy of FORD MOTOR CO.

Fig 403: Identifying Fuel Pump Control Module Connector (C4033)

G09253876

Courtesy of FORD MOTOR CO.

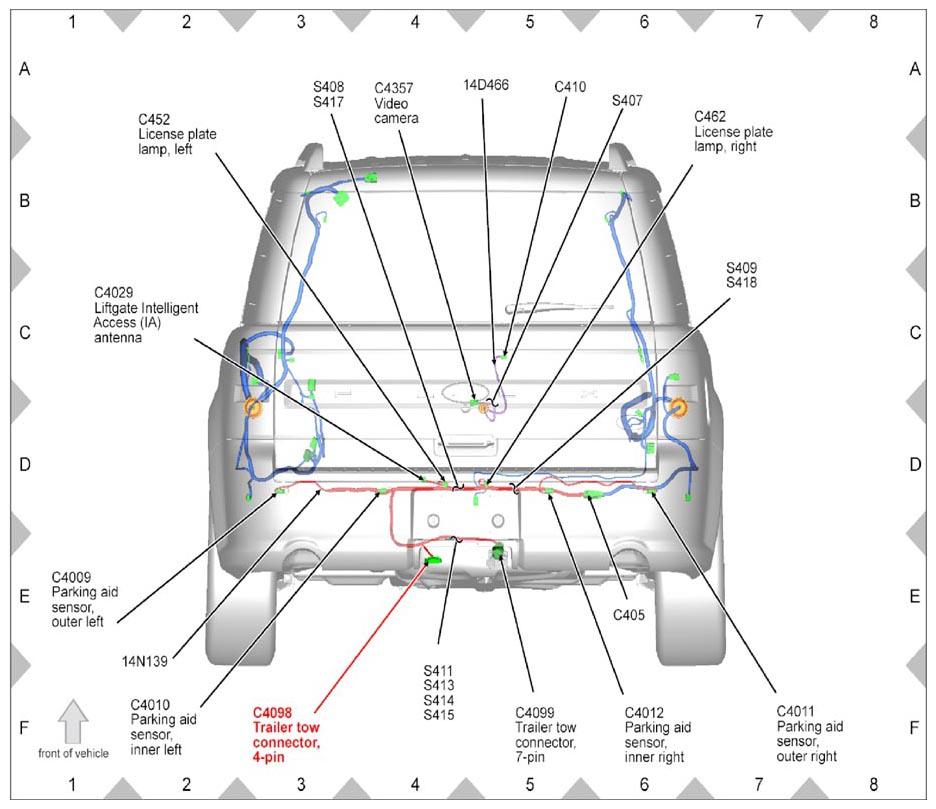

Fig 404: Identifying Trailer Tow Connector 4-Pin Connector (C4098)

G09253877

Courtesy of FORD MOTOR CO.

Fig 405: Identifying Trailer Tow Connector, 7-Pin Connector (C4099)

G09253878

Courtesy of FORD MOTOR CO.

Fig 406: Identifying Auxiliary Blower Motor Connector (C4106)

G09253879

Courtesy of FORD MOTOR CO.

Fig 407: Identifying Joint Connector 9 (C4134)

G09253880

Courtesy of FORD MOTOR CO.

Fig 408: Identifying Liftgate Obstacle Detection Strip, Left Connector (C4172)

G09253881

Courtesy of FORD MOTOR CO.

Fig 409: Identifying Liftgate Obstacle Detection Strip, Right Connector (C4173)

G09253882

Courtesy of FORD MOTOR CO.

Fig 410: Identifying Liftgate/Trunk Module Connector (C4174A)

G09253883

Courtesy of FORD MOTOR CO.

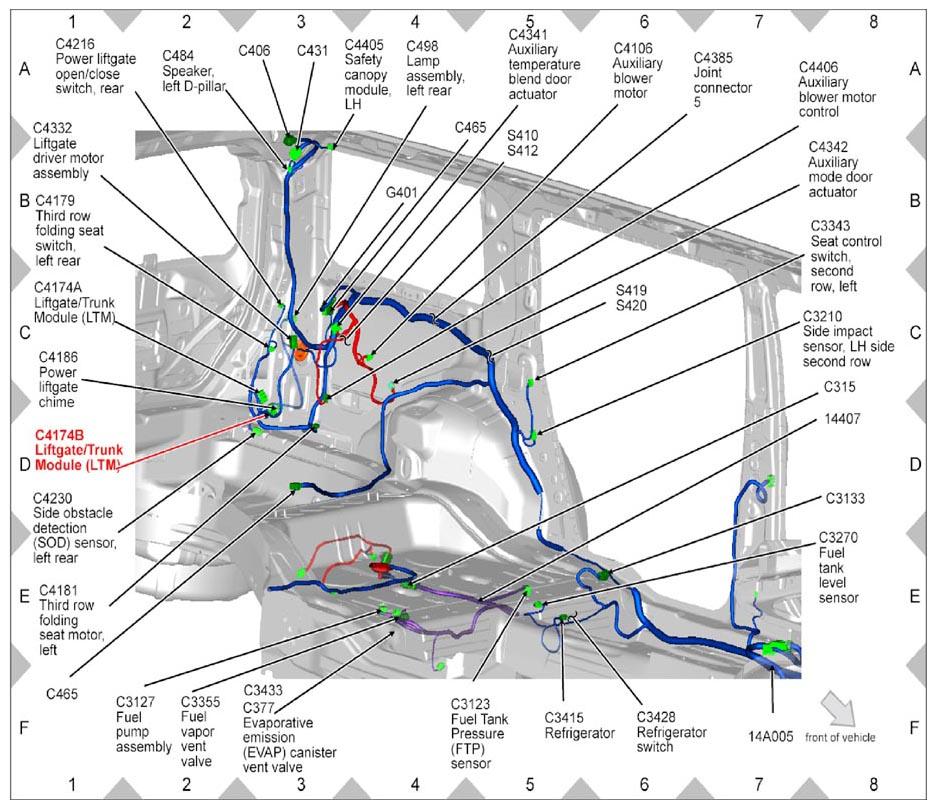

Fig 411: Identifying Liftgate/Trunk Module Connector (C4174B)

G09253884

Courtesy of FORD MOTOR CO.

Fig 412: Identifying Third Row Folding Seat Switch, Left Rear Connector (C4179)

G09253885

Courtesy of FORD MOTOR CO.

Fig 413: Identifying Third Row Folding Seat Motor Left Connector (C4181)

G09253886

Courtesy of FORD MOTOR CO.

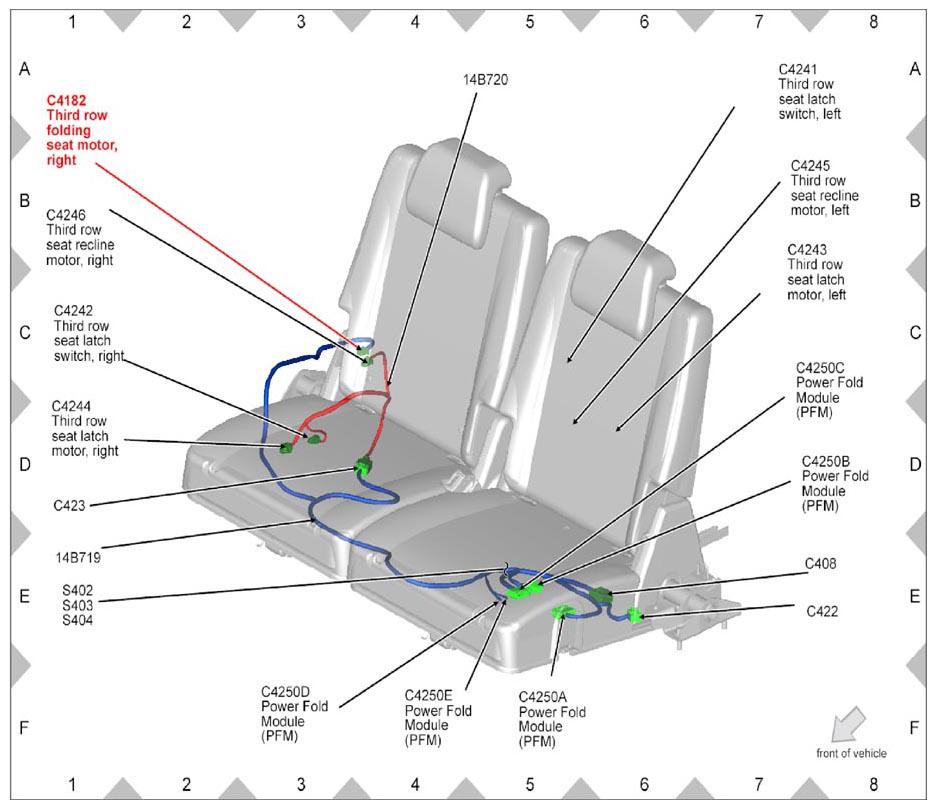

Fig 414: Identifying Third Row Folding Seat Motor, Right Connector (C4182)

G09253887

Courtesy of FORD MOTOR CO.

Fig 415: Identifying Liftgate Latch Assembly Connector (C4185)

G09253888

Courtesy of FORD MOTOR CO.

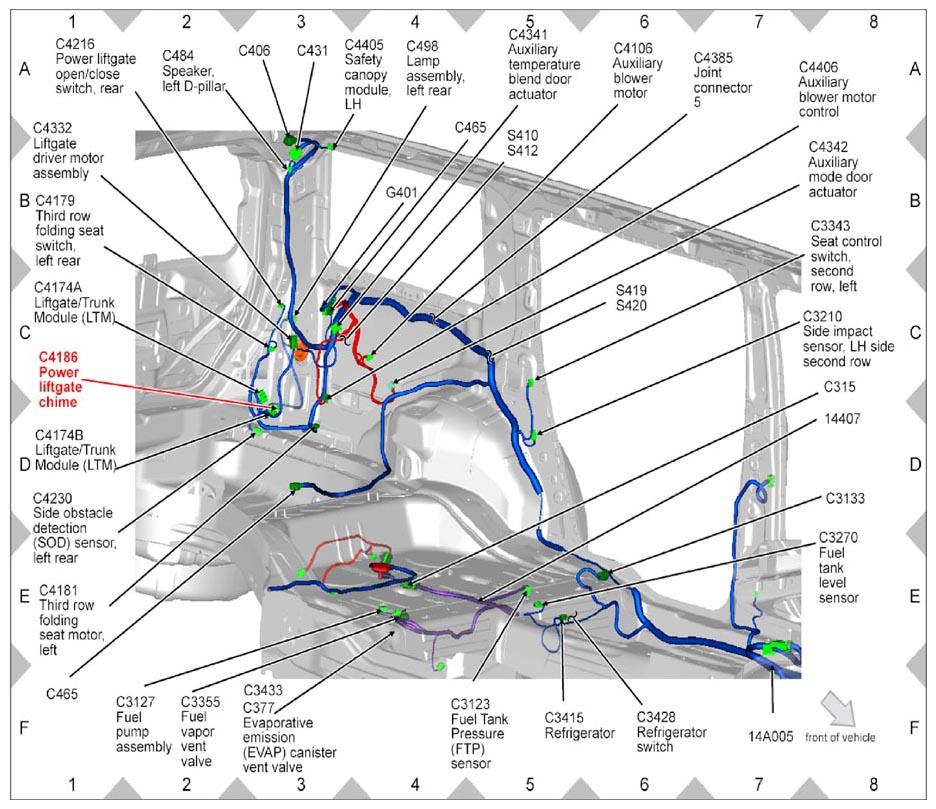

Fig 416: Identifying Power Liftgate Chime Connector (C4186)

G09253889

Courtesy of FORD MOTOR CO.

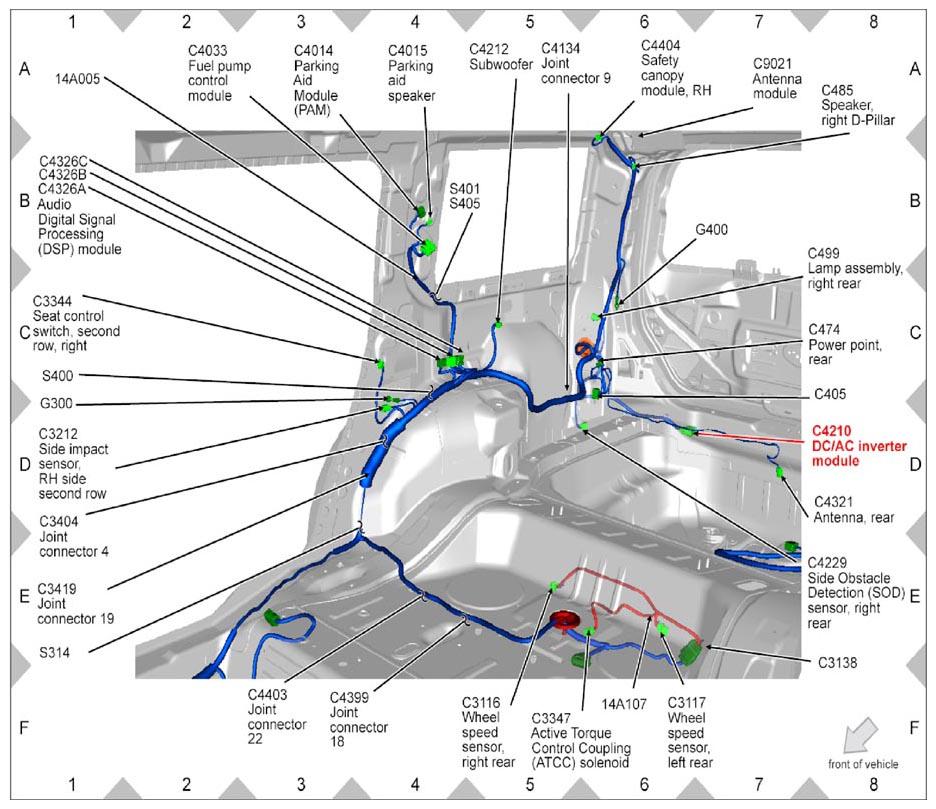

Fig 417: Identifying DC/AC Inverter Module Connector (C4210)

G09253890

Courtesy of FORD MOTOR CO.

Fig 418: Identifying Subwoofer Connector (C4212)

G09253891

Courtesy of FORD MOTOR CO.

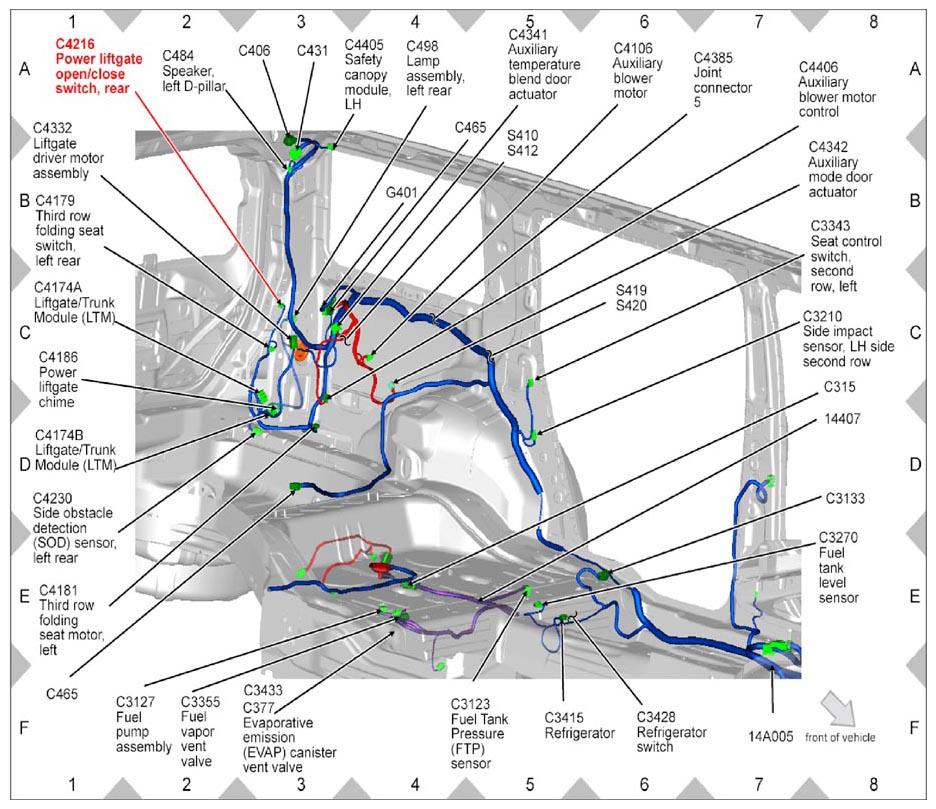

Fig 419: Identifying Power Liftgate Open/Close Switch, Rear Connector (C4216)

G09253892

Courtesy of FORD MOTOR CO.

Fig 420: Identifying Side Obstacle Detection Sensor, Right Rear Connector (C4229)

G09253893

Courtesy of FORD MOTOR CO.

Fig 421: Identifying Side Obstacle Detection Sensor, Left Rear Connector (C4230)

G09253894

Courtesy of FORD MOTOR CO.

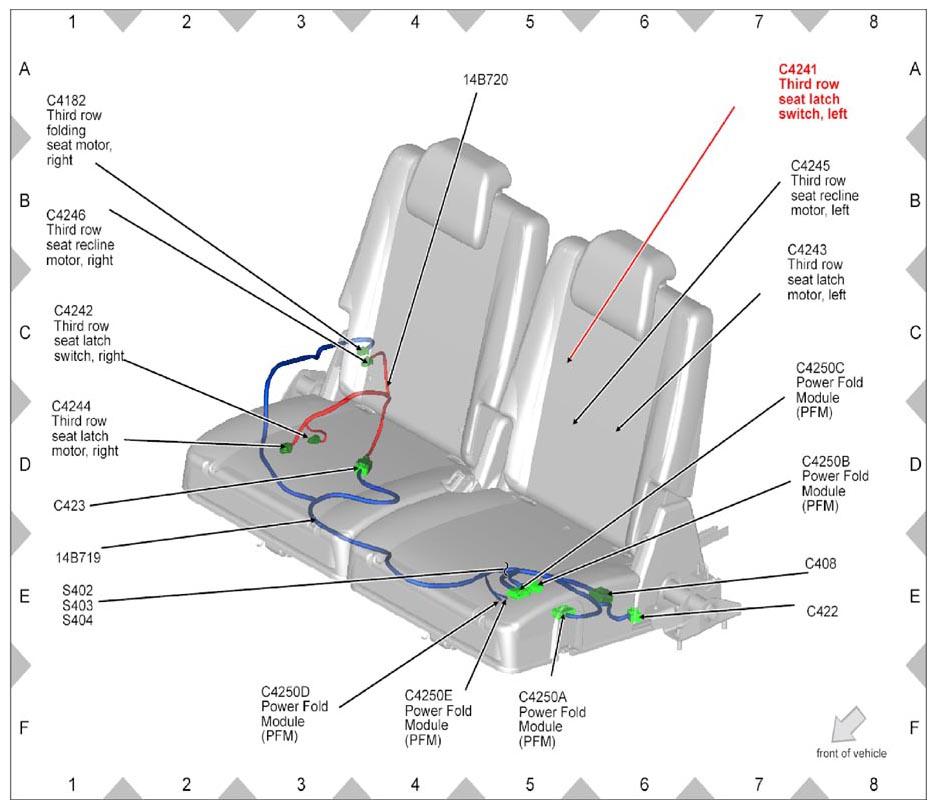

Fig 422: Identifying Third Row Seat, Latch Switch, Left (C4241)

G09253895

Courtesy of FORD MOTOR CO.

Fig 423: Identifying Third Row Seat Latch Switch, Right Connector (C4242)

G09253896

Courtesy of FORD MOTOR CO.

Fig 424: Identifying Third Row Seat Latch Motor, Left Connector (C4243)

G09253897

Courtesy of FORD MOTOR CO.

Fig 425: Identifying Third Row Seat Latch Motor, Right Connector (C4244)

G09253898

Courtesy of FORD MOTOR CO.

Fig 426: Identifying Third Row Seat Recline Motor, Left Connector (C4245)

G09253899

Courtesy of FORD MOTOR CO.

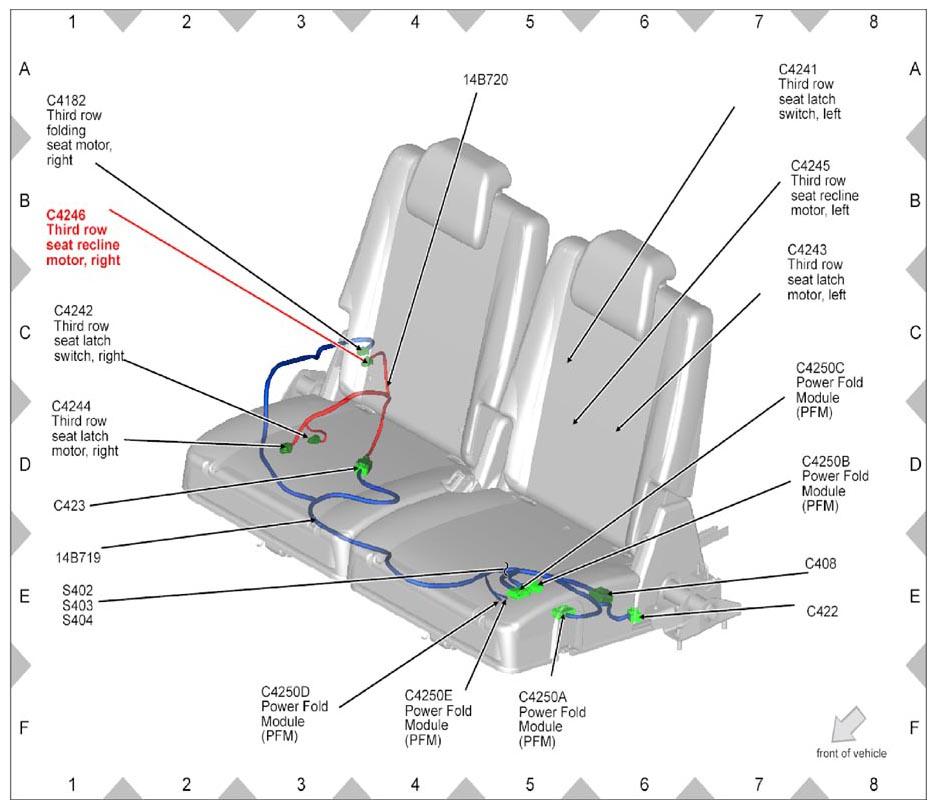

Fig 427: Identifying Third Row Seat Recline Motor, Right Connector (C4246)

G09253900

Courtesy of FORD MOTOR CO.

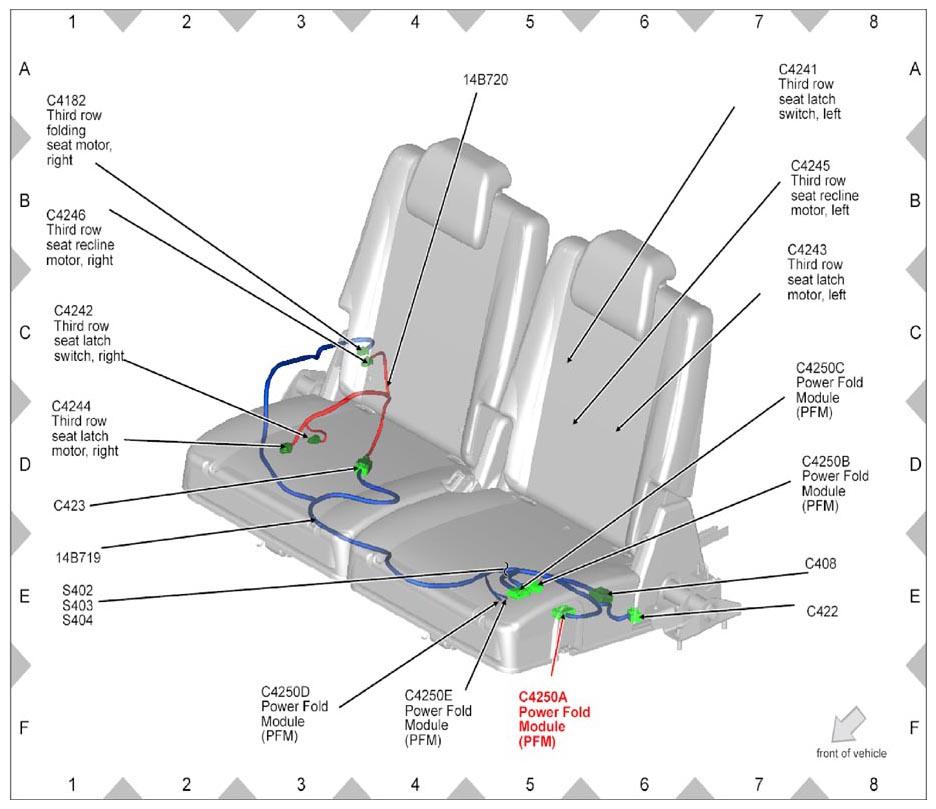

Fig 428: Identifying Power Fold Module Connector (C4250A)

G09253901

Courtesy of FORD MOTOR CO.

Fig 429: Identifying Power Fold Module Connector (C4250B)

G09253902

Courtesy of FORD MOTOR CO.

Fig 430: Identifying Power Fold Module Connector (C4250)

G09253903

Courtesy of FORD MOTOR CO.

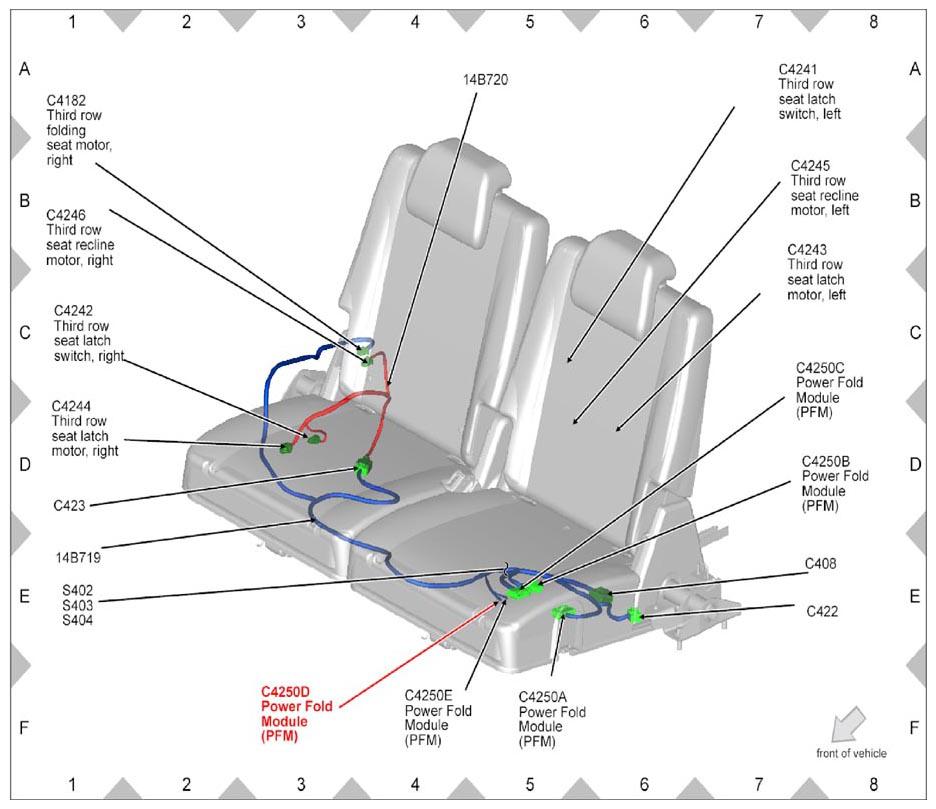

Fig 431: Identifying Power Fold Module Connector (C4250D)

G09253904

Courtesy of FORD MOTOR CO.

Fig 432: Identifying Power Fold Module Connector (C4250E)

G09253905

Courtesy of FORD MOTOR CO.

Fig 433: Identifying Antenna, Rear Connector (C4321)

G09253906

Courtesy of FORD MOTOR CO.

Fig 434: Identifying Audio Digital Signal Processing Module Connector (C4226A)

G09253907

Courtesy of FORD MOTOR CO.

Fig 435: dentifying Audio Digital Signal Processing Module Connector (C4326B)

G09253908

Courtesy of FORD MOTOR CO.

Fig 436: dentifying Audio Digital Signal Processing Module Connector (C4326C)

G09253909

Courtesy of FORD MOTOR CO.

Fig 437: Identifying Liftgate Driver Motor Assembly Connector (C4332)

G09253910

Courtesy of FORD MOTOR CO.

Fig 438: Identifying Liftgate Latch/Unlatch Assembly Connector (C4349)

G09253911

Courtesy of FORD MOTOR CO.

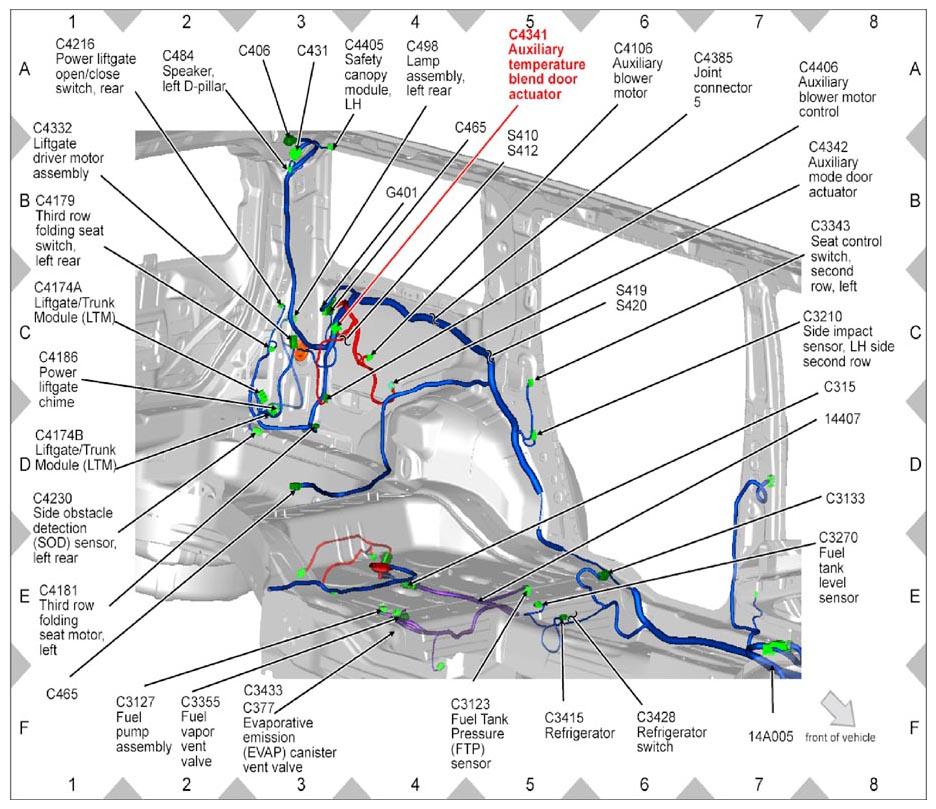

Fig 439: Identifying Auxiliary Temperature Blend Door Actuator Connector (C4341)

G09253912

Courtesy of FORD MOTOR CO.

Fig 440: Identifying Auxiliary Mode Door Actuator Connector (C4342)

G09253913

Courtesy of FORD MOTOR CO.

Fig 441: Identifying Liftgate Release Switch Connector (C4353)

G09253914

Courtesy of FORD MOTOR CO.

Fig 442: Identifying Video Camera Connector (C4357)

G09253915

Courtesy of FORD MOTOR CO.

Fig 443: Identifying Joint Connector 5 (C4385)

G09253916

Courtesy of FORD MOTOR CO.

Fig 444: Identifying Joint Connector 18 (C4399)

G09253917

Courtesy of FORD MOTOR CO.

Fig 445: Identifying Joint Connector 22 (C4403)

G09253918

Courtesy of FORD MOTOR CO.

Fig 446: Identifying Safety Canopy Module, RH Connector (C4404)

G09253919

Courtesy of FORD MOTOR CO.

Fig 447: Identifying Safety Canopy Module, LH Connector (C4405)

G09253920

Courtesy of FORD MOTOR CO.

Fig 448: Identifying Auxiliary Blower Motor Control Connector (C4406)

G09253921

Courtesy of FORD MOTOR CO.

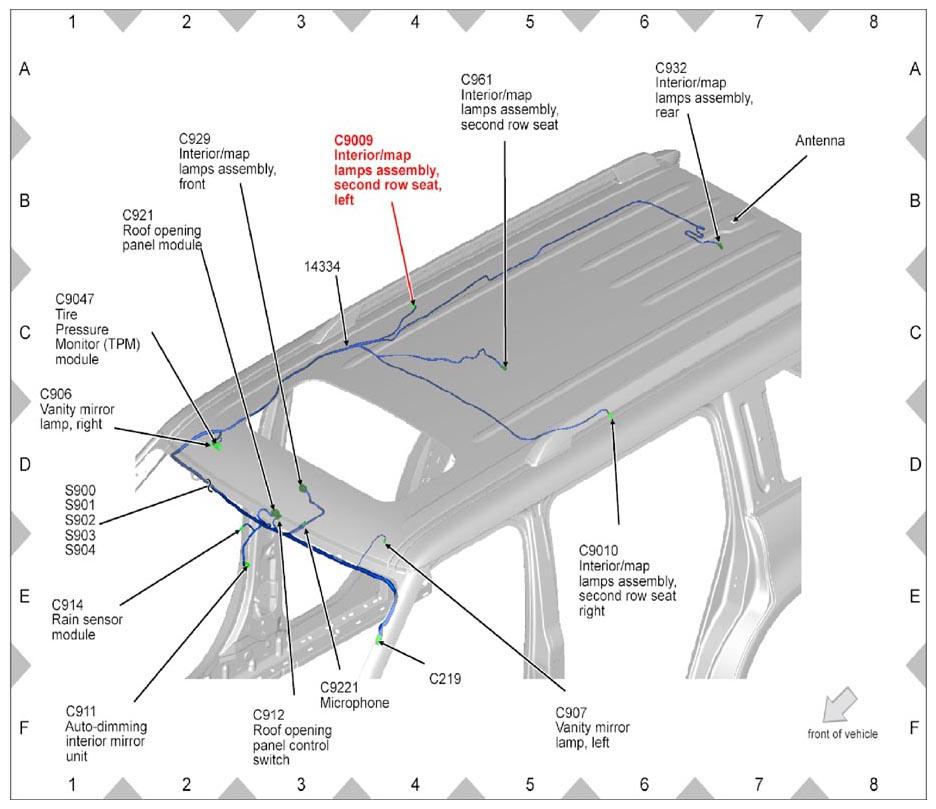

Fig 449: Identifying Interior/Map Lamps Assembly, Second Row Seat, Left Connector (C9009)

G09253922

Courtesy of FORD MOTOR CO.

Fig 450: Identifying Interior/Map Lamps Assembly Second Row Seat Right Connector (C9010)

G09253923

Courtesy of FORD MOTOR CO.

Fig 451: Identifying Antenna Module Connector (C9021)

G09253924

Courtesy of FORD MOTOR CO.

Fig 452: Identifying Tire Pressure Monitor Module Connector (C9047)

G09253925

Courtesy of FORD MOTOR CO.

Fig 453: Identifying Microphone Connector (C9221)

G09253926

Courtesy of FORD MOTOR CO.
